Home / 12Gb / Dell PERC 10 H345 12Gb SAS RAID Controller FH | 9DYP8
SKU: 9DYP8 FH

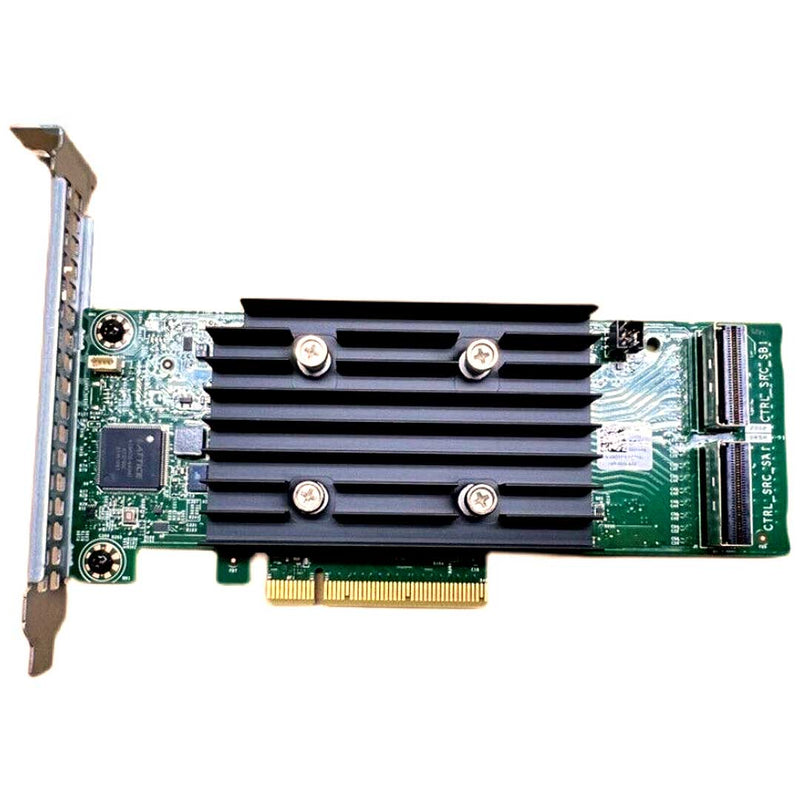

Dell PERC 10 H345 12Gb SAS RAID Controller FH | 9DYP8

Dell

| Adapter
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Adapter Specs
  • Models: Drive Types
  • Drive Types: 12 Gb/s SAS, 6 Gb/s SAS/SATA, 3 Gb/s SAS/SATA
  • PCI Support: PCI-e 3.0
  • SAS Connectors: 2x8 External
  • Cache Memory: No Cache
  • Write Back Cache: No Cache
  • RAID Levels: 0, 1, 10
  • Max Drive Support: 63
  • RAID Support: Hardware

Part Number:

  • fPERC: FW25F
  • PCIe: 9DYP8

The Dell PERC 10 H345 12Gb SAS RAID Controller FH offers dependable RAID functionality for external storage environments needing SAS and SATA drive compatibility. Built on PCI-e 3.0 architecture, it connects through a 2x8 external SAS interface to deliver high-speed, reliable data access.

Supporting RAID levels 0, 1, and 10, the H345 manages up to 63 drives without the need for onboard cache. This full-height controller provides a scalable, hardware-based storage solution for enterprise systems that require performance, flexibility, and streamlined RAID management.

Summary of RAID levels

Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:

  • RAID 0: Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.
  • RAID 1: Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.
  • RAID 5: Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.
  • RAID 6: Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.
  • RAID 10: Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.
  • RAID 50: Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.
  • RAID 60: Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.
Compatible With:
  • Dell R350
  • Dell T350

(Click to View)

Spec Sheet 4

Models Drive Types PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H840 Adapter FH 12 Gb/s SAS
6 Gb/s SATA		 PCIe 3.1 2x4 External 8 GB NV Flash Backed Cache 0,1,5,6,10,50,60 255 Hardware
H840 Adapter LP
H745P MX Adapter 12 Gb/s SAS
6 Gb/s SATA/SAS
3 Gb/s SATA		 PCIe 3 Modular Enclosure 8 GB NV Flash Backed Cache 0,1,5,6,10,50,60 - Hardware
H740P FH 12 Gb/s SAS
6 Gb/s SATA		 PCIe 3.1 2x4 External 8 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H740P LP
H740P Mini Mono 12 Gb/s SAS
6 Gb/s SATA		 PCIe 3.1 2x4 External 8 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
S150 Software RAID 6 Gb/s SATA/NVMe PCIe N/A No Cache No Cache 0,1,5,10 30* Software RAID Windows and Linux
S140 Software RAID 6 Gb/s SATA/NVMe N/A N/A No Cache No Cache 0,1,5,10 16* Software RAID Windows and Linux
12 Gbps SAS Ext. HBA 12 Gb/s SAS PCIe 3.0 2x4 External No Cache No Cache No RAID Pass-Thru Only 255 No RAID Pass-Thru Only
H745 Adapter 12 Gb/s SAS
6 Gb/s SATA/SAS
3 Gb/s SATA		 PCIe 3 2x8 Internal 4 GB NV Flash Backed Cache 0,1,5,6,10,50,60 240 Hardware
H745 Front 12 Gb/s SAS
6 Gb/s SATA/SAS
3 Gb/s SATA		 PCIe 3 2x8 Internal 4 GB NV Flash Backed Cache 0,1,5,6,10,50,60 240 Hardware
H345 FH 12 Gb/s SAS
6 Gb/s SATA/SAS
3 Gb/s SATA		 PCIe 3 2x8 Internal No Cache No Cache 0,1,10 63 Hardware
H345 LP
H345 Front 12 Gb/s SAS
6 Gb/s SATA/SAS
3 Gb/s SATA		 PCIe 3 2x8 Internal No Cache No Cache 0,1,10 63 Hardware
*The S150 controller supports up to 8 SATA disks (HDD and SSD) depending on system backplane configuration, supports up to 30 NVMe PCIe SSDs.
*The S140 controller supports up to 16 physical disks (SATA + NVMe) depending on system backplane configuration except the PowerEdge R840 and PowerEdge R940xa supports up to 30 (SATA + NVMe).
