Dell PowerVault MD3600i 12x3.5" 10GBASE-T iSCSI SAN Storage Array CTO

Name: Dell PowerVault MD3600i 12x3.5" 10GBASE-T iSCSI SAN Storage Array CTO
Brand: Dell
SKU: DPV-MD3600i-CTO
Availability: OutOfStock

Dell

| CTO Servers |

DPV-MD3600i-CTO

.price-ui--loading { display: block !important; opacity: 1 !important; }

Configure for Pricing

READ ME

Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
“Quote” items can be added to your cart and sent to us via the cart page
Click the blue bar to close/open a section from view after choosing your options

Select Chassis

Dell PowerVault MD3600i (12x3.5") 10Gbase-T iSCSI Chassis Quote

Bezel (Optional)

Dell PowerVault MD3600i 2U Bezel | C2YX8 Quote

Controller

Supports up to (2) Controllers
Do not Mix Caches.

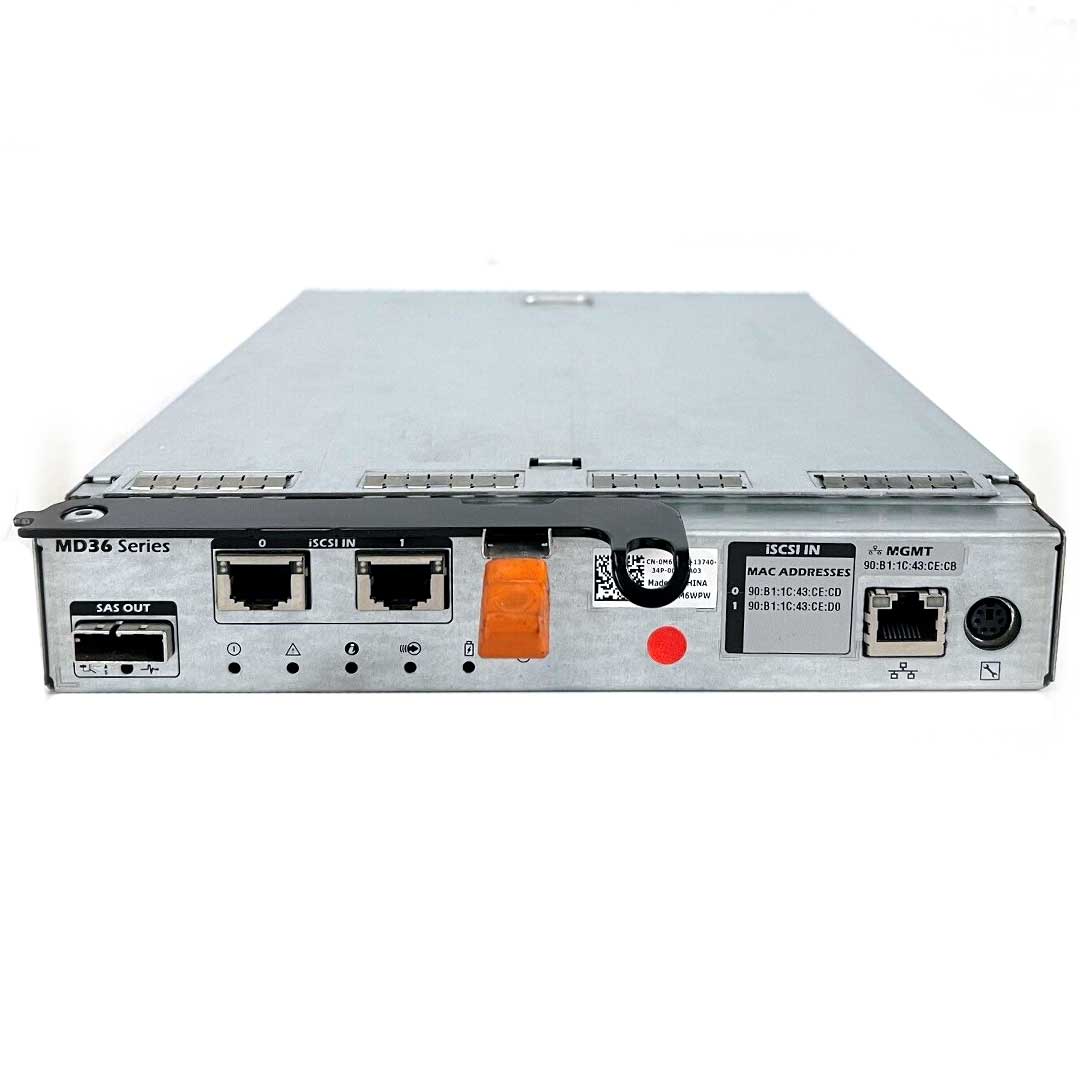

Dell PowerVault MD36 2GB 10GBase-T iSCSI Controller | M6WPW Quote Dell PowerVault MD36 4GB 10GBase-T iSCSI Controller | 36CTT Quote

Drives 3.5" SAS HDD (Optional)

Supports up to (12) 3.5" Drives

Dell Enterprise Class 3.5" 300GB 15K SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 450GB 15K SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 500GB 7.2K NL-SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 600GB 10K SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 600GB 15K SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 1TB 7.2K NL-SAS 12Gbps HDD $65.00 Dell Enterprise Class 3.5" 1TB 7.2K NL-SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 2TB 7.2K NL-SAS 12Gbps HDD $80.00 Dell Enterprise Class 3.5" 2TB 7.2K NL-SAS 6Gbps HDD Quote

Rail Kit (Optional)

Dell PowerVault 2U Rail Kit $295.00

Power Supplies

Must have (2) PSU.

Dell PowerVault 1755W Power Supply Unit (PSU) | D7RNC Quote

ECS Warranty

ECS-1-Year - ECS 1-Year NBD Parts Replacement Warranty *Included as Standard for USA Customers* $1.00 ECS-2-Year - ECS 2-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-3-Year - ECS 3-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-4-Year - ECS 4-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-5-Year - ECS 5-Year NBD Parts Replacement Warranty (Ask for Quote) Quote

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

2U rack server

Storage | Max: 96

12 LFF SAS, NL-SAS, SED (HDD/SSD)

Mix and match drives:

Supported

Controllers:

Supports up to 2

Cache Per Controller:

2GB or 4GB

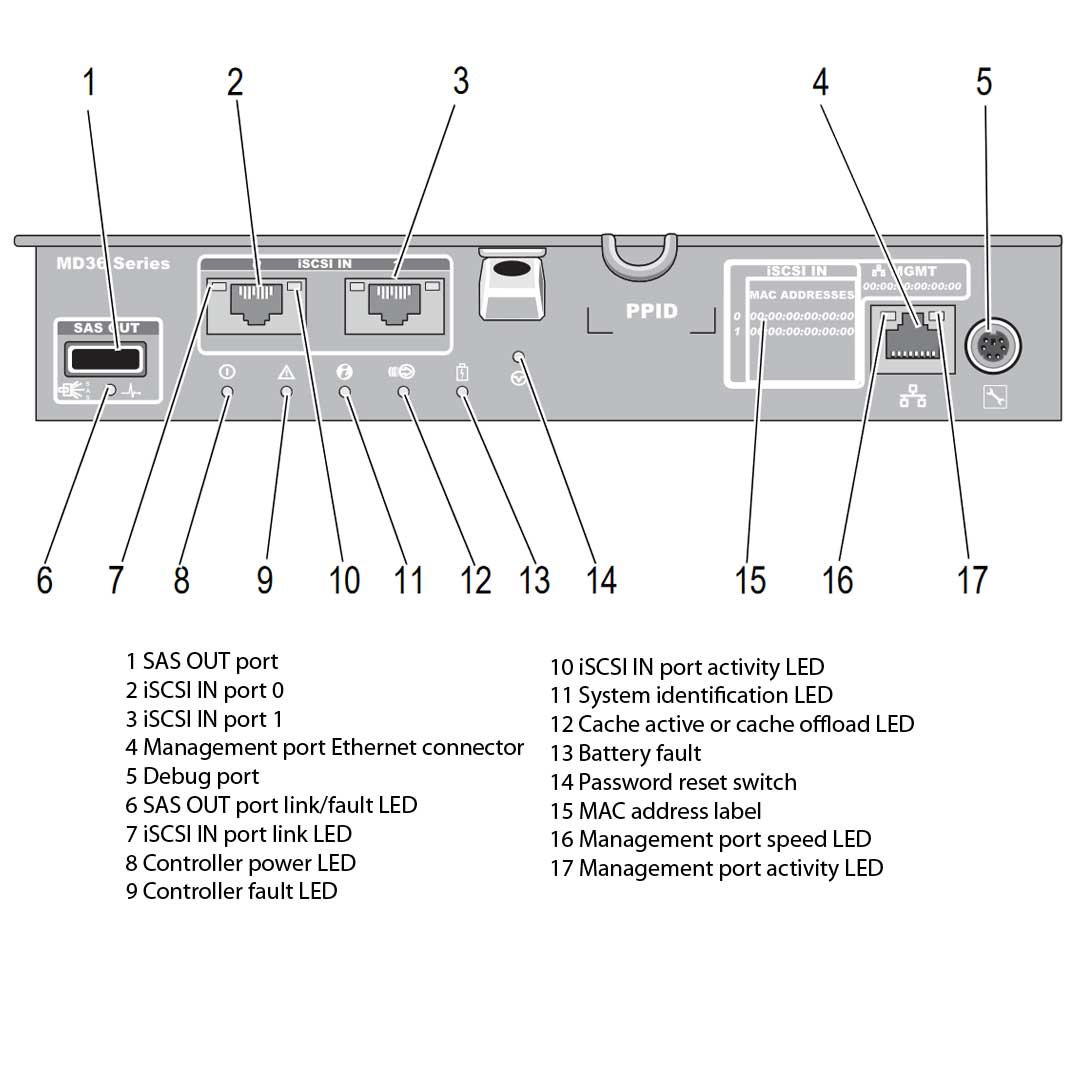

Ports Per Controller:

Two RJ-45 10Gbase-T iSCSI Host Connectivity
One 6Gb SAS Expansion Connectivity (8088 mini connector)
One RJ-45 1Gb Ethernet Remote Management

Host Connectivity:

Single Controller Models:

Supports up to 2 servers directly connected or up to 64 servers when configured with an Ethernet switch

Dual Controller Models:

Supports up to 4 servers directly connected or up to 64 servers when configured with Ethernet switches

Expansion Storage:

Expand up to 96 total drives using MD1200 and/or MD1220 expansion enclosures

Other Storage Arrays in the MD Series (JBOD)

MD3200 Series

Data Speeds

1Gb iSCSI

6Gb SAS

Server Options

MD3060e

MD3200 12 Bay SAS

MD3200i 12 Drive iSCSI

MD3220 24 Drives SAS

MD3220i 24 Drives iSCSI

MD3400 Series

Speeds

12Gb SAS

10GBase-T iSCSI

16Gb FC

Server Options

MD3400 12 Drives

MD3420 24 Drives

MD3460 60 Drives

MD3600 Series

Speeds

10GBase-T iSCSI

8Gb FC

Server Options

MD3600i 12 Drives iSCSI

MD3600f 12 Drives Fibre

MD3620i 24 Drives iSCSI

MD3620f 24 Drives Fibre

MD3660i 60 Drives iSCSI

MD3660f 60 Drives Fibre

MD3800 Series

Speeds

10GBase-T iSCSI + 12Gb SAS

16 FC + 12Gb SAS

Server Options

MD3800i 12 Drives iSCSI

MD3800f 12 Drives Fibre

MD3820i 24 Drives iSCSI

MD3820f 24 Drives Fibre

MD3860i 60 Drives iSCSI

MD3860f 60 Drives Fibre

The Dell EMC PowerVault MD3800i Series storage array is a high-availability storage solution designed to provide redundant access to data storage. It can support both single and dual RAID controller configurations and offers 10G/1000 BaseT connectivity to the host server. The array can support up to 12 3.5" HDD/SSD drives and up to 64 servers directly connected per controller, with a maximum of 192 drives when combined with expansion enclosures.

The Dell EMC PowerVault MD3600i and 3620i Series storage array provides 10/1000 GBaseT connectivity to the host server. It enables access to 4 physical hosts.

Keeping pace with the latest technology

The RAID controller modules provide high-performance, advanced virtual disk configuration, and fault-tolerant disk subsystem management. Each RAID controller module contains 2GB or 4GB of mirrored cache for high availability and a battery-powered cache offload mechanism.

Versatile options your way

The MD3600i iSCSI array series offers two 10Gb Ethernet iSCSI SAN solutions that are ideal for entry-level storage consolidation in virtualized environments that require high availability and high performance. The array series supports a range of drive types, enclosures, and RAID levels all within a single array.
