Adapter Specs
- Device Type: FlexibleLOM Ethernet Adapter
- Part Number: 669281-001
- Interface Type: PCI Express 2.0 x8
- Ports: 2 x SFP+ 10Gb Ethernet
- Data Transfer Rate: 10 Gbps (20 Gbps full duplex, 40 Gbps bi-directional)
- Connectivity Technology: Wired
- Data Link Protocol: 10 Gigabit Ethernet
- Processor: 1 x Intel
- Features: Wake on LAN (WOL), Jumbo Frames, PXE Boot, LSO, RSS, TCP Segmentation Offload
- Remote Management Protocol: SNMP
- Status Indicators: Port Status, Link/Activity
- Compliant Standards: IEEE 802.3, 802.1Q, 802.1p, 802.3x, 802.3ad (LACP), 802.3ae, 802.1ab, 802.1Qau
- Compatible Slots: 1 x FlexibleLOM
- Operating Temperature: 32°F to 131°F
- Operating Humidity: 10% to 90% (non-condensing)
- Supported OS: Windows Server, Red Hat, SuSE Linux, VMware, Solaris
Part Number:
- 669281-001
- 665243-B21

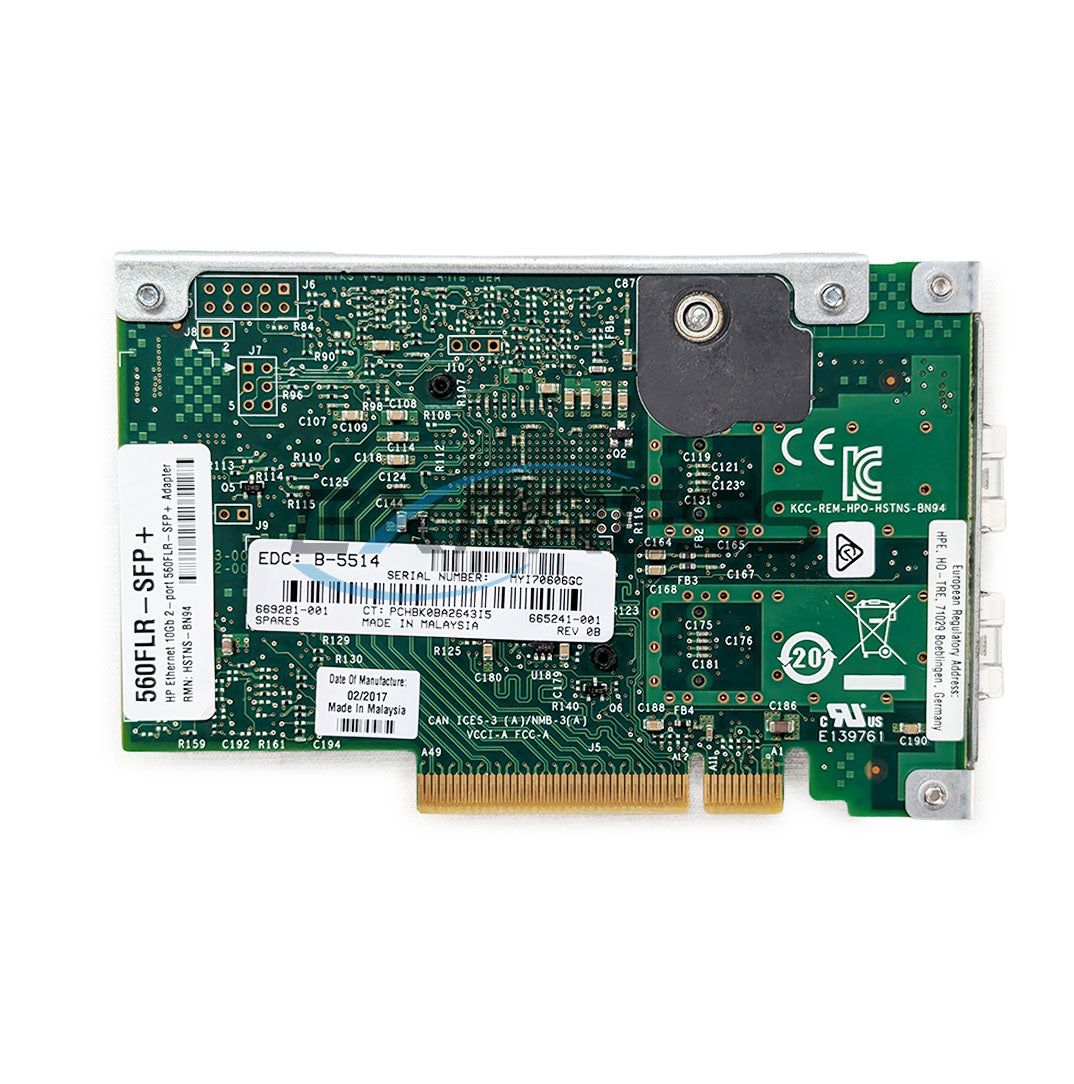

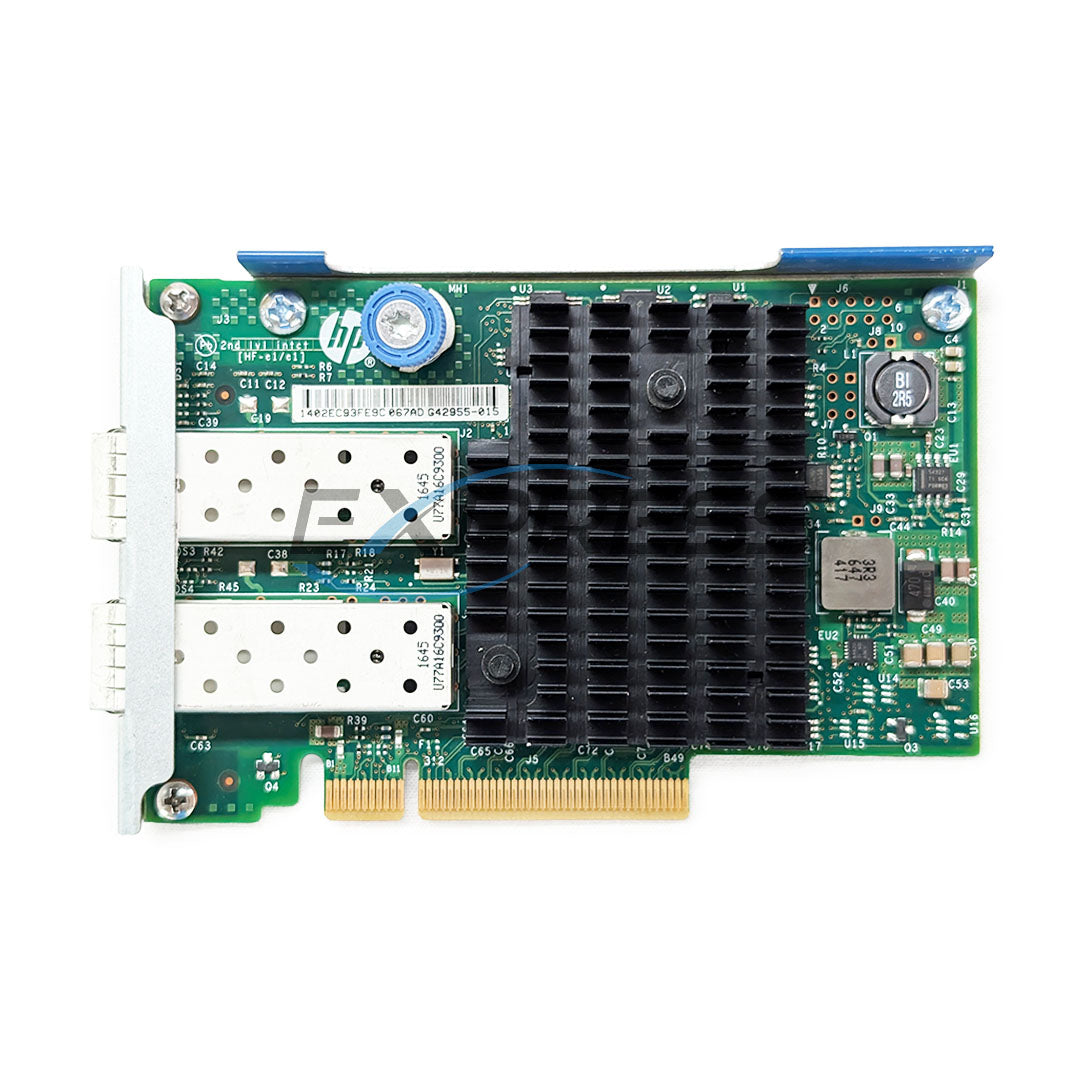

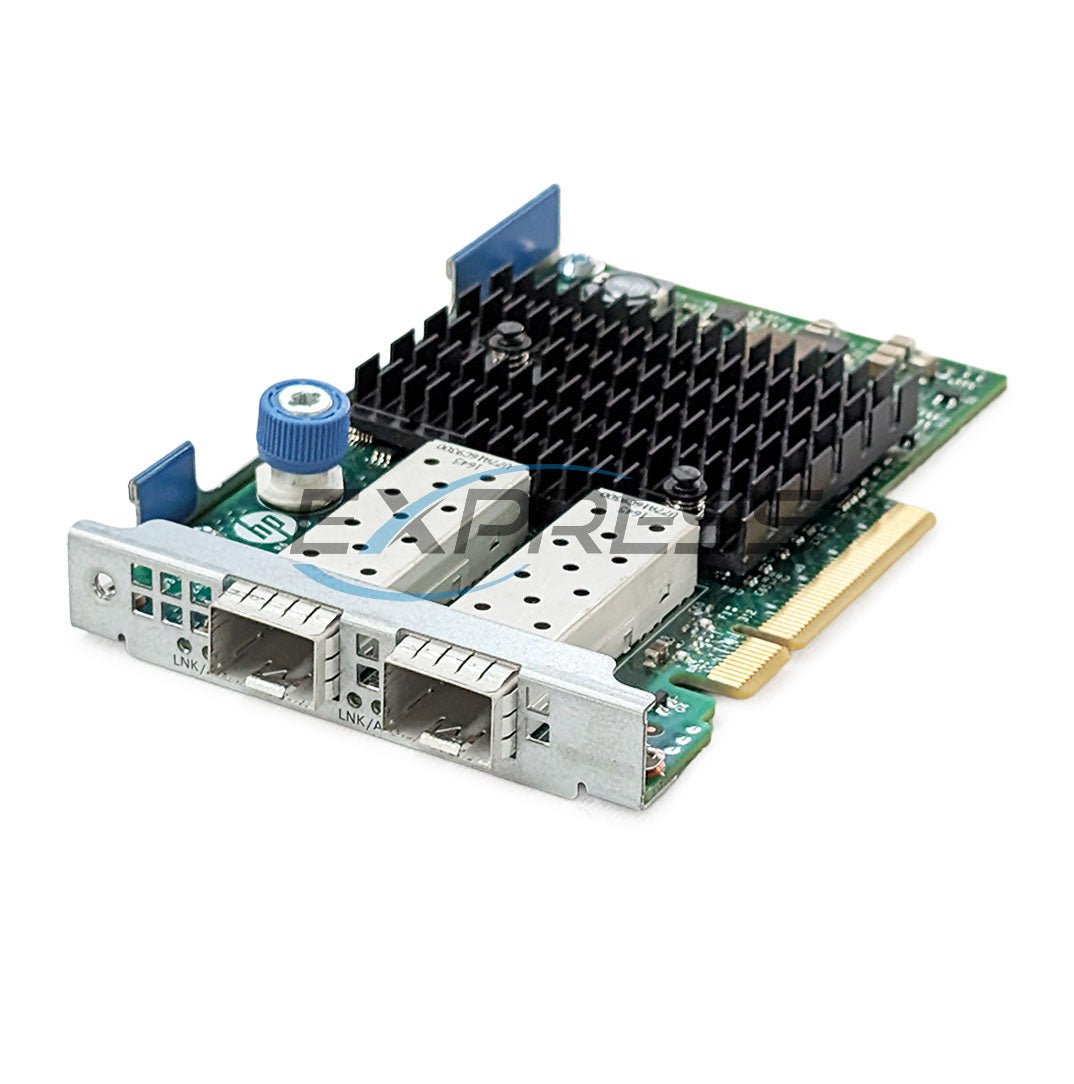

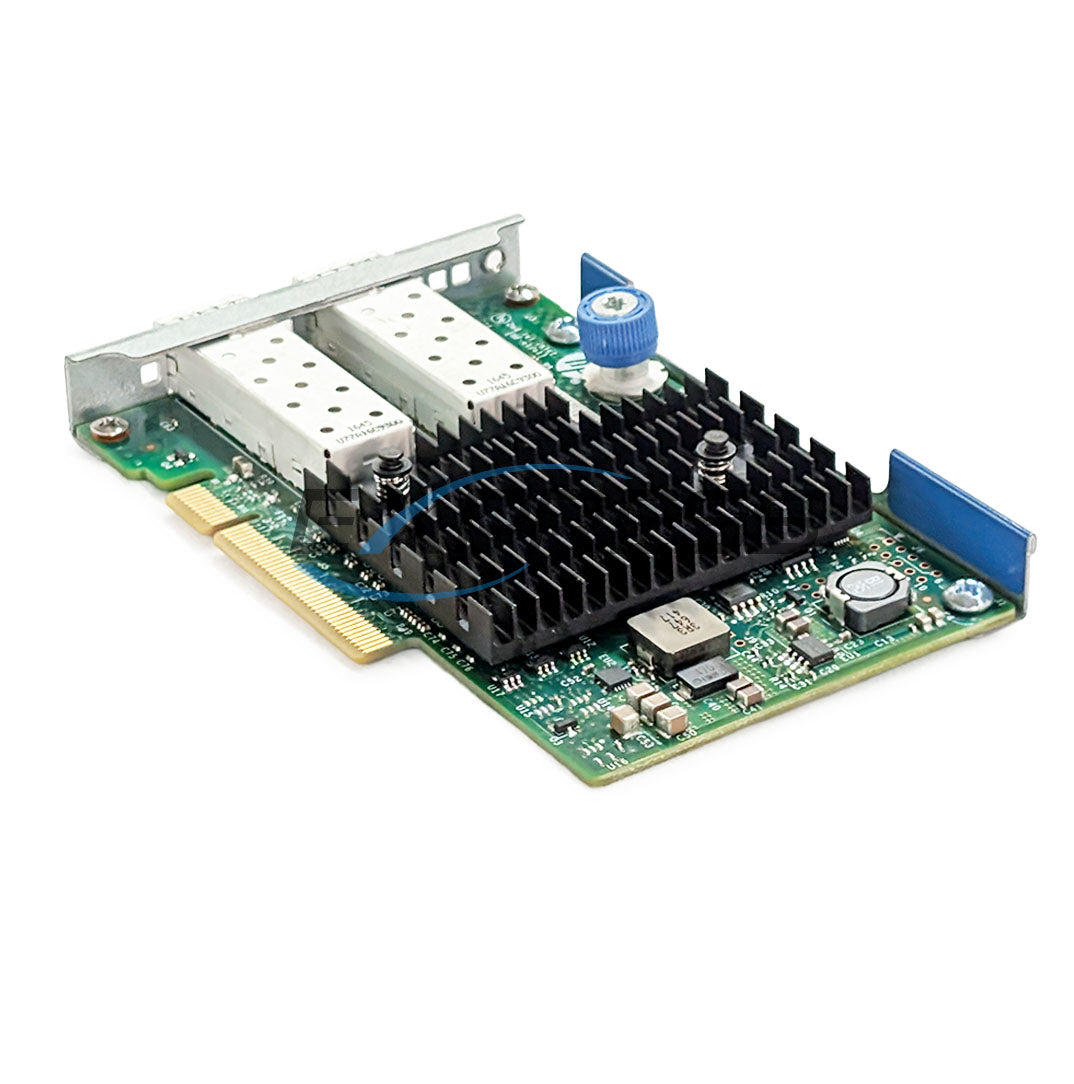

The HPE 560FLR 10Gb 2-Port SFP+ Ethernet Adapter (669281-001) is a high-performance network interface card built for bandwidth-intensive workloads in enterprise environments. Featuring a FlexibleLOM form factor and PCIe 2.0 x8 interface, it seamlessly integrates into HPE Gen8 and Gen9 ProLiant servers. With two 10Gb SFP+ ports, this adapter enables reliable, high-speed connectivity using fiber or DAC cables.
Designed for scalability and virtualization, the 560FLR supports Jumbo Frames, PXE Boot, SR-IOV, Receive Side Scaling, and large send offload. Compliant with a wide range of IEEE standards, it ensures compatibility with modern data center networking protocols. Ideal for performance-critical applications, it also supports advanced OS environments, including VMware, Linux, and Windows Server.
