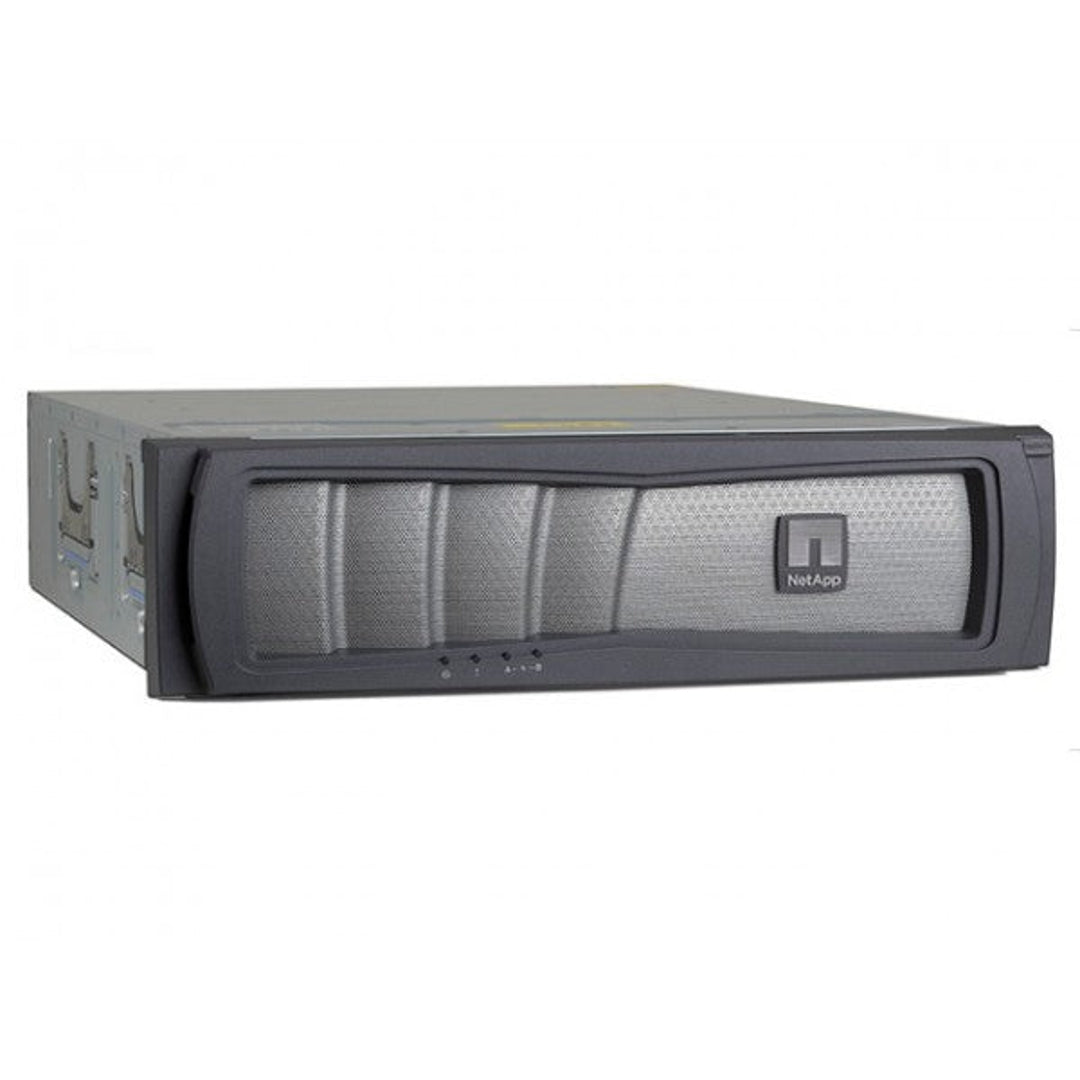

NetApp FAS3250 Filer Head Single Controller

SKU: FAS3250

NetApp FAS3250 Single Controller + IOMX Filer Head (Stand Alone)

Name: NetApp FAS3250 Single Controller + IOMX Filer Head (Stand Alone)
Brand: NetApp
SKU: FAS3250
Availability: OutOfStock

NetApp

| Filer Head

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

The NetApp FAS3250 with a dual-chassis, high-availability architecture delivers robust performance and reliability for demanding data environments. Featuring up to 40GB of shared memory and quad-core 64-bit processors, it handles complex workloads with ease while maintaining continuous data access.

This 6U system offers multiple connectivity options, including 1GbE, 4Gb Fibre Channel, and 6Gb SAS, along with 12 PCIe expansion slots for added flexibility. RAID 4, RAID-DP, and RAID-TEC ensure comprehensive data protection, while remote management capabilities simplify deployment and ongoing administration.

Supporting up to 720 drives and scaling to 11.5PB of raw capacity, the FAS3250 is compatible with a wide range of NetApp disk shelves such as DS212C, DS2246, DS224C, DS424x, DS4486, and DS460C. With support for MSATA, NL-SAS, SAS, SATA, and SSD, it delivers a versatile, high-capacity solution tailored to the evolving needs of mid-sized to large enterprises.

System Config

Model: NetApp FAS3250
Chassis: Single Chassis
Total Rack Height: 3U
Controllers: Single Controller + IOMX (Stand Alone)
Memory (HA): 20GB
Processor Model:2x 64-bit 4-core 2.33 Ghz
Ethernet Ports: 2 x RJ45 (1Gb)
Fibre Channel Ports: 2 x SFP (4Gb)
SAS Ports: 24 x QSFP (6Gb)
PCIe Expansion Slots: 6 x PCIe
Max Drives (total): 720
Max Capacity: 11,520TB (11.5PB)
Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
Filer Heads: N/A

Dimensions & Weight

Chassis Rack Height: 3U
Chassis Heights: 5.12" (13 cm)
Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
Chassis Depth w/ Cable Mgmt: 23.9" (60.7 cm)
Chassis Weight: up to 75.0 lb (34.0 kg)

Expansion IOMX Controller Specs

PCI Slot (per): 4 x PCIe

Controller Specs

Max Controllers: 2 (Per Chassis)
PCI Slot (per): 2 x PCIe
Ethernet Ports (per): 2 x RJ45 (1Gb)
Fibre Channel Ports (per): 2 x SFP (4Gb)
UTA2 Ports (per): N/A
SAS Ports (per): 2 x QSFP (6Gb)
Remote Management: Yes
Processor Model (per):2x 64-bit 4-core 2.33 Ghz
Memory (Single/HA): 20GB/40GB
NVRAM (Single/HA): 2GB/4GB

Storage

Max Number of Internal Drives: 0
Max Number Drives (total): 720
Max Capacity: 3,600TB (3.6PB)
Max Number of MSATA Drives: 720
Max Number of NL-SAS Drives: 720
Max Number of SAS Drives: 720
Max Number of SATA Drives: 720
Max Number of SSD Drives: 240
Drive Interface: MSATA, NL-SAS, SAS, SATA, SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max # of DS212C Shelves: 30 external
Max # of DS2246 Shelves: 30 external
Max # of DS224C Shelves: 30 external
Max # of DS4243 Shelves: 30 external
Max # of DS4246 Shelves: 30 external
Max # of DS4486 Shelves: 15 external
Max # of DS460C Shelves: 12 external

FAS3250 Parts Lists

View Adapters

View Transceiver(s

View Data Cables

View Power Cables

View Rail Kits

Ask about our NetApp Disk Shelves!
We can create custom Turn-Key configurations based on your needs!
Click here to view NetApp Disk Shelves

Compatible With:

NetApp FAS3250

(Click to View)

NetApp FAS3250 Single Controller + IOMX Filer Head (Stand Alone)
