    EMC VNXe3150 Disk Processor Enclosure (DPE)


    Price: Request a Quote

    Brand:
    MPN:
    VNXe3150
    Type:
    Storage Array
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

    EMC VNXe3150 Disk Processor Enclosure (DPE)

    Quick Specs

    • Product Name: EMC VNXe3150 Disk Processor Enclosure (DPE)
    • Form Factor: 2U

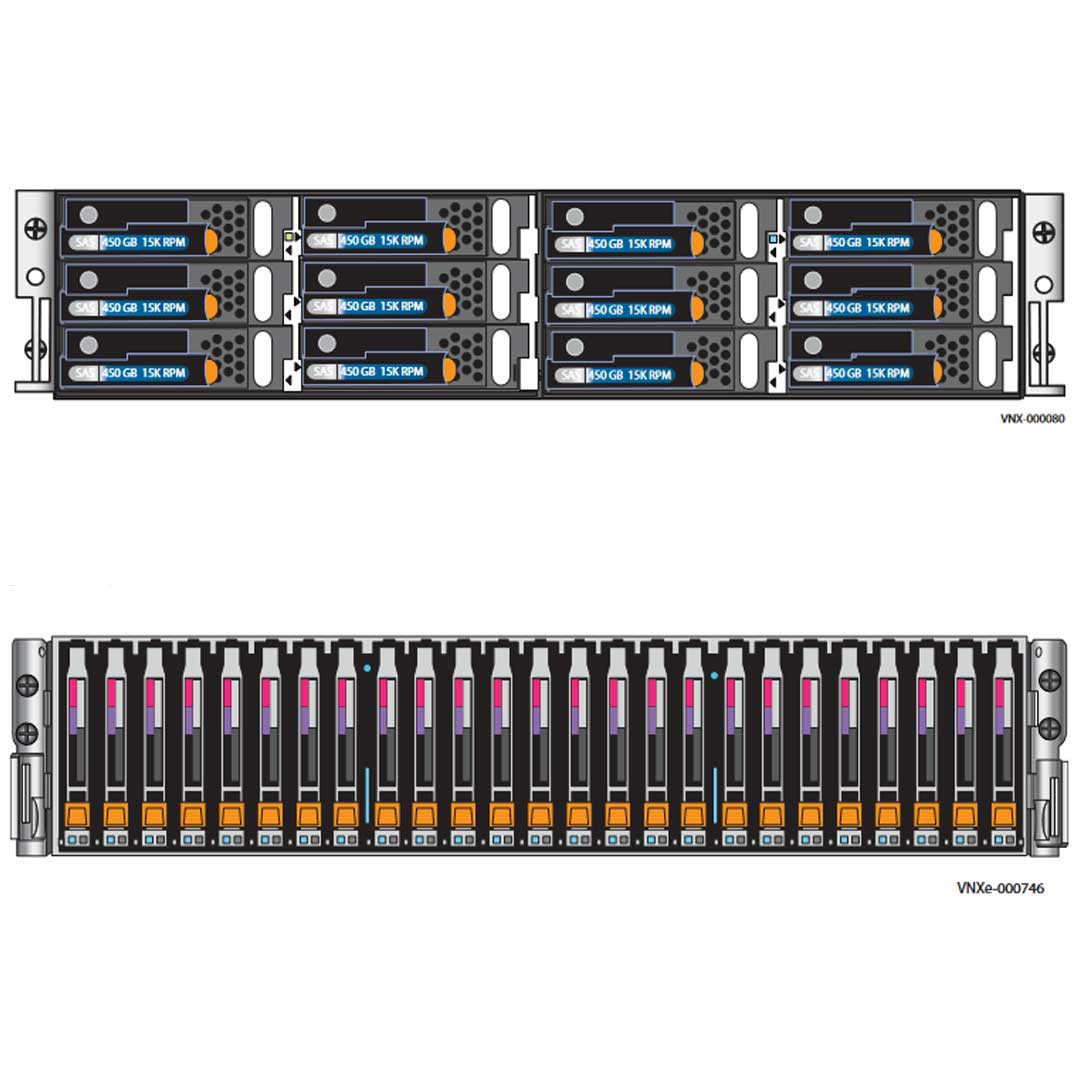

    • Chassis Options: 12 LFF (3.5") or 25 SFF (2.5")

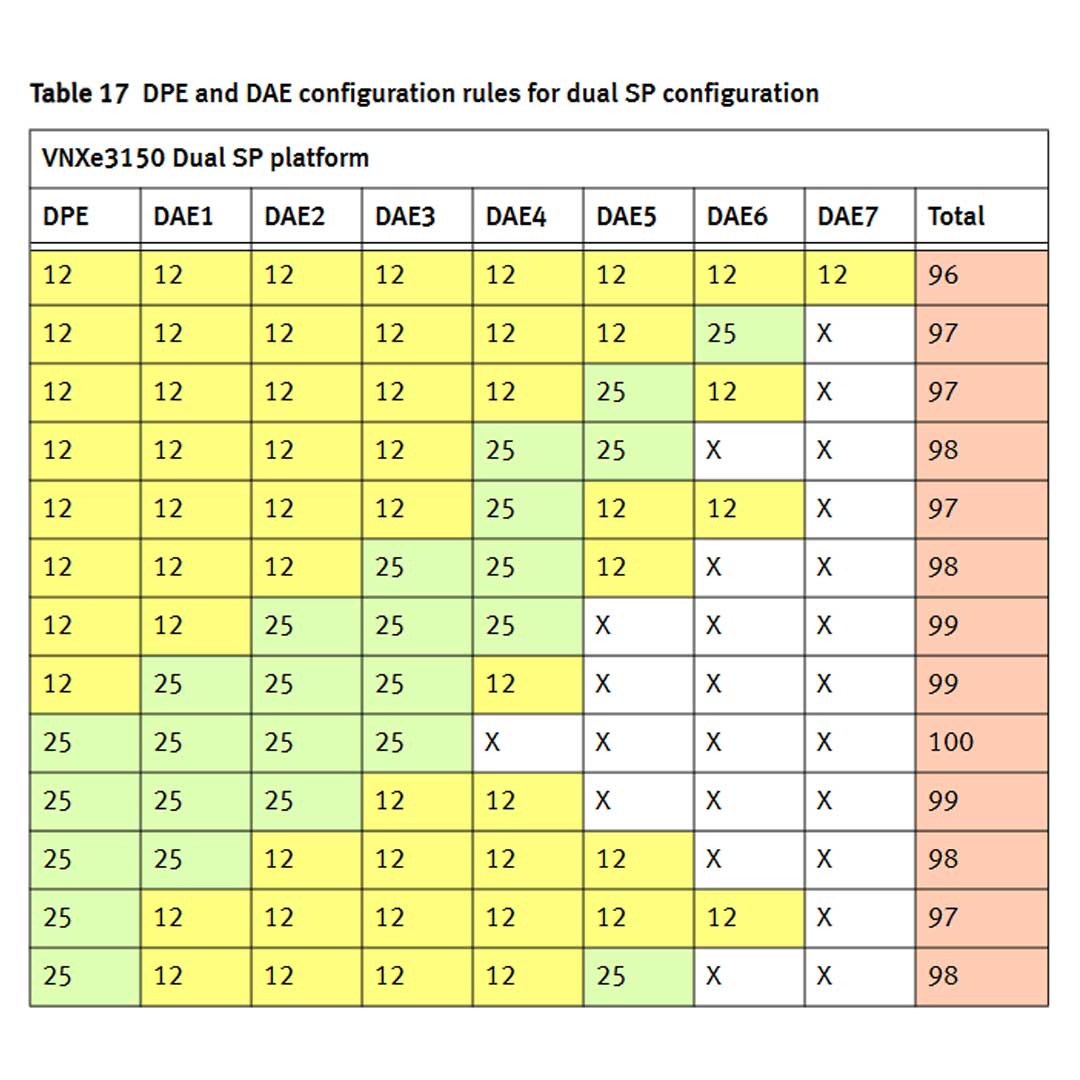

    • Max Drives: Up to 100 (dual SP with SFF DPE/DAEs)
    • Drive Types: SAS, NL-SAS
    • Storage Processor: Intel Xeon Quad Core 2.13GHz, up to 16GB RAM (dual SP)

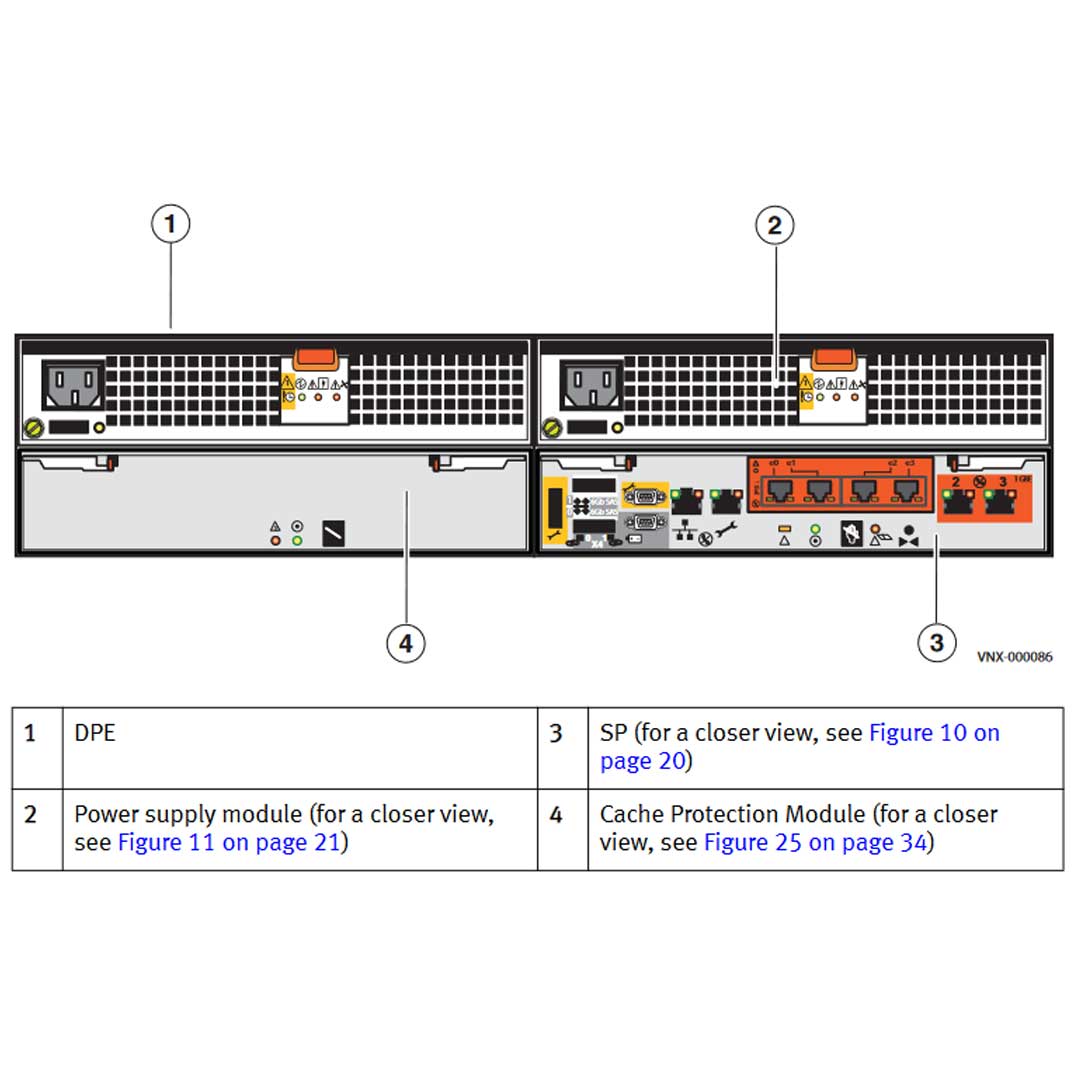

    • SP Configurations: Single or Dual SP

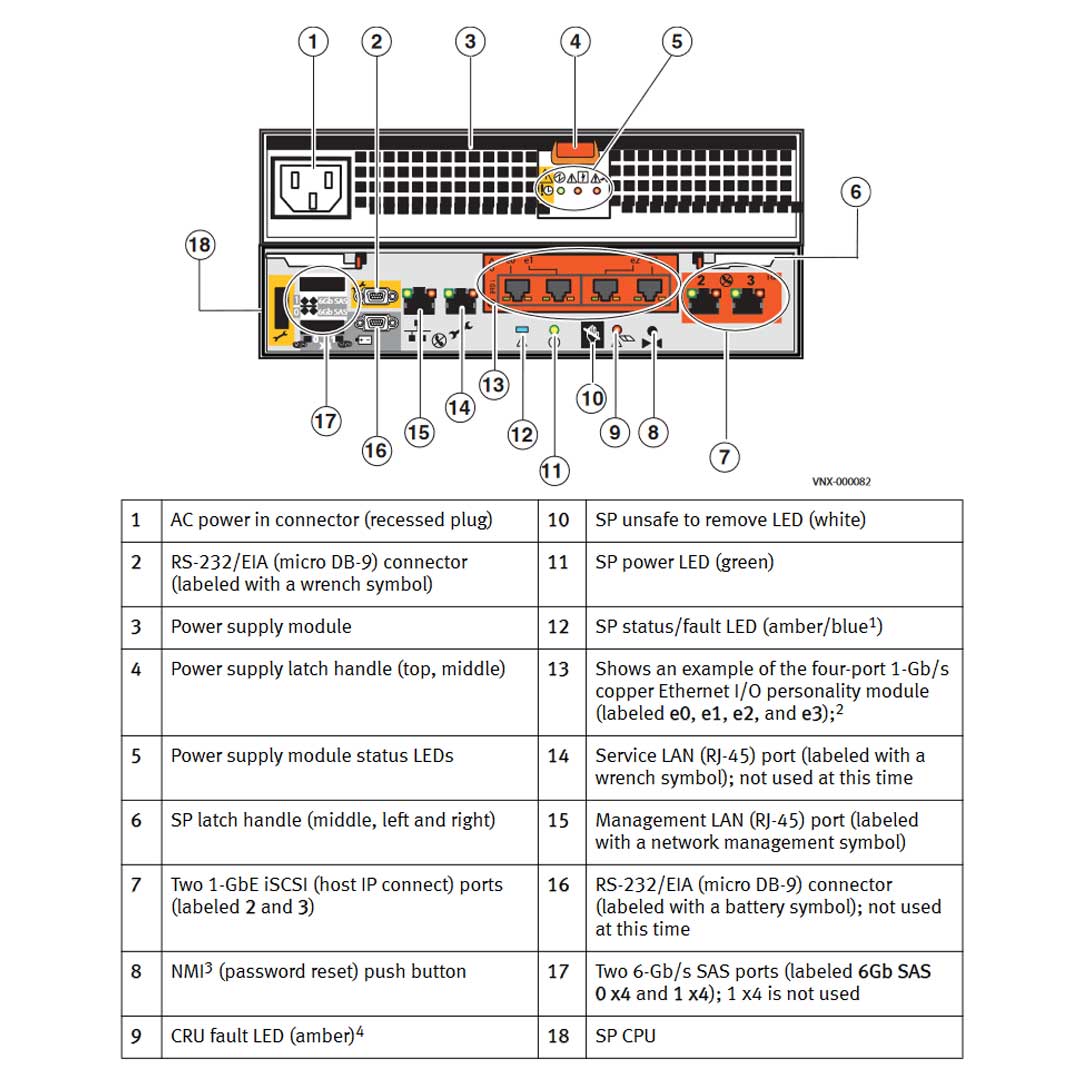

    • SP Module Options: 4-Port 1GbE (Single/Dual SP), 2-Port 10GbE (Dual SP only)
    • Unified Protocols: SAN (iSCSI) + NAS (CIFS/NFS)
    • Supported DAEs: V2-DAE-12 (12x 3.5"), V2-DAE-25 (25x 2.5")

    Model Identifier:

    • VNXe3150

    The EMC VNXe3150 Disk Processor Enclosure (DPE) is a compact, scalable 2U unified storage system designed for small to mid-sized businesses. It supports both NAS and iSCSI SAN access, providing flexibility for mixed workloads and virtualization environments. Chassis options include 12-bay 3.5" or 25-bay 2.5" configurations with support for SAS and NL-SAS drives.

    With a modular design supporting either single or dual SP setups, the VNXe3150 features Intel Xeon quad-core processors and up to 16GB of memory. It offers flexible I/O configurations with 1GbE and 10GbE personality modules, and expands via compatible Gen 1 DAEs. This platform allows users to scale capacity and performance to meet growing storage demands efficiently.

    EMC VNXe3150 Disk Processor Enclosure (DPE) Spec Sheet

    Manuals

    EMC VNXe3150 Disk Processor Enclosure (DPE) Spec Sheet

    Manuals

    Product Specs

    Storage Array Specs

    EMC VNXe3150 Technical Specifications

    EMC VNXE3150 TECHNICAL SPECIFICATIONS
    Form Factor 2U Rack
    Storage Type Unified
    Maximum Raw Capacity (Single Controller | Dual Controller) 150TB | 300TB
    Dual Controllers (SPs) Optional

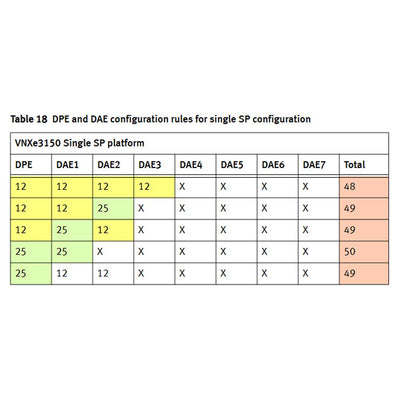

    Number of Drives Single Controller: 50 (max)
    Dual Controller: 100 (max)
    Min/Max Number of Drives (Single SP | Dual SP) 6/50 | 6/100
    Drive Enclosure Options 12x 3.5" SAS/NL-SAS (2U)
    25x 2.5" Flash/SAS Drives (2U)
    Drive Options 3.5" Drive Enclosure (12 x 3.5")
    300GB 15K SAS (V2-PS 15-300)
    300GB 10K SAS (V2-PS 10-300)
    600GB 15K SAS (V2-PS 15-600)
    600GB 10K SAS (V2-PS 10-600)
    900GB 15K SAS (V2-PS 15-900)
    900GB 10K SAS (V2-PS 10-900)
    1TB 7.2K NL-SAS (V2-PS07-010)
    2TB 7.2K NL-SAS (V2-PS07-020)
    3TB 7.2K NL-SAS (V2-PS07-030)

    2.5" Drive Enclosure (25 x 2.5")
    300GB 10K SAS
    600GB 10K SAS
    900GB 10K SAS

    SSD Enterprise Flash Drives (EFD)
    100GB 6Gbps SAS 2.5" SSD
    200GB 6Gbps SAS 2.5" SSD
    CPU/Memory Per Controller Single Controller: 1x Xeon Quad Core/4GB
    Dual Controllers: 1x Xeon Quad Core/8GB
    Base 1GBps IP Ports per Controller 2
    Max Flex IO Modules per Controller 1
    Management Ports Single Controller: 1x 10/100 or 1GbE
    Dual Controller: 2x 10/100 or 1GbE
    Interconnect Four 6Gbps x 4 SAS Ports
    RAID Options 1/0, 5, 6
    Limits and Support
    Maximum Number of Supported LUNs (Single SP | Dual SP) 128 | 256
    Maximum LUN Size 2TB
    Maximum File System Size 16TB
    Max Raw Capacity Single Controller: 144TB
    Dual Controller: 288TB
    Maximum File Systems Single Controller: 128
    Dual Controller: 256
    Copper 10/100/1000 G-BASET Ethernet Module NAS/iSCSI, 4 Ports per module
    Compatible Disk Arrays V2-DAE-12
    V2-DAE-N-25-A
    V2-DAE-R-25-A
    ECS Warranty 1-Year Parts Replacement Warranty
