Storage Array Specs

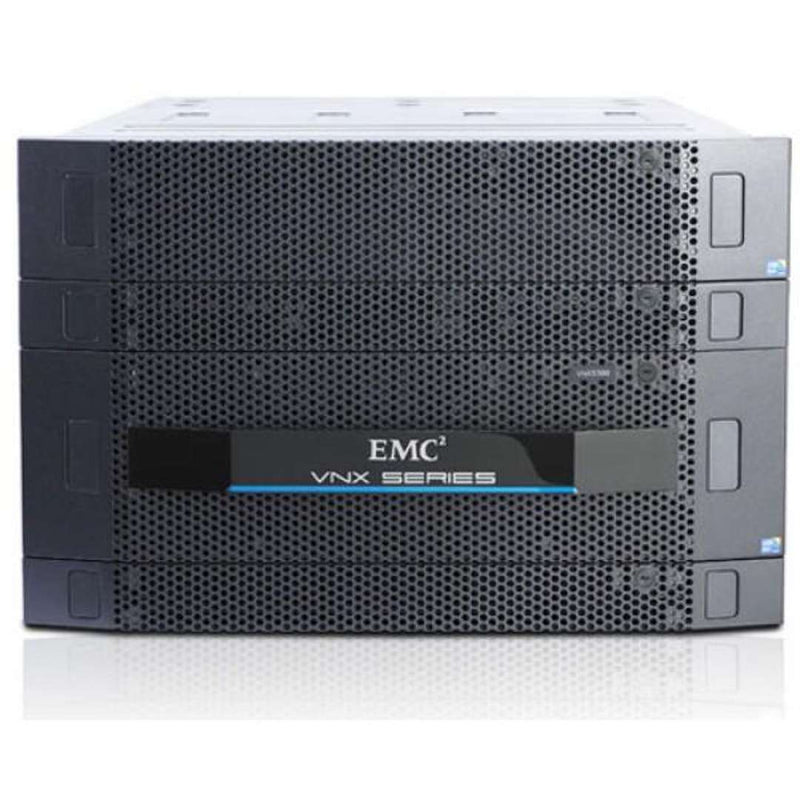

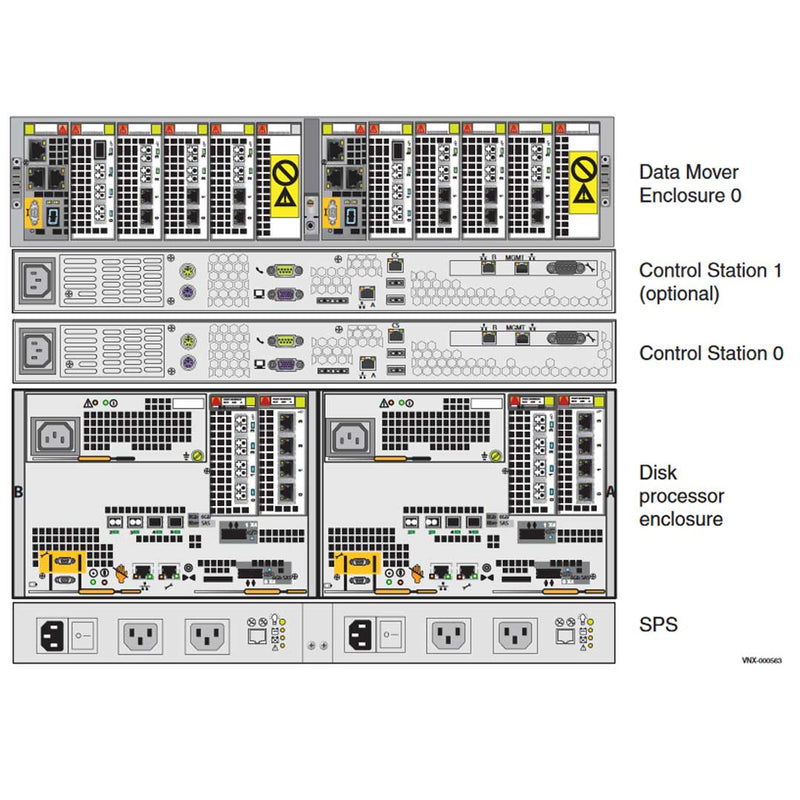

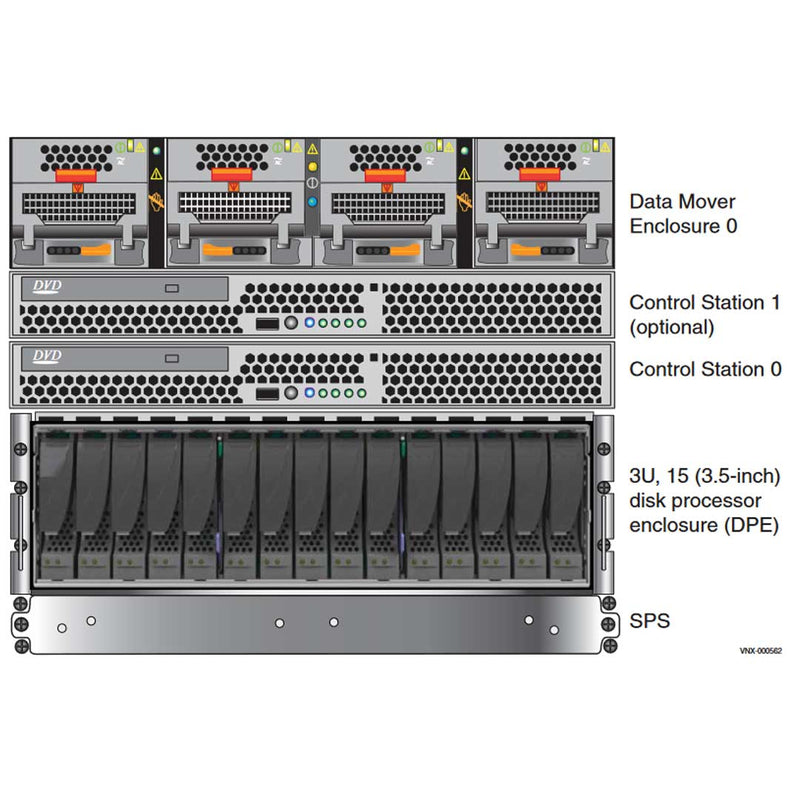

EMC VNX5300 Technical Specifications
| EMC VNX5300 TECHNICAL SPECIFICATIONS | |
|---|---|
| Form Factor | 3U Rack |
| Storage Type | Unified |
| Maximum Raw Capacity | 360 TB |
| Max SAN Hosts | 2,048 |
| Max Number of Pools | 20 |
| Max Number of LUNs | 2,048 |
| Max LUN Size | 16TB (Virtual Pool LUN) |
| Max File System Size | 16 TB |
| Maximum Usable File Capacity per X-Blade | 256 TB |

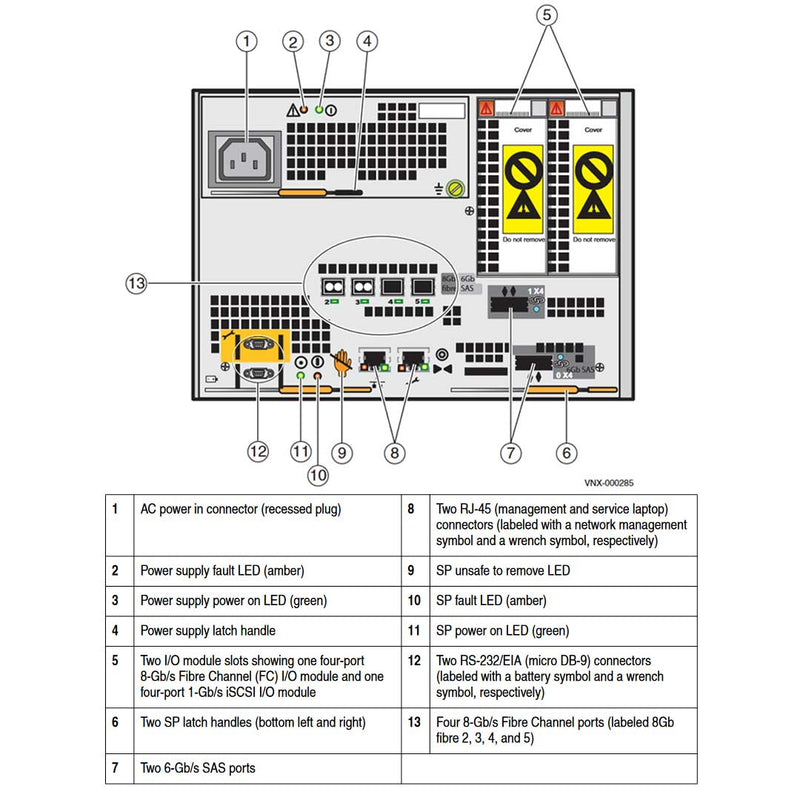

| Dual Controllers (SPs) | Standard |
| Number of Drives (Min/Max) | 4/125 |

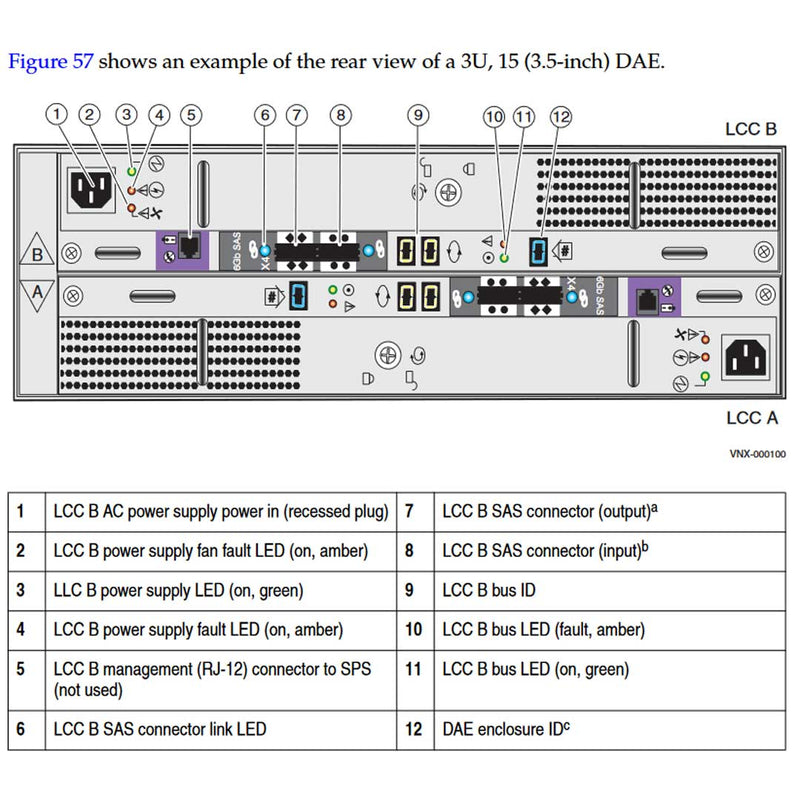

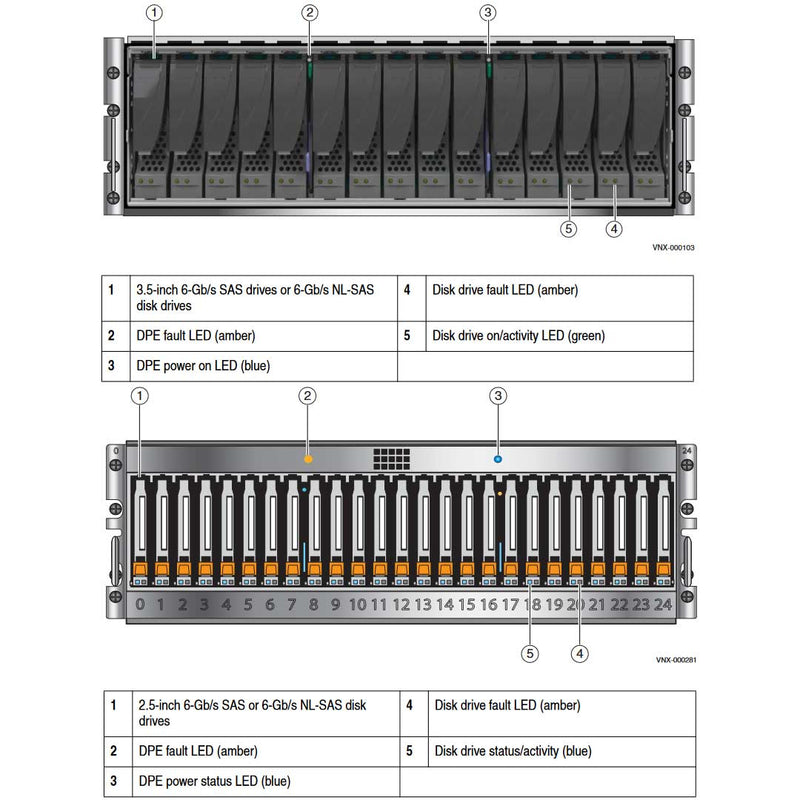

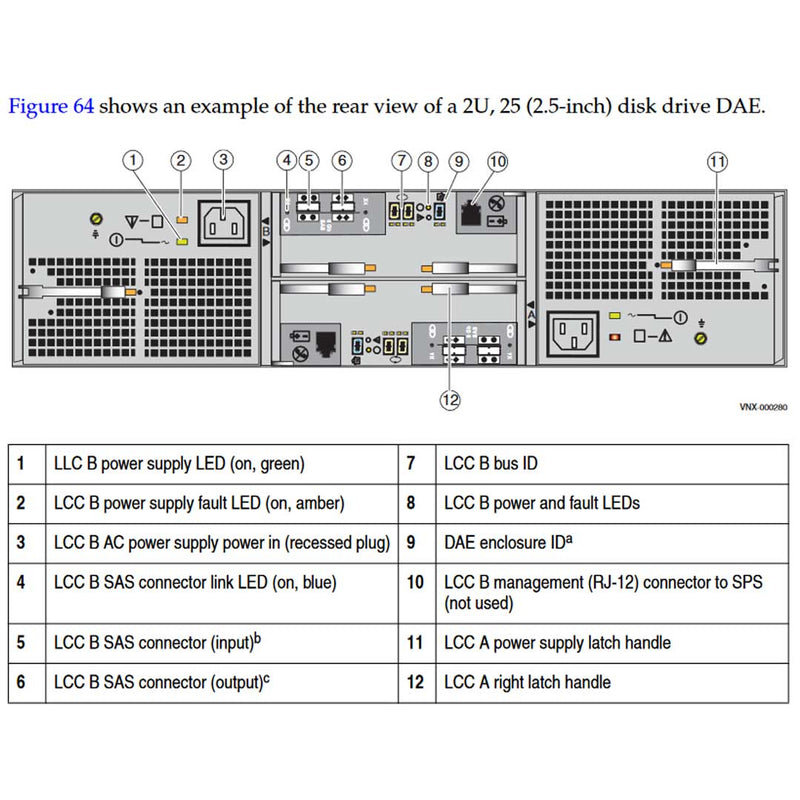

| Drive Enclosure Options | 15x 3.5" SAS/Flash (3U) 25x 2.5" Flash/SAS Drives (2U) |
| Drive Options | 3.5" Drive Enclosure (15 x 3.5") 300GB 10K 6Gbps SAS (V3-VS10-300) (15-Disk DAE) 300GB 15K 6Gbps SAS (V3-VS15-300) (15-Disk DAE) 600GB 10K 6Gbps SAS (V3-CS10-600) (15-Disk DAE) 600GB 15K 6Gbps SAS (V3-VS15-600) (15-Disk DAE) 900GB 10K 6Gbps SAS (V3-VS10-900) (15-Disk DAE) 1TB 7.2K 6Gbps SAS (V3-VS07-010) (15-Disk DAE) 2TB 7.2K 6Gbps SAS (V3-VS07-020) (15-Disk DAE) 3TB 7.2K 6Gbps SAS (V3-VS07-030) (15-Disk DAE) 4TB 7.2K 6Gbps SAS (V3-VS07-040) (15-Disk DAE) 100GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (FLV3VS6F) (15-Disk DAE) 100GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (V3-VS6F-100) (15-Disk DAE) 200GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (FLV3VS6F) (15-Disk DAE) 200GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (V3-VS6F-200) (15-Disk DAE) 2.5" Drive Enclosure (25 x 2.5") 300GB 10K 6Gbps SAS (V3-2S10-300) (25-Disk DAE) 600GB 10K 6Gbps SAS (V3-2S10-600) (25-Disk DAE) 900GB 10K 6Gbps SAS (V3-2S10-900) (25-Disk DAE) 100GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (FLV32S6F-100) (25-Disk DAE) 100GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (V3-2S6F-100) (25-Disk DAE) 200GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (FLV32S6F-200) (25-Disk DAE) 200GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (V3-2S6F-200) (25-Disk DAE) |
| Block Components | |
| CPU / Memory Per Controller | Intel Xeon 5600 Series / 16GB |

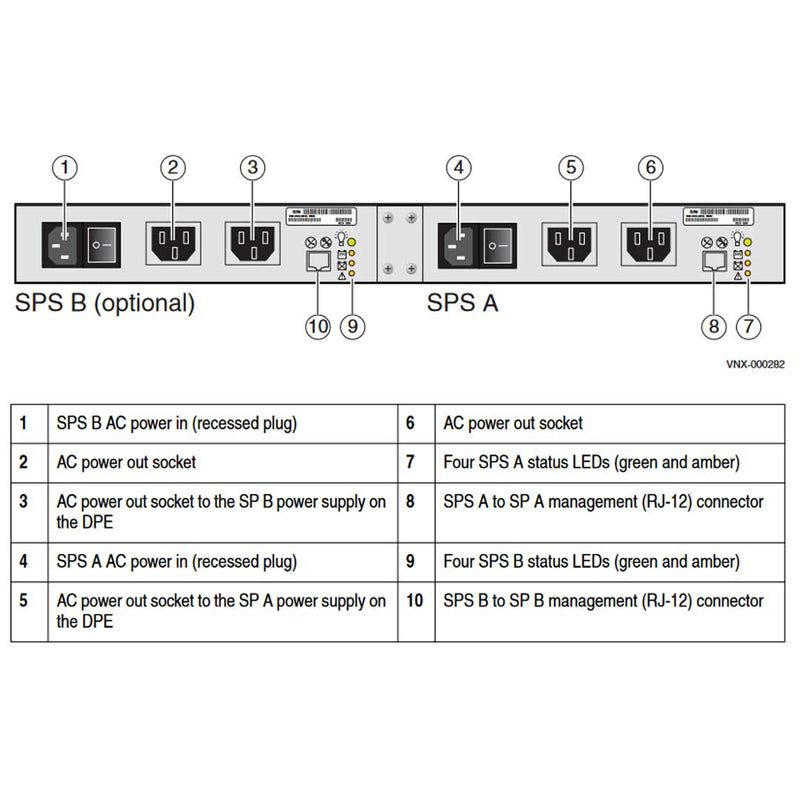

| Standby Power System | 1U 1.2KW |
| Max Block UltraFlex IO Modules per Array | 4 |
| Embedded IO Ports per Array | 8 FC Ports 4 SAS Ports (2 BE SAS Buses) (4 Embedded FC Ports per array are reserved for file connectivity) |
| Max Total Ports per Array | 24 |
| RAID Options | 0, 1, 10, 3, 5, 6 |
| 2/4/8 Gbps FC Max Ports per Array | 16 |
| 1 GBaseT iSCSI Max Total Ports per Array | 8 |
| 10GbE iSCSI Max Total Ports per Array | 8 |
| Max FCoE Total Ports per Array | 8 |
| 6 Gbps SAS Buses (4 Lanes per Bus) for DAE Connections | 2 |
| File Components | |

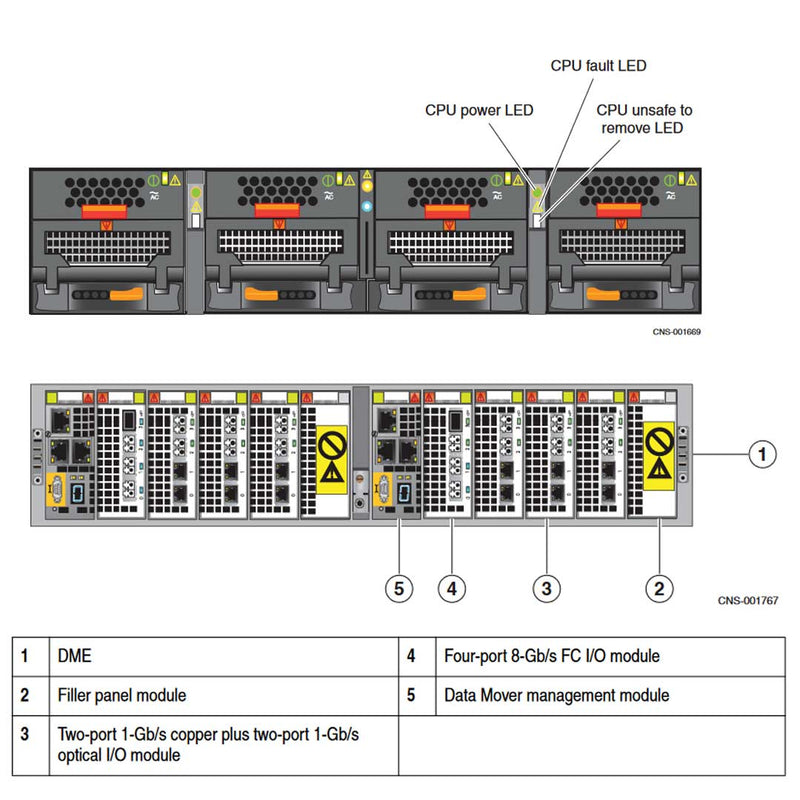

| # File X-Blades | 1-2 |

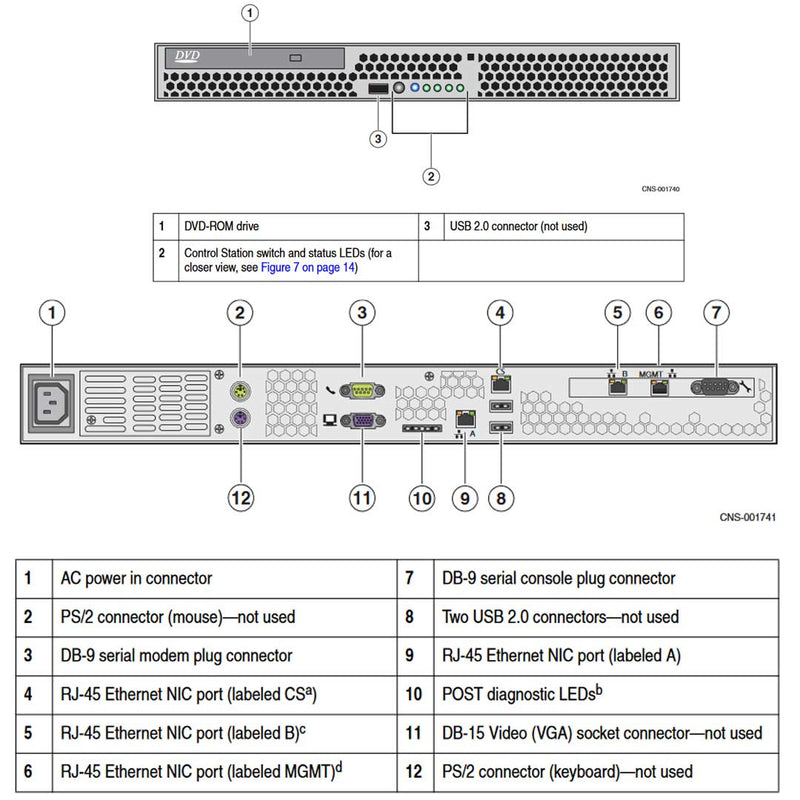

| # Control Stations | 1-2 x 1U Server |
| X-Blade: CPU/Memory | Intel Xeon 5600 Series / 6GB |
| Max File UltraFlex IO Modules per X-Blade | 3 |
| Min/Max 2/4/8 Gbps FC Ports per X-Blade | 4 |
| Max IP Ports per X-Blade | 8 |
| Max 1GBaseT Ports per X-Blade | 8 |
| Max 10GbE Ports per X-Blade | 4 |
| Management | LAN 2x 10/100/1000 Copper GbE |
| Compatible Disk Arrays | V31-DAE-R-15 V31-DAE-N-15 V2-DAE-R-25-A V2-DAE-N-25-A |
| Chassis Part Number | 100-562-178 SPE & DME Chassis Assembly 100-562-440 2U SPE4 Empty Enclosure Chassis Assembly |
| Host Connections | 2Gbps Fibre Channel 4Gbps Fibre Channel 8Gbps Fibre Channel 1Gbps iSCSI 10Gbps iSCSI 10Gbps FCoE |
| ECS Warranty | 1-Year Parts Replacement Warranty |
