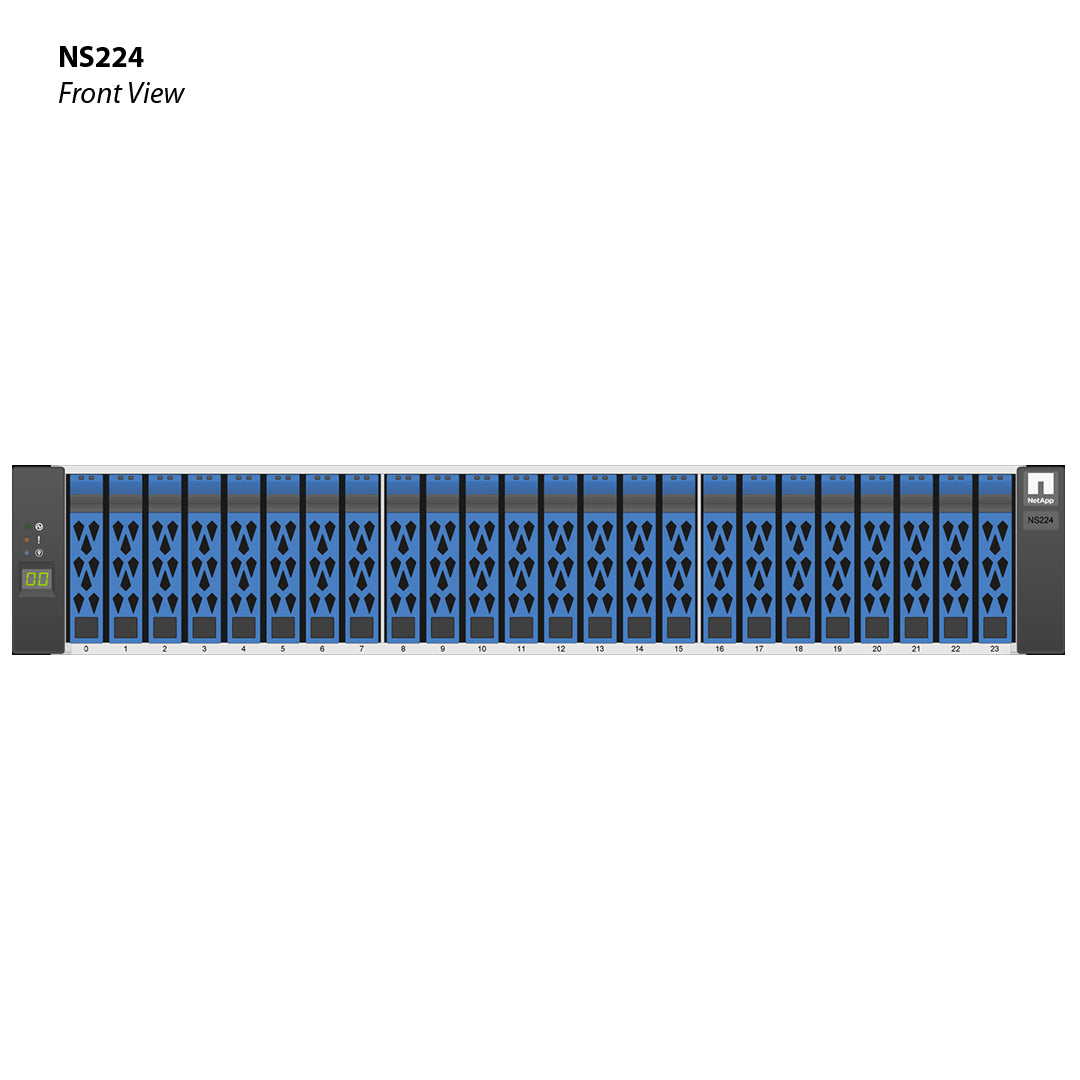

NetApp NS224 (NS224-SED-7.6-24-QS) 24x 7.68TB NVMe SSD AES-256 X4013A

SKU: NS224-SED-7.6-24-QS

Netapp Ns224 Expansion Shelf 24X 7.68Tb Nvme Ssd Aes-256 (X4013A) | NS224-SED-7.6-24-QS

Name: Netapp Ns224 Expansion Shelf 24X 7.68Tb Nvme Ssd Aes-256 (X4013A) | NS224-SED-7.6-24-QS
Brand: NetApp
SKU: NS224-SED-7.6-24-QS
Availability: OutOfStock

NetApp

| Disk Shelves

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

This NS224 comes with all necessary parts and cables. Also comes with a 1-Year Parts Replacement Warranty as standard.

Rack Unit(s): 2
Port(s): N/A
Drive Count: 24
Drive Speed(s): N/A
Drive(s): 24x 7.68TB NVMe SSD AES-256 (X4013A)
Supported Controller(s):
AFF A900, AFF A800, AFF A700, AFF A400, AFF A320, AFF A250
Weight: View Tab below
Height: 3.43' (8.7 cm)
Width: 17.6' (44.7 cm)
Depth: 21.38' (54.3 cm)
Width w/ Mounting Flanges: 19.02' (48.3 cm)
Depth w/ Cable Management: -

Parts Included:

1X NS224 NetApp Disk Shelf
24x 7.68TB NVMe SSD AES-256 (X4013A)

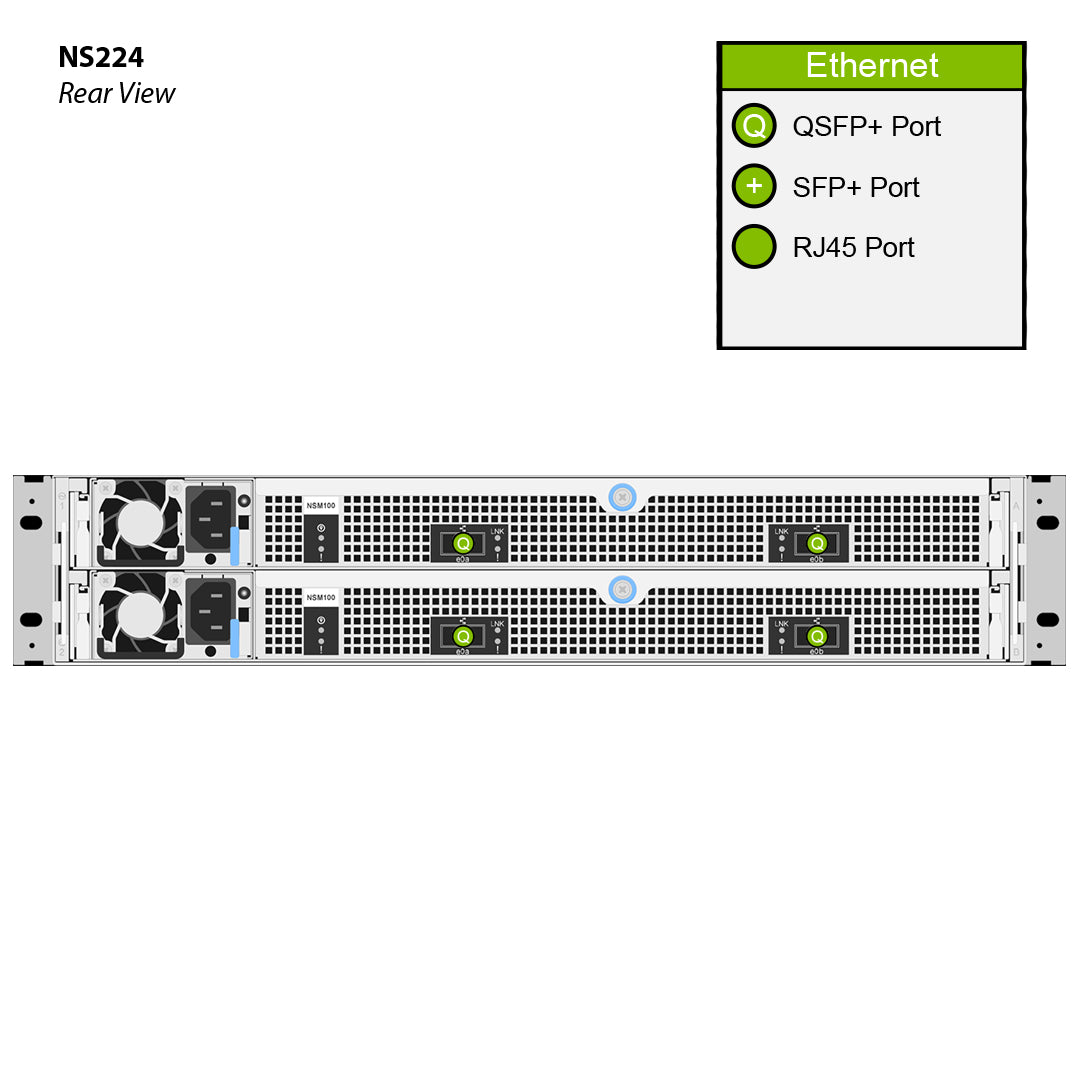

2x NSM100 Controller Module (X572001A)
2x Power Supplies with Fans (X5726A)
2x .5 QSFP to QSFP SAS Cables (X66020A-R6) (longer cables available please ask for custom order)
1x Rail Kit (X-02654-00)
2x Power Cables (X800E-R6)

Compatible With:

NetApp NS224

(Click to View)

Supported Drives

Part Number	Encryption	Capacity	RPM	Checksum
Drive Type: Capacity Flash NVMe SSD
X4020A	No	15.3TB	N/A	BCS
Drive Type: NVMe SSD
X4010A	No	1.92TB	N/A	BCS
X4011A	No	3.84TB	N/A	BCS
X4012A[1]	Yes	3.84TB	N/A	BCS
X4013A	No	7.68TB	N/A	BCS
X4014A	No	15.3TB	N/A	BCS
X4016A	No	3.84TB	N/A	BCS
X4018A	No	1.92TB	N/A	BCS
X4019A[1]	Yes	15.3TB	N/A	BCS
Footnotes
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.

Supported Shelf Modules for NetApp NS224

Module	Part Number	Interface	Max Data Rate	Min ONTAP
NSM100	X572001A	IN: QSFP, OUT: QSFP	100 Gbps	9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC2

Cables Compatibility for Module NSM100

Mktg Part No	Mfg Part No	Length	End 1 / End 2	Description	Supported Speed(s)	Min OS
Ethernet 100 Mbps (Copper Cables)
NetApp Cable X66211A-05	112-00595	0.5m	QSFP28 / QSFP28	Cable,QSFP28-QSFP28,Cu,0.5m	100 Gbps	-
NetApp Cable X66211A-1	112-00573	1m	QSFP28 / QSFP28	Cable,QSFP28-QSFP28,Cu,1m	100 Gbps	-
NetApp Cable X66211B-1-C	112-00573	1m	QSFP28 / QSFP28	Cable,QSFP28-QSFP28,Cu,1m	100 Gbps	-
NetApp Cable X66211A-2	112-00574	2m	QSFP28 / QSFP28	Cable,QSFP28-QSFP28,Cu,2m	100 Gbps	-
NetApp Cable X66211B-2-C	112-00574	2m	QSFP28 / QSFP28	Cable,QSFP28-QSFP28,Cu,2m	100 Gbps	-
NetApp Cable X66211A-5	112-00576	5m	QSFP28 / QSFP28	Cable,QSFP28-QSFP28,Cu,5m	100 Gbps	-
NetApp Cable X66211B-5-C	112-00576	5m	QSFP28 / QSFP28	Cable,QSFP28-QSFP28,Cu,5m	100 Gbps	-
Ethernet 100 Gbps (Optical Cables)
Optical Transceiver X65405 with Supported Cables
NetApp Cable X65405	332-00440, AFBR-89CDDZ-NA1, AFBR-89CDDZ-NA2, AFBR-89CDHZ-NA1, AFBR-89CDHZ-NA2, FTLC9551REPM, FTLC9558REPM, FTLC9558REPM-N1, FTLC9558REPM-NQ	XCVR	QSFP28 / MPO	XCVR,QSFP28,Opt,100Gb,Shortwave	100 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 11.3
NetApp Cable X66200-2	112-00326	2m	MPO / MPO	Cable,Opt,OM4,MPO/MPO,Type B,2m	100 Gbps	-
NetApp Cable X66200-5	112-00328	5m	MPO / MPO	Cable,Opt,OM4,MPO/MPO,Type B,5m	100 Gbps	-
NetApp Cable X66200-15	112-00330	15m	MPO / MPO	Cable,Opt,OM4,MPO/MPO,Type B,15m	100 Gbps	-
NetApp Cable X66200-30	112-00331	30m	MPO / MPO	Cable,Opt,OM4,MPO/MPO,Type B,30m	100 Gbps	-

Supported Power Cords for NetApp NS224

Marketing Part No.	End 1 / End 2	Length	Description
Non-Cabinet Power Cords
X-50617-00	IEC60320-C20 / IEC60320-C13	2.00 m	Power Cords,In-Cabinet,2m,C20-C13,E-Series
X800B-R6	CEE 7/7 (Schuko) / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6	BS1363 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6	JIS-C-8303 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6	NEMA 5-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6	AS/NZS 3112 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6	SEV 1011 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6	IRAM 2073 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6	GB2099 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6	DHCR107-2-D1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6	SANS 164-1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6	SI32 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6	CEI 23-16 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Italy,10A/250V
X800N	EL208 / IEC60320-C13	2.50 m	Pwr Cord,10A,250V,2.5m,India
X800P-R6	NEMA 6-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6	CNS 10917-3 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6	NBR14136 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6	CNS10917/CNS690 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6	JIS-C-830 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X1558A-R6	IEC60320-C14 / IEC60320-C13	1.20 m	Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35	IEC60320-C14 / IEC60320-C13	0.89 m	Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43	IEC60320-C14 / IEC60320-C13	1.09 m	Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64	IEC60320-C14 / IEC60320-C13	1.63 m	Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6	IEC60320-C14 / IEC60320-C13	0.68 m	Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Supported Rail Kits for NetApp NS224

Marketing Part No.	Manufacturing Part No.	Description
NetApp System Cabinet Rail Kits
X87881A	113-00255	Rail Kit 5,Cabinet
Third-Party Cabinet Rail Kits
X-02654-00	111-02852	Kit,2-Post, Thin
X5532A	113-00251	Rail,4-Post,Thin,Rnd/Sq-Hole,Sm,Adj,24-32

Field Replacement Unit Parts for NetApp NS224

Marketing Part No.	Manufacturing Part No.	Description
Cabinets
X870F-C	-	Cabinet,1280mm,Empty,No PDU,No Rails,-C
X870F-N-C	-	Cab,1280mm,Empty,No PDU,No Rails,-C
X870F-QS-C	-	Cabinet,1280mm,Empty,No PDU,No Rails,QS,-C
Chassis
X5723A	111-03068	SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS212C
Conversion Kit
X898A	TBD	DS212C, Kit,FAS2620 Conversion
Data Cable
X66020A-R6	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66032A	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66033A	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66033A-K-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66034A	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66040A	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A	112-00453	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A	112-00454	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A	112-00455	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
Drive
X302A-R5	108-00268	Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4
X306A-R5	108-00270	Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4
X308A-R5	108-00277	Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4
X315A-R6	108-00368	DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X317A	108-00399	DSK DRV,6TB,7.2K,12G,NSE,DS212C
X318A-R6	108-00455	DSK DRV,8TB,7.2K,12G,DS212C
X322A	108-00551	DSK DRV,10TB,7.2K,12G,NSE,DS212C
X336A-R6	108-00427	DSK DRV,4TB,7.2K,12G,DS212C
X339A	108-00426	DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620
X363A-R6	108-00467	SSD,3.8TB,FAS2520/2554
X364A	108-00650	SSD,3.8TB,DS212C,FAS2620,w/MSW
X366A-R6	108-00470	SSD,1.6TB,NSE,DS4246,FAS2554
X374A	108-00573	SSD,960GB,12G,DS212C,W/MSW
X380A	108-00549	DSK DRV,10TB,7.2K,12G,DS212C
X388A	108-00885	DSK DRV,16TB,7.2K,12G,DS212C
X448A-R6	108-00253	SSD,200GB,DS4246,FAS2554/2240-4/2220
X449A-R6	108-00319	SSD,800GB,DS4246,FAS2554/2240-4/2220
X477A-R6	108-00315	DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4
X488A-R5	108-00298	Disk Drive,900GB 10K,2520/2220
X489A-R6	108-00322	Disk Drive,1.2TB 10K,2520/2220
X490A-R6	108-00425	Disk Drive,1.8TB 10K,FAS2520
X575A-R6	108-00370	SSD,400GB,DS424x,FAS2554/2240-4/2220
X576A-R6	108-00373	SSD,1.6TB,DS424x,FAS2554/2240-4/2220
X577A-R6	108-00375	SSD,800GB,NSE,DS4246,FAS2554
Power Cord
X-50617-00	-	Jumper Crd,In-Cab,2m,C20-C13,E-Series
X-50617-00-0E-C	-	Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C
X1558A-R6	-	Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C	-	Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35	-	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C	-	Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N	-	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N	-	Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43	-	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C	-	Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N	-	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N	-	Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64	-	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C	-	Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N	-	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N	-	Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6	-	Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C	-	Jumper Crd,In-Cab,C13-C14,-C
X800B-R6	-	Power Cable,Continental Europe,R6
X800B-R6-C	-	Power Cable,Continental Europe,-C,R6
X800C-R6	-	Power Cable,UK and Ireland,R6
X800C-R6-C	-	Power Cable,UK and Ireland,-C,R6
X800D-R6	-	Power Cable,Japan,R6
X800D-R6-C	-	Power Cable,Japan,-C,R6
X800E-R6	-	Power Cable,North America,R6
X800E-R6-C	-	Power Cable,North America,-C,R6
X800F-R6	-	Power Cable,Australia/New Zealand,R6
X800F-R6-C	-	Power Cable,Australia/New Zealand,-C,R6
X800G-R6	-	Power Cable,Switzerland,R6
X800G-R6-C	-	Power Cable,Switzerland,-C,R6
X800H-R6	-	Power Cable,Argentina,R6
X800H-R6-C	-	Power Cable,Argentina,-C,R6
X800I-R6	-	Power Cable,China,R6
X800I-R6-C	-	Power Cable,China,-C,R6
X800J-R6	-	Power Cable,Denmark,R6
X800J-R6-C	-	Power Cable,Denmark,-C,R6
X800K-R6	-	Power Cable,India,South Africa,R6
X800K-R6-C	-	Power Cable,India,South Africa,-C,R6
X800L-R6	-	Power Cable,Israel,R6
X800L-R6-C	-	Power Cable,Israel,-C,R6
X800M-R6	-	Power Cable,Italy,R6
X800M-R6-C	-	Power Cable,Italy,-C,R6
X800N	-	POWER CABLE,INDIA BIS
X800N-C	-	Power Cable,India BIS,-C
X800P-R6	-	Power Cable,North America,250V,R6
X800P-R6-C	-	Power Cable,North America,250V,-C,R6
X800T-R6	-	Power Cable,Taiwan,BSMI,R6
X800T-R6-C	-	Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6	-	Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6	-	Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C	-	Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6	-	Power Cable,Japan,250V/15A
X800Y-R6-C	-	Power Cable,Japan,250V/15A,-C
Power Supply Unit
X5726A	114-00148	PSU,913W
RailKit
X-02654-00	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-C	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post,-C
X-02654-00-K-N	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N-C	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02657-00	111-02657	Rackmount Kit,212C,4-post,Adj
X-02657-00-C	111-02657	Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
X-02657-00-K-N	111-02657	Rackmount Kit,212C,4-post,Adj
X-02657-00-N	111-02657	Rackmount Kit,212C,4-post,Adj
X-02657-00-N-C	111-02657	Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
Shelf Module
X5720A	-	IOM12,SAS,12G

Size, Weight, Acoustic, Power for NetApp NS224

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU / Hr Typical	BTU / Hr Worst
(None)
NS224-NS-1.9-18-N-C	NVMe SHLF,18x1.92TB,Non-SED,-	-	-	-	-	-	-	-	-	-	-	-
NS224-SED-1.9-18-QS	NVMe SHLF,18x1.9TB,SED,-Q	2	62.2 lb (28.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	4.88	7.6	488	760	1666	2595
NS224-SED-1.9-18-QS	NVMe SHLF,18x1.9TB,SED,-Q	2	62.2 lb (28.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.37	3.61	474	722	1617	2466
NS224-SED-15.3-18-QS	NVMe SHLF,18x15.3TB,SED,-Q	2	62.2 lb (28.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	5.28	8.01	528	801	1804	2733
NS224-SED-15.3-18-QS	NVMe SHLF,18x15.3TB,SED,-Q	2	62.2 lb (28.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.57	3.81	514	763	1754	2603
NS224-SED-3.8-18-QS	NVMe SHLF,18x3.8TB,SED,-Q	2	62.2 lb (28.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	5.15	7.87	515	787	1758	2687
NS224-SED-3.8-18-QS	NVMe SHLF,18x3.8TB,SED,-Q	2	62.2 lb (28.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.5	3.75	500	749	1709	2557
NS224-SED-7.6-18-QS	NVMe SHLF,18x7.6TB,SED,-Q	2	62.2 lb (28.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	5.28	8.01	528	801	1804	2733
NS224-SED-7.6-18-QS	NVMe SHLF,18x7.6TB,SED,-Q	2	62.2 lb (28.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.57	3.81	514	763	1754	2603
Empty Shelf (with AC PSU)
NS224-0-24-C	NVMe SHLF,2U24,12G,Empty,-	-	-	-	-	-	-	-	-	-	-	-
Quickship Half Populated
NS224-CF-15.3-12-N-C	CAPACITY FLASH SHLF,12x15.3TB,-	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.14	3.38	428	676	1460	2309
NS224-NS-1.9-12-QS	NVMe SHLF,100G,12x1.9TB,Non-SED,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	4.54	7.27	454	727	1551	2480
NS224-NS-1.9-12-QS	NVMe SHLF,100G,12x1.9TB,Non-SED,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.2	3.44	440	689	1502	2351
NS224-NS-3.8-12-QS	NVMe SHLF,12x3.8TB,NON-SED,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	4.72	7.45	472	745	1613	2541
NS224-NS-3.8-12-QS	NVMe SHLF,12x3.8TB,NON-SED,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.29	3.53	458	707	1563	2412
NS224-NS-3.8-12-QS	NVMe SHLF,12x3.8TB,NON-SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	5.58	8.3	558	830	1903	2832
NS224-NS-3.8-12-QS	NVMe SHLF,12x3.8TB,NON-SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.72	3.96	543	792	1854	2703
NS224-SED-1.9-12-QS	NVMe SHLF,12x1.9TB,SED,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	4.54	7.27	454	727	1551	2480
NS224-SED-1.9-12-QS	NVMe SHLF,12x1.9TB,SED,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.2	3.44	440	689	1502	2351
NS224-SED-15.3-12-QS	NVMe SHLF,12x15.3TB,SED,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	4.81	7.53	481	753	1643	2572
NS224-SED-15.3-12-QS	NVMe SHLF,12x15.3TB,SED,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.33	3.58	467	716	1594	2443
NS224-SED-3.8-12-QS	NVMe SHLF,12x3.8TB,SED,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	4.72	7.45	472	745	1613	2541
NS224-SED-3.8-12-QS	NVMe SHLF,12x3.8TB,SED,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.29	3.53	458	707	1563	2412
NS224-SED-3.8-12N-QS	NVMe SHLF,12x3.8TB,SED,NSE,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	4.72	7.45	472	745	1613	2541
NS224-SED-3.8-12N-QS	NVMe SHLF,12x3.8TB,SED,NSE,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.29	3.53	458	707	1563	2412
NS224-SED-7.6-12-QS	NVMe SHLF,12x7.6TB,SED,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	4.81	7.53	481	753	1643	2572
NS224-SED-7.6-12-QS	NVMe SHLF,12x7.6TB,SED,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.33	3.58	467	716	1594	2443
Quickship Fully Populated
NS224-CF-15.3-24-N-C	CAPACITY FLASH SHLF,24x15.3TB,-	2	66.8 lb (30.3 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.62	3.86	524	772	1788	2637
NS224-NS-1.9-24-QS	NVMe SHLF,100G,24x1.9TB,Non-SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	5.22	7.94	522	794	1781	2710
NS224-NS-1.9-24-QS	NVMe SHLF,100G,24x1.9TB,Non-SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.54	3.78	507	756	1732	2580
NS224-NS-3.8-24-QS	NVMe SHLF,24x3.8TB,NON-SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	5.58	8.3	558	830	1903	2832
NS224-NS-3.8-24-QS	NVMe SHLF,24x3.8TB,NON-SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.72	3.96	543	792	1854	2703
NS224-SED-1.9-24-QS	NVMe SHLF,24x1.9TB,SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	5.22	7.94	522	794	1781	2710
NS224-SED-1.9-24-QS	NVMe SHLF,24x1.9TB,SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.54	3.78	507	756	1732	2580
NS224-SED-15.3-12N-QS-N	NVMe SHLF,12x15.3TB,SED,NSE,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	4.42	7.14	442	714	1510	2438
NS224-SED-15.3-12N-QS-N	NVMe SHLF,12x15.3TB,SED,NSE,-Q	2	57.8 lb (26.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.14	3.38	428	676	1460	2309
NS224-SED-15.3-24-QS	NVMe SHLF,24x15.3TB,SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	5.76	8.48	576	848	1965	2893
NS224-SED-15.3-24-QS	NVMe SHLF,24x15.3TB,SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.81	4.05	561	810	1915	2764
NS224-SED-15.3-24N-QS-N	NVMe SHLF,24x15.3TB,SED,NSE,-Q	2	66.8 lb (30.3 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	5.38	8.1	538	810	1837	2766
NS224-SED-15.3-24N-QS-N	NVMe SHLF,24x15.3TB,SED,NSE,-Q	2	66.8 lb (30.3 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.62	3.86	524	772	1788	2637
NS224-SED-3.8-24-QS	NVMe SHLF,24x3.8TB,SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	5.58	8.3	558	830	1903	2832
NS224-SED-3.8-24-QS	NVMe SHLF,24x3.8TB,SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.72	3.96	543	792	1854	2703
NS224-SED-3.8-24N-QS	NVMe SHLF,24x3.8TB,SED,NSE,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	5.58	8.3	558	830	1903	2832
NS224-SED-3.8-24N-QS	NVMe SHLF,24x3.8TB,SED,NSE,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.72	3.96	543	792	1854	2703
NS224-SED-7.6-24-QS	NVMe SHLF,24x7.6TB,SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	100 (100 to 120)	5.76	8.48	576	848	1965	2893
NS224-SED-7.6-24-QS	NVMe SHLF,24x7.6TB,SED,-Q	2	66.6 lb (30.2 kg)	6.4 Bels	49.8 dBA	200 (200 to 240)	2.81	4.05	561	810	1915	2764
