HPE Ml350 (G10) Performance Tower Server 4214R 1P 32GB 8SFF P408i-A 1X800W FS RPS | P21789-001

Refurbished HPE ProLiant ML350 Gen10 CTO Tower Server

SKU: P21789-001

HPE Ml350 (G10) Performance Tower Server 4214R 1P 32GB 8SFF P408i-A 1X800W FS RPS | P21789-001

Name: HPE Ml350 (G10) Performance Tower Server 4214R 1P 32GB 8SFF P408i-A 1X800W FS RPS | P21789-001
Brand: HPE
SKU: P21789-001
Availability: InStock

HPE

| Server

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Comes with:

Processors - 1 x 4214R (12-Core, 2.4 GHz, 100W)
Notes: Add HPE ML350 Gen10 Xeon-S 4214R Kit (P19792-B21) for 2nd processor upgrade.
Memory - 32 GB RDIMM DR 2933 MT/s (1x 32 GB)
Network Controller - Embedded 4-Port 1GbE HPE Ethernet 1Gb 4-port 369i Adapter
Storage Controller - P408i-a
Notes:
− 8-Port Modular Smart Array. Supports SAS/SATA with performance RAID
− Smart Storage battery included.
Hard Drive - None ship standard

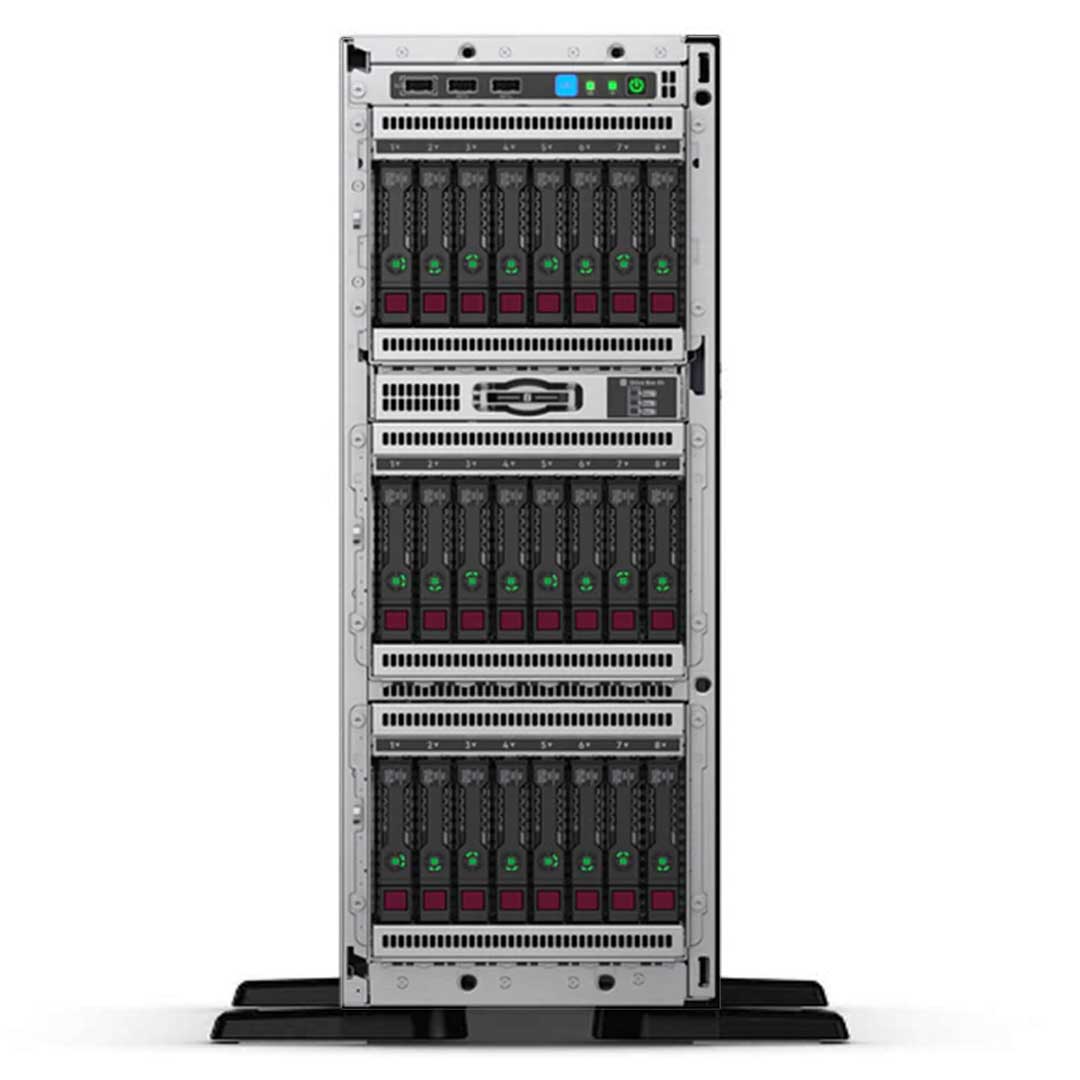

Internal Storage - 8 SFF chassis with optional SFF HDD Cage Kit (874568-B21),
upgradeable to 24 SFF.
Opt. 8 SFF NVMe Express Bay Kit (874569-B21)
Notes: Now the system can support mixed SFF and LFF HDD cages in one system. The 4 LFF HDD Cage Kit part number is 874566-B21.
Optical Drive Bay - Optional Slimline ODD Bay Kit (874577-B21) for SATA DVD-ROM/DVD-RW optical drive Optional Media Drive Support Kit (874570-B21) for RDX or tape/LTO devices, up to 2
Optical Drive - None ship as standard
PCIe Slots - 4-slots (x16, x8, x16, x8) as standard
Notes: PCIe slots 5 – 8 require the second optional processor
Power Supply - 1x 800W HPE FlexSlot Power Supply
Notes: Add a second 800W FlexSlot power supply to get 1+1 power redundancy feature
Fans - 6 standard fans
Management - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, and HPE OneView Advanced (require licenses)
Energy Start - 2.1 certified ErP Lot 9 Compliant
Form Factor - 4U Tower

Looking to Customize?

Not seeing the exact specs you need?
Start your build today with Express Computer Systems!

Start Customizing Today!

Base Standard Capabilities

Product features

Feature

Description

Processors¹

Intel First Generation Xeon Scalable Processors

Model	CPU frequency	Cores	L3 cache	Power	UPI	DDR4	Memory per socket
Platinum processors
Platinum 8180M processor	2.5 GHz	28	38.50MB	205 W	3 @ 10.4 GT/s	2666 MT/s	1.5TB
Platinum 8180 processor	2.5 GHz	28	38.50MB	205 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8176M processor	2.1 GHz	28	38.50MB	165 W	3 @ 10.4 GT/s	2666 MT/s	1.5TB
Platinum 8176 processor	2.1 GHz	28	38.50MB	165 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8170M processor	2.1 GHz	26	35.75MB	165 W	3 @ 10.4 GT/s	2666 MT/s	1.5TB
Platinum 8170 processor	2.1 GHz	26	35.75MB	165 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8168 processor	2.7 GHz	24	33.00MB	205 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8164 processor	2.0 GHz	26	35.75MB	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8160M processor	2.1 GHz	24	33.00MB	150 W	3 @ 10.4 GT/s	2666 MT/s	1.5TB
Platinum 8160 processor	2.1 GHz	24	33.00MB	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8158 processor	3.0 GHz	12	24.75MB	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8156 processor	3.6 GHz	4	16.50MB	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8153 processor	2.0 GHz	16	22.00MB	125 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold processors
Gold 6154 processor	3.0 GHz	18	24.75MB	200 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6152 processor	2.1 GHz	22	30.25MB	140 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6150 processor	2.7 GHz	18	24.75MB	165 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6148 processor	2.4 GHz	20	27.50MB	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6146 processor	3.2 GHz	12	24.75MB	165 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6144 processor	3.5 GHz	8	24.75MB	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6142M processor	2.6 GHz	16	22.00MB	150 W	3 @ 10.4 GT/s	2666 MT/s	1.5TB
Gold 6142 processor	2.6 GHz	16	22.00MB	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6140M processor	2.3 GHz	18	24.75MB	140 W	3 @ 10.4 GT/s	2666 MT/s	1.5TB
Gold 6140 processor	2.3 GHz	18	24.75MB	140 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6138 processor	2.0 GHz	20	27.50MB	125 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6136 processor	3.0 GHz	12	24.75MB	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6134M processor	3.2 GHz	8	24.75MB	130 W	3 @ 10.4 GT/s	2666 MT/s	1.5TB
Gold 6134 processor	3.2 GHz	8	24.75MB	130 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6132 processor	2.6 GHz	14	19.25MB	140 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6130 processor	2.1 GHz	16	22.00MB	125 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6128 processor	3.4 GHz	6	19.25MB	115 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6126 processor	2.6 GHz	12	19.25MB	125 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 5122 processor	3.6 GHz	4	16.50MB	105 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 5120 processor	2.2 GHz	14	19.25MB	105 W	3 @ 10.4 GT/s	2400 MT/s	768GB
Gold 5118 processor	2.3 GHz	12	16.50MB	105 W	3 @ 10.4 GT/s	2400 MT/s	768GB
Gold 5115 processor	2.4 GHz	10	13.75MB	85 W	3 @ 10.4 GT/s	2400 MT/s	768GB
Silver processors
Silver 4116 processor	2.1 GHz	12	16.50MB	85 W	2 @ 9.6 GT/s	2400 MT/s	768GB
Silver 4114 processor	2.2 GHz	10	13.75MB	85 W	2 @ 9.6 GT/s	2400 MT/s	768GB
Silver 4112 processor	2.6 GHz	4	8.25MB	85 W	2 @ 9.6 GT/s	2400 MT/s	768GB
Silver 4110 processor	2.1 GHz	8	11.00MB	85 W	2 @ 9.6 GT/s	2400 MT/s	768GB
Silver 4108 processor	1.8 GHz	8	11.00MB	85 W	2 @ 9.6 GT/s	2400 MT/s	768GB
Bronze processors
Bronze 3106 processor	1.7 GHz	8	11.00MB	85 W	2 @ 9.6 GT/s	2133 MT/s	768GB
Bronze 3104 processor	1.7 GHz	6	11.00MB	85 W	2 @ 9.6 GT/s	2133 MT/s	768GB

Intel Second Generation Xeon Scalable Processors

Intel Xeon Models	CPU Frequency	Cores	L3 Cache	Power	UPI	DDR4	Memory per socket
Platinum Processors
Platinum 8280L Processor	2.7 GHz	28	38.50MB	205 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	4.5TB
Platinum 8280M Processor	2.7 GHz	28	38.50MB	205 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	2TB
Platinum 8280 Processor	2.7 GHz	28	38.50MB	205 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Platinum 8270 Processor	2.6 GHz	26	35.75MB	205 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Platinum 8268 Processor	2.9 GHz	24	35.75MB	205 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Platinum 8260L Processor	2.4 GHz	24	35.75MB	165 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	4.5TB
Platinum 8260M Processor	2.4 GHz	24	35.75MB	165 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	2TB
Platinum 8260Y Processor	2.4 GHz	24/20/16	35.75MB	165 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Platinum 8260 Processor	2.4 GHz	24	35.75MB	165 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Platinum 8256 Processor	3.8 GHz	4	16.50MB	105 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Platinum 8253 Processor	2.2 GHz	16	22.00MB	125 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Gold Processors
Gold 6254 Processor	3.1 GHz	18	24.75MB	200 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Gold 6252 Processor	2.1 GHz	24	35.75MB	150 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Gold 6248 Processor	2.5 GHz	20	27.50MB	150 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Gold 6244 Processor	3.6 GHz	8	24.75MB	150 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Gold 6242 Processor	2.8 GHz	16	22.00MB	150 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Gold 6240 Processor	2.6 GHz	18	24.75MB	150 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Gold 6230 Processor	2.1 GHz	20	27.50MB	125 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Gold 6212U Processor	2.4 GHz	24	35.75MB	165 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Gold 6210U Processor	2.5 GHz	20	27.5MB	150 W	3 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Gold 5222 Processor	3.8 GHz	4	16.50MB	105 W	2 @ 10.4 GT/s	2666 MT/s @ 2DPC 2933 MT/s @ 1DPC	1TB
Gold 5220 Processor	2.2 GHz	18	24.75MB	125 W	2 @ 10.4 GT/s	2666 MT/s	1TB
Gold 5218 Processor	2.3 GHz	16	22MB	125 W	2 @ 10.4 GT/s	2666 MT/s	1TB
Gold 5218B Processor	2.3 GHz	16	22MB	125 W	2 @ 10.4 GT/s	2666 MT/s	1TB
Gold 5217 Processor	3.0 GHz	8	11MB	115 W	2 @ 10.4 GT/s	2666 MT/s	1TB
Gold 5215L Processor	2.6 GHz	10	13.75MB	85 W	2 @ 10.4 GT/s	2666 MT/s	4.5TB
Gold 5215M Processor	2.6 GHz	10	13.75MB	85 W	2 @ 10.4 GT/s	2666 MT/s	2TB
Gold 5215 Processor	2.5 GHz	10	13.75MB	85 W	2 @ 10.4 GT/s	2666 MT/s	1TB
Silver Processors
Silver 4216 Processor	2.1 GHz	16	22.00MB	100 W	2 @ 9.6 GT/s	2400 MT/s	1TB
Silver 4215 Processor	2.5 GHz	8	11.00MB	85 W	2 @ 9.6 GT/s	2400 MT/s	1TB
Silver 4214 Processor	2.2 GHz	12	16.50MB	85 W	2 @ 9.6 GT/s	2400 MT/s	1TB
Silver 4210 Processor	2.2 GHz	10	13.75MB	85 W	2 @ 9.6 GT/s	2400 MT/s	1TB
Silver 4208 Processor	2.1 GHz	8	11.00MB	85 W	2 @ 9.6 GT/s	2400 MT/s	1TB
Bronze Processors
Bronze 3204 Processor	1.9 GHz	6	8.25MB	85 W	2 @ 9.6 GT/s	2133 MT/s	1TB

top

Specs 1

Form factor

4U tower with rack conversion capability

Chassis types

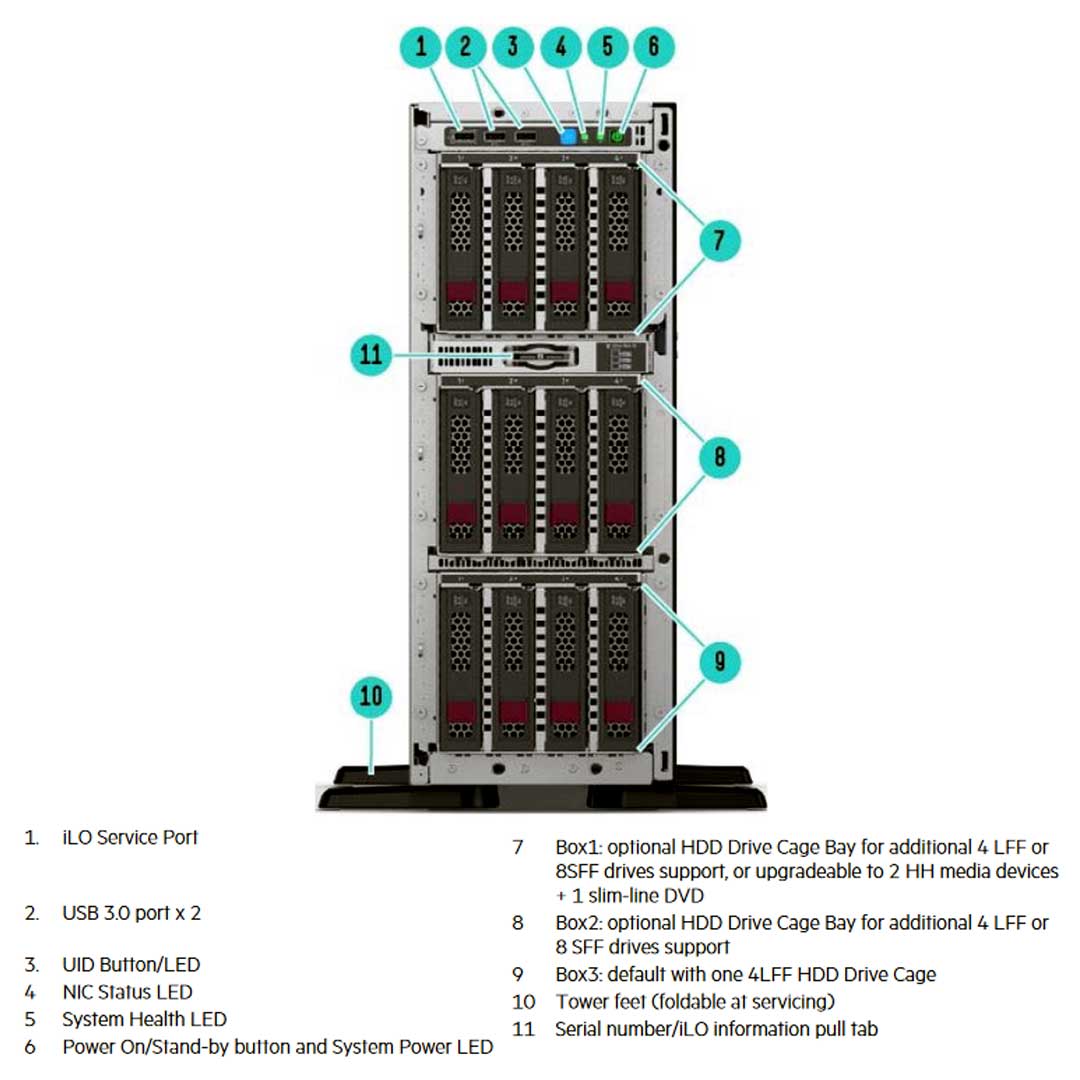

8 SFF chassis with optional SFF HDD cage kit (s), NVMe express bay, Half-Height (5.25) media bay up to2, and 1 Slim-Line DVD bay kit options
4 LFF chassis with optional LFF HDD cage kit (s), Half-Height (5.25) media bay up to 2, and 1 Slim-Line DVD bay kit options
4 LFF NHP chassis with optional LFF NHP HDD cage kit (s), Half-Height (5.25) media bay up to 2, and 1 Slim-Line DVD bay kit options

NOTE: The 8 SFF chassis can be upgraded with SFF HDD cage kit (s) to 16 or 24 SFF. Note a field upgrade to 24 SFF will require redundant fan kit (874572-B21)

System fans

Standard - Fan types included

Chipset

Intel C622 chipset

On system management chipset

HPE iLO 5 ASIC

Industry standard compliance

ACPI 6.1 compliant
PCIe 3.0 compliant
WOL support
Microsoft logo certifications
PXE support
VGA display port
USB 3.0 compliant
USB 2.0 compliant
Energy star
SMBIOS 3.1
UEFI 2.6
Redfish API
IPMI 2.0
Secure digital 2.0
Advanced Encryption Standard (AES)
Triple Data Encrytion Standard (3DES)
SNMP v3
TLS 1.2
DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
Active directory v1.0
ASHRAE A3/A4

NOTE: For additional technical thermal details regarding ambient temperatures, humidity and features support ,visit: Click here to access the "HPE Information Library" .

ServerUEFI/legacy ROM

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

Secure boot and secure start enable for enhanced security
Operating system specific functionality
Support for > 2.2 TB (Using GPT) boot drives
USB 3.0 stack
Embedded UEFI shell
Mass configuration deployment Tool using iLO RESTful API that is Redfish API conformant
PXE boot support for IPv6 networks
Workload profiles for simple performance optimization

UEFI boot mode only:

TPM 2.0 support
NVMe boot support
Platform Trust Technology (PTT) can be enabled
iSCSI software initiator support
HTTP/HTTPs boot support as a PXE alternative
Boot support for option cards that only support a UEFI option ROM

NOTE:

For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI
UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for users HPEProLiant Gen10 Server

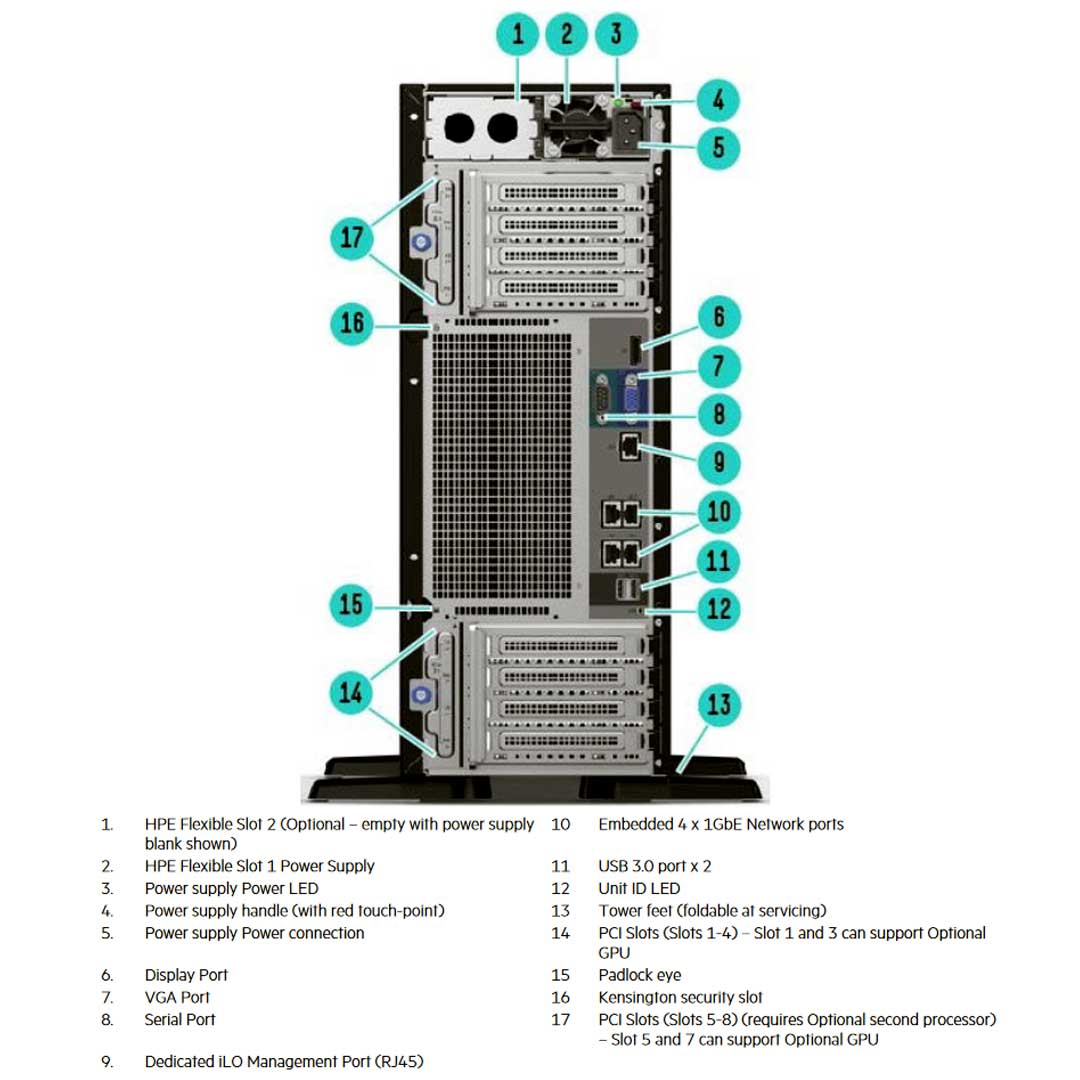

Interfaces

Serial	1 standard (At system rear)
VGA port	1 standard (At system rear)
Display port	1 standard (At system rear)
Embedded network ports	4 x 1Gb ports shipping standard, with optional stand up card
HPE iLO remote management network port	1Gb dedicated
Front iLO service port	1 standard
Micro SD slot NOTE: The Micro SD slot is not a hot-pluggable device. Users should not attempt to plug an SD card into the SD slotwhile the server is powered	1 Micro SD (Internal)
USB 3.0/2.0	6 Total, standard: 2 front (USB 3.0), 2 rear (USB 3.0), 2 internal (1 x USB 3.0 and 1 x USB 2.0)

HPE server UEFI/legacy ROM

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

Secure boot and secure start enable for enhanced security
Operating system specific functionality
Support for > 2.2TB (Using GPT) boot drives
USB 3.0 stack
Embedded UEFI shell
Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant
PXE boot support for IPv6 networks
Workload profiles for simple performance optimization

UEFI boot mode only:

TPM 2.0 support
NVMe boot support
PTT can be enabled
iSCSI software initiator support
HTTP/HTTPs boot support as a PXE alternative
Boot support for option cards that only support a UEFI option ROM

Embedded management

HPE Integrated Lights Out (HPE iLO)
UEFI
Intelligent Provisioning
iLO RESTful API

Server utilities

Active Health System
Active Health System Viewer
Smart update
iLO amplifier pack
HPE iLO mobile application
RESTful interface tool
Scripting tools
HPE OneView standard
HPE Systems Insight Manager (HPE SIM)

Graphics

Integrated video standard

Video modes up to 1920 x 1200-60 Hz (32 bp)
16MB video memory

HPE iLO 5 on system management memory

32MB flash
4 Gbit DDR 3 with ECC protection

Memory

One of the following depending on model

Type	HPE DDR4 SmartMemory,Registered (RDIMM), Load Reduced (LRDIMM)
DIMM slots available	24	12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel
Maximum capacity (LRDIMM)	3TB	24 x 128 GB LRDIMM - 2600 MT/s
Maximum capacity (RDIMM)	768GB	24 x 32 GB RDIMM - 2600 MT/s

Type	HPE DDR4 SmartMemory,Registered (RDIMM), Load Reduced (LRDIMM)
DIMM slots available	24	12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel
Maximum capacity (LRDIMM)	3TB	24 x 128 GB LRDIMM - 2933 MT/s
Maximum capacity (RDIMM)	1.5GB	24 x 64 GB RDIMM - 2933 MT/s

Expansion slots

Slots #	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
1	PCIe 3.0	X16	X16	Full-Height, Full-Length slot	Proc 1
2	PCIe 3.0	X4	X8	Full-Height, Full-Length slot	Proc 1
3	PCIe 3.0	X16	X16	Full-Height, Full-Length slot	Proc 1
4	PCIe 3.0	X4	X8	Full-Height, Full-Length slot	Proc 1
5	PCIe 3.0	X16	X16	Full-Height, Full-Length slot	Proc 2
6	PCIe 3.0	X8	X8	Full-Height, Full-Length slot	Proc 2
7	PCIe 3.0	X16	X16	Full-Height, Full-Length slot	Proc 2
8	PCIe 3.0	X8	X8	Full-Height, Full-Length slot	Proc 2

Storage controllers

For details on the HPE server memory options RAS feature, visit:

Software RAID	Essential RAID controller	Performance RAIDcontroller
HPE Smart Array S100i SR Gen10 SW RAID	HPE Smart Array E208i-a SR Gen10 Controller HPE Smart Array E208i-p SR Gen10 Controller HPE Smart Array E208e-p SR Gen10 Controller	HPE Smart Array P408i-a SR Gen10 Controller HPE Smart Array P408i-p SR Gen10 Controller HPE Smart Array P408e-p SR Gen10 Controller HPE Smart Array P816i-a SR Gen10 Controller HPE Smart Array P824i-p MR Gen10 Controller
NOTE: Performance RAID controllers require the HPE Smart storage battery (P01367-B21) or HPE Smart storage hybrid capacitor (P02381-B21) which is sold separately Separate cable kit will be required depending on configuration requirement. Refer to the later section for more information

Internal storage devices

One of the following depending on model

Optical drive:

Optional slim-line DVD-ROM/DVD-RW up to 1
Optional half-height (5.25 in) RDX or tape/LTO devices up to 2

Hard drives cages

8 SFF Hot-Plug SAS/SATA HDD cages; upgradeable to 24 SFF drives
4 LFF Hot-Plug SAS/SATA HDD cages; upgradeable to 12 LFF drives
4 LFF Non-Hot-Plug SATA HDD cages; upgradeable to 12 LFF drives
8 SFF PCIe NVMe Express Bay; upgradeable to 8 SFF NVMe SSDs

NOTE: All Pre-Configured models come with some hard drive blanks installed. Should the user need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF HDD blank kit or P/N 807878-B21: HPE LFF HDD spade blank Gen9 Kit. HDD blanks are not needed in the NHP LFF system

Power supply

HPE 500 W Standard Non-Hot-Plug Power Supply Kit
HPE 500 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
HPE 800 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
HPE 1600 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Maximum internal storage

Internal Storage	Capacity	Configuration
Hot Plug SFF SAS	48.0TB	24 x 2TB
Hot Plug SFF SATA	48.0TB	24 x 2TB
Hot Plug LFF SAS	168.0TB	12 x 14TB
Hot Plug LFF SATA	168.0TB	12 x 14TB
Hot Plug SFF SAS SSD	184.32TB	24 x 7.68TB
Hot Plug SFF SATA SSD	92.16TB	24 x 3.84TB
Hot Plug LFF SAS SSD	46.08TB	12 x 3.84TB
Hot Plug LFF SATA SSD	46.08TB	12 x 3.84TB
Non Hot Plug LFF SATA	48.0TB	12 x 4TB
Hot Plug SFF NVMe PCIe SSD	32TB NVMe	8 x 2TB NVMe
NOTE: NHP LFF SKU supports SATA hard disk drives only.

top

Specs 2

Software overview

Feature	Description
Operating systems and virtualization software support	Windows Server 2012 R2 Windows Server 2016 Microsoft Hyper-V Server 2016 LTSC Windows Server 2019 LTSC Microsoft Hyper-V Server 2012 R2, 2016 & 2019 VMware vSphere 6.0 U3, 6.5 U2 & 6.7 U1 Red Hat Enterprise Linux (RHEL) 7.6 with Kbase (includes KVM) SUSE Linux Enterprise Server (SLES) 12 SP3, 12 SP4, 15, (includes KVM) ClearOS/ClearVM 7.6, 8.0
NOTE: ClearOS allows user to build a fully functional server that is just right for user at no upfront cost: Click here to access the "ClearOS Software from HPE" for more information .

top

Physical specifications

Specification	Description
Dimensions (H x W x D)	Tower: 46.25 x 17.4 x 64.8 cm (18.2 x 6.85 x 25.51 in) Rack - System:17.4 x 44.5 x 64.8 cm (6.85 x 17.52 x 25.51 in) Tower-to-Rack conversion kit (1U): Depth without CMA: 4.445 x 45.2 x 69.2 cm (1.75 x 17.795 x 27.23 in) Depth with CMA: 4.445 x 45.2 x 83.5 cm (1.75 x 17.795 x 32.89 in)
Weight (Approximate)	Minimum: 21 kg (46.30 lb) Maximum: 42 kg (92.59 lb)

top

Electrical specifications

Specification

Description

Rated line voltage

100 to 120 V ac
200 to 240 V ac

BTU Rating

For 800 W power supply: 3067 BTU/hr (At 100 V ac), 2958 BTU/hr (At 200 V ac), 2949 BTU/hr (At 240 V ac)
For 500 W power supply: 1902 BTU/hr (At 100 V ac), 1840 BTU/hr (At 200 V ac), 1832 BTU/hr (At 240 V ac)
For 1600 W power supply: 5918 BTU/hr (At 200 V ac), 5884 BTU/hr (At 240 V ac)

Power supply output

Rated Steady-State Power	Maximum Peak Power
For 1600 W power Supply: 1600 W (At 240 V ac), 1600 W (At240 V ac) For 800 W Power Supply: 800 W (At 100 V ac), 800 W (At 240 V ac), 800 W (At 240 V ac) For 500 W Power Supply: 500 W (At 100 V ac), 500 W (At 240 V ac), 500 W (At 240 V ac)	For 1600 W Power Supply: 1600 W (At 200 to 240 V ac),1600 W (At 240 V ac) For 800 W Power Supply: 800 W (At 100 to 127 V ac), 800 W(At 200 to 240 1V ac), 800 W (At 240 V ac) For 500 W Power Supply: 500 W (At 100 to 127 V ac), 500 W(At 200 to 240 V ac), 500 W (At 240 V ac)

top

Environmental specifications

Specification

Description

Standard operating temperature

10° to 35° C (50° to 95° F)

Extended ambient operating temperature

5° to 10° C (41° to 50° F)

Non-operating temperature

-30° to 60° C (-22° to 140° F)

Operating relative humidity

8% to 90%

Non-operating relative humidity

5% to 95%

Operating altitude

3050 m (10,000 ft)

Non-operating altitude

9144 m (30,000 ft)

Acoustic noise

Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109)

Idle

Operating

LWAd

4.0 B Entry
3.9 B Base
4.4 B Perf

LpAm

28 dBA Entry
27 dBA Base
31 dBA Perf

LWAd

4.2 B Entry
4.3 B Base
4.4 B Perf

LpAm

29 dBA Entry
30 dBA Base
32 dBA Perf

NOTE:

Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only.
Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels, for example, higher-end Graphic Processing Units (GPU), NVMe SSDor NVMe M.2

top

Safety certifications

Specification	Description
Emissions Classification (EMC)	To view the regulatory information for users product, view the safety and compliance information for Server, Storage, Power, Networking, and Rack products.

top

Spec Sheet 4

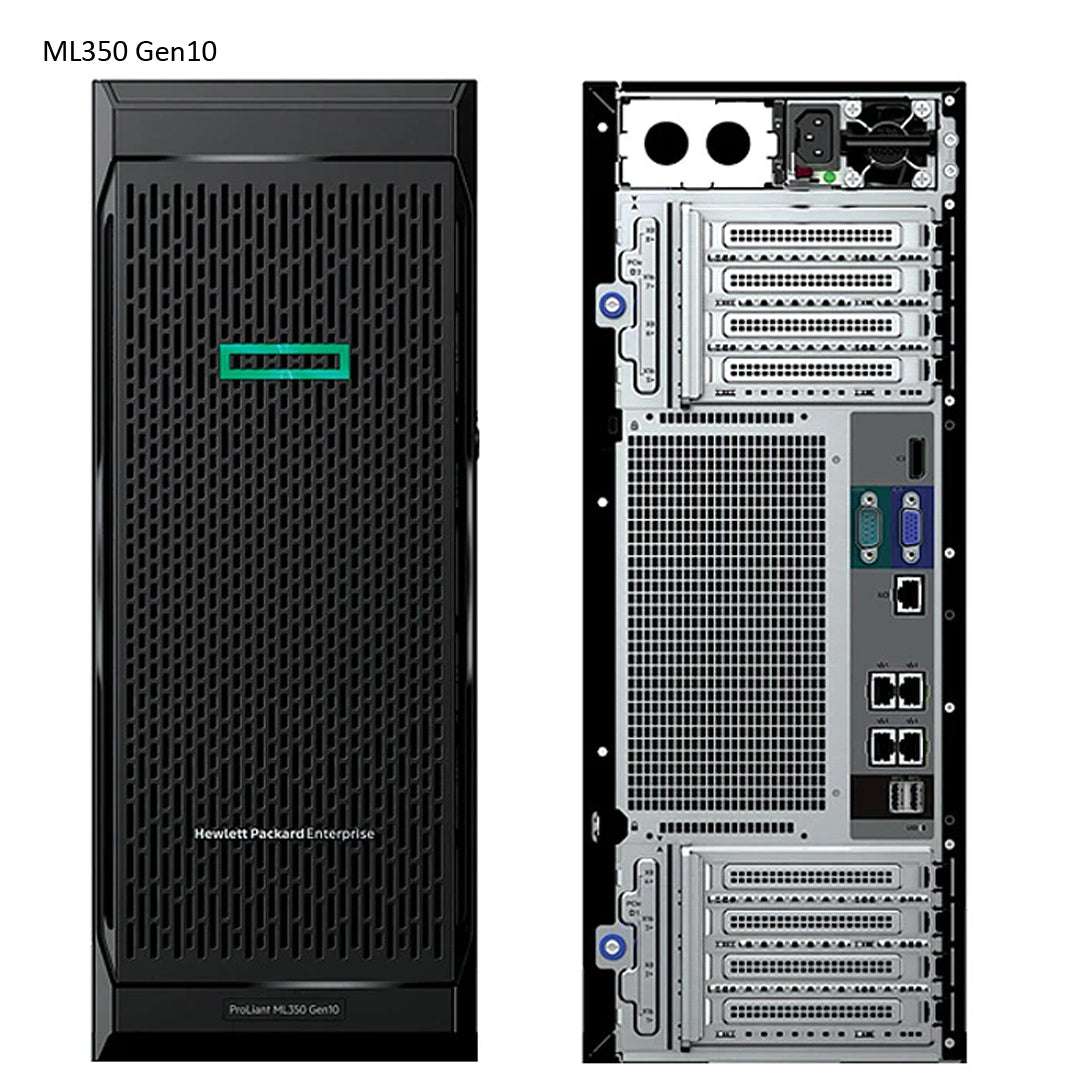

Technical specifications	HPE ProLiant ML350 Gen10 server
Processor Name	Intel® Xeon® Scalable processors, 1st or 2nd generation
Processor family	1st generation: Intel® Xeon® Scalable 8100 series, Intel® Xeon® Scalable 6100 series, Intel® Xeon® Scalable 5100 series, Intel® Xeon® Scalable 4100 series, Intel® Xeon® Scalable 3100 series 2nd generation: Intel® Xeon® Scalable 8200 series, Intel® Xeon® Scalable 6200 series, Intel® Xeon® Scalable 5200 series, Intel® Xeon® Scalable 4200 series, Intel® Xeon® Scalable 3200 series
Processor core available	28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 6 or 8 or 4, depending on model
Processor cache	38.50 MB L3 - 8.25 MB L3, depending on model
Processor speed	3.9 GHz, maximum depending on processor
Power supply type	HPE Flexible Slot Redundant Power Supply modules 500W / 800W / 1600W, depending on model SKU, or HPE Standard 500W Non-Hot-Plug/non-RPS Power Supply (ordering limited to non-EU/EMEA countries/regions)
Expansion slots	8-slots (x16, x8, x16, x8, x16, x8, x16, x8) as standard in 2P model. For detail reference QuickSpecs.
Maximum memory	3.0 TB with 128 GB DDR4 DIMM
Memory, standard	32 GB (1 x 32 GB) RDIMM or depending on model
Memory slots	6 DIMM slots, maximum
Memory type	HPE DDR4 SmartMemory
Memory protection features	Advanced ECC Memory Online Spare Mode Memory Lock Step Mode
Included hard drives	None Ship Standard
Optical drive type	Optional DVD-ROM or DVD-RW. Optional via Slim-line ODD Bay Kit. Optional external support is available too. Optional Half-Height RDX or Tape, up to 2. Optional via Media Drive Support Kit. For detail reference QuickSpecs.
System fan features	Depending on model SKU. Standard 2 fans, none-hot-plug. Optional 4 additional fans, hot-plug and N+1 redundancy Reference QuickSpecs for config. detail.
Network controller	HPE Ethernet 1Gb 4-port 369i Adapter
Storage controller	1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a SR Gen10 and/or 1 HPE Smart Array E208i-a Gen10, depending on model. For detail reference QuickSpecs.
Product Dimensions (metric)	18.2 x 25.51 x 6.85 in
Weight	46.30 lb
Infrastructure management	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard), HPE iLO Advanced, and OneView Advanced (optional)
Drive supported	24 SFF SAS/SATA HDD/SSD, or 16 SFF SAS/SATA HDD/SSD and 8 SFF NVMe SSD. 12 LFF SAS/SATA HDD/SSD or 12 LFF NHP SATA HDD, depending on model. Upgrade option kits are available.

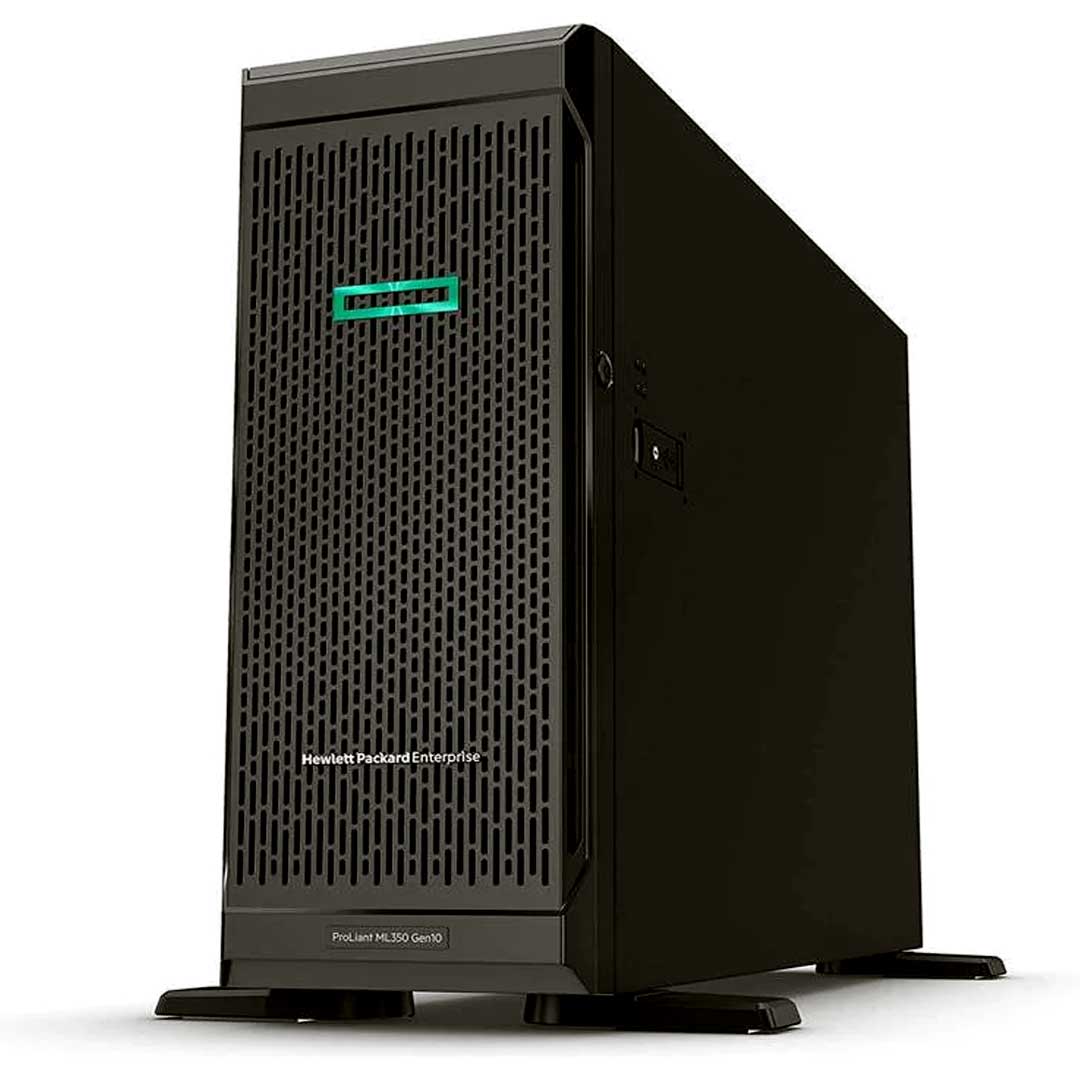

HPE Ml350 (G10) Performance Tower Server 4214R 1P 32GB 8SFF P408i-A 1X800W FS RPS | P21789-001

Comes with:

Looking to Customize?

Base Standard Capabilities

Product features

Specs 1

Specs 2

Software overview

Physical specifications

Electrical specifications

Environmental specifications

Safety certifications

Spec Sheet 4

You may also like

Currency

Welcome to the Request Express Quoting Form!
