Specs
Quick Specs
Form Factor:
2U Rack Server
Processor | Max: 32 Cores2x 4th Generation Intel® Xeon® Scalable processors with up to 32 cores per processor
Memory | Max: 2TB16x DDR5 RDIMM 4800Mhz
Storage | Max: 61.44TB4x 2.5" SAS/SATA/NVMe (HDD/SSD) Max: 61.44TB
RAID Controller:S160
H355, H755, H965i, HBA355i, HBA355e
BOSS-N1, Internal USB
Lom / OCP:4 x 25 GbE SFP+ LOM
1 x OCP card 3.0 (Optional)
iDRAC9 with Lifecycle Controller
PCIe Slots:Up to 5 PCIe slots (4 x16 Gen4/5, 1 x16 LP Gen4)
GPU:Up to 5 x 75 W SW
Up to 2 x 300 W DW
Ideal for:
- Artificial Intelligence (AI)
- Data Analytics
- Edge Servers
- Point-of-Sale (POS)
- Video Analytics
Dell Technology’s short depth enterprise edge server
The new Dell PowerEdge XR7620 is a short-depth 2U, 2-socket server with datacenter-level compute delivering high-performance, high-capacity and reduced latency. Purpose-built for the edge, the PowerEdge XR7620 is designed for the most demanding workloads including industrial automation, video analytics, point of sale analytics, AI inferencing and edge point device aggregation.
Built to endure
Designed to bring acceleration to the edge.
- Operates in temperatures ranging from -5 ° C to 55 ° C, is MIL and NEBS tested
- Easily serviceable with rear/front facing I/O and power options
- Short-depth design allows flexibility in tight edge environments
- Built rugged to withstand dusty, harsh environments along with additional security from the optional lockable intelligent bezel
Purpose-built for the Edge
- Built rugged to operate in temperatures from -5°C to 55°C; MIL 810H* and NEBS Level 3* tested
- Offers easy serviceability with reversible I/O & power
- Short-depth (472 mm) chassis to fit in space constrained environments
- Withstand dusty and harsh environments with an optional lockable smart filtered bezel for extra physical security
Datacenter-level compute
- Two Intel® Xeon® Scalable Processors with up to 32 cores per processor for ultimate edge performance
- Integration with PCIe Gen5 doubles the data transfer rate from PCIe Gen4 for faster more efficient data transfer
- Includes latest memory DDR5, 50% memory capacity over DDR4, increasing bandwidth.
Acceleration where it’s needed
- Up to two double-wide GPU accelerators to support demanding workloads
- E3 NVME storage utilizes a limited-space design with more storage density, making it ideal for data-intensive workloads at the edge
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | Technical Specifications | |
|---|---|---|
| Processor | Two 4th Generation Intel® Xeon® Scalable processors with up to 32 cores per processor | |
| Memory | 16 DDR5 DIMM slots, supports RDIMM 2 TB max, speeds up to 4800 MT/s. Supports registered ECC DDR5 DIMMs only | |
| Storage controllers | • Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i • Software RAID: S160 | • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap) or internal USB module |
| Drive Bays | Front bays: Up to 4 x 2.5-inch SAS/SATA/NVMe SSD drives, 61.44 TB max, Up to 8 x E3.S NVMe direct drives, 51.2 TB max | |
| Hot swap redundant Power Supplies | • 1800 W Titanium 200—240 VAC or 240 HVDC • 1400 W Platinum 100—240 VAC or 240 HVDC | • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W -48 — (-60) VDC |
| Cooling Options | • Air cooling | |
| Fans | • Six cold swap cooling fans | |

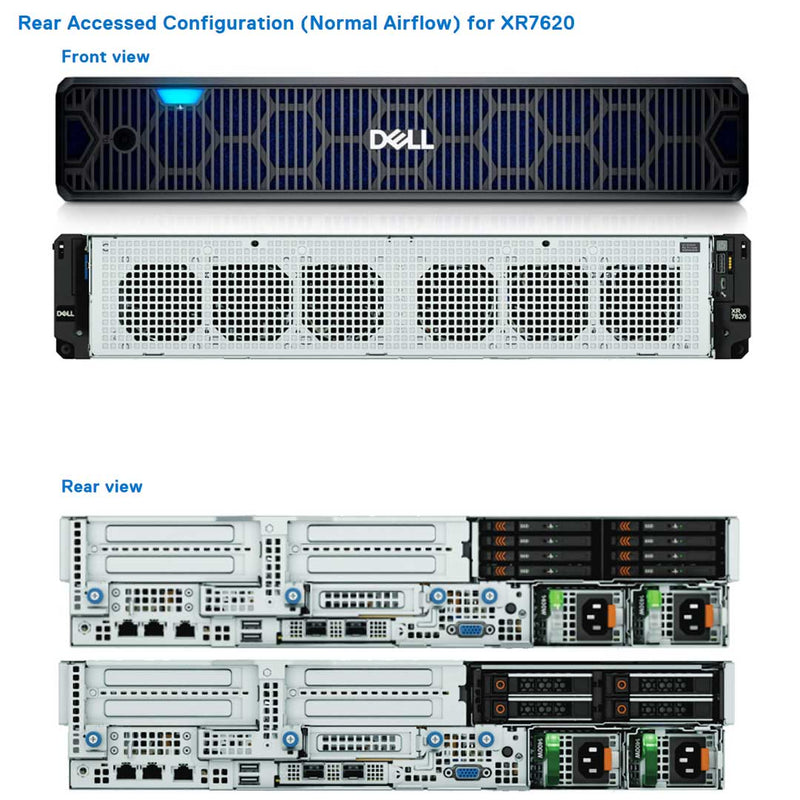

| Dimensions | Rear Accessed configuration | Front Accessed configuration |
| • Height: 86.8 mm (3.41 inches) • Width: 482.6 mm (19 inches) • Depth: 448.8 mm (17.6 inches) Ear to rear wall 496.3 mm (19.53 inches) with bezel 471.8 mm (18.57 inches) without bezel | • Height: 86.8 mm (3.41 inches) • Width: 482.6 mm (19 inches) • Depth: 572 mm (22.51 inches) with bezel 471.8 mm (18.57 inches) without bezel | |
| Weight | Max 21.16 kg (46.64 pounds) | |
| Form Factor | 2U rack server | |
| Embedded Management | • iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module | |

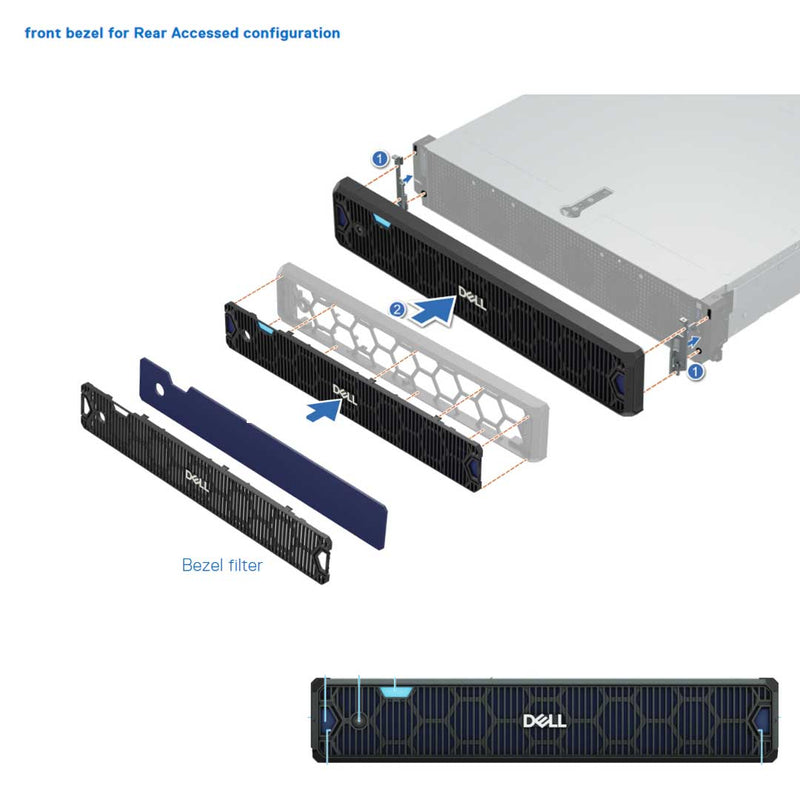

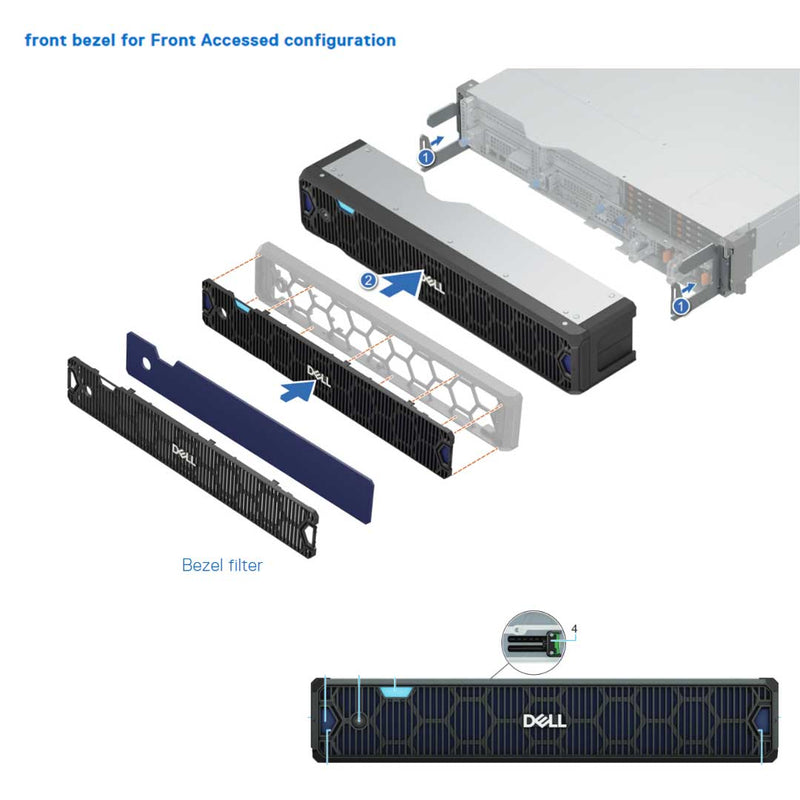

| Bezel | Optional security bezel with dust filter (dust sensor available only for Front Accessed configuration systems) | |
| OpenManage Software | • CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin | |
| Mobility | OpenManage Mobile | |
| OpenManage Integrations | • Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Integration with ServiceNow • OpenManage Integration for Microsoft System Center | • OpenManage Enterprise Integration for VMware vCenter • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
| Security | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secure Erase | • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| GPU options | Up to 5 x 75 W (Single Width Full Height/Half Length, Low Profile) GPU or up to 2 x 300 W (Double Width Full Height/Full Length) | |
| Embedded NIC | 2 x 1 GbE LOM | |
| Network options | 1 x OCP card 3.0 (optional) | |
| Ports | For Rear Accessed configuration | Front Accessed configuration |
| Front Ports: • 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0 Internal Ports: • 1 x USB 3.0 (optional) Rear Ports: • 1 x USB 2.0, 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial port (optional on slot 5), 1 x VGA | Front Ports: • 1 x USB 2.0, 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial port (optional on slot 5), 1 x VGA, 1 x iDRAC Direct (Micro-AB USB) port Internal Ports: • 1 x USB 3.0 (optional) Rear Ports: NA | |
| PCIe | 2 CPU configuration: Up to 5 PCIe slots (4 x16 Gen4/5, 1 x16 LP Gen4) | |
| Operating System and Hypervisors | • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server | • VMware ESXi • Canonical Ubuntu Server LTS |
Spec Sheet 4
| Feature | PowerEdge XR7620 | PowerEdge XR12 | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Processors | 2 x 4th Gen Intel® Xeon® Scalable Processors | 1 x 3rd Generation Intel® Xeon Scalable Processor | |||||||||||||||||
| CPU interconnect | Intel Ultra Path Interconnect (UPI) | Intel Lewisburg PCH (Intel® C620 Series Chipset) | |||||||||||||||||
| Memory | ● 16 x DDR5 RDIMM
● Up to 4800 MT/s |
8x RDIMM, LRDIMM DDR4 with ECC, Two
Intel Optane Persistent Memory 200 series
configurations:
● 4+4 ● 6+1 Number of DDR4 DIMMs plus number of Intel Optane Persistent Memory 200 series DIMMs |
|||||||||||||||||
| Storage Controllers | ● PERC 11G: H755, H355
● PERC 12G: H965i ● HBA 11: HBA355i ● BOSS-N1 ● Software RAID: S160 |
● PERC 10.5: H355 (Adapter)
● PERC 11: H355*, HBA355i (Adapter), H755 (Adapter) ● External Adapters: H840; HBA355e ● Software RAID: S150 ● BOSS-S1 (RAID) |
|||||||||||||||||
| Drive Bays | ● Up to 8 x E3.S NVMe drives
● Up to 4 x 2.5-inch SAS/SATA or NVMe drives |
6 x 2.5-inch - 12 GB SAS, 6 GB SATA
Up to 6 x NVMe ● Up to 6 x 2.5-inch - 12 GB SAS, 6 GB SATA ● Up to 6 x NVMe |
|||||||||||||||||
| Power Supplies | ● 1800 W Titanium 200—240 VAC or 240
HVDC, hot swap redundant
● 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant ● 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant ● 1100 W -48 — (-60) VDC, hot swap redundant |
● Titanium 700 W Mixed Mode HLAC (200-240 V
AC/240 V DC)
● Platinum 800 W (WRAC and MM 240 V) ● 800 W -48 V DC (-40 to -72 V DC) ● *1100 W -48 V DC ● Titanium 1100 W Mixed Mode (100 to 240 V AC/240 V DC) ● *Platinum 1400 W (WRAC and MM 240 V) NOTE: *These PSUs are also available in reverse airflow design to support Front Accessed Configuration. |
|||||||||||||||||
| Cooling Options | Air Cooling | Air Cooling | |||||||||||||||||
| Fans | Six cooling fans | Up to six cooling fans | |||||||||||||||||
| Dimension | Height: 86.8 mm (3.41 inches) | Height: 86.8 mm (3.41 inches) | |||||||||||||||||
| Width: 482.6 mm (19 inches) | Width: 482 mm (18.97 inches) | ||||||||||||||||||
| Depth: | Rear Accessed configuration Depth:
● 448.8 mm (17.6 inches) Ear to rear wall ● 496.3 mm (19.53 inches) with bezel ● 471.8 mm (18.57 inches) without bezel |
Depth: 772.13 mm (30.39 inches) with bezel | |||||||||||||||||
| Front Accessed configuration Depth:
● 572 mm (22.51 inches) with bezel ● 471.8 mm (18.57 inches) without bezel |
|||||||||||||||||||
| Form Factor | 2U rack server | 2U rack server | |||||||||||||||||
| Embedded Management | ● iDRAC9
● iDRAC Direct ● iDRAC RESTful with Redfish ● iDRAC Service Manual |
● iDRAC9
● Lifecycle Controller ● OpenManage ● OME Power Manager ● Digital License Key |
|||||||||||||||||
| Bezel | LED bezel | Optional LCD bezel or security bezel | |||||||||||||||||
| OpenManage Software | ● CloudIQ for PowerEdge plug in
● OpenManage Enterprise ● OpenManage Power Manager plugin ● OpenManage Services plugin ● OpenManage Update Manager plugin |
● OpenManage Enterprise
● OpenManage Power Manager plugin ● OpenManage SupportAssist plugin ● OpenManage Update Manager plugin |
|||||||||||||||||
| Mobility | OpenManage Mobile | OpenManage Mobile | |||||||||||||||||
| Integrations and Connections | OpenManage Integrations
● Microsoft System Center ● OpenManage Integration for Microsoft System Center ● OpenManage Integration with Windows Admin Center ● OpenManage Integration with ServiceNow ● Red Hat Ansible Modules ● OpenManage Integration with VMware vCenter / VMware Aria Operations (OMEVV) ● VMware vCenter and vRealize Operations Manager |
OpenManage Integrations
● BMC TrueSight ● Microsoft System Center ● Red Hat Ansible Modules ● VMware vCenter |
● IBM Tivoli Netcool/ OMNIbus
● IBM Tivoli Network Manager IP Edition ● Micro Focus Operations Manager ● Nagios Core ● Nagios XI |
||||||||||||||||
| Security | ● Cryptographically signed firmware
● Secure Boot ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ ● Secured Component Verification (Hardware integrity check) ● Data at Rest Encryption (SEDs with local or external key mgmt) |
● Cryptographically signed firmware
● Secure Boot ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|||||||||||||||||
| Embedded NIC | 2 x 1 GbE LOM | 2 x 1 GbE LOM | |||||||||||||||||
| Networking Options | OCP x8 (optional) Mezz 3.0 | OCP x8 Mezz 3.0 | |||||||||||||||||
| GPU Options | Up to 5 x 75 W (Single Width Full Height/ Half Length, Low Profile) GPU or 2 x 300 W (Double Width Full Height/Full Length) | Up to 2 x 75 W/150 W (SW) and 2 x 300 W (DW/FH/FL) based on riser configuration | |||||||||||||||||
| Ports | Rear Accessed Configuration Front Ports
● 1 x USB 2.0 ● 1 x iDRAC Direct (Micro-AB USB) port |
Rear Accessed Configuration Rear Ports
● 1 x USB 2.0 ● 1 x iDRAC dedicated port ● 1 x USB 3.0 ● 1 x Serial (Optional, on Slot 5) ● 1 x VGA |
Rear Accessed Configuration Front: ○ one standard USB 2.0 port ○ one micro USB 2.0 port dedicated to iDRAC management Rear: ○ one standard USB 3.0 port ○ one standard USB 2.0 port ○ one Dedicated 1GbE ○ one Serial port ○ one VGA port |
||||||||||||||||
| Front Accessed Configuration Front Ports
● 2 x USB 2.0 ● 1 x iDRAC dedicated port ● 1 x USB 3.0 ● 1 x Serial (Optional, on Slot 5) ● 1 x VGA ● 1 x iDRAC Direct (Micro-AB USB) port |
Front Accessed Configuration Rear Ports
● NA |
Front Accessed Configuration
● Front: one standard USB 3.0 port, two standard USB 2.0 ports, one micro USB 2.0 port dedicated to iDRAC management, one Dedicated 1GbE, one Serial port, one VGA port ● Internal: one standard USB 3.0 port on Riser 1B |
|||||||||||||||||
| Internal Port: 1 x USB 3.0 (optional) | Internal: 1 x USB 3.0 port (optional) | ||||||||||||||||||
| PCIe | Up to 5 PCIe slots - full-height, half-length and low profile
● 4 x PCIe (2 Gen4/5 + 2 Gen4) ● 1 x LP Gen4 |
Up to 5 riser configuration options:
● 3 x PCIe Gen4 (one x8 PCIe Gen4 + two x16 PCIe Gen4) ● 3 x PCIe Gen4 (one x16 PCIe Gen4 + two x16 PCIe Gen4) (Only supported for Front Accessed Chassis) ● 4 x PCIe Gen 4 (three x8 PCIe Gen4 + one x16 PCIe Gen 4) ● 4 x PCIe Gen 4 (two x8 PCIe Gen 4 + two x16 PCIe Gen 4) (Only supported for Front Accessed Chassis) ● 5 x PCIe Gen4 (five x8 PCIe Gen4) |
|||||||||||||||||
| Operating System and Hypervisors | ● Canonical Ubuntu Server LTS
● Microsoft Windows Server with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi |
● Canonical Ubuntu Server LTS
● Citrix Hypervisor ● Windows Server LTSC with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi |
|||||||||||||||||
