Specs
Quick Specs
Form Factor:
Single Width Compute Sled
Processor | Max: 56 Cores2 x 4th Generation Intel Xeon Scalable
Memory | Max: 8TB32 DDR5 RDIMM 4800Mhz
Storage | Max: 92TB8 E3.S EDSFF Gen 5 NVMe Max: 61TB
6 SFF SAS/SATA/NVMe Max: 92TB
6 SFF SAS/SATA Max: 46.08TB
4 SFF SAS/SATA Max: 61TB
S160 (SW RAID SATA/NVMe)
PERC H755 MX, H965i MX, HBA350i MX
Supports a 100 Gb NIC per port for Mezz A/B
Boot Options:BOSS-N1 (480GB or 960GB)
USB
iDRAC9 with Lifecycle Controller
Ideal for:
- Artificial Intelligence (AI)
- Big Data Analytics
- Virtualization
MX7000 Supported Sled Options
Dell PowerEdge MX Series

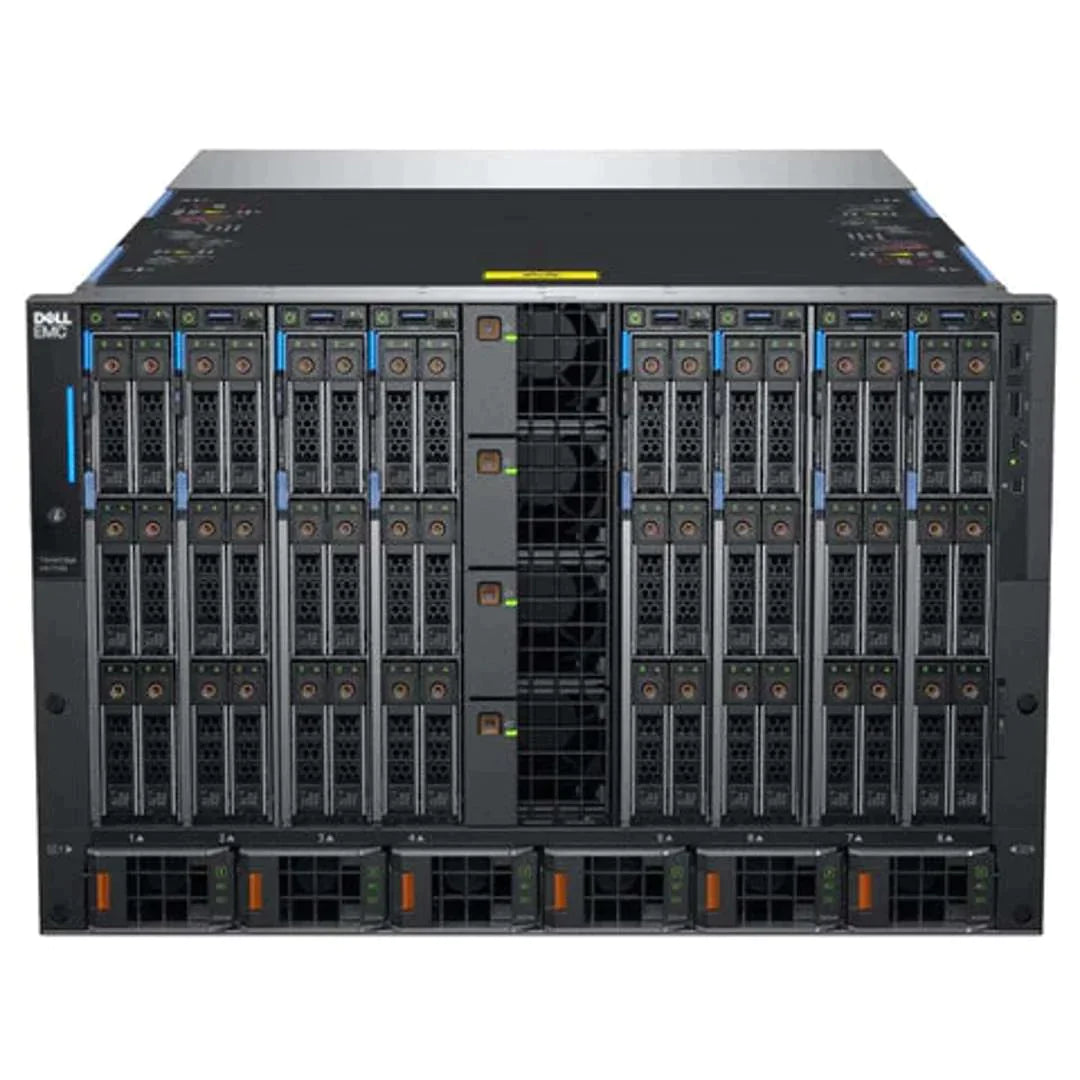

- Dell PowerEdge MX7000 Modular CTO Enclosure Chassis
-
Dell PowerEdge MX740c CTO Compute Sled Up to 8
- Dell PowerEdge MX750c CTO Compute Sled Up to 8
- Dell PowerEdge MX760c CTO Compute Sled Up to 8
- Dell PowerEdge MX840c CTO Compute Sled Up to 4
- Dell PowerEdge MX5016s CTO Storage Sled Up to 7 Requires a minimum of 1 compute node in a chassis with storage sleds
Each Node is a separate CTO you must configure.
High performing system:
- Add up to two 4th generation Intel® Xeon® Scalable processors with up to 56 cores per socket for faster performance
- Support for higher-speed and dense memory capacity, optimized for 2 DIMMs/channel and up to 32 DDR5 DIMMs 4800 MT/s
- Storage options include increased storage density with E3.S EDSFF NVME devices/PCIe Gen5, and up to 64 E3.S devices per chassis
- Introduction of the 100G switch with simplified common management.
A breeze to cool
Thoughtfully designed to fit in your current air-cooled infrastructure
- Alleviate the worry about expensive liquid cooling retrofitting to your data center
- Synchronize your workload needs with a tailored performance configuration that is an air-cooled system
- Minimize the carbon footprint of your data center by better matching the system power consumption with anticipated workload requirements
Increase efficiency and accelerate operations with an autonomous infrastructure
The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | Techinal Specifications | |
|---|---|---|
| Processor | • Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor • Intel® C741 chipset with optional Intel® QuickAssist Technology | |
| Memory | 32 DDR5 DIMM slot, supports RDIMM max 8 TB, speeds up to 4800 MT/s | |
| Availability | Supports registered ECC DDR5 DIMMs only | |
| Storage controllers | • Internal controllers: PERC H755 MX, PERC H965i MX, HBA350i MX • Internal boot: USB or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB • Software RAID: S160 | |

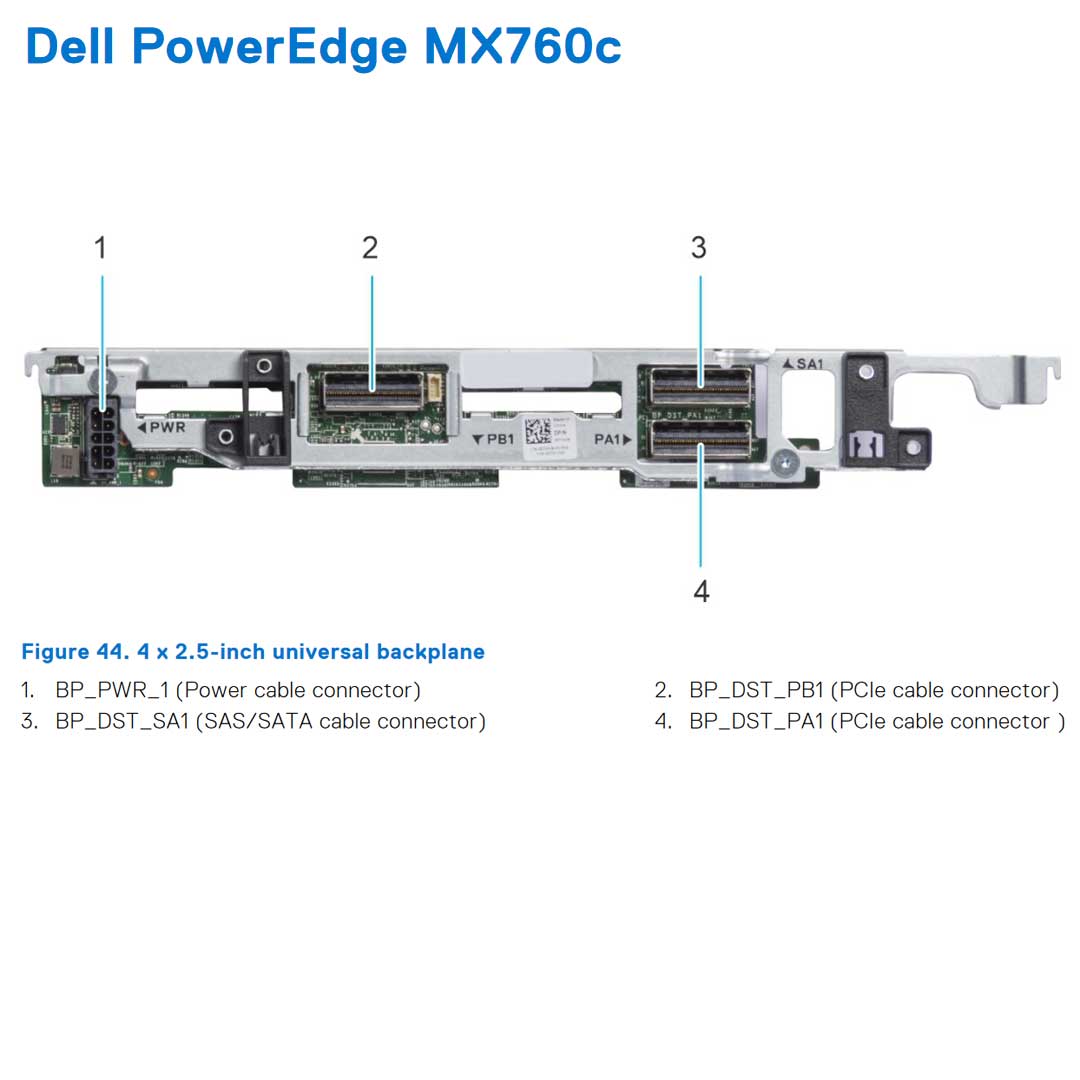

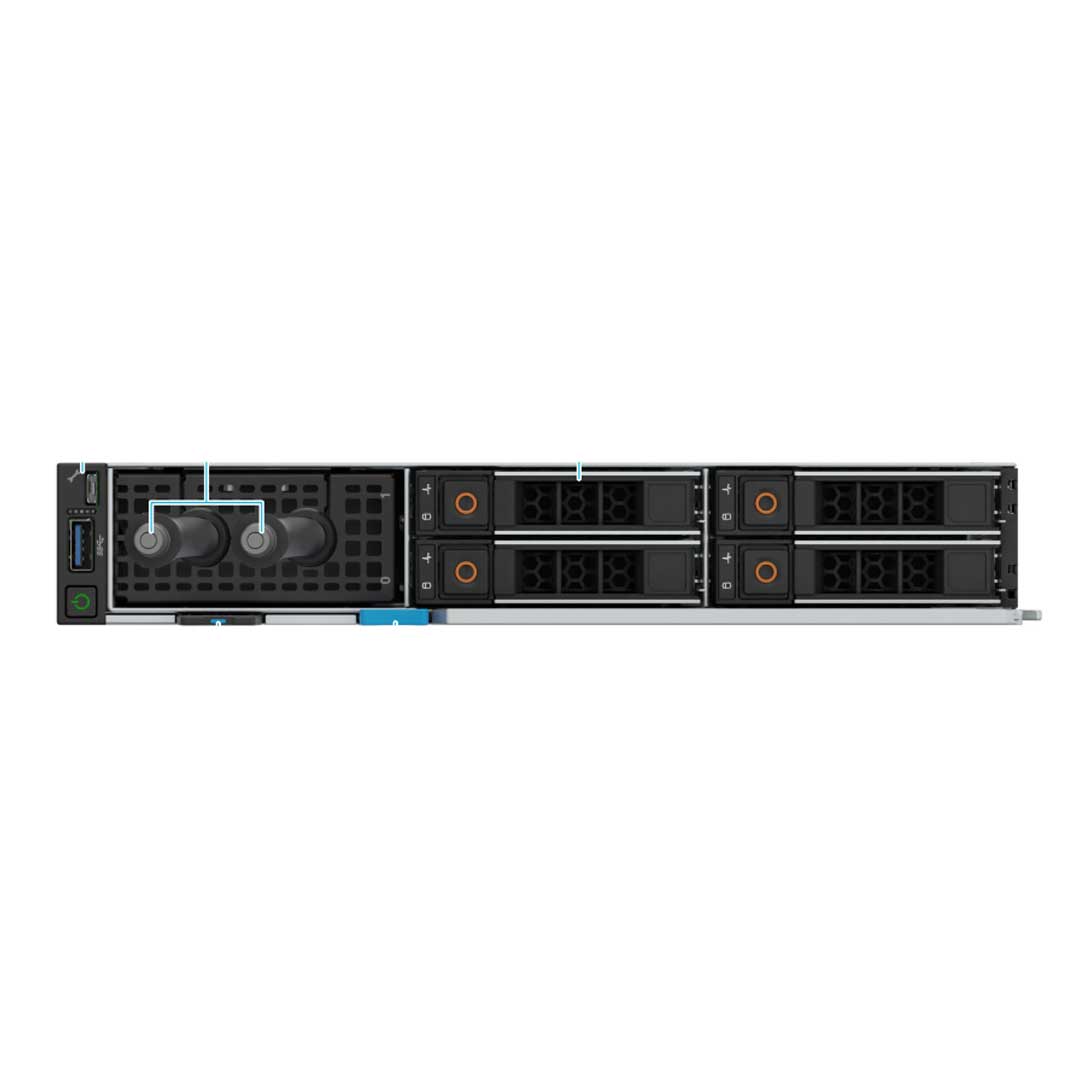

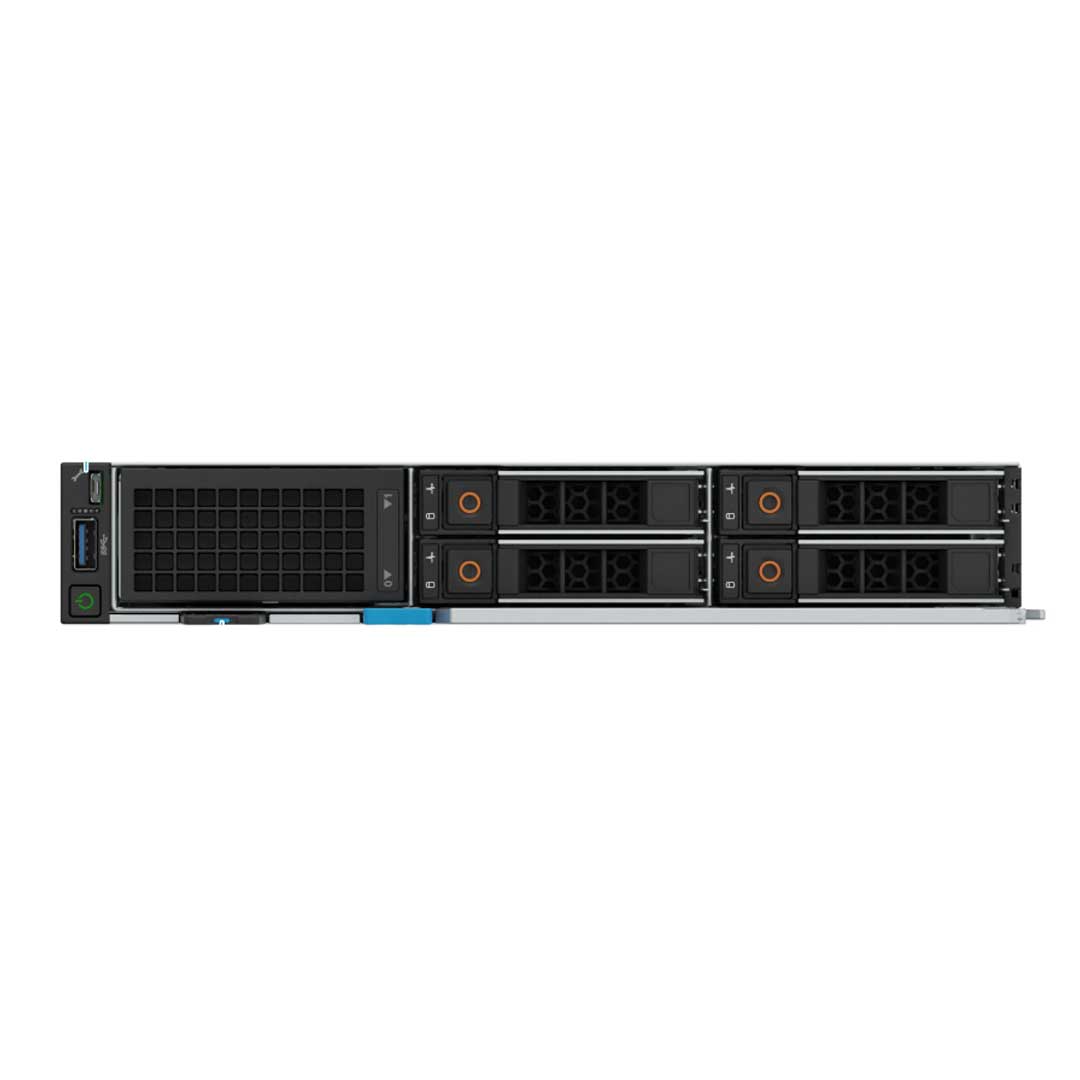

| Drive Bays | Front bays: • Up to 4 x 2.5-inch SAS/SATA (HDD/SSD) max 61 TB • Up to 6 x 2.5-inch SAS /SATA (HDD/SSD) max 46.08 TB • Up to 6 x 2.5-inch NVMe/SAS/SATA (HDD/SSD) max 92 TB • Up to 8 x E3.s NVMe PCIe Gen 5 SSD max 61 TB | |
| Power Supplies | MX7000 chassis: Up to six 3000 W AC Platinum PSU and grid redundancy support | |
| Fans | MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy (Gen 2 fan required) | |
| Dimensions | • Height — 51.0 mm (2 inches) • Width — 257.0 mm (10 inches) • Depth — 631.77 mm (24.8 inches) | |
| Weight | 8.59 kg (18.93 pound) | |
| Form Factor | Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis | |
| Embedded Management | MX7000 chassis: OpenManage Enterprise Modular Edition (OME-Modular); • Up to 2 redundant MX9002m management modules • Unified control: single management point for server, storage and networking • Intelligent automation: Operational template methodology and comprehensive RESTful API • Quick Sync 2 Bluetooth Low Energy (BLE) / wireless module option | On compute sled: • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module |
| OpenManage Software | • CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin | |
| OpenManage Integrations | • BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager | |
| Security | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ | |
| Ports | Front ports • 1 x iDRAC Direct port (Micro-AB USB) • 1 x USB 3.0 | Internal port • 1 x USB 3.0 |
| Networking_Options (NDC) | • MX7000 chassis Fabric options: up to 2 pairs redundant general purpose switch or passthrough modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C) • Up to 25 Gb CNA/NIC or 100 Gb NIC per port for Mezz A/B, 32 Gb Fibre Channel | |

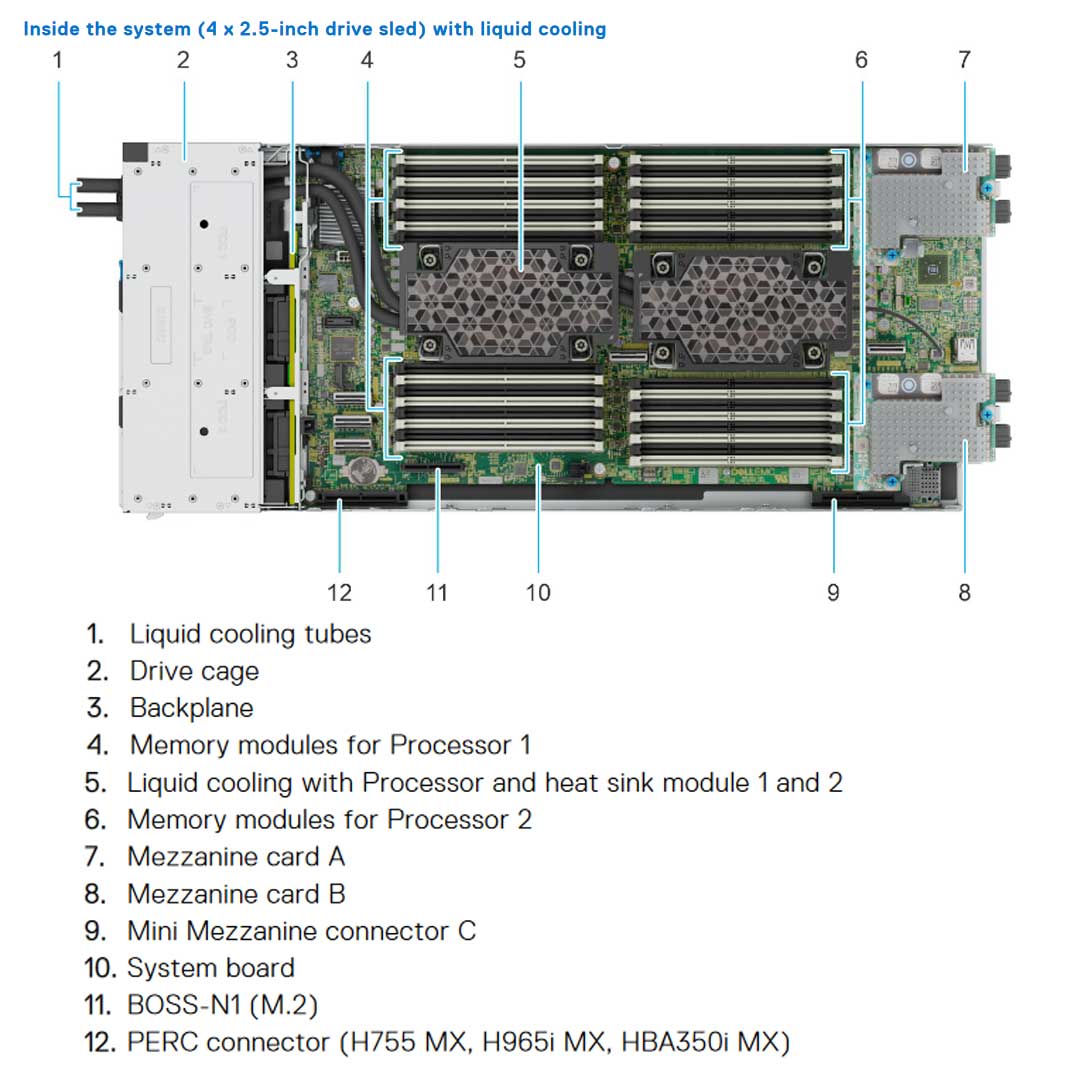

| PCIe | • One x16 PCIe Gen4 slot for PERC - connected to processor 1 • One x16 PCIe Gen4 slot for Mezz A - connected to processor 1 • One x16 PCIe Gen5 slot for Mezz B - connected to processor 2 • One x16 PCIe Gen4 slot for Mini Mezz - connected to processor 1 • Two x8 PCIe Gen5 (SL1, SL2) connectors for NVMe drive – connected to processor 1 • Two x8 PCIe Gen5 (SL4, SL5) connectors for NVMe drive – connected to processor 2 • One x4 PCIe Gen4 for BOSS-N1 HWRAID card | |
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware vSAN/ESXi | |
