SKU: UCSB-B200-M4

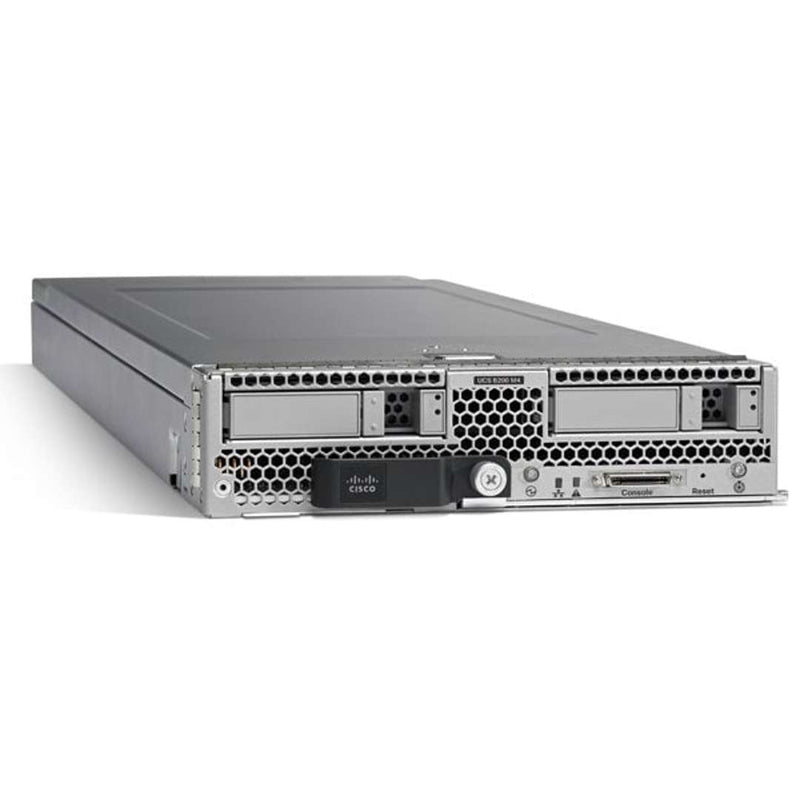

Cisco Ucs B200 M4 Blade Server Chassis | UCSB-B200-M4

Cisco

| Chassis
$94.99
The base Cisco UCS B200 M4 blade server does not include the following components. They must be selected during product ordering:
  • CPUs
  • Memory
  • Cisco FlexStorage RAID controller with drive bays (or blank, for no local drives support)
  • Disk drives
  • Cisco adapters (such as the VIC 1340, VIC 1380, VIC 1240, VIC 1280, or Port Expander)
  • Cisco UCS Storage Accelerators (such as the Fusion-io adapter)
Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Capability / FeatureDescription
Important Notes:The B200 M4 v4 CPU blade server requires UCS Manager (UCSM) to operate as part of the UCS system.
The B200 M4 with E5-2600 v4 CPUs requires UCSM 2.2(3a) or later.
ChassisThe UCS B200 M4 Blade Server mounts in a Cisco UCS 5100 Series blade server chassis or UCS Mini blade server chassis.
CPUNote that for v4 CPU support, the firmware version must be at 2.2(7b) or above. Also note that the B200 M4 Blade Server BIOS inherently enables support for Intel Advanced Encryption Standard New Instructions (AES-NI) and does not have an option to disable this feature.
ChipsetIntel® C610 series chipset
Memory24 total DIMM slots
  • Support for Advanced ECC
  • Support for registered ECC DIMMs (RDIMMs)
  • Support for load-reduced DIMMs (LR DIMMs)
  • Up to 1536 GB total memory capacity (B200 M4 configured with two CPUs using 64 GB DIMMs)
I/OMezzanine adapters:
  • One connector for Cisco’s VIC 1340 or 1240 adapter, which provides Ethernet and Fibre Channel over Ethernet (FCoE)
  • One connector for various types of Cisco adapters and Cisco UCS Storage Accelerator adapters or GPUs.
  • NOTE: The Cisco VIC 1200 Series (1240 and 1280) is compatible in UCS domains that implement the 6100, 6200, or 6300 Series Fabric Interconnects as well as the 2104XP, 2204XP, 2208XP, and 2304 Fabric Extenders.
Storage controllerCisco FlexStorage 12G SAS RAID controller (powered by the LSI SAS 3108 chip with drive bays, providing up to 12 Gbps SAS connectivity and RAID 0/1 capability.
  • SAS/SATA support
  • RAID 0 and 1 and JBOD
Storage devices
  • Up to two optional, front-accessible, hot-swappable 2.5-inch small form factor (SFF) SAS or SATA solid-state disks (SSDs), NVMe SFF 2.5” drives, or hard disk drives (HDDs).
  • An internal USB 3.0 port is also supported. A 16 GB USB drive is available from Cisco.
  • Two SD card slots are available on the front left side of the server. 32, 64, or 128 GB GB SD cards are available from Cisco.
VideoThe Cisco Integrated Management Controller (CIMC) provides video using the Matrox G200e video/graphics controller:
  • Integrated 2D graphics core with hardware acceleration
  • DDR2/3 memory interface supports up to 512 MB of addressable memory (8 MB is allocated by default to video memory)
  • Supports display resolutions up to 1920 x 1200 16bpp @ 60Hz
  • High-speed integrated 24-bit RAMDAC
  • Single lane PCI-Express host interface running at Gen 1 speed
InterfacesFront panel
• One console connector
Power subsystemIntegrated in the Cisco UCS 5100 Series blade server chassis or UCS Mini blade server chassis.
FansIntegrated in the Cisco UCS 5100 Series blade server chassis or UCS Mini blade server chassis.
Integrated management processorThe built-in Cisco Integrated Management Controller (CIMC) GUI or CLI interface enables you to monitor the server inventory, health, and system event logs.
ACPIThis server supports the advanced configuration and power interface (ACPI) 4.0 standard.
