SKU: PS3800XV-16-X-3-5-146GB-15K-SAS

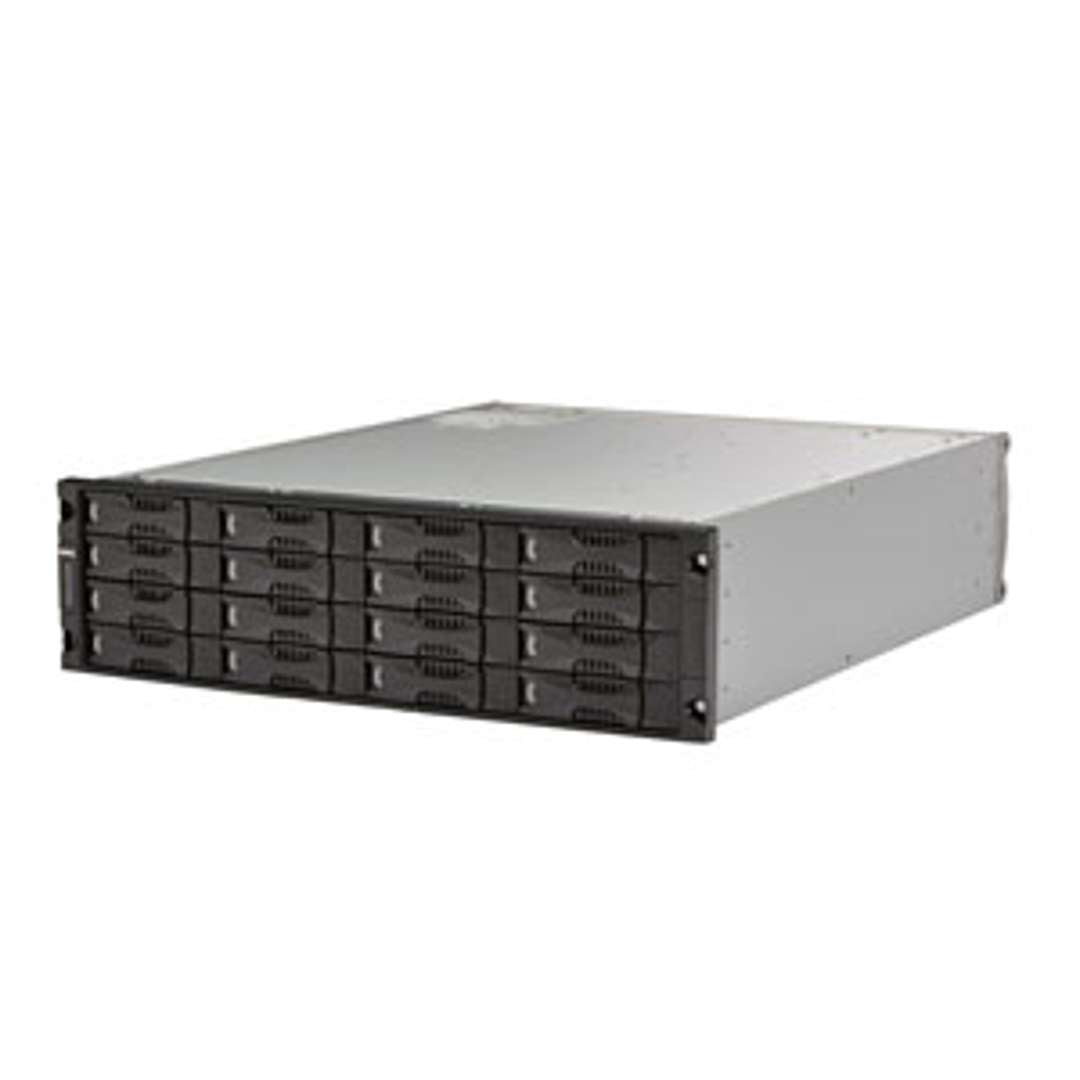

EqualLogic PS3800XV 3U Storage Array (16 X 3.5" 15K 146GB SAS)

Name: EqualLogic PS3800XV 3U Storage Array (16 X 3.5" 15K 146GB SAS)
Brand: EqualLogic
SKU: PS3800XV-16-X-3-5-146GB-15K-SAS
Availability: OutOfStock

EqualLogic

| Server

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

The PS3800XV storage array is equipped with sixteen 15K SAS drives to deliver maximum IOPS providing high performance storage suitable for the intense I/O work-loads of enterprise transactional databases.

The PS3800XV provides up to 2.3TB of storage in a 3U/3.5 form factor. PS3800XV offers multiple data services including: Auto-Replication, Automatic Load Balancing, Auto-Snapshot Manager, Auto-Stat Disk Monitoring System (ADMS), Volume Consistency Sets, Multi-Path I/O, Pooled and Tiered Storage, RAID Load Balancing, Volume Cloning, Volume Management, Volume Snapshot and much more.

PS3800XV TECHNICAL FEATURES

PS3800 SERIES FEATURES	PS3800XV TECHNICAL FEATURES
Product Configurations	High-capacity storage for your demanding applications
Storage Controllers	Dual SAS controllers with a total of 2GB battery-backed memory which provides up to 72 hours of data protection
Network Interfaces	3x 1GbE Copper per controller
Hard Disk Drives	16x 3.5" 15K SAS HDDs
Drive Capacities	146GB 15K SAS 3.5" HDDs
System Capacities	Up to 2.3TB
Host Protocol	Any standards-compliant iSCSI initiator
Volumes	Up to 1,024
Snapshots	512 per volume/up to 10,000 total per group
Volume Connections per PS Series Group	Up to 512
OS and Hypervisors Supported	Windows 2000, Windows Server 2003, Windows XP, NetWare, Linux, Solaris, AIX, HP-UX, Mac OS X, VMware ESX
RAID Supported	Automatic RAID 5, RAID 10, RAID 50
Reliability	Redundant, hot-swappable controllers, power supplies, cooling fans, and disks. Individual disk drive slow power control Mirrored write-back cache with 72-hour battery backup
Enclosure Monitoring System	Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Management Interfaces	Serial Console. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Multi-administrator support.
Security	CHAP Authentication; Access control for iSCSI
Notification Methods	SNMP traps, e-mail, syslog
Physical	Height: 3U (5.12") Width: 19.00" Depth: 21.70" Weight: 77.6.00 lbs
Power	Dual 450W Power Supplies AC Voltage: 100-240 VAC. Input Frequency: 50-60 Hz Power Consumption: 600W
Environmental	Temperature Range: 5 to 35°C / 41 to 95°F Storage temperature: -30 to 60°C / -22 to 140°F

EqualLogic PS3800XV 3U Storage Array (16 X 3.5" 15K 146GB SAS)

Quick Specs

PS3800XV TECHNICAL FEATURES
