SKU: PS6010X-3U-16-BAY-SAS

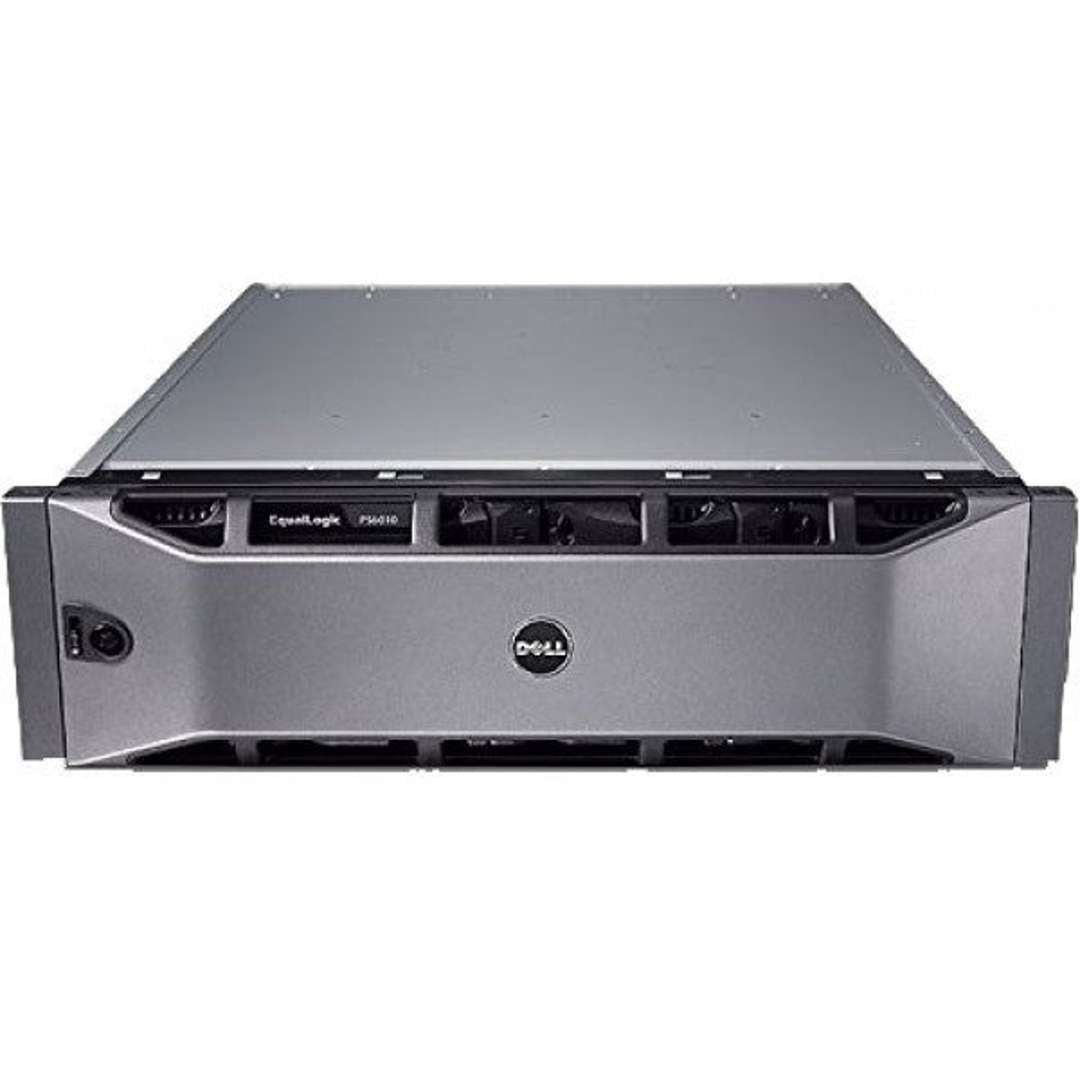

EqualLogic PS6010X 3U Storage Array (16 X 3.5" 10K SAS)
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Quick Specs
The Dell EqualLogic PS6010X is a virtualized iSCSI SAN that combines intelligence and automation with fault tolerance to provide simplified administration, rapid deployment, seamless scalability, enterprise performance and reliability. With 10K SAS drives, the PS6010X provides up to 9.6TB of storage. The PS6010X has two redesigned 10GbE port controllers delivering up to 10x the bandwidth per port and 2.5x the bandwidth per array compared to previous generations.
EqualLogic PS Series arrays are based on a virtualized modular storage architecture that enables IT managers to purchase only the storage they need, when they need it — helping to prevent both under-utilization and over-provisioning. Using innovative data movement technology, all EqualLogic PS Series arrays in a SAN work together to automatically manage data, load balance across all resources, and expand to meet growing storage needs. The EqualLogic SAN line is designed to meet and exceed the rugged requirements of the data center. The PS6010X includes fault tolerance capabilities through fully redundant and hot-swappable components — standard 10GbE dual-controllers, dual fan trays, dual power supplies, and disk drives with hot spares. The PS6010X comes with Dual 10GbE controllers with 4B battery-backed cache which provides up to 72 hours of data protection.
PS6010X ISCSI SAN TECHNICAL FEATURES
| PS6010 SERIES FEATURES | PS6010X ISCSI SAN TECHNICAL FEATURES |
|---|---|
| Product Configurations | High performance for your demanding enterprise applications |
| Storage Controllers | Dual 10GbE iSCSI controllers with a total of 4GB battery-backed memory which provides up to 72 hours of data protection |
| Network Interfaces | 2x SFP+ per controller 1x 10/100 copper (optional management network only) per controller |
| Hard Disk Drives | 16x Hot-Pluggable 10K SAS HDDs |
| Drive Capacities | 400GB, 450GB and 600GB 10K SAS 3.5" HDDs |
| System Capacities | Up to 9.6TB |
| Host Protocol | Any standards-compliant iSCSI initiator |
| Volumes | Up to 1,024 |
| Snapshots | 512 per volume/up to 10,000 total per group |
| Volume Connections per PS Series Group | Up to 1,024 per pool/4,096 per group |
| OS and Hypervisors Supported | Windows 2000 Server, Windows Server 2003, Windows Server 2008, including Hyper-V, Windows Vista, Windows Server 2008 R2 including Hyper-V, Windows XP, Red Hat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, IBM AIX, HP-UK, Mac OS X, VMware ESX Server 3/3.5/4/4.1/5, ESXi 3.5/4/4.1/5, Citrix XenServer, Novell NetWare |
| RAID Supported | Automatic RAID 5, RAID 6, RAID 10 and RAID 50 |
| TCP Network Support | IPv4, IPv6 Core Support |
| Expansion Option | Can be combined with other EqualLogic PS Series arrays in the same SAN group online. Up to 16 total members per group. |
| Reliability | Redundant, hot-swappable controllers; power supplies/cooling fans, and hot-swappable disks. Individual disk drive slot power control |
| Enclosure Monitoring System | Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives |
| Management Interfaces | EqualLogic SAN Headquarters multi-group performance and event monitoring tool. Serial Console. Ability to configure a separate management network. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Multi-administrator support. |
| Security | CHAP Authentication; Access control for iSCSI; Access control for management interfaces including RADIUS support |
| Notification Methods | SNMP traps, e-mail, syslog |
| Physical | Height: 3U (5.12") Width: 19.00" Depth: 21.70" Weight: 78.60 lbs |
| Power | Dual 440W DC Power Supplies. AC Voltage: 100-240 VAC. Frequency: 47-63 Hz |
| Environmental | Temperature Range: 5 to 35°C/ 41 to 95°F Storage temperature: -20 to 60°C / -22 to 140°F |
