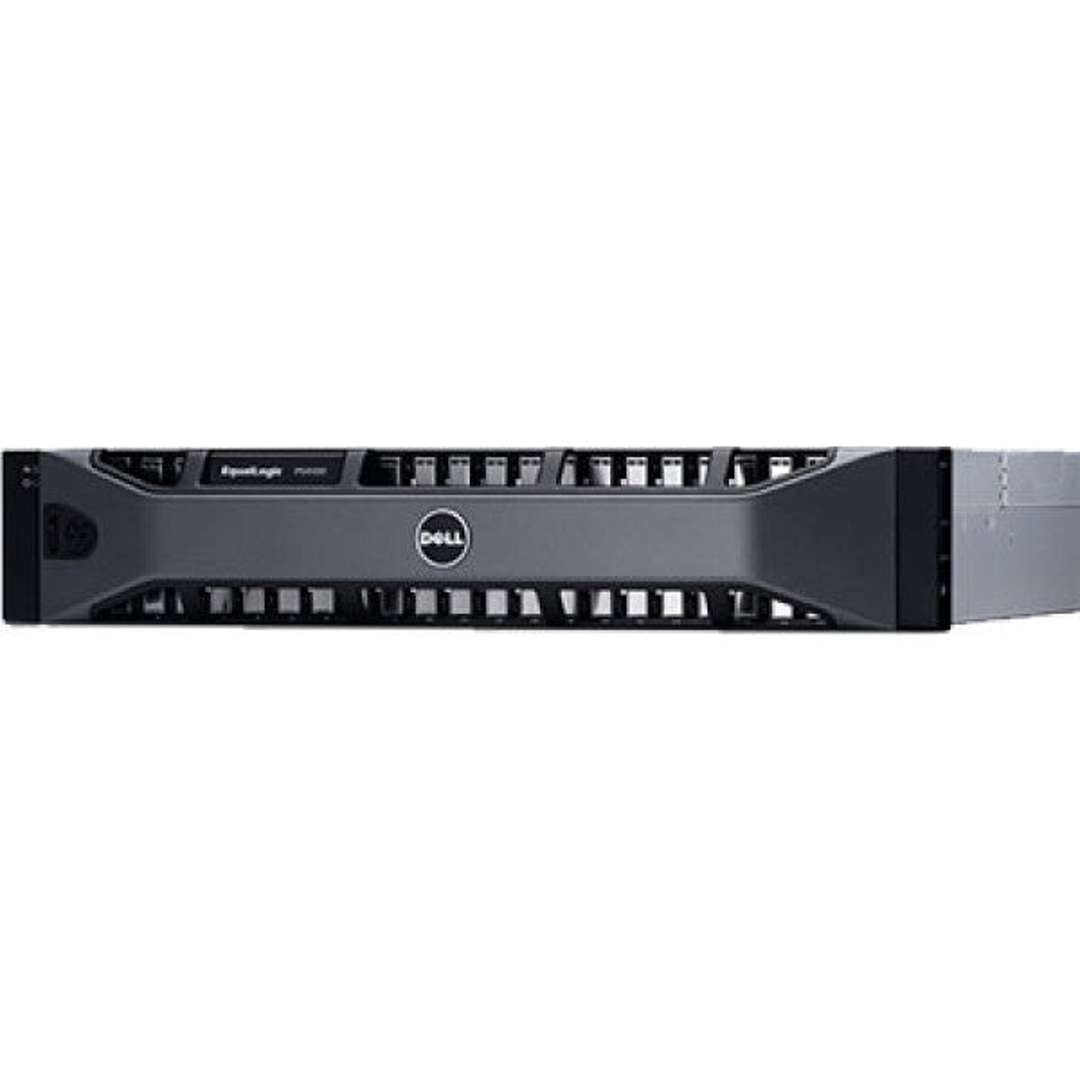

EqualLogic PS4100XV 2U 2.5" Storage Array (24 x 2.5" 15K SAS)

Name: EqualLogic PS4100XV 2U 2.5" Storage Array (24 x 2.5" 15K SAS)
Brand: EqualLogic
SKU: PS4100XV-2U-24-BAY-SAS
Availability: OutOfStock

EqualLogic

| Server

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

The Dell EqualLogic PS4100 storage arrays are designed to provide excellent flexibility, performance, and capacity for you growing business requirements. The PS4100XV offers up to 7.2TB using Twenty-Four 300GB 15K SAS drives in a 2U/2.5 configuration

The PS4110 Series arrays are based on a virtualized, modular storage architecture that enables you to purchase only the storage you need, when you need it. Sophisticated yet simple management features speed SAN configuration, and built-in intelligence capabilities sense network connections, automatically build RAID sets and conduct system health checks. All PS Series arrays work together to automatically manage data, load balance across all resources or seamlessly expand the storage pool when you add a new array. The PS4110 series includes fault-tolerant capabilities through use of fully redundant and hot-swappable controllers, fan trays, power supplies and disk drives.

PS4100XV 2.5 ISCSI SAN TECHNICAL FEATURES

PS4100 SERIES FEATURES	PS4100XV 2.5 ISCSI SAN TECHNICAL FEATURES
Product Configurations	Exceptional IOPS performance for remote office consolidation
Storage Controllers	Dual controllers with 4GB non-volatile memory per controller
Network Interfaces	Management Network:1x 100BASE-TX per controller;Interfaces Ports:2x 1000GBASE-T ports per controller
Hard Disk Drives	24x Hot-Pluggable 2.5" 15K SAS
Drive Capacities	300GB 15K SAS
System Capacities	Up to 7.2TB
Host Protocol	Any standards-compliant iSCSI initiator
Volumes	Up to 256
Snapshots	128 per volume/up to 2,048 total per group
Volume Connections per PS Series Group	Up to 512 per pool/1024 per group
OS and Hypervisors Supported	Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Oracle Solaris, IBM AIX, HP-UX, Mac OS X, Citrix XenServer, Novell NetWare
RAID Supported	RAID 5, RAID 6, RAID 10, RAID 50
TCP Network Support	IPv4, IPv6 Core Support
Expansion Option	Can be combined with other EqualLogic PS Series arrays in the same SAN group online. A maximum of two (2) PS4x00 Arrays can be in a group
Reliability	Vertical port sharing. Redundant Hot-Swappable controllers, power supplies, cooling fans and hot-swappable disks. Individual disk drive slot power control.
Enclosure Monitoring System	Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Management Interfaces	EqualLogic SAN Headquarters multi-group performance and event monitoring tool. Serial Console. Ability to configure a separate management network. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Multi-administrator support.
Security	CHAP Authentication; Access control for iSCSI; Access control for management interfaces including RADIUS support
Notification Methods	SNMP traps, e-mail, syslog
Physical	Height: 2U (3.41") Width: 17.57" Depth: 21.3" Weight: 54 lbs
Power	Dual 700W Power Supplies. AC Voltage: 100-240 VAC. 700W (max, total). Frequency: 50/60 Hz
Rack Support	ReadyRails II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks. Dell VersaRails sliding rails for 4-post and 2-post racks 1U/2U rail attachment brackets, designed to enable PS arrays to be mounted in racks whose posts have round holes
