Quick Specs
Form Factor:
Tower server | 5U (rackable)
Processor | Max: 22 Cores (PP)2x Intel Xeon E5-2600v4 or v3 Processors
Memory | Max: 1.5TB24 DDR4 RDIMM 2400Mhz
Storage | Max: 48TB8x 3.5” SAS/NL-SAS/SATA (HDD/SSD) + optional flex bay
18x 3.5” SAS/NL-SAS/SATA (HDD/SSD)
16x 2.5” SAS/NL-SAS/SATA (HDD/SSD) + optional flex bay
32x 2.5” SAS/NL-SAS/SATA (HDD/SSD)
IDSDM
Internal USB
S130 (SW RAID)
H330, H730, H730P
Internal HBA (non-RAID)
HBA330
External
H830
2 x 1GbE LOM
Remote Management:iDRAC7 Express with Lifecycle Controller
PCIe Slots:8 PCIe slots
Slot 1: x16 PCIe 3.0 for FL/FH
Slot 2: x8 PCIe 2.0 for FL/FH
Slot 3: x16 PCIe 3.0 for FL/FH
Slot 4: x8 PCIe 3.0 for HL/FH
Slot 5: x8 PCIe 2.0 for FL/FH
Slot 6: x16 PCIe 3.0 for FL/FH
Slot 7: x16 PCIe 3.0 for FL/FH
Slot 8 (Internal PERC slot): one x8 PCIe 3.0 for HL/FH
Up to 4 optional 300W internal GPU
Other Versions
(Click to View)
Ideal for:
- Virtual Desktop Interface (VDI)
- Virtualization

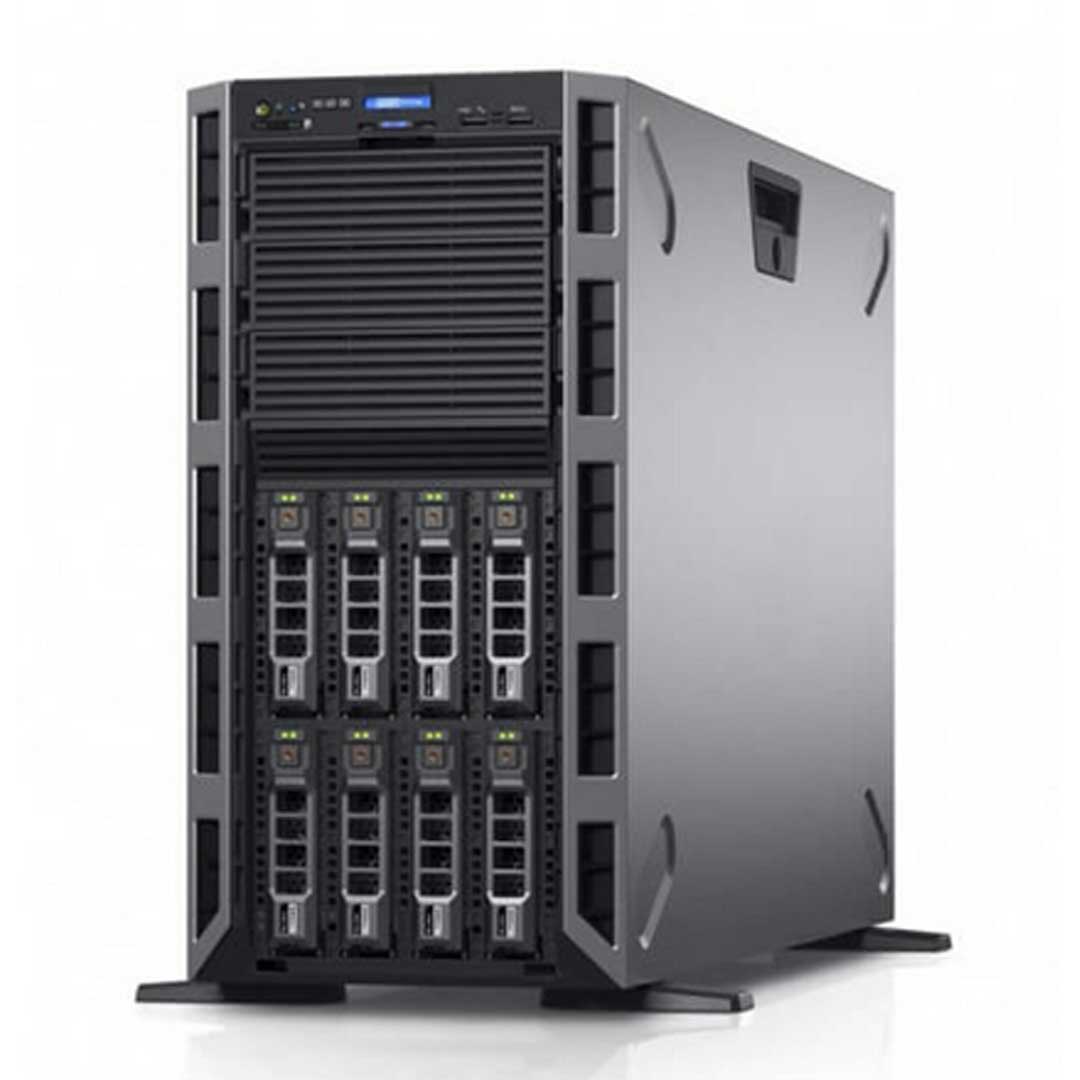

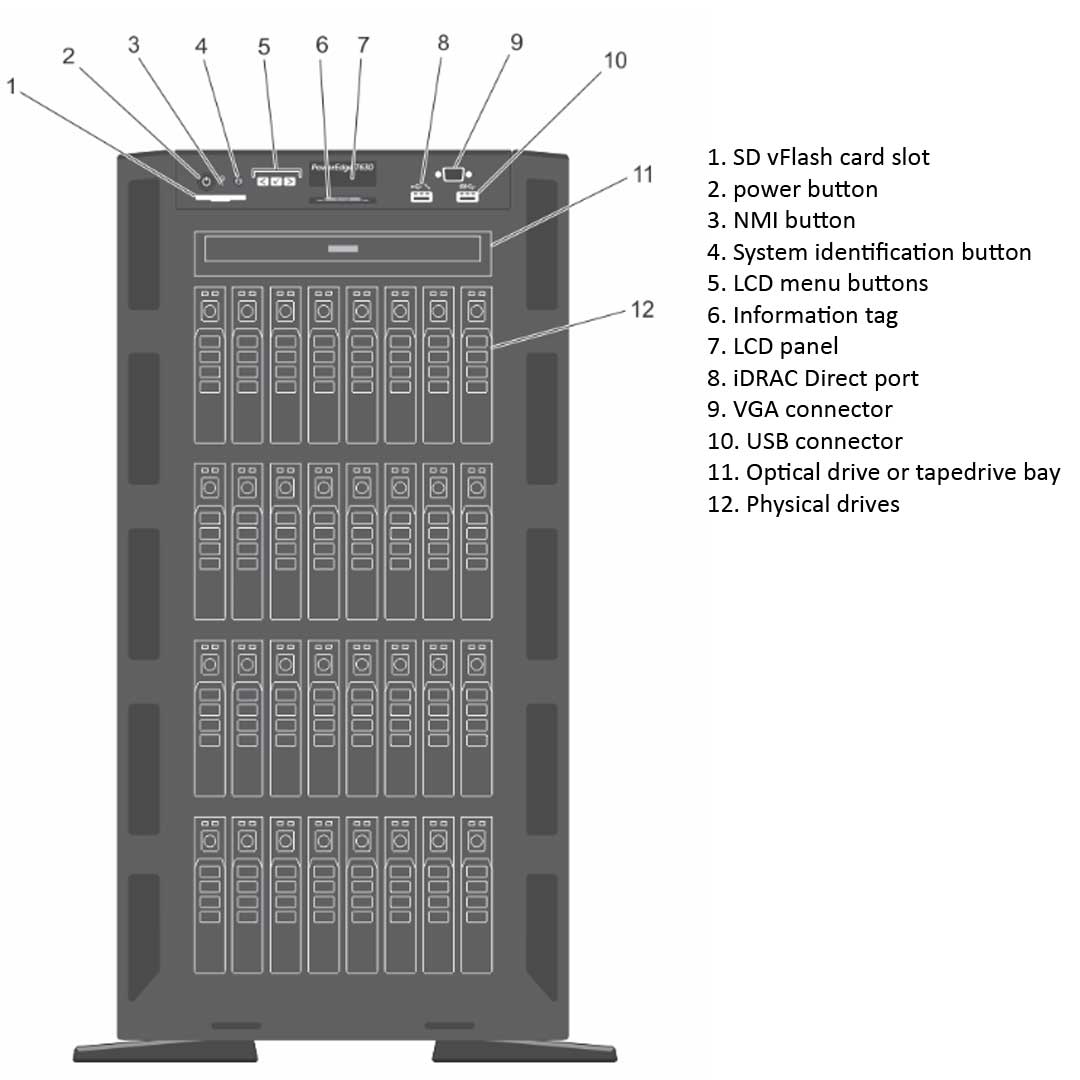

The Dell PowerEdge T630 rackable tower server delivers ultimate two-processor performance, versatility and availability for a wide range of demanding workloads in small and medium business environments.
Featuring the latest Intel Xeon processor E5-2600 v4 product family, huge internal storage capacity, extensive configuration flexibility and the most powerful GPU capability in the PowerEdge server portfolio, the PowerEdge T630 enables users to readily adapt to demanding workloads. From collaboration and productivity applications (mail and messaging, file and print, web serving, video serving) to Online Transaction Processing (OLTP) in retail environments, to record retention and management in healthcare and education, the T630 helps drive drive business success for small- to medium-sized businesses, large enterprise remote and branch offices, and data centers.

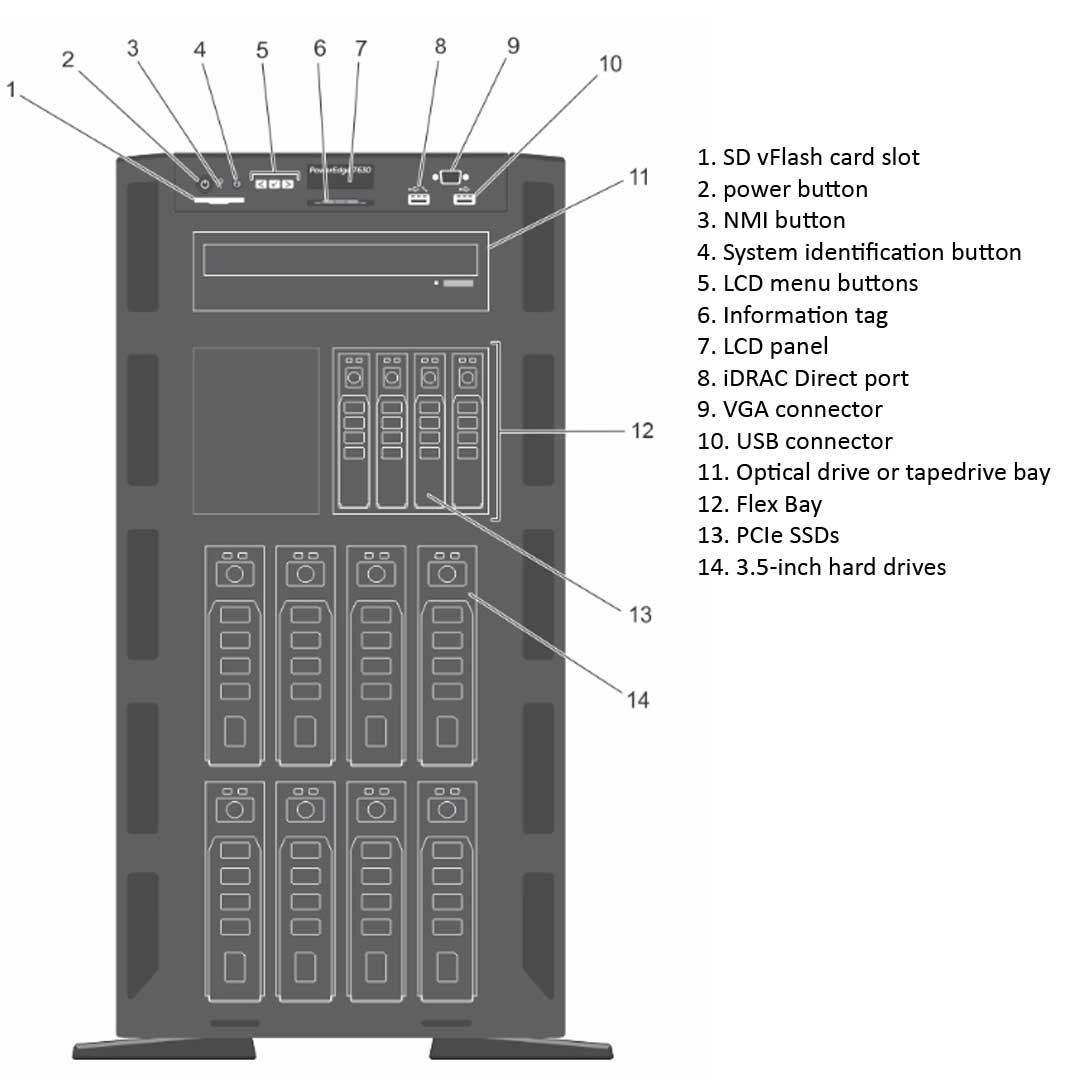

Drive Configurations:- 8 Bay - Up to 8x3.5" SAS/SATA/NL-SAS HDD or SSD

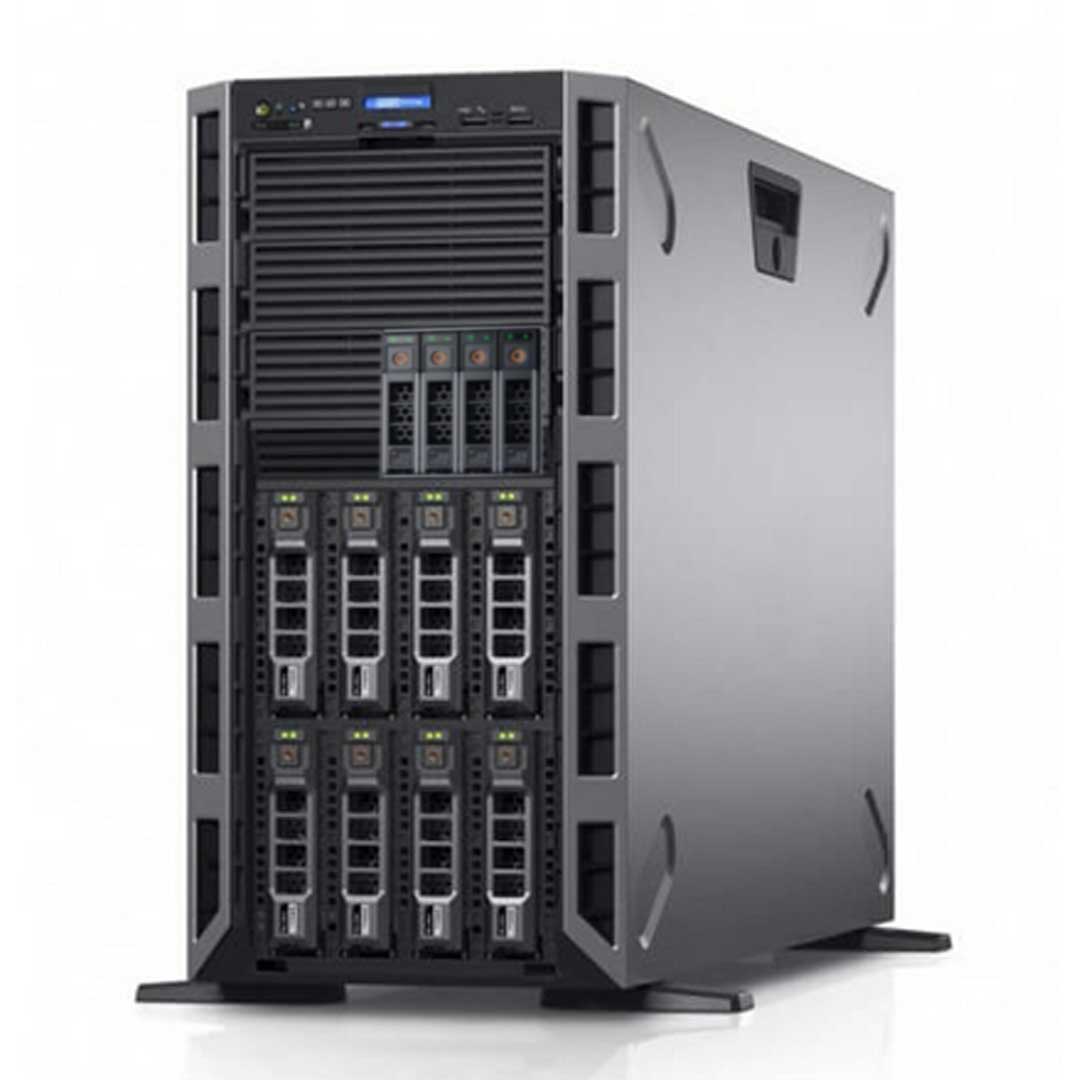

- 12 Bay - Up to 8x3.5" SAS/SATA/NL-SAS HDD or SSD + FLEX IO 4x2.5" NVMe

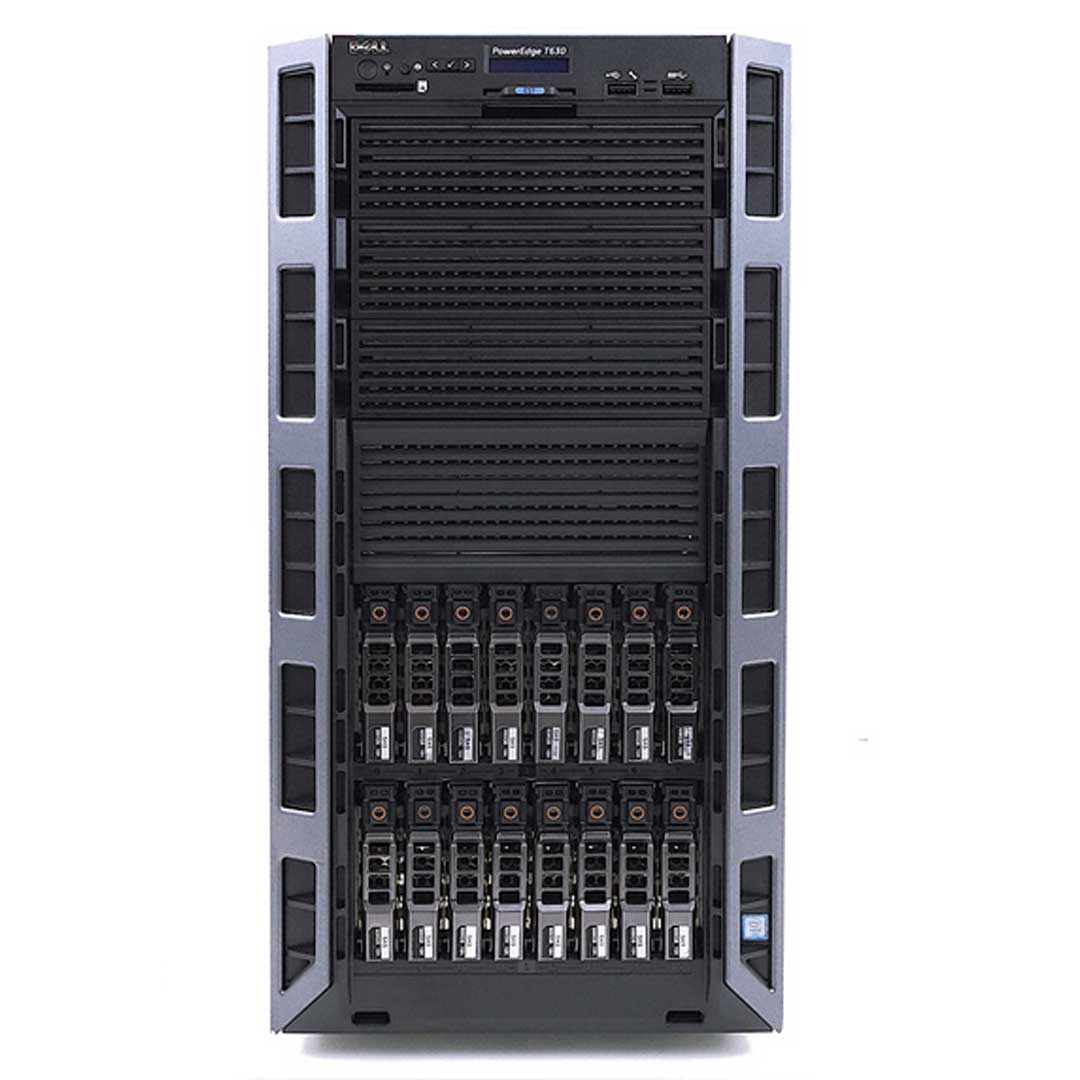

- 16 Bay - Up to 16x2.5" SAS/SATA/NL-SAS SSD

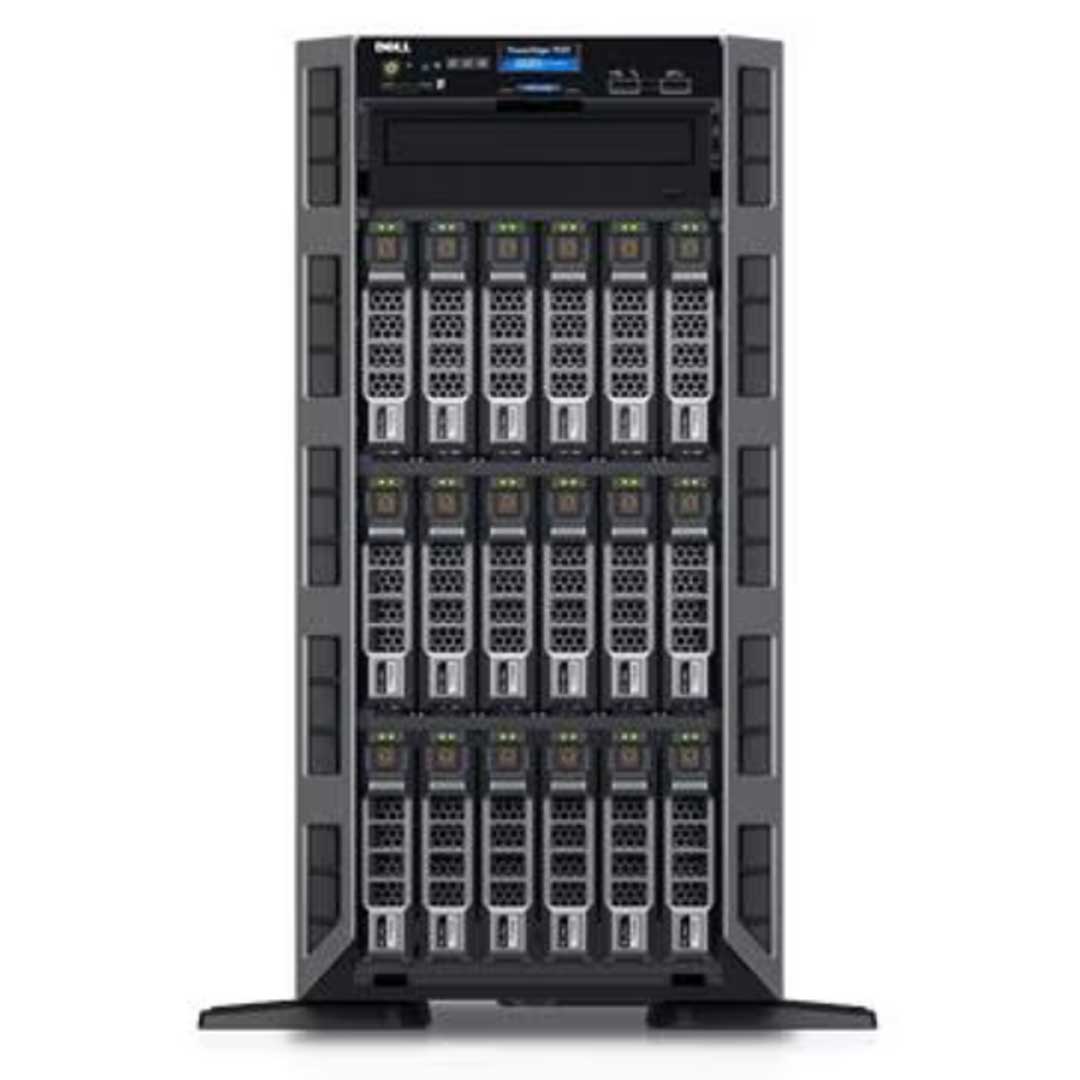

- 18 Bay - Up to 18x3.5" SAS/SATA/NL-SAS HDD or SSD
- 20 Bay - Up to 16x2.5" SAS/SATA/NL-SAS SSD + FLEX IO 4x2.5" NVMe

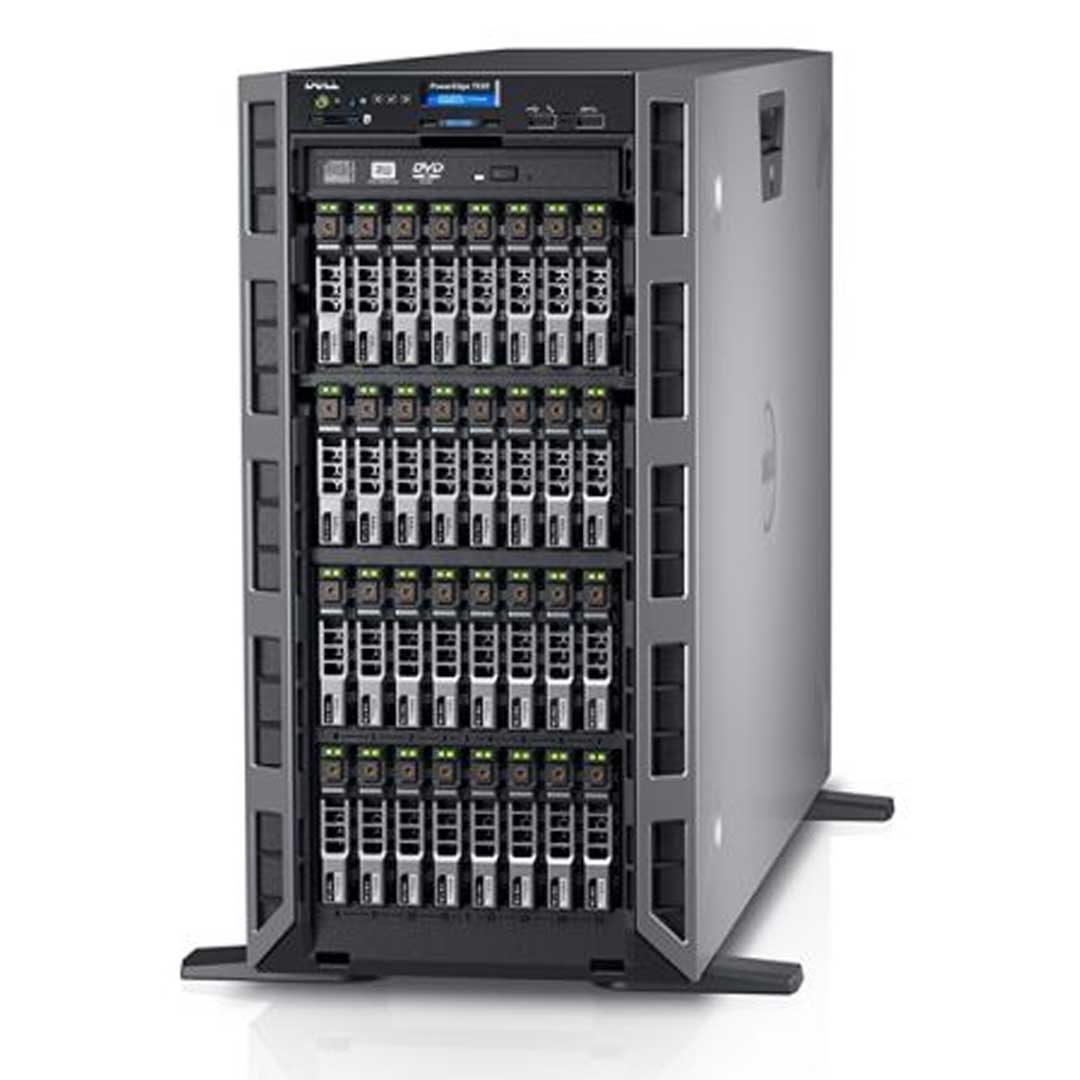

- 32 Bay - Up to 16x2.5" SAS/SATA/NL-SAS SSD + FLEX IO 16x2.5" SAS/SATA/NL-SAS SSD (DUAL PERC)
- 32 Bay - Up to 32x2.5" SAS/SATA/NL-SAS SSD (Single PERC)
- Note: The Optional Flex Bay holds, Either 4 NVMe drives with a PCI-e Bridge Card installed. OR, 16 2.5" SSD Drives.
Deliver peak performance
Drive peak compute performance with the latest Intel E5 processors and up to 1.5TB of DDR4 memory. Accelerate data performance and throughput with Express Flash PCIe SSDs and PCI Express (PCIe) 3.0 I/O and storage tiering. Deliver greater performance and faster data analytics with support for up to four optional GPUs.
Maximize operational efficiency
Accelerate time to production and improve ROI with the Dell OpenManage portfolio — systems management tools that streamline and automate deployment. Control energy budgets with highly energy-efficient processors, memory, power supplies and Dell Fresh Air solutions.
Deliver greater versatility
Ensure fast response times as you grow by expanding the T630’s memory footprint up to 24 DDR4 DIMMs. Harness data explosion with massive internal storage capacity — 32 x 2.5" or 18 x 3.5" hard drives — and readily adapt to changing workload conditions with a platform pretested for virtualization and high-availability clusters.

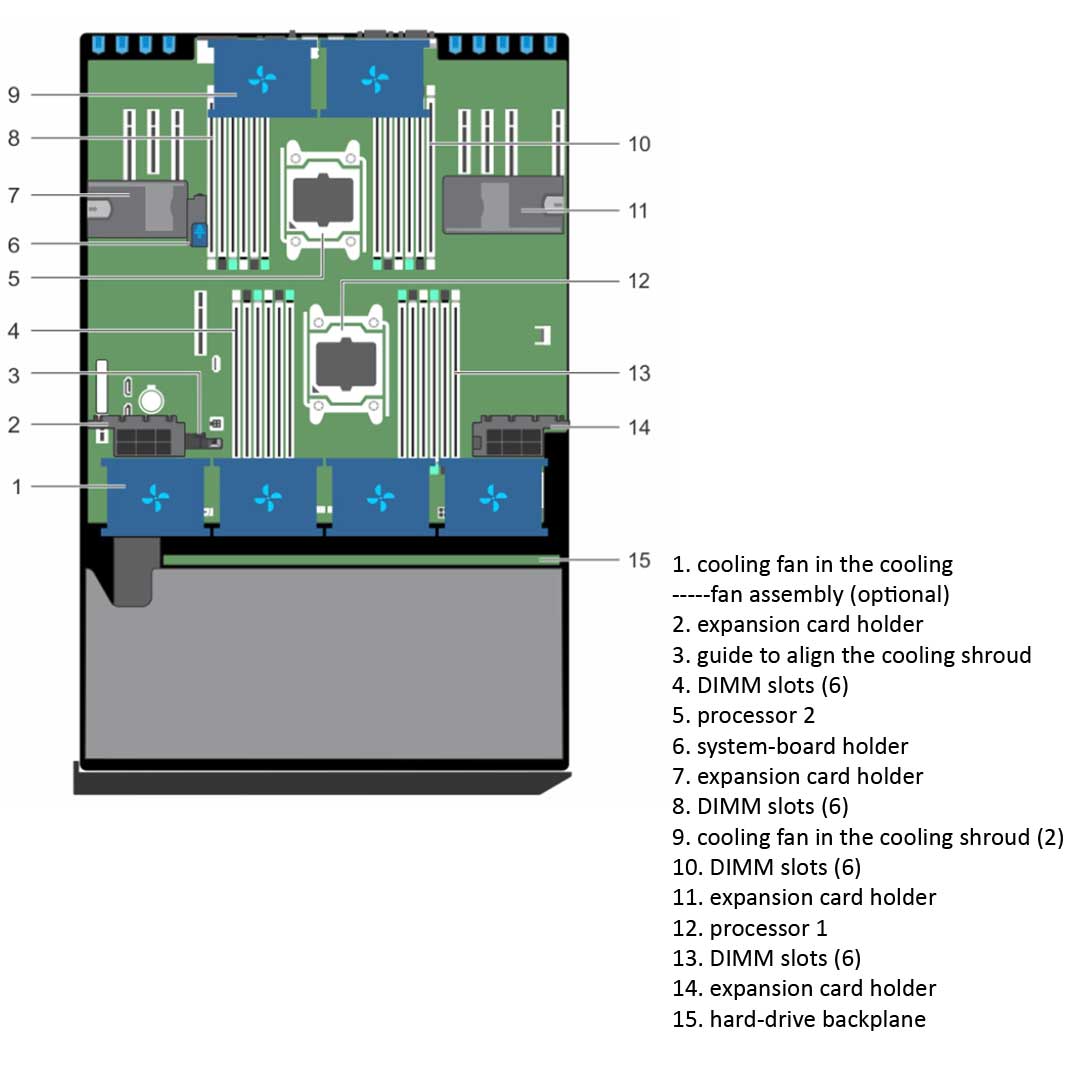

Cooling & Fans
Like the pervious versions of this T600 Tower server, there are two cooling fans on the cooling shroud. You also have an optional cooling fan assembly that houses four cooling fans on your system.
If you install a GPU you will need to install all 6 fans in your system. There are other rules that go with installing a GPU, you can find those and the manual below.
Memory
The PowerEdge T630 system supports 1866 MT/s, 2133 MT/s or 2400 MT/s DDR4 Registered or Load-Reduced Error Correcting Code (ECC) DIMMs support for advanced ECC or memory optimized operation.
RDIMMs and LRDIMMs must not be mixed.
Mixing of more than two memory module capacities in a system is not supported. For more rules please read the manuals below.
| Memory module sockets | Memory capacity | Minimum RAM | Maximum RAM |
|---|---|---|---|
| Twenty-four 288–pin |
|
|
|

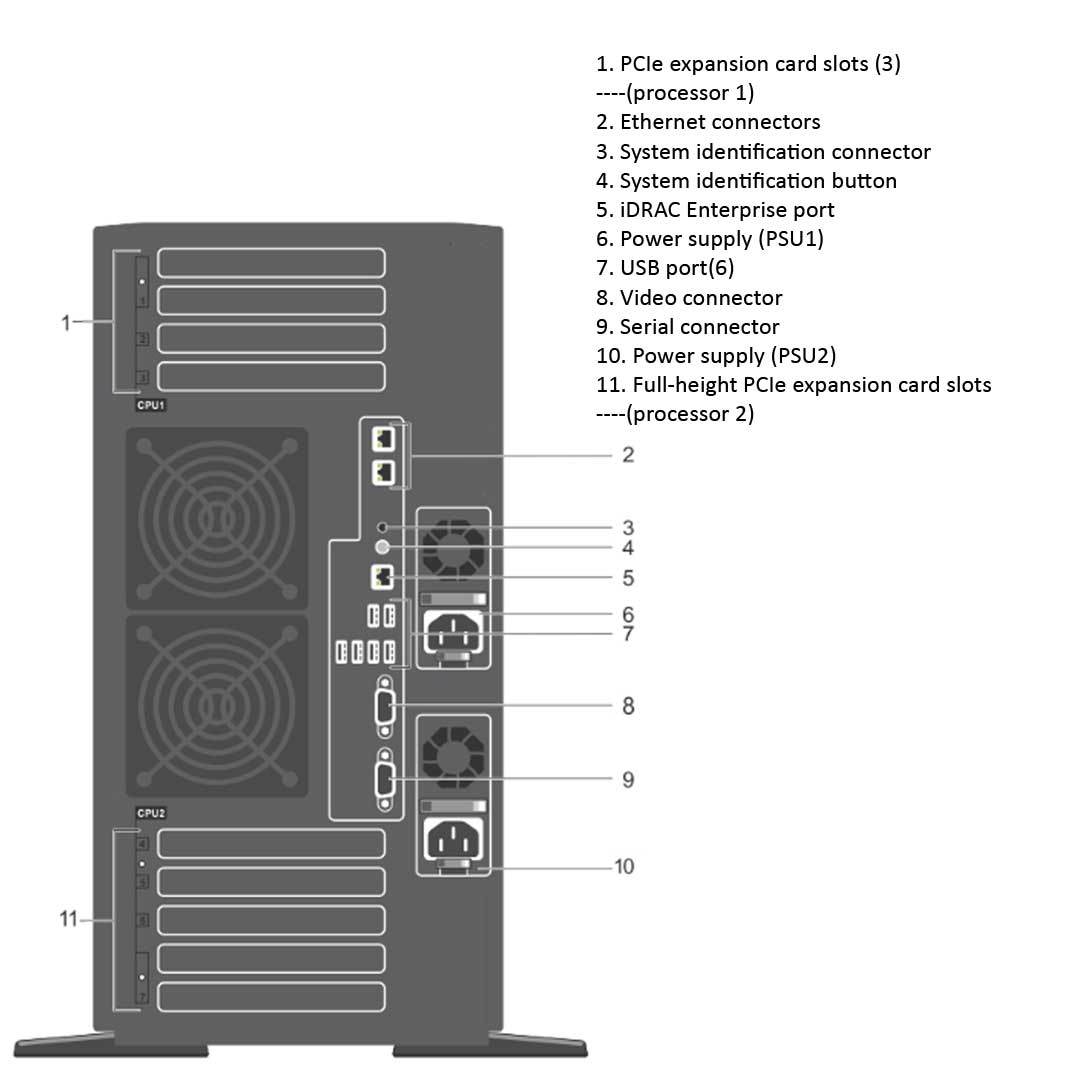

PCIe Options
| PCIe Slot | Processor Connection | Height | Length | Link Width | Slot Width |
|---|---|---|---|---|---|
| 1 (Gen3) | Processor 1 | Standard Height | Full Length | x16 | x16 |
| 2 (Gen2) | Platform Controller Hub | Standard Height | Full Length* | x4 | x8 |
| 3 (Gen3) | Processor 1 | Standard Height | Full Length | x16 | x16 |
| 4 (Gen3) | Processor 2 | Standard Height | Half Length | x8 | x8 |
| 5 (Gen2) | Processor 2 | Standard Height | Full Length* | x4 | x8 |
| 6 (Gen3) | Processor 2 | Standard Height | Full Length | x16 | x16 |
| 7 (Gen3) | Processor 2 | Standard Height | Full Length | x16 | x16 |
| 8 (Internal PERC Slot) | Processor 1 | Standard Height | Half Length | x8 | x8 |
| *PCIe Generation 2 expansion card | |||||
| To use PCIe slots 4, 5, 6, and 7, both the processors must be installed. | |||||
| The expansion card slots are not hot-swappable. | |||||
GPU Support
Observe the following guidelines while installing a GPU card:
- Install GPU Card Holder
- Ensure that all GPU cards are of the same type or model.
- A single processor configuration only supports up to two double or single width cards on slots 1 and 3.
- A dual processor configuration supports up to four double or single width cards on slots 1, 3, 6, and 7.
- Two double-width GPU cards on a single processor configuration and four double width GPU cards on a dual processor configuration
- For four GPGPU configuration, only one PERC can be supported on internal slot.
- A system with Express Flash configuration supports a maximum of two GPU cards.
- Must have six fan configuration.
- Must have a PSU of 1100 W and 1600 W power supply.
For all the rules please read the manual below
Power & Dimensions
Power Supply Units (PSU)
| PSU | Class | Heat dissipation (maximum) | Frequency | Voltage |
|---|---|---|---|---|
| 495 W AC | Platinum | 1908 BTU/hr | 50/60 Hz | 100–240 V AC, autoranging |
| 750 W AC | Platinum | 2891 BTU/hr | ||
| Titanium | 2843 BTU/hr | 200–240 V AC, autoranging | ||
| 1100 W AC | Platinum | 4100 BTU/hr | 100–240 V AC, autoranging | |
| 1600 W AC | Platinum | 6000 BTU/hr | 100–240 V AC, autoranging | |
| 1100 W DC (for China only) | NA | 4416 BTU/hr | –(48–60) V DC |
Dimensions
- Length: 708.7 (27.91in)
- Width: 217.9 (8.5in)
- Height: 434.5 (17.10in)
- Weight:
- 3.5" - 49.65 kg
- 2.5" - 42.36 kg
