Specs
Quick Specs
Tower server
Processor | Max: N/A1x Intel E-2200, Core i3, or Celeron
Memory | Max: 64GB4 DDR4 UDIMM 2666Mhz
Storage | Max: 4TB4 LFF Cabled Drives
Boot OptionsBoot Optimized Server Storage (BOSS)
RAID Controller:S140 (SW RAID)
PERC H730P, H330, HBA330 (non-RAID), 12Gbps SAS HBA (non-RAID)
2 x 1GbE LOM
Remote Management:iDRAC9
PCIe Slots: 41x8 Gen3 (x16 connector) FH/HL
1x8 Gen3 (x8 connector) FH/HL
1x4 Gen3 (x8 connector) FH/HL
1x1 Gen3 (x1 connector) FH/HL
Not Supported

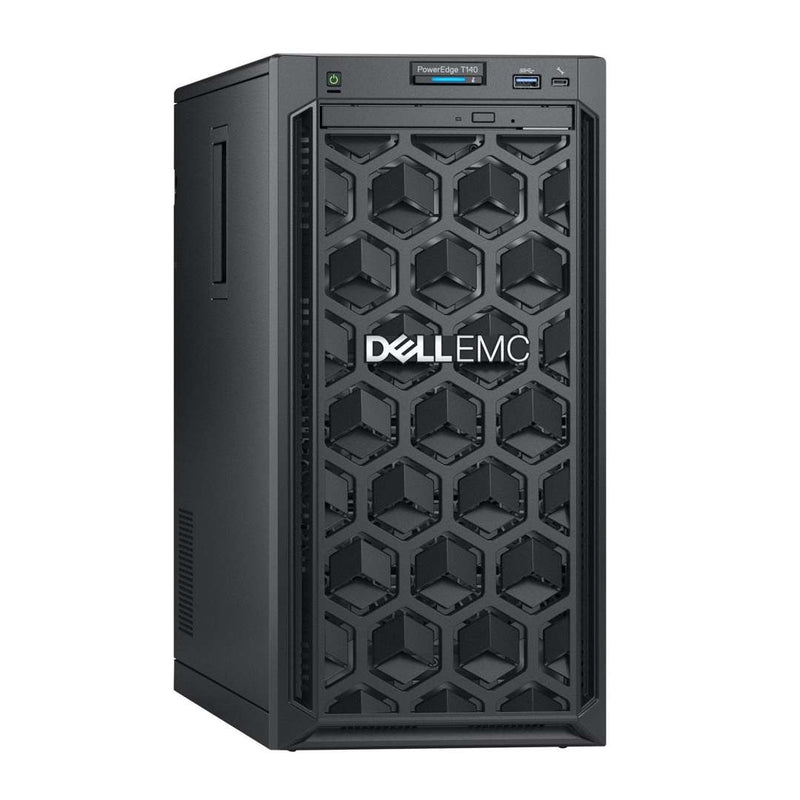

The PowerEdge T140 is the easy to use, safe, and practical entry-level one-socket server for your growing business
Make IT easyThe Dell EMC PowerEdge T140 is easy to set up and easy to use, allowing you to focus on your business. The PowerEdge T140 enables you to work on your everyday business applications efficiently. The PowerEdge T140 can also conveniently be used in various locations due to enhanced 14G thermal efficiency and quiet acoustics. The PowerEdge T140 enables you to work on your everyday business applications efficiently such as file and print, mail and messaging and point of sale.
- Work more efficiently with improved performance due to 50% more cores with Intel Xeon E-2200 processors, 11% increase in memory speed, and 20% more PCIe lanes.1
- Get set up as much as 66% faster with our ProDeploy suite of services.
- Work in wider operating temperature and humidity levels with Fresh Air 2.0 capable hardware.
Intuitive system management with intelligent automation
PowerEdge servers with embedded iDRAC with Lifecycle Controller offer agent-free management right out of the box, delivering smart automation of routine tasks. The T140 is easily managed which frees up time for work priorities.
- Simplify management with the New OpenManage Enterprise console, with customized reporting and automatic discovery.
- Resolve issues with less IT effort with ProSupport Plus and SupportAssist proactive and predictive technology.
Your practical, entry-level server
The Dell EMC PowerEdge T140 allows you to focus on your business, that’s why we offer the entry-level practical business server. Organize your data in one central data repository.
The Dell EMC PowerEdge T140 system supports the following:
- One system cooling fan located at the back of the system.
- One processor cooling fan located on the heat sink.
Supported memory speeds are:
- 2666 MT/s
- 2400 MT/s
- 2133 MT/s
| DIMM type | DIMM Rank | DIMM Capacity | Minimum RAM | Maximum RAM |
|---|---|---|---|---|
| UDIMM | Single rank | 8 GB | 8 GB | 32 GB |
| 16 GB | 16 GB | 64 GB | ||
| Dual rank | 8 GB | 8 GB | 32 GB | |
| 16 GB | 16 GB | 64 GB |
The Dell EMC PowerEdge T140 system supports up to four PCI express (PCIe) Generation 3.
| PCIe slot | Processor Connection | PCIe slot height | PCIe slot length | Slot width |
|---|---|---|---|---|
| Slot 1 (Gen3) | Processor | Full Height | Half Length | x8 link in x8 slot |
| Slot 2 (Gen3) | Processor | Full Height | Half Length | x8 link in x16 slot |
| Slot 3 (Gen3) | Platform Controller Hub | Full Height | Half Length | x1 |
| Slot 4 (Gen3) | Platform Controller Hub | Full Height | Half Length | x4 link in x8 slot |
The Dell PowerEdge T140 comes with a 2 Port 1GbE LOM card installed. You can access this lom card from the back of the Tower Server. You also have the ability to install up to 4 PCIe adapters in the slots discussed above.

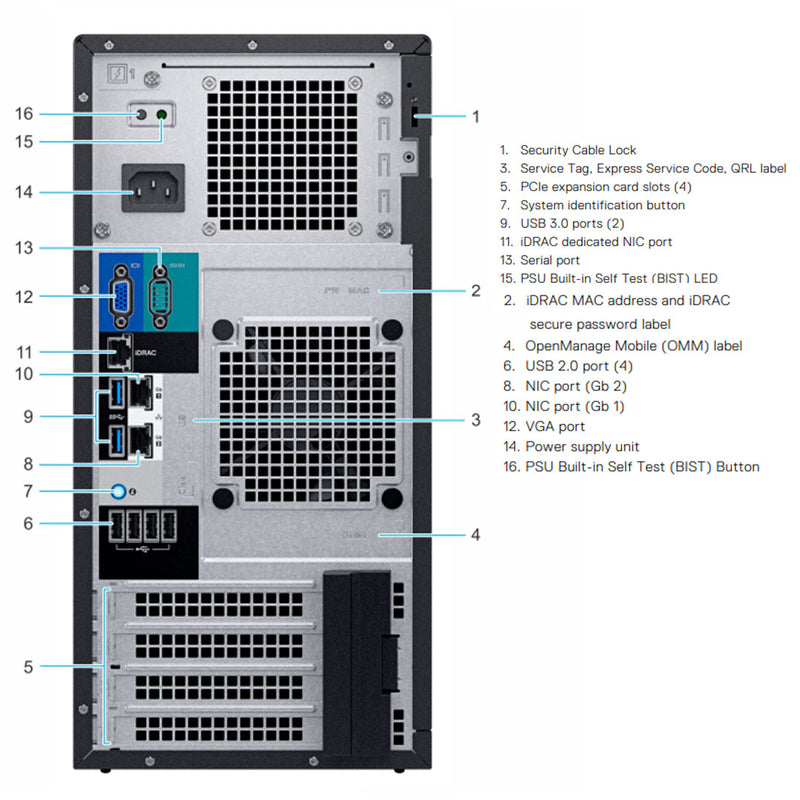

You can locate the LOM ports by looking at the Rear image of the server above.
The system comes with Software RAID: PERC S140. You also have the Boot Options of the (BOSS) Card. This boss card holds up to 2x M.2 240GB (RAID 1 or No RAID) or 1x M.2 240GB (No RAID only)
| Internal Controllers | External Controllers |
|---|---|
| ● PERC H730P ● PERC H330 ● HBA330 |
● 12 Gb/s Ext SAS HBA ● HBA355e |
The Dell PowerEdge T140 only has 1 Cabled PSU in the back of the Tower Server. The only option for power is a Single cabled 365W PSU
- Chassis height: 360mm (14.17 in)
- Chassis width: 175mm (6.89 in)
- Chassis depth: 454 mm (17.9 in)
- Chassis weight: 11.84 kg (26.10 lb.)
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | PowerEdge T140 Technical specification | |
|---|---|---|
| Processor | 1 processor from the following: Intel® Xeon® E-2200 product family, Intel Pentium®, Intel Core i3®, Intel Celeron® | |
| Memory | 4x DDR4 DIMM slots, supports UDIMMs, speeds up to 2666MT/s, 64GB max. supports registered ECC. | |
| Storage controllers | Internal controllers: PERC H730P, H330, HBA330 (non-RAID) Software RAID: PERC S140 External HBAs: 12Gbps SAS HBA (non-RAID) Boot Optimized Storage Subsystem (BOSS): 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only) | |
| Drive bays | Up to 4 x 3.5” cabled bays | |
| Power supplies | Single cabled 365W PSU | |
| Dimensions | Form factor: Mini tower server | Chassis height: 360mm (14.17 in) Chassis width: 175mm (6.89 in) Chassis depth: 454 mm (17.9 in) Chassis weight: 11.84 kg (26.10 lb.) |
| Embedded management | iDRAC9 with Lifecycle Controller iDRAC Direct iDRAC RESTful API with Redfish | |
| OpenManage Software | OpenManage Enterprise OpenManage Essentials OpenManage Power Center | OpenManage Mobile requires OM Enterprise or OM Essentials) |
| Integrations and connections | Integrations: Microsoft® System Center VMware® vCenter™ BMC Truesight (available from BMC) Red Hat Ansible | Connections: Nagios Core & Nagios XI Micro Focus Operations Manager i (OMi) IBM Tivoli Netcool/OMNIbus |
| Tools | iDRAC Service Module OpenManage Server Administrator Dell EMC Repository Manager Dell EMC System Update | Dell EMC Server Update Utility Dell EMC Update Catalogs Dell EMC RACADM CLI IPMI Tool |
| Security | TPM 1.2/2.0 optional Cryptographically signed firmware Silicon Root of Trust | Secure Boot System Lockdown (requires OpenManage Enterprise) Secure Erase |
| I/O & Ports | Networking options: 2 x 1GbE LOM Front Ports: 1x USB 3.0, 1x iDRAC micro USB 2.0 management port Rear Ports: 2x USB 3.0, 4x USB 2.0, VGA, serial connector Internal USB: 1x internal USB 3.0 | 4 PCIe Slots: 1x8 Gen3 (x16 connector) FH/HL 1x8 Gen3 (x8 connector) FH/HL 1x4 Gen3 (x8 connector) FH/HL 1x1 Gen3 (x1 connector) FH/HL |
| Supported operating systems | Certify XenServer Citrix® XenServer® Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux Ubuntu Server | SUSE® Linux Enterprise Server VMware® ESXi For specifications and interoperability details, see Dell.com/OSsupport. |
| OEM-ready version available | From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com/OEM. | |
| Recommended support | ProSupport Plus for critical systems or ProSupport for comprehensive hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell EMC representative today for more information. Availability and terms of Dell EMC Services vary by region. For more information, visit Dell.com/ServiceDescriptions. | |
