SKU: PS4000E-3U-16-BAY-SATA

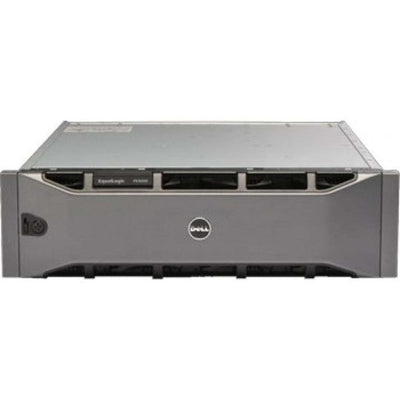

EqualLogic PS4000E 3U Storage Array (16 X 3.5" 7.2K SATA)
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Quick Specs
The Dell EqualLogic PS4000E is a virtualized iSCSI SAN array that’s designed to bring enterprise-class features, intelligence, automation and reliability to remote or branch offices, departmental and SMB storage deployments. The PS4000E provides simplified administration, rapid deployment at an affordable price while providing a full set of enterprise-class data management features. With up to 16 SATA drives, the PS4000E offers outstanding capacity value for an entry enterprise storage array.
The PS4000E includes SAN configuration features and capabilities that sense network connections, automatically build RAID sets, and conduct system health checks to help ensure that all components are fully functional. The PS4000E is based on a virtualized modular storage architecture that enables IT maangers to purchase only the storage they need, when they need it – to help prevent both underutilization and over-provisioning. All PS Series arrays within a SAN work together to automatically manage data, load balance across all resources and expand to meet growing storage needs.
The PS4000E was designed to meet and exceed the rugged requirements of the enterprise data center and remote office. The PS4000E includes fault tolerance capabilities through fully redundant and hot-swappable components – optional dual-controllers, dual fan trays, dual power supplies and disk drives with hot spares. PS4000E provides up to 4GB of battery backed memory with up to 72 hours of data
PS4000E ISCSI SAN TECHNICAL FEATURES
| PS4000 SERIES FEATURES | PS4000E ISCSI SAN TECHNICAL FEATURES |
|---|---|
| Product Configurations | High-capacity storage for your demanding applications |
| Storage Controllers | Dual 1GbE iSCSI controllers with a total of 4GB battery-backed memory which provides up to 72 hours of data protection |
| Network Interfaces | 2x 1GbE Copper; 1x 10/100 copper (optional management network only) per controller |
| Hard Disk Drives | 16x 3.5" 7.2K SATA HDDs |
| Drive Capacities | 250GB, 500GB, 1TB and 2TB 3.5" 7.2K SATA |
| System Capacities | Up to 32TB |
| Host Protocol | Any standards-compliant iSCSI initiator |
| Volumes | Up to 256 |
| Snapshots | 128 per volume/up to 2,048 total per group |
| Volume Connections per PS4000 Series Group | Up to 256 per pool/512 per group |
| OS and Hypervisors Supported | Windows 2000 Server, Windows Server 2003, Windows Server 2008, including Hyper-V, Windows Vista, Windows Server 2008 R2 including Hyper-V, Windows XP, Red Hat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, IBM AIX, HP-UK, Mac OS X, VMware ESX Server 3/3.5/4/4.1/5, ESXi 3.5/4/4.1/5, Citrix XenServer, Novell NetWare |
| RAID Supported | RAID 5, RAID 6, RAID 10, RAID 50 |
| TCP Network Support | IPv4, IPv6 Core Support |
| Expansion Option | Can be combined with other EqualLogic PS Series arrays in the same SAN group online. A maximum of two PS4000 series arrays can be in a group. |
| Reliability | Optional redundant, hot-swappable controllers; power supplies / coolings fans and hot-swappable disks. Individual disk drive slot power control |
| Enclosure Monitoring System | Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives |
| Management Interfaces | EqualLogic SAN Headquarters multi-group performance and event monitoring tool. Serial Console. Ability to configure a separate management network. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Multi-administrator support. |
| Security | CHAP Authentication; Access control for iSCSI; Access control for management interfaces including RADIUS support |
| Notification Methods | SNMP traps, e-mail, syslog |
| Physical | Height: 3U (5.12") Width: 19.00" Depth: 21.70" Weight: 79.60 lbs |
| Power | Dual 440W DC Power Supplies. AC Voltage: 100-240 VAC. Frequency: 47-63 Hz |
| Environmental | Temperature Range: 5 to 35°C / 41 to 95°F Storage temperature: -20 to 60°C / -22 to 140°F |
