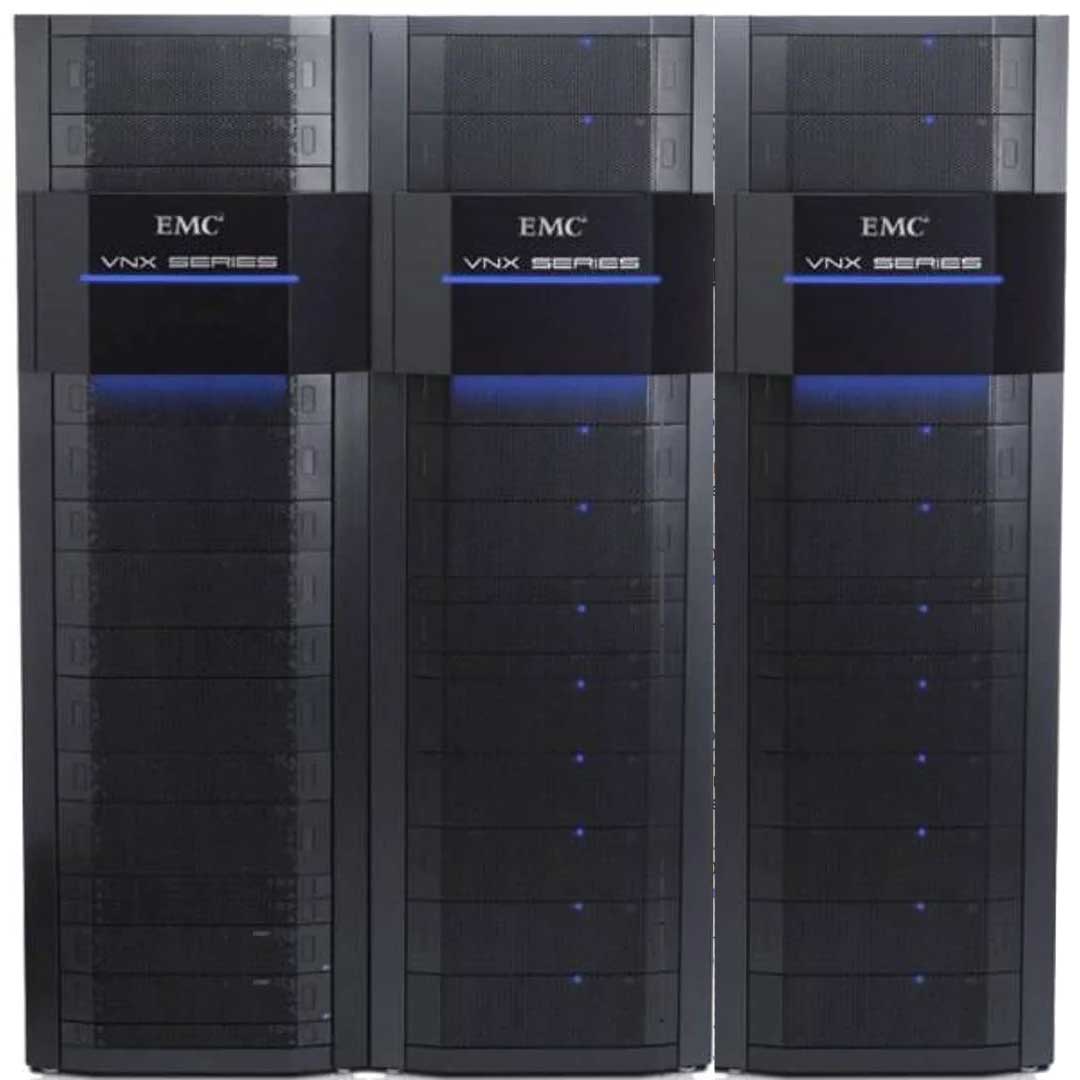

EMC VNX8000 Disk Processor Enclosure (DPE)

SKU: vnx8000

EMC VNX8000 Disk Processor Enclosure (DPE)

Name: EMC VNX8000 Disk Processor Enclosure (DPE)
Brand: EMC
SKU: vnx8000
Availability: OutOfStock

EMC

| Server

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

Form Factor:

4U no Dives

Max Drives:

1500 | SAS, NL-SAS and Flash

RAID:

RAID 0 / 1 / 3 / 5 / 6 / 10

I/O Supported:

Support for File (CIFS and NFS), Block (FC, iSCSI & FCoE) and Object

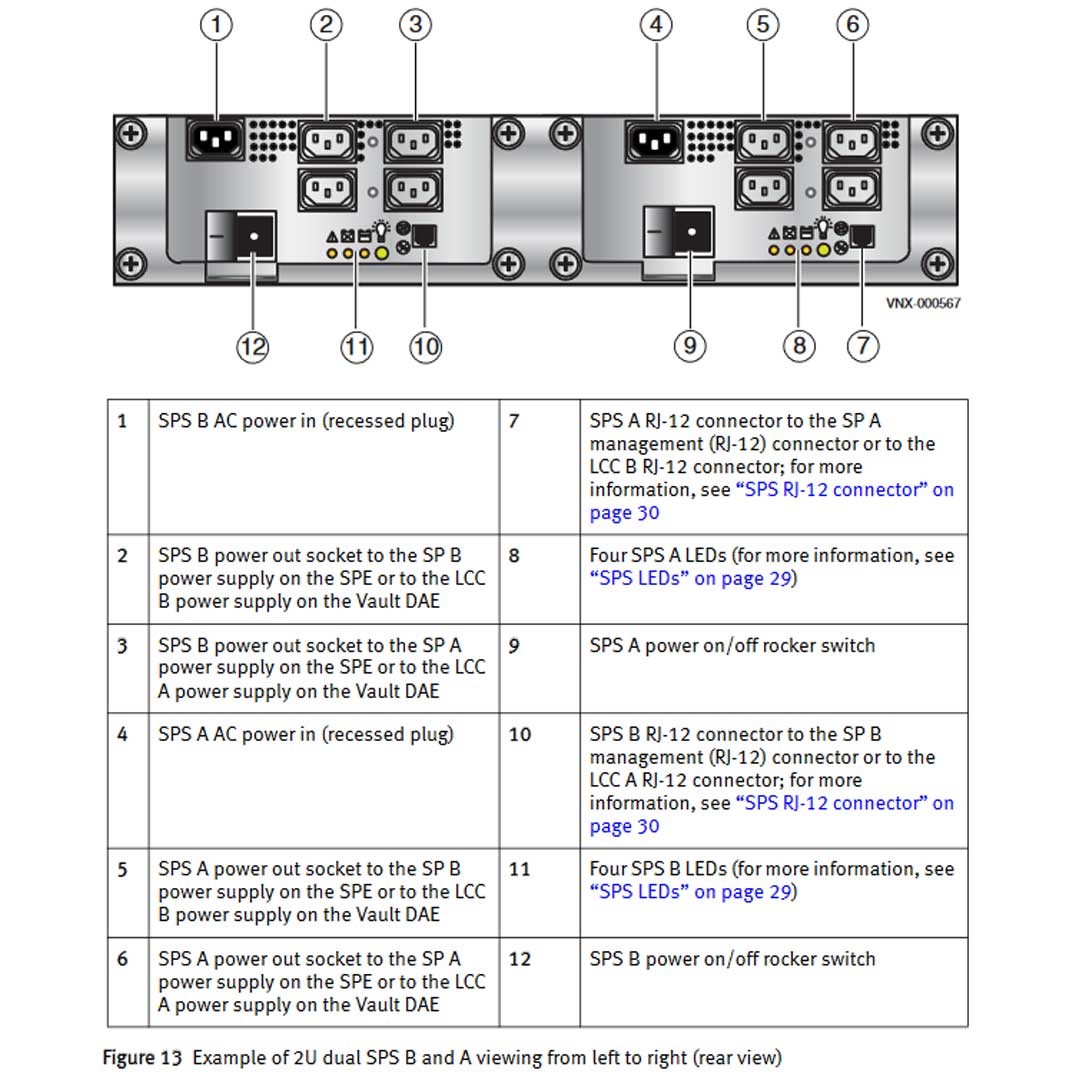

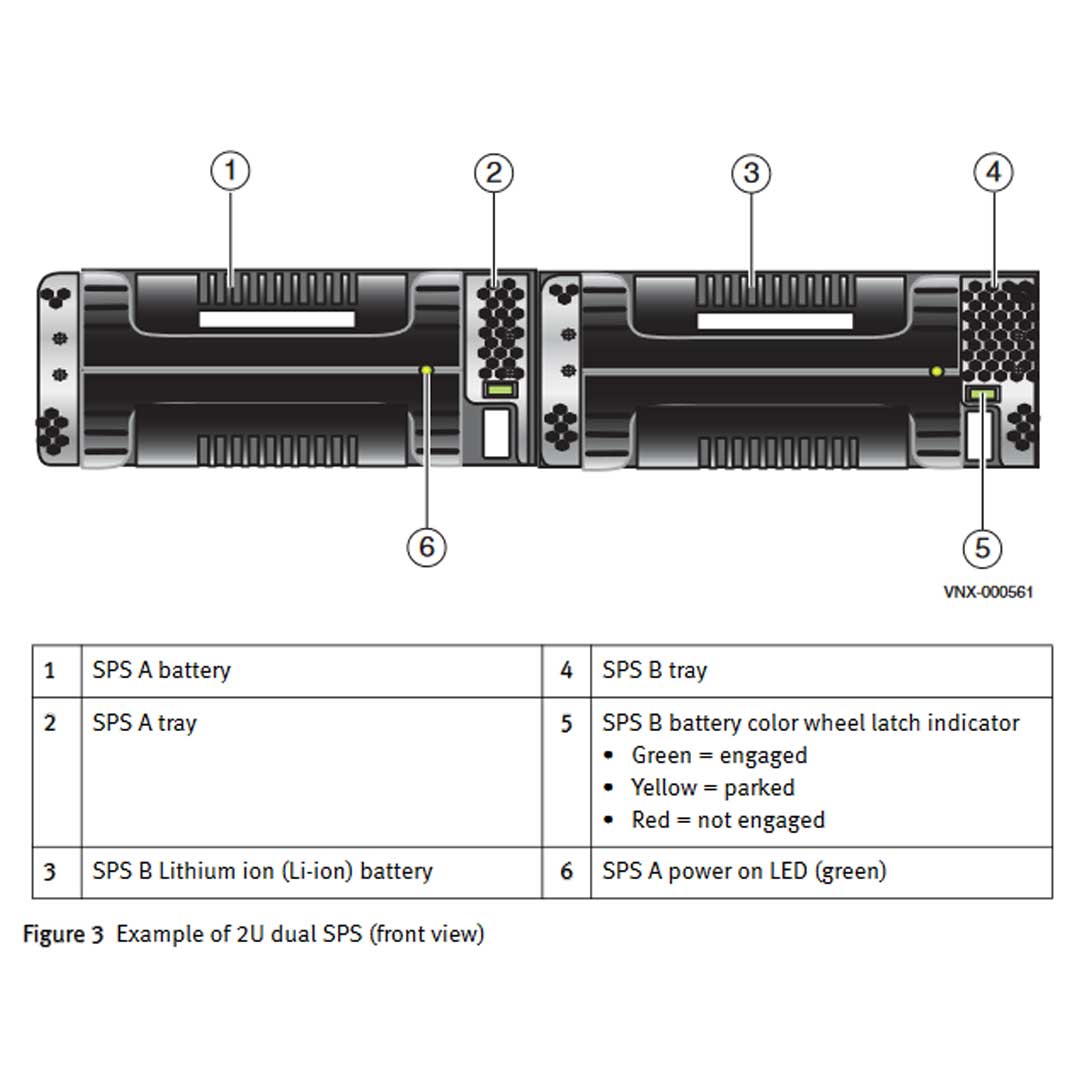

Standby Power Supply (SPD)

2U PSU supported.

Supported Disk Array Enclosures (DAE):

2U 25 (2.5”) | 3U 15 (3.5”) | 3U 120 (2.5”) | 4U 60 (3.5”)

VNX Gen 2 Controllers:

VNX5200
VNX5400
VNX5600
VNX5800
VNX7600
VNX8000

Ideal for:

Corporate IT
Data Analytics
Database
Virtual Desktop Interface (VDI)
Virtualization

The EMC VNX5600 Disk Processor Enclosure (DPE) is built for mid-tier enterprises that demand scalable and flexible storage. Designed with a modular architecture, the VNX5600 supports unified configurations that deliver file, block, and object-level storage in one system. It accommodates up to 500 drives across various DAE types, including 2.5" and 3.5" SAS, NL-SAS, and Flash drives. With RAID support for levels 0, 1, 3, 5, 6, and 10, and support for NAS, iSCSI, FC, and FCoE protocols, this system allows for tailored data protection and high-performance access across diverse workloads.

Equipped with a 4-core Intel Xeon processor and scalable up to 24 GB DDR3 per Storage Processor, the VNX5600 delivers both speed and efficiency. The system supports up to five I/O modules per SP, including options for 8/16 Gb/s FC, 10 Gb/s iSCSI, and FCoE, enabling high-throughput connectivity. Its compatibility with up to 19 DAEs and a variety of DAE types ensures massive storage growth potential, while support for up to four Data Movers and two Control Stations makes it ideal for unified deployments. The VNX5600 excels in virtualization, database, and analytics environments that require high-capacity, low-latency performance.

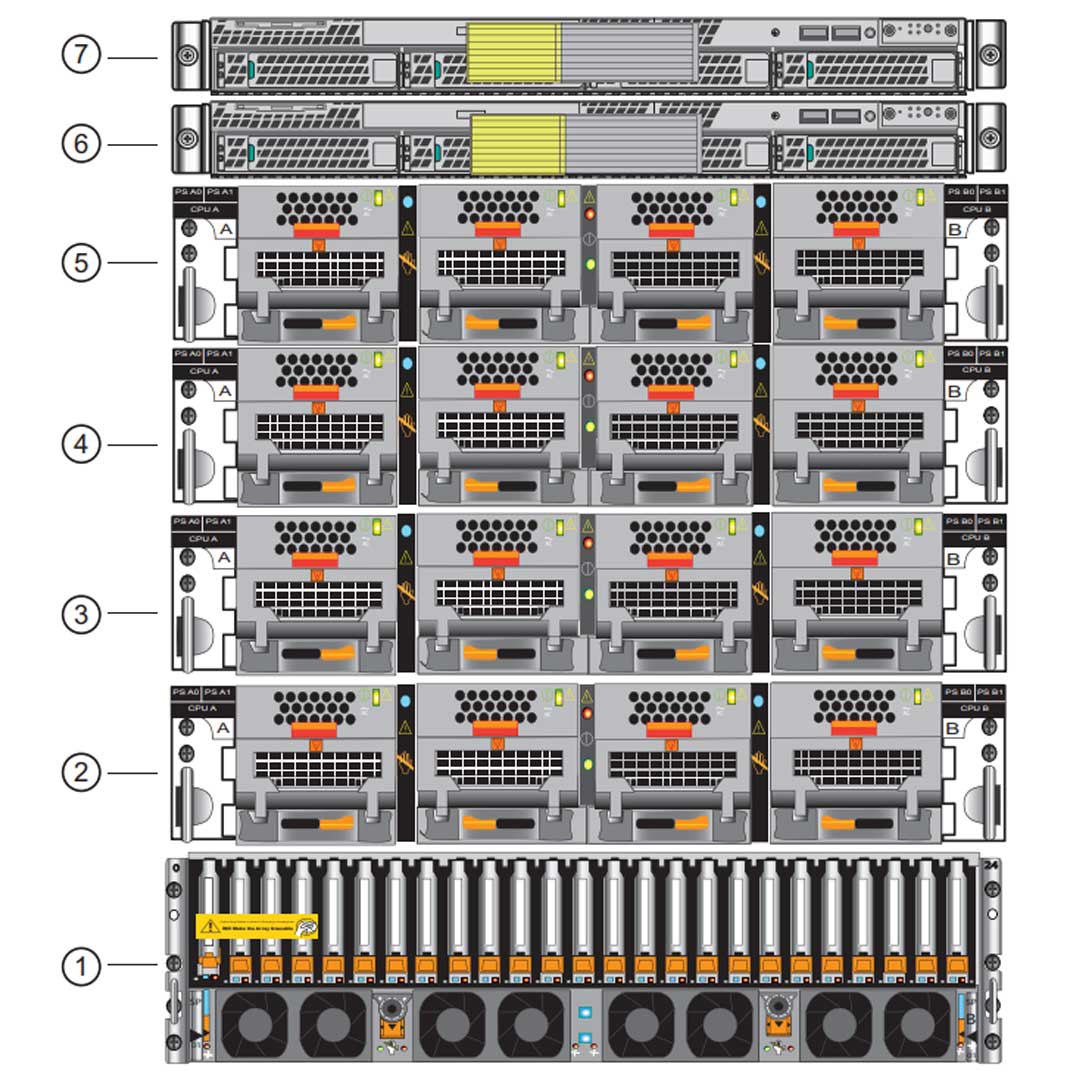

Data Movers Enclosure (DME):

On the front, the VNX8000 has from one to four DMEs having two to eight Data Movers (DMs). Each DM consists of One CPU module consisting of one Intel Xeon 6-core 2.8-GHz processor. The CPU modules in the DME contain the power, fault, and unsafe-to-remove LEDs. Six DDR3 synchronous dynamic RAM (SDRAM) slots supporting up to 24 GB per CPU module using 2 or 4 GB DIMMs.

The maximum number of I/O modules for the VNX8000 is five per DM. One FC I/O module and up to three other I/O modules. Five PCI Gen 2, 8x lane I/O module slots (0 – 4) available for use, supporting

1x FC I/O module

Four-port 8-Gb/s optical (running at 2, 4, or 8 Gb/s); in slots A0 and B0 only;

3x I/O modules

Any combination of these I/O modules must be the same for both Data Movers.

Four-port 1-Gb/s copper I/O module
Two-port 10-Gb/s optical I/O module
T wo-port 10-Gb/s RJ-45 Base-T iSCSI/IP I/O module

Storage Processor I/O Supported:

Two CPU modules with an Intel Xeon 8-core 2.7-GHz processor facilitating Simultaneous Multi-Threading (SMT). Sixteen Double Data Rate Three (DDR3) synchronous dynamic RAM (SDRAM) slots support up to 128 GB of SDRAM per CPU module or SP using 8 GB DIMMs. Ten PCI Gen 3, 8x lane I/O module slots (A0 – A9 and B0 – B9) and one PCI Gen 3, 16x lane I/O module slot (A10 and B10) are available for use, supporting:

Four-port 8-Gb/s FC optical (running at 2, 4, or 8 Gb/s); labeled 8 GbE Fibre on the latch handle
Four-port 16-Gb/s FC I/O module
Four-port 1-Gb/s copper iSCSI I/O module
Two-port 10-Gb/s optical or active Twinax Fibre Channel over Ethernet (FCoE) I/O module
Two-port 10-Gb/s RJ-45 Base-T iSCSI/IP I/O module
Two-port 10-Gb/s optical I/O module
Four-port 6-Gb/s SAS I/O module

Control Station (CS):

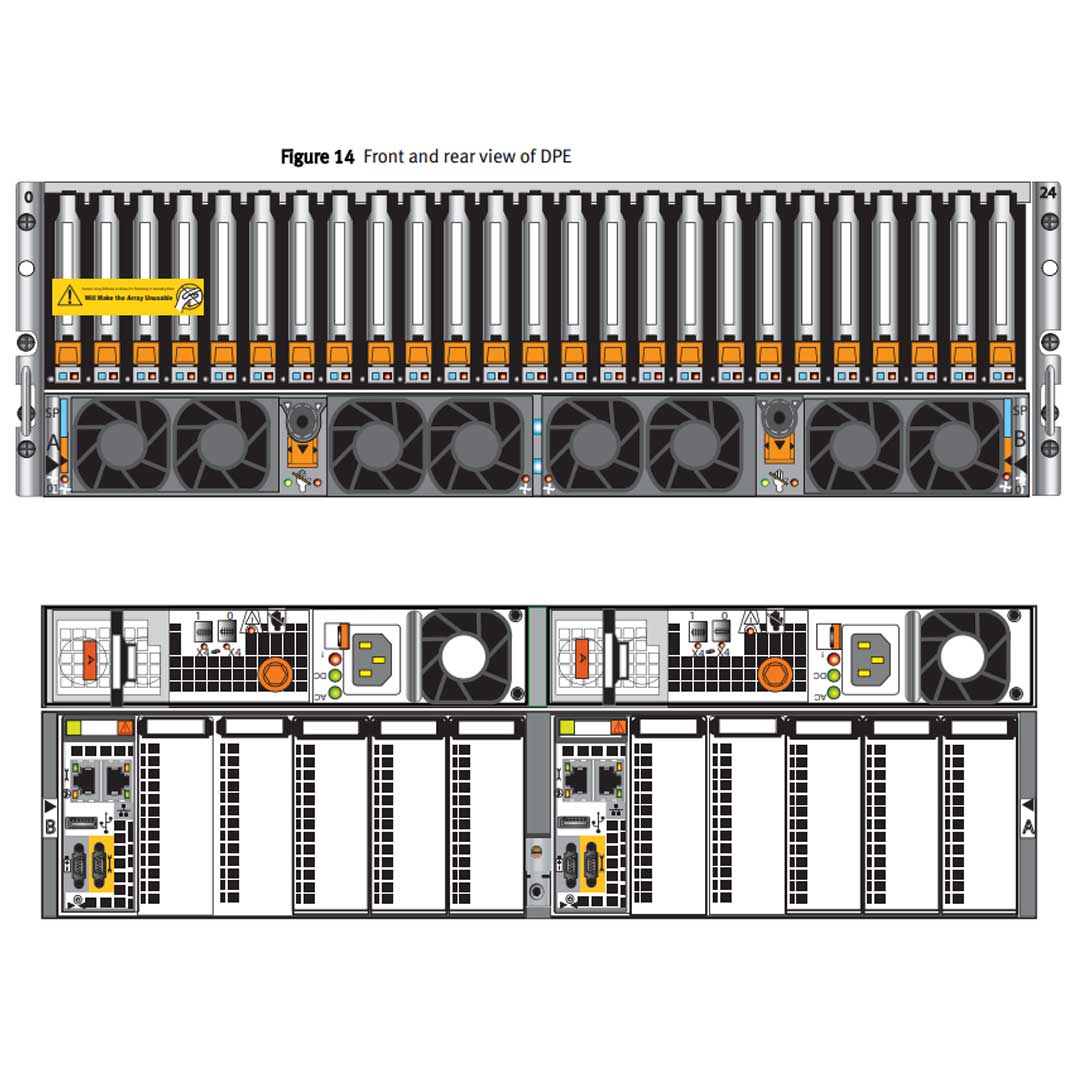

The VNX8000 platform supports a 4U SPE, from one to two 1U Control Stations (CS0 and CS1)

Disk Array Enclosure (DAE)

Expansion of up to

60x 2U, 25 DAEs
(a maximum of 1,500 2.5-inch disk drives)
100x 3U, 15 DAEs
(a maximum of 1,500 2.5- or 3.5-inch disk drives)
12x 3U, 120 DAE
(a maximum of 1,440, 2.5-inch disk drives)
25x 4U, 60 DAEs
(a maximum of 1,500 2.5- or 3.5-inch disk drives)

Spec Sheet 4

EMC VNX7600 Technical Specifications

EMC VNX7600 TECHNICAL SPECIFICATIONS
Storage Type	Unified
Maximum Raw Capacity (per controller)	4000TB
Max FAST Cache	4.2TB
Number of Drives (Min/Max)	4/1000
Array Enclosure	3U Disk Processor Enclosure - 25 x 2.5" SAS/Flash Drives
Drive Enclosure Options	25 x 2.5" NL-SAS/SAS/Flash Drives (2U) 15 x 3.5" NL-SAS/SAS/Flash (3U) 60 x 3.5" NL-SAS/SAS/Flash Drives (4U) 120 x 2.5" NL-SAS/SAS/Flash Drives (3U)
Drive Options	15 x 3.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 2TB 6Gbps 7.2K NL-SAS 3TB 6Gbps 7.2K NL-SAS 4TB 6Gbps 7.2K NL-SAS 25 x 2.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 1TB 6Gbps 7.2K NL-SAS 60 x 3.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 2TB 6Gbps 7.2K NL-SAS 3TB 6Gbps 7.2K NL-SAS 4TB 6Gbps 7.2K NL-SAS 120 x 2.5" Disk Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 1.2TB 6Gbps 10K SAS
Standby Power System	Internal Batteries, one for each storage processor
CPU / Memory Per Controller	2x Intel Xeon E5-2600 Eight Core 2.2GHz / 128GB per Controller
Max Block UltraFlex IO Modules per Array	10
Embedded IO Ports per Array	2 x 4 Lane SAS ports (for BE Connection)
Base 6Gbps SAS BE Buses per Array	2 x 4 Lane
Max 6Gbps SAS BE Buses per Array	6 x 4 Lane or 2 x 4 Lane + 2 x 8 Lane
Max Total Ports per Array	44
2/4/8 Gbps FC Max Ports per Array	40
1 GBaseT iSCSI Max Total Ports per Array	32
10 GbE iSCSI Max Total Ports per Array	20
Max FCoE Total Ports per Array	20
File Components
# File Data Movers	2-8
# Control Stations	1 x 1U Server Standard, 2nd x 1U Server Optional
Data Mover CPU/Memory	Intel Xeon 5600 / 24GB
Max File UltraFlex IO MOdules per Data Mover	4
Min/Max 2/4/8 Gbps FC Ports per Data Mover	4
Max IP Ports per Data Mover	12
Max 1 GBaseT Ports per Data Mover	12
Max 10GbE Ports per Data Mover	6
Management	LAN 2x 10/100/1000 Copper GbE
Functional Limits
Max Raw Capacity	4000TB
Max SAN Hosts	4,096
Max Max Number of Pools	60
Max Number of LUNs (Pool)	3000
Max Number of LUNs (Classic)	8192
Max Pool Based LUN Size	256TB (Virtual Pool LUN)
Max File System Size	16TB
Maximum Usable File Capacity per Data Mover	512TB
Compatible Disk Array Expansions (DAEs)	VNXB6GSDAE15 VNXB6GSDAE25 VNXB6GSDAE60 VNXB6GSDAE120
Protocols Supported	CIFS, NFS, pNFS, FC, FCoE, ISCSI
Power - 25 x 2.5" DPE
AC Line Current (Operating Maximum)	4.7 A max at 200 Vac
Power Consumption (Operating Maxium)	939 VA (900 W) max
Power Factor	0.98 min at full load, low voltage
In-rush Current	30 A max for 1/2 line cycle, per line cord at 240 Vac
Startup Surge Current	29 A rms max for 50 ms, at any line voltage
AC Protection	10 A fuse on each power supply
AC Inlet Type	IEC320-C14 appliance coupler, per power zone
Dimensions
Height	5.25"
Width	17.5"
Depth	24"
Vertical Size	3 NEMA Units
Weight	90.395 lbs
ECS Warranty	1-Year Parts Replacement Warranty
