Quick Specs
What's New for DL580 Gen10 Plus
- (4) Intel Xeon E7-4800/8800 v4/v3
- (96) DDR4 RDIMM & LRDIMM slots
- (9) PCIe Gen3.0 slots
- Supports up to (10) Drives
- Supports (5) NVMe Drive - Upper Bay Only
- Supports up to (4) PSUs
- Supports up to (4) GPUs
- Supports 12Gbps SAS
- Embedded HPE Smart Array 12Gb P830i Controller with FBWC
- HPE Lockstep Memory Mode FIO Setting
- New 128GB DIMM memory
Other Versions:
(Click to View)
Ideal for:
- Cloud Servers
- Corporate IT
- Database

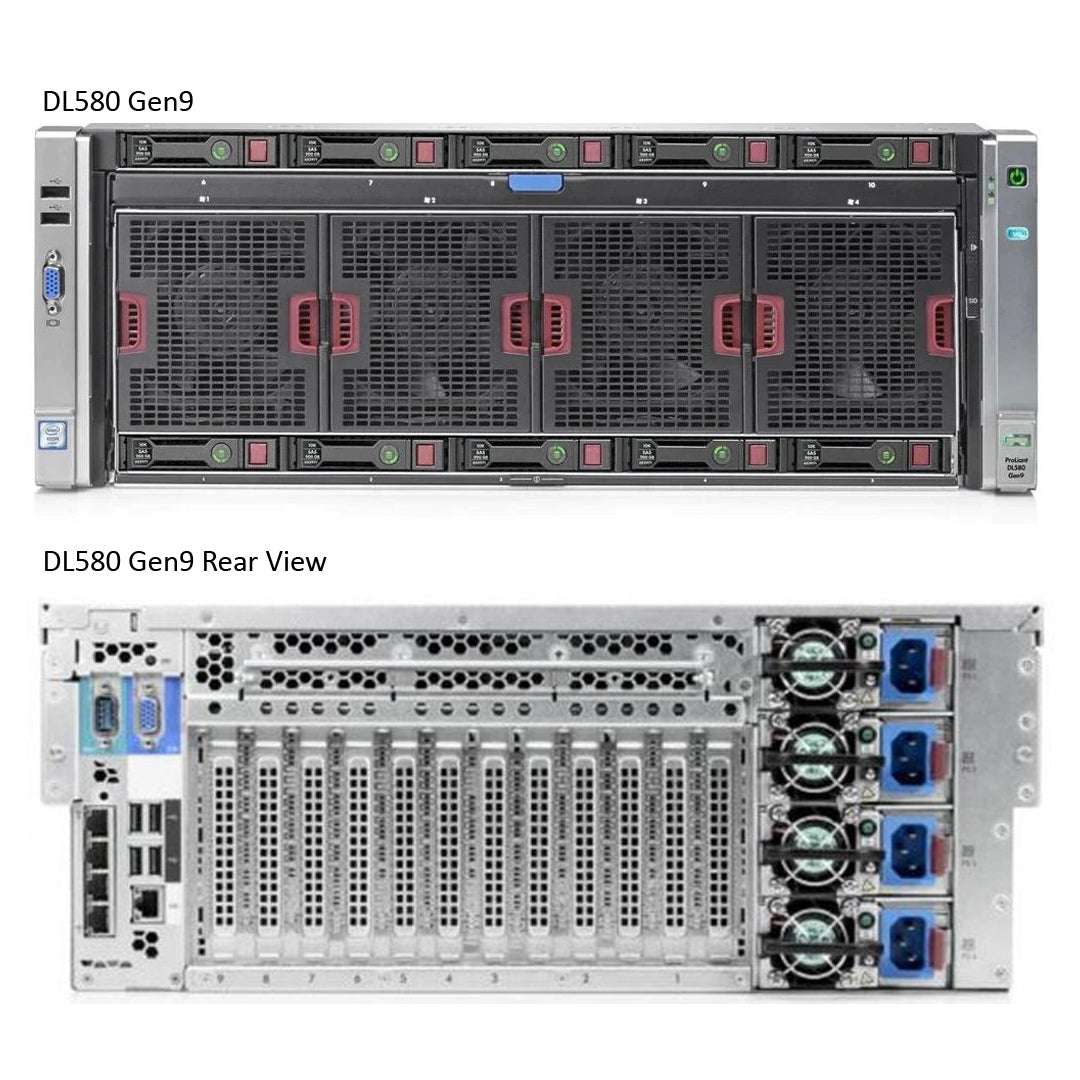

The HPE ProLiant DL580 Gen9 Server is the Hewlett Packard Enterprise four socket (4S) enterprise standard x86 server offering commanding performance, rock-solid reliability and availability, and compelling consolidation and virtualization efficiencies.
Supporting Intel® Xeon® E7-4800/8800 v4/v3 processors, the HPE DL580 Gen9 offers enhanced processor performance, up to 6 TBs of memory, greater IO bandwidth (9 PCIe Gen3.0 slots), and 12 Gb/s of SAS speeds. HPE ProLiant DL580 Gen9 has security and data protection features for system resiliency that your business can depend on. All, making it ideal for mission-critical enterprise, business intelligence, and database applications.
CTO Configuration Support
Need help with the configuration? Contact us today!

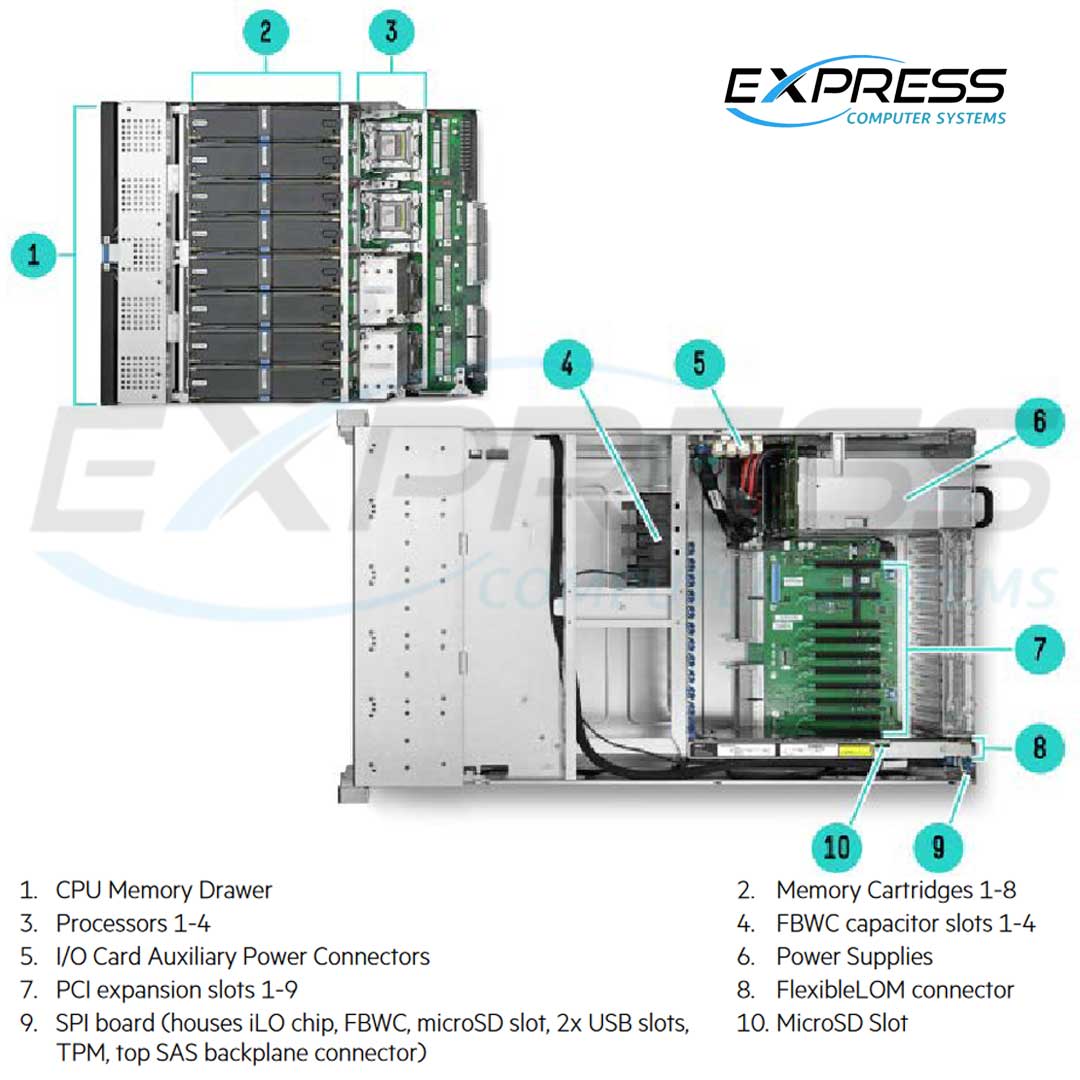

HPE DL580 Chassis Specs
| Specification | Value |
|---|---|
| Chassis | HPE ProLiant DL580 Gen9 Configure-to-order Server |
| SKU Number | 793161-B21 |
| Processor | 4U Server Chassis with front-accessible processor and memory drawer |
| Storage Controller | Embedded HPE Smart Array 12G P830i Controller |
| PCIe | 9 PCIe Gen3.0 I/O Expansion slots (5x16 slots, 4x8 slots) |
| Drive Cage | 5 Hot-plug SAS/SATA SFF SSD or HDD Bays (Lower) |
| Fans | 4 hot plug fans (eight rotors with N+1 redundancy), front accessible |
| Management | iLO Management (standard), Intelligent Provisioning (standard) |
| USB | 8 USB 2.0 ports (2 front, 4 rear, 2 internal) |
DL580 (G9) Min/Max
- A minimum of two processors are required.
- Can support two, three, or four processors installed.
- Min (1) Memory cartridges and (2) DIMMs are required per CPU.
- Max 12TB in (8) Memory cartridges holding (12) DIMMs each
- Min (2) power supplies are required; (4) are supported.
HPE DL580 Gen9 Maximum Internal Storage
Internal SAS lower and upper backplanes support up to ten SFF hard disk drives or solid-state drives or Express Bays (NVMe drives). To add a drive Bay or to add a second drive bay you will need the HPE ProLiant DL580 5 Small Form Factor Drive Backplane Cage Kit (739405-B21). If you don’t plan to fill all the drive slots. Use the HPE Small Form Factor Hard Drive Blank Kit (666987-B21).
Max Drive Capacity
- SAS 24TB (10x 2.4TB)
- SAS SSD 4TB (10x 3.84TB)
- SATA SSD 4TB (10x 3.84TB)
- NVMe SSD 8TB (5x 1.6TB)

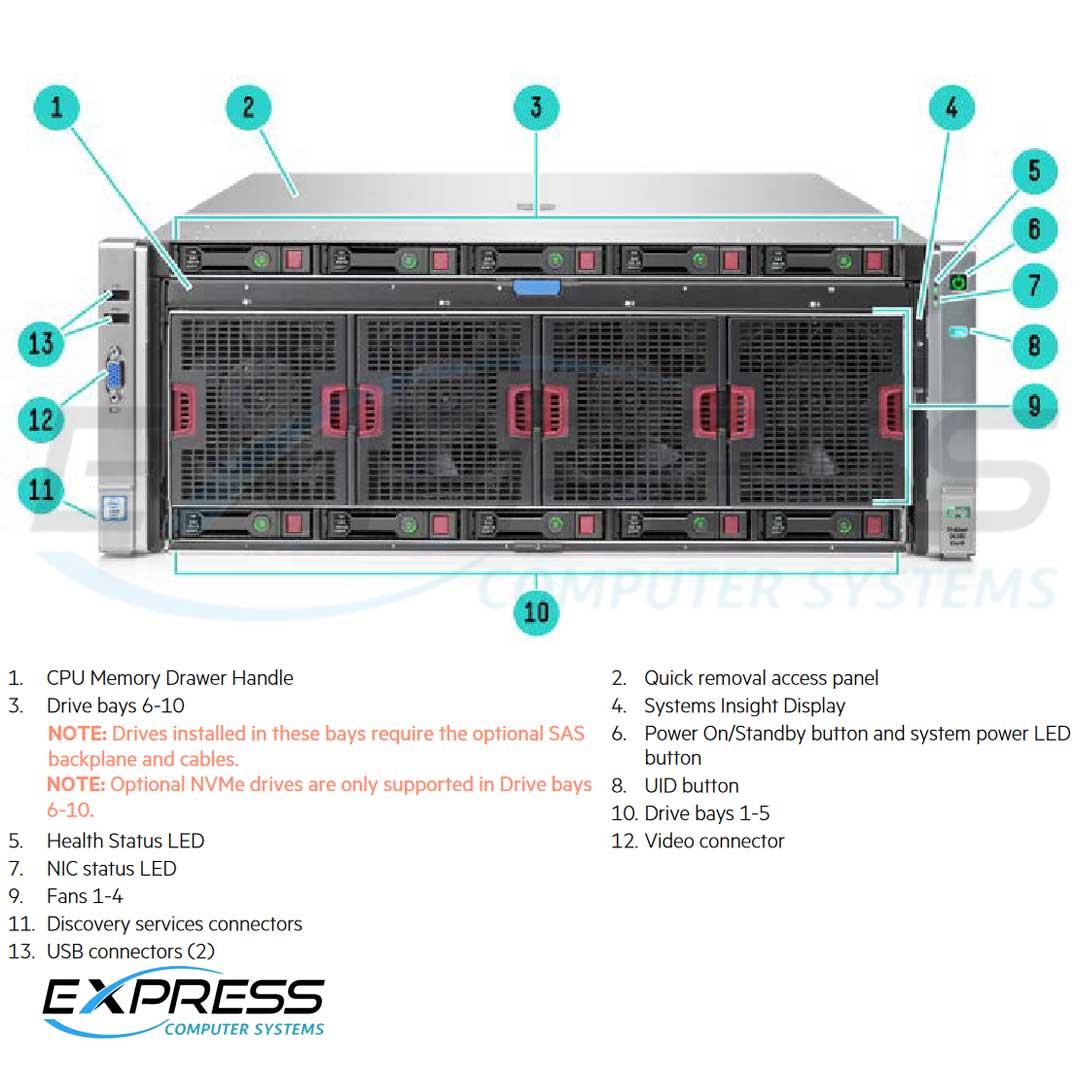

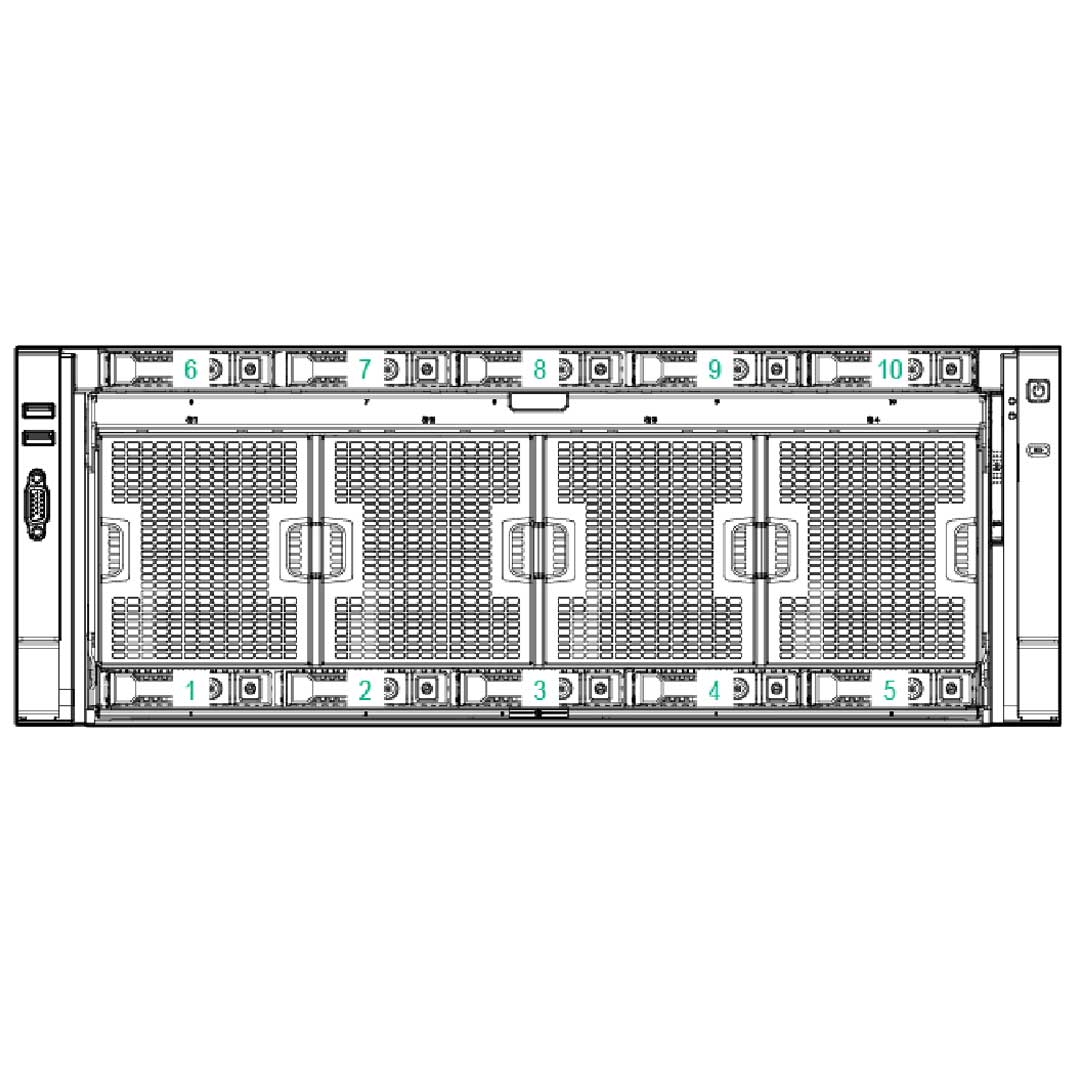

The DL580 Gen9 comes with two Drive Bays. One 5 Drive Bay on the bottom as standard and another 5 Drive Bay on top of the 4 Fans. The NVMe Drives can only be installed on the top drive bay. To support NVMe PCIe SSDs you need to select the SSD Express Bay Kit (788359-B21), maximum of 5 drives supported.
Drives Configurations
- (5) HDD/SSD SFF Drives
- (10) HDD/SSD SFF Drives
- (5) NVMe + (5) HDD/SSD SFF Drives

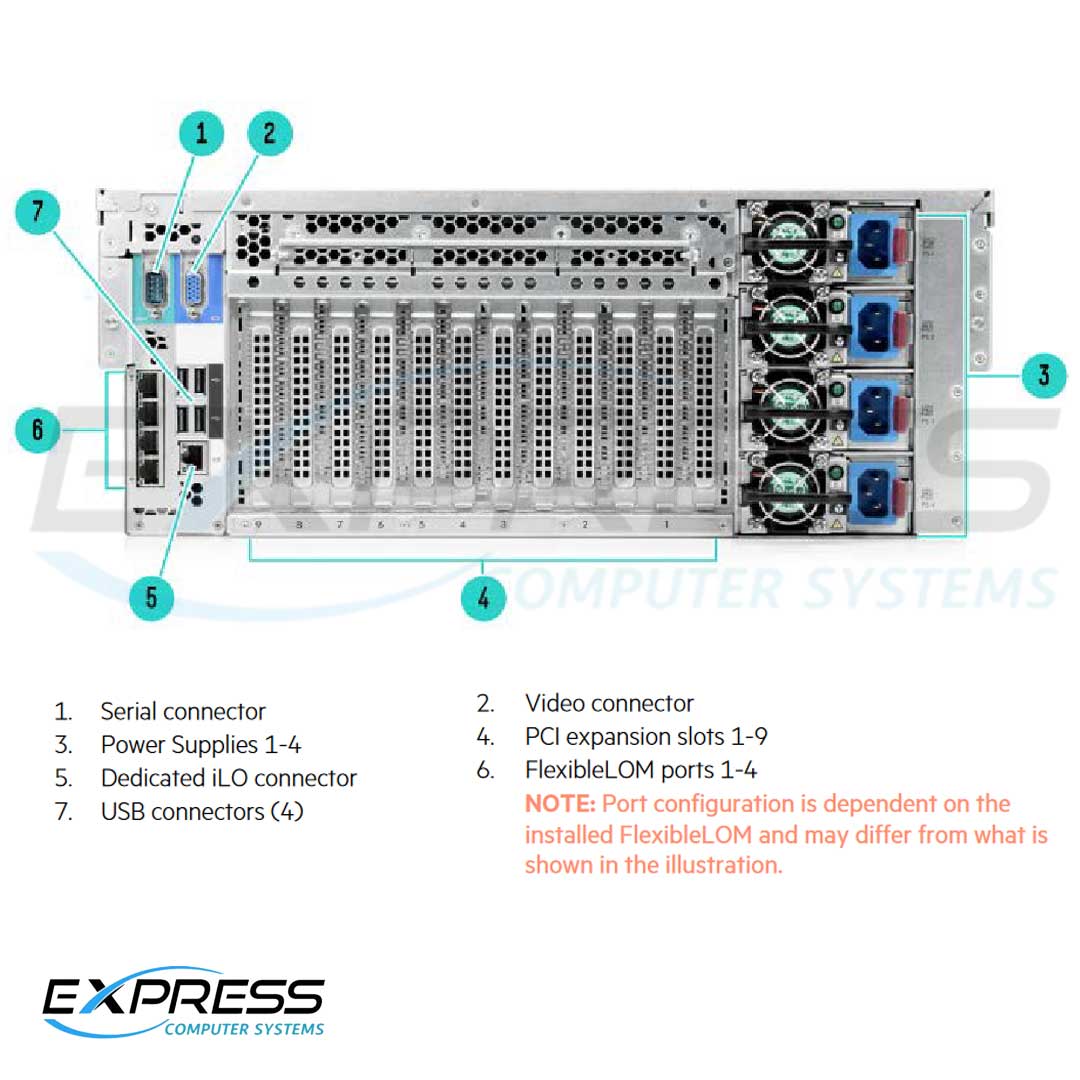

HPE DL580 Gen9 Expansion
PCIe slot availability is dependent on the number of processors installed, view the table below for details. Up to 9 slots supported; all full-length/full-height. All slots support PCIe cards to 150W or more depending on the card but an additional Power Cord Option is required (PN 669777-B21).
HPE ProLiant DL580 Gen9 servers offer a dedicated FlexibleLOM slot, which offers customers a choice of 1Gb, 10Gb, or 10Gb base-T Ethernet or converged networking in their embedded adapter.
| Expansion Slots # | Technology | Bus Width | Connector Width | Bus Number | Form Factor | Notes |
|---|---|---|---|---|---|---|
| 1 | PCIe 3.0 | x16 | x16 | C0/03/0 | Full-length / Full-height | Proc 4 |
| 2 | x16 | C0/02/0 | Proc 4 | |||
| 3 | x16 | 80/03/0 | Proc 3 | |||
| 4 | x8 | 80/02/0 | Proc 3 | |||
| 5 | x8 | 80/02/1 | Proc 3 | |||
| 6 | x16 | 40/03/0 | Proc 2 | |||
| 7 | x8 | 40/02/0 | Proc 2 | |||
| 8 | x8 | 40/02/1 | Proc 2 | |||
| 9 | x16 | 00/03/0 | Proc 1 |
HPE DL580 Gen9 GPU / Workload Accelerator
NVIDIA Tesla M60 Requires : HPE DL580 Gen9 M60 Reverse Air Flow Cable Kit 869724-B21
Up to 4 GPU cards are supported on the DL580 Gen9. Supporting a multiple number of cards on the DL580 Gen9 blocks some active IO cards as follows due to space constraints:
For 2P config:
Max of 2 double-wide cards installed on slot 6 and slot 9 (slot 8 is blocked).
For 3P config:
Max of 3 double-wide cards installed on slot 3, slot 6, and slot 9 (slot 5 and slot 8 are blocked).
For 4P config:
Max of 4 double wide cards installed on Slot 1, Slot 3, Slot 6, and Slot 9 (slot 5 and slot 8 are blocked).
HPE DL580 Gen9 Common Slot your power!
A minimum of two (2) power supplies are required. Four (4) 1500W power supplies offers N+Nredundancy for highly loaded configurations. Mixing of power supplies in the same server is not supported. All power supplies must be of the same output and efficiency rating. If non-matched power supplies are inserted you will get errors and the operation will fail.
HPE DL580 Gen9 Lights Out! iLO
HPE Integrated Lights-Out (HPE iLO)
Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.
UEFI
Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).
Intelligent Provisioning
Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.
RESTful API
RESTful API for iLO 4 is Redfish 1.0 conformance for simplified server management such as configuration and maintenance tasks based on modern industry standards.
Embedded Remote Support
The Hewlett Packard Enterprise embedded remote support when used with Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to Hewlett Packard Enterprise or a Hewlett Packard Enterprise Authorized Partner for automated phone home support.
Lockstepmode
In this mode, the memory controller operates two DDR4 channels behind one memory buffer as single channel and the SMI2 channel operates at the DDR4 transfer rate (1866 MT/s max).
Dimensions & Weight
Dimensions
- 6.88in (H) x 29 in (D) x 17.58in (W)
- 17.5cm (H) x 73.6cm (D) x 44.4cm (W)
Weight
- Min - 32.18 kg (70.94 lb)
- Max - 52.87 kg (116.56 lb)
