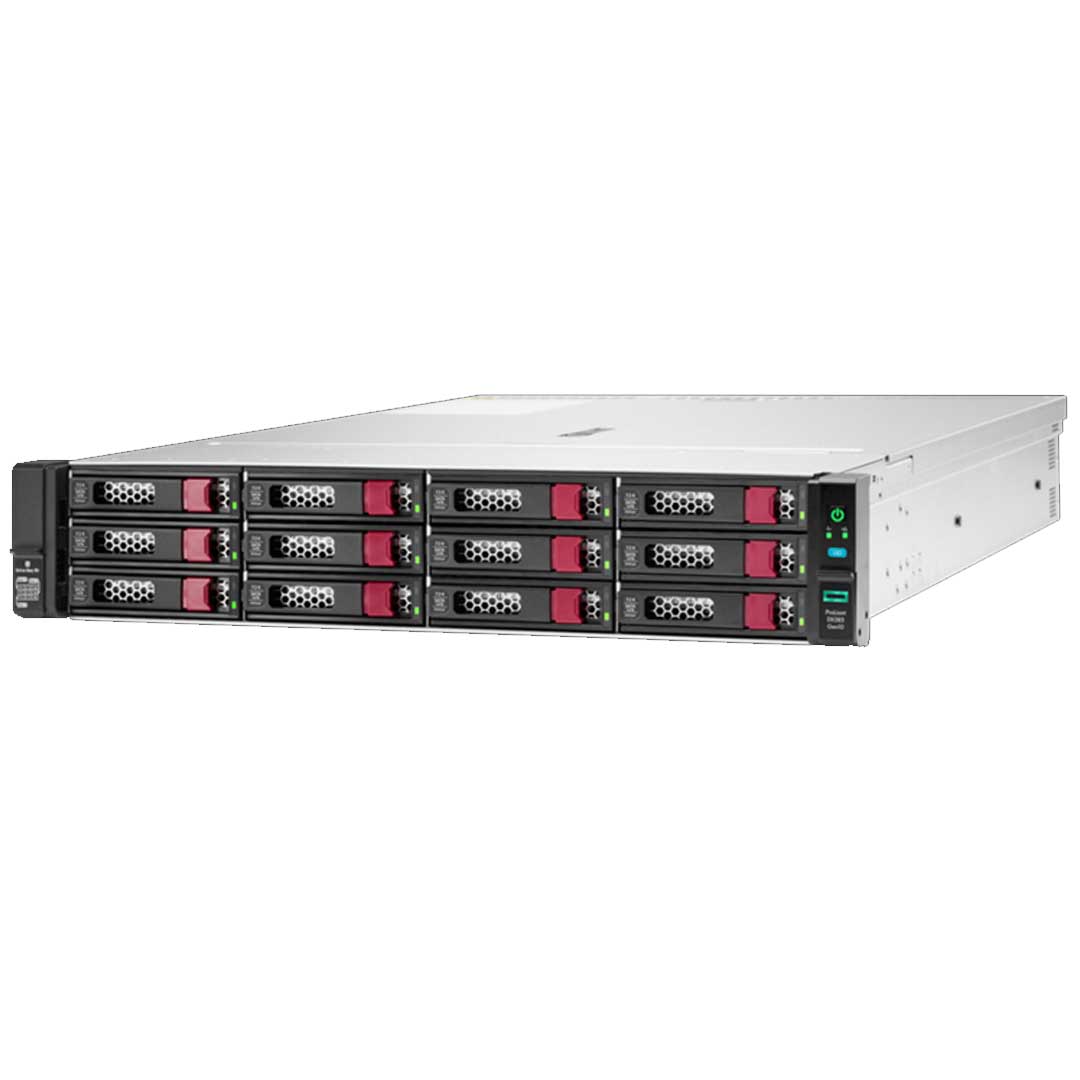

HPE ProLiant DL385 (G10) 7262 3.2GHz 8C 1P 16GB-R 12LFF 800W RPS Server | P16690-B21

Refurbished HPE ProLiant DL385 Gen10 Configure to Order Server

SKU: P16690-B21

HPE ProLiant DL385 (G10) 7262 3.2GHz 8C 1P 16GB-R 12LFF 800W RPS Server | P16690-B21

Name: HPE ProLiant DL385 (G10) 7262 3.2GHz 8C 1P 16GB-R 12LFF 800W RPS Server | P16690-B21
Brand: HPE
SKU: P16690-B21
Availability: InStock

HPE

| Server

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Comes with:

Processors - 1 x 7262 (8-Core, 3.2 GHz, 155W)
Memory - 16 GB RDIMM DR 2933 MT/s (1x 16 GB)
Network Controller - HPE 1Gb Ethernet 4-Port 336FLR Adapter plus optional HPE FlexibleLOM or stand up card
Storage Controller - P816i-a
Notes:
− 16-Port modular Smart Array.
− Smart Storage battery included.
Hard Drive - None ship standard
Internal Storage - 12 LFF chassis
Optical Drive Bay - Optional via Universal Media Bay (included)
Optical Drive - None
PCIe Slots - 3-slots (x8, x16, x8) as standard
Power Supply - 1x 800W HPE FlexSlot Power Supply
Fans - 6-High Performance fans
Management - Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download) Optional (require licenses): HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced
Energy Start - 2.1 certified
Form Factor - 2U Rack, Easy Install rails without CMA

Looking to Customize?

Not seeing the exact specs you need?
Start your build today with Express Computer Systems!

Start Customizing Today!

Base Standard Capabilities

Technical specifications	HPE ProLiant DL385 Gen10 Server
Processor name	AMD EPYC™ 7000 Series
Processor family	AMD EPYC™ 7000 Series
Processor core available	64 or 32 or 24 or 16 or 8, per processor, depending on model
Processor speed	3.4 GHz, maximum depending on processor
Processor cache	128 MB or 64 MB or 32 MB L3, per processor , depending on model
Power supply type	2 Flexible Slot power supplies, maximum depending on model
Expansion slots	8 maximum, for detailed descriptions reference the QuickSpecs
Maximum memory	4.0 TB with 128 GB DDR4
Memory, standard	4 TB with 32 x 128 GB RDIMMs
Memory slots	32 DIMM slots
Memory type	HPE DDR4 SmartMemory
Memory protection features	ECC
System fan features	Hot-plug redundant fans, standard
Network controller	Choice of optional FlexibleLOM plus standup, depending on model
Storage controller	1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a ( depending on model), and more, reference QuickSpecs for details
Minimum dimensions ( H x W x D)	8.73 x 44.55 x 73.02 cm
Weight	14.9 kg
Infrastructure management	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)
Drive supported	8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD 6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF rear drive optional 24 SFF NVMe optional NVMe support via Express Bay will limit maximum drive capacity

Specs 1

Product features

Feature

Description

Form factor

2U rack

Chassis types ¹

8 SFF with optional universal media bay, and optional SFF or NVMe drive bay options.
24 SFF bay with additional 6 SFF rear drive bay option to total 30 SFF drives.

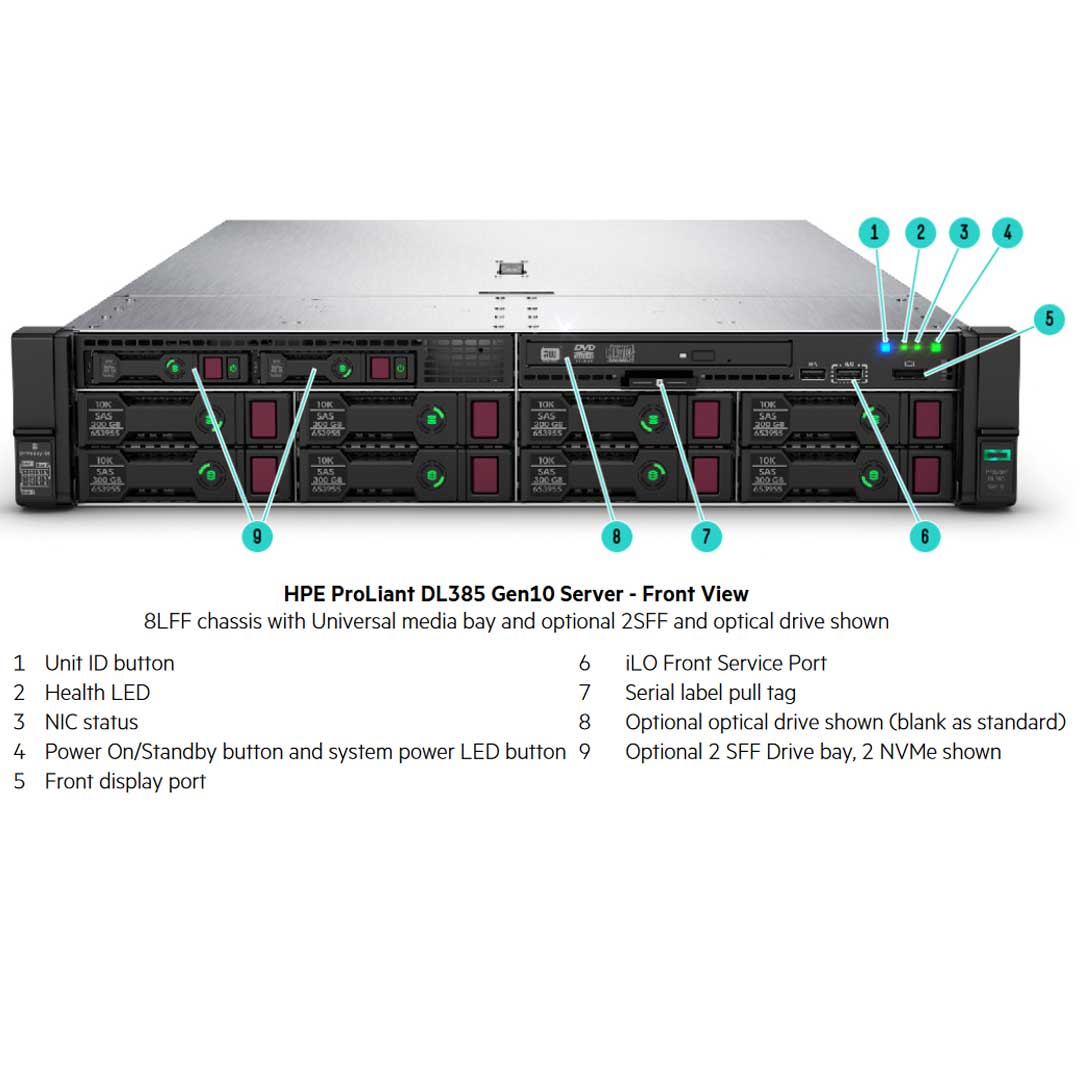

8 LFF with universal media bay
12 LFF with optional 4 LFF mid-plane and optional 3LFF + 2 SFF rear drive bay to total 19 LFF drives + 2 SFF drives.

System fans ²

Standard - Fan types included

Processors ³

Up to 2 of the following depending on model

AMD EPYC Processor	Cores	Base Frequency	Max Frequency	Max Memory	Wattage	Cache	Memory
EPYC 7702	64	2.0 GHz	3.35 GHz	2TB	200	256MB	2933 MT/S
EPYC 7502	32	2.5 GHz	3.35 GHz	2TB	180	128MB	2933 MT/S
EPYC 7452	32	2.35 GHz	3.35 GHz	2TB	155	128MB	2933 MT/S
EPYC 7402	24	2.8 GHz	3.35 GHz	2TB	180	128MB	2933 MT/S
EPYC 7302	16	3.0 GHz	3.3 GHz	2TB	155	128MB	2933 MT/S
EPYC 7262	8	3.2 GHz	3.4 GHz	2TB	155	128MB	2933 MT/S

AMD EPYC Processor	Cores	Base Frequency	Max Frequency	Max Memory	Wattage	Cache	Memory
EPYC 7601	32	2.2 GHz	3.2 GHz	2TB	180	64MB	2666 MT/S
EPYC 7551	32	2.0 GHz	3.0 GHz	2TB	180	64MB	2666 MT/S
EPYC 7501	32	2.0 GHz	3.0 GHz	2TB	155/170	64MB	2666 MT/S
EPYC 7451	24	2.3 GHz	3.2 GHz	2TB	180	64MB	2400/2666 MT/S
EPYC 7401	24	2.0 GHz	3.0 GHz	2TB	155/170	64MB	2400/2666 MT/S
EPYC 7371	16	3.1 GHz	3.8 GHz	2TB	155/170	64MB	2400/2666 MT/S
EPYC 7351	16	2.4 GHz	2.9 GHz	2TB	155/170	64MB	2400/2666 MT/S
EPYC 7301	16	2.2 GHz	2.7 GHz	2TB	155/170	64MB	2400/2666 MT/S
EPYC 7281	16	2.1 GHz	2.7 GHz	2TB	155/170	32MB	2400/2666 MT/S
EPYC 7261	8	2.5 GHz	2.9 GHz	2TB	155/170	64MB	2400/2666 MT/s
EPYC 7251	8	2.1 GHz	2.9 GHz	2TB	120	32MB	2400 MT/S

Chipset

No chipset - System on Chip (SoC) design

On system management chipset

HPE Integrated Lights-Out (HPE iLO) 5 ASIC

Memory ⁴

Type		HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM)
DIMM slots available	32	16 DIMM slots per processor, 8 channels per processor, 2 DIMMs per channel
Maximum capacity (LRDIMM)	4.0TB	32 x 128GB LRDIMM - 2666 MHz
Maximum capacity (RDIMM)	1.0TB	32 x 32GB RDIMM - 2666 MHz

Expansion slots ⁵

Slot#	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
1	PCIe 3.0	X8	X8	Full-Height, Full-Length slot	Proc 1
2	PCIe 3.0	X16	X16	Full-Height, Full-Length slot	Proc 1
3	PCIe 3.0	X8	X8	Full-Height, Half-Length slot	Proc 1

Slot#	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
1	PCIe 3.0	X8	X8	Full-Height, Full-Length slot	Proc 2
2	PCIe 3.0	X16	X16	Full-Height, Full-Length slot	Proc 2
3	PCIe 3.0	X8	X8	Full-Height, Half-Length slot	Proc 2
Slot#	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
1	PCIe 3.0	X8	X8	Full-Height, Full-Length slot	Proc 2
2	PCIe 3.0	X8	X8	Full-Height, Full-Length slot	Proc 2

Storage controllers

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

Software RAID

HPE Smart Array S100i SR Gen10 SW RAID

Essential RAID controller

HPE Smart Array E208i-a SR Gen10 controller
HPE Smart Array E208i-p SR Gen10 controller
HPE Smart Array E208e-p SR Gen10 controller

Performance RAID controller ⁶

HPE Smart Array P408i-a SR Gen10 controller
HPE Smart Array P408i-p SR Gen10 controller
HPE Smart Array P408e-p SR Gen10 controller
HPE Smart Array P816i-a SR Gen10 controller
HPE Smart Array P824i-p MR Gen10 Controller

Internal storage devices

Optical drive

Ships standard in performance models
Optional: DVD-ROM, DVD-RW

Hard drive

None ship standard

Maximum internal storage

Internal Storage	Capacity	Configuration
Hot Plug SFF SAS	72.0TB	24+6 x 2.4TB (With optional rear SFF drive cage)
Hot Plug SFF SATA	60.0TB	24+6 x 2TB (With optional SFF drive cage)
Hot Plug LFF SAS	296.6TB	12+4+3 x 12TB + 2 x 15.3TB (With optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SATA	296.6TB	12+4+3 x 12TB + 2 x 15.3TB (With optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug SFF SAS SSD	459TB	24+6 x 15.3TB (With optional rear SFF drive cage)
Hot Plug LFF SATA SSD	67.08TB	12+4+3 x 1.92TB + 2 x 15.3TB (With optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug SFF SATA SSD	230.4TB	24+6 x 7.68TB (With optional 2SFF drive cage)
Hot Plug SFF NVMe PCIe SSD	368.64TB NVMe	24 x 15.36TB NVMe

Power supply

HPE 500 W flexible slot platinum Hot-Plug low halogen power supply kit
HPE 800 W flexible slot platinum Hot-Plug low halogen power supply kit
HPE 1600 W flexible slot platinum Hot-Plug low halogen power supply kit

Interfaces ⁷

Serial	Optional, rear
Display port	1 (SFF 1 front, optional VIA universal media bay, 882097-B21), 8 LFF chassis standard
FlexibleLOM network ports	4 x 1Gb ports shipping standard with optional FlexibleLOM or stand up card
HPE iLO remote management network port	1Gb Dedicated
Front iLO service port	1 Standard (Not available on 12 LFF chassis or when SID is ordered, note iLO dongle required, 880123-B21)
Micro SD slot	1 Micro SD
USB 3.0	Up to 5 total: 1 front, 2 rear, 2 internal (Secure), 2 optional USB 2.0 front VIA universal media bay, or standard on 8LFF chassis

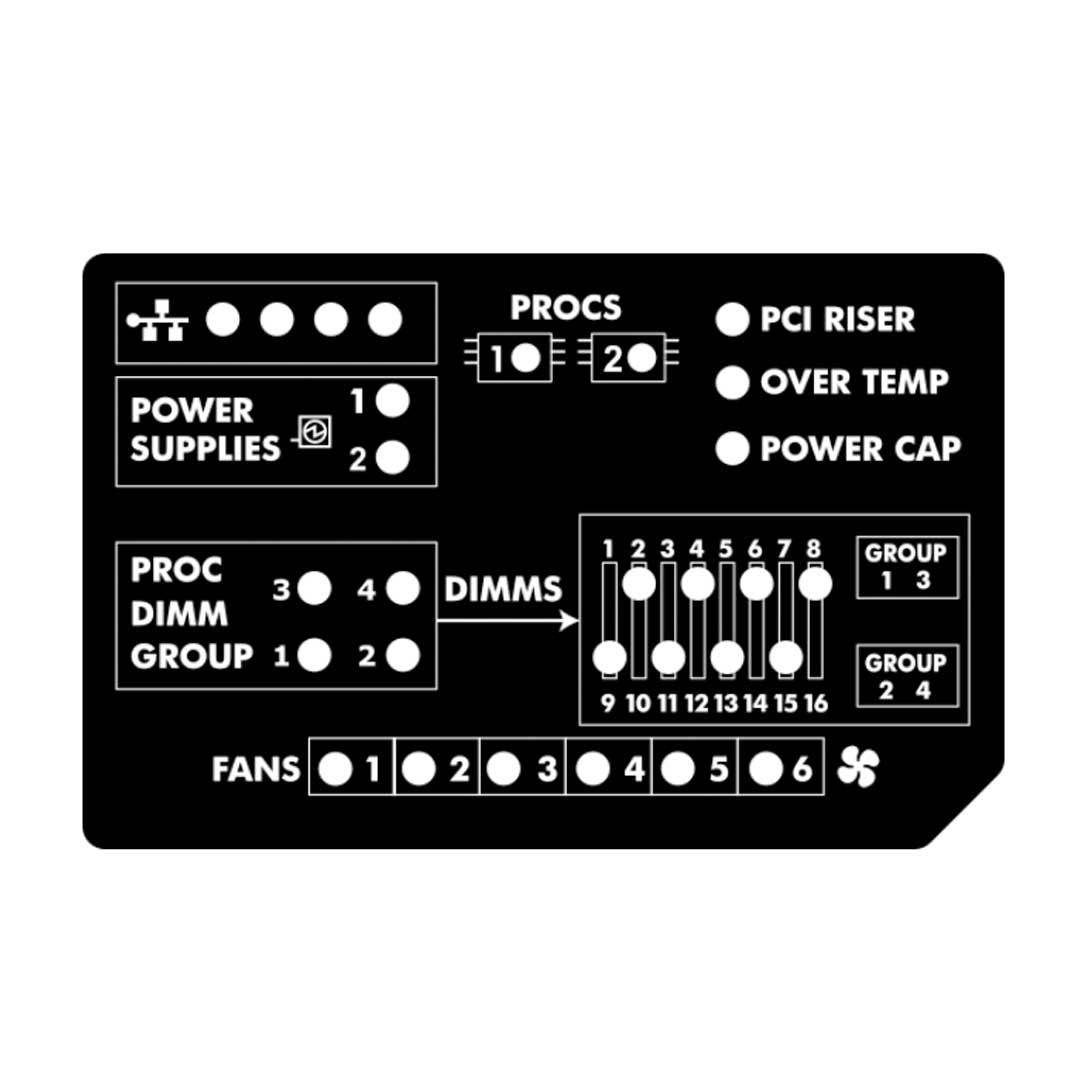

Systems Insight Display (SID)	Optional

Industry standard compliance

ACPI 6.1 compliant
PCIe 3.0 compliant
WOL support
Microsoft logo certifications
PXE support
VGA/display port
USB 3.0 compliant (Internal)
USB 2.0 compliant (External ports VIA SUV)
Energy star
SMBIOS 3.1
Unified Extensible Firmware Interface (UEFI) 2.6
Redfish API
IPMI 2.0
Secure digital 2.0
Advanced Encryption Standard (AES)
Triple Data Encrytion Standard (3DES)
SNMP v3
TLS 1.2
DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
Active directory v1.0
ASHRAE A3/A4

Graphics

Integrated video standard

Video modes up to 1920 x 1200 - 60 Hz (32 bp)
16MB video memory

HPE iLO 5 on system management memory

32MB flash
4Gb DDR 3 with ECC protection

HPE Server UEFI/legacy ROM ⁸

UEFI is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with users server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (Default) and legacy BIOS mode.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

Secure boot and secure start enable for enhanced security
Operating System (OS) specific functionality
Support for > 2.2TB (Using GPT) boot drives
USB 3.0 stack
Embedded UEFI shell
Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant
PXE boot support for IPv6 networks
Workload profiles for simple performance optimization

UEFI boot mode only:

TPM 2.0 support
NVMe boot support
Platform Trust Technology (PTT) can be enabled
iSCSI software initiator support
HTTP/HTTPs boot support as a PXE alternative
Boot support for option cards that only support a UEFI option ROM

Embedded management

HPE iLO
UEFI
Intelligent provisioning
iLO RESTful API

Server utilities

Active Health System (AHS)
AHS viewer
Smart update
iLO amplifier pack
HPE iLO mobile application
RESTful interface tool
Scripting tools
HPE OneView standard
HPE Systems Insight Manager (HPE SIM)

Security

UEFI secure boot and secure start support
Immutable silicon root of trust
FIPS 140-2 validation (iLO 5 certification in progress)
Common criteria certification (iLO 5 certification in progress)
Configurable for PCI DSS compliance
AES and 3DES on browser
Support for Commercial National Security Algorithms (CNSA)
Tamper-Free updates - components digitally signed and verified
Secure recovery - recover critical firmware to known good state on detection of compromised firmware
Ability to rollback firmware
Secure erase of NAND/User data
Trusted Platform Module (TPM) 1.2 option
TPM 2.0 option
Bezel locking kit option
Chassis intrusion detection option

Server management

HPE iLO advanced
HPE iLO advanced premium security edition
HPE OneView advanced
HPE Insight Cluster Management Utility (CMU)
HPE InfoSight for servers

Accelerator and GPU information

Hewlett Packard Enterprise supports various accelerators on select HPE Proliant servers to support different workloads.
The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for High-Performance computing, large data center graphics, deep learning and virtual desktop deployments.
These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight CMU.

One Config Simple (SCE)

SCE is a guided Self-Service tool to help sales and Non-Technical people provide end users with initial configurations in 3 to 5 minutes. Then send the configuration on for configuration help, or use in the existing ordering processes. If user require custom rack configuration or configuration for products not available in SCE, contact Hewlett Packard Enterprise end user business center or an authorized partner for assistance

Click here to access the page for One Config Simplified (OCS) .

The 3 LFF rear drive box will consume space for the secondary and tertiary riser
- The 8 and 12 LFF chassis also supports the 2 SFF rear drive box which allows for the user to attach a secondary or tertiary riser.
- The 8 NVMe drive option (826689-B21) can only be leveraged in the SFF chassis and replaces Box 1, 2 or 3.
- The premium cage (826690-B21, 6 SAS/SATA+2 NVMe) can only be leveraged in the SFF chassis and replaces Box 1, 2 or 3.
- The universal media bay (882097-B21) not available with the LFF chassis or the 24 SFF front end, and can only be populated in Box 1.
- The 8 SFF can be upgraded with additional 8SFF drive box to total 16 or 24 SFF drives. For optimal upgrade Box 2 should be populated second, with Box 1 the last to be populated for a field upgrade to 24 SFF. For Configure-To-Order (CTO) builds requiring 24 SFF use the 24 SFF chassis (868704-B21). Note a field upgrade to 24 SFF will require a high performance fan kit (867810-B21).
- All models come with the S100i Smart Array controller with embedded software RAID support for the 2 embedded M.2 drive connectors on the system board.
1P models ship with 4 standard fans. The second processor option kit contains 2 additional fans
- The 12 LFF and 24 SFF chassis ship with 6 high performance fans as standard.
- The 8LFF chassis ships with 6 standard fans as standard.
- High performance fan kit is available to meet ambient temperature environments.
- High performance fan kits are required for rear drives, graphics card or NVMe configurations.
For more information on AMD EPYC processors, check the below link:
- All AMD EPYC processors can support up to 2TB of memory each.
The maximum memory speed is limited by the processor selection
- Mixing of RDIMM and LRDIMM memory is not supported.
- 128GB support is available 1H2018
Bus width Indicates the number of physical electrical lanes running to the connector.
Performance RAID Controllers require the HPE Smart storage battery (P01366-B21) which is sold separately.
The Micro SD slot is not a Hot-Pluggable device. End users should not attempt to plug an SD card into the SD slot while the server is powered.
- Not shipping as standard. Available as a CTO option or as a field upgrade (826703-B21).
The UEFI system utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS
Click here to access the page for UEFI.
- For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI.
- UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for the HPE ProLiant Gen10 server.

top

Specs 2

Software overview

Feature

Description

OS and virtualization software support for ProLiant Servers

AMD EPYC 7xx2 Series Processor Family
- Windows Server 2019
- VMware ESXi 6.5 U3
- VMware ESXi 6.7 U3
- Red Hat Enterprise Linux (RHEL) 7.6
- SUSE Linux Enterprise Server (SLES) 12 SP4
- SUSE Linux Enterprise Server (SLES) 15 SP1
AMD EPYC 7xx1 Series Processor Family
- Windows Server 2012 R2 (Most recent version)
- Windows Server 2016 (Most recent version)
- VMware ESXi 6.5 U1, U2, and 6.7
- Red Hat Enterprise Linux (RHEL) 7.4
- SUSE Linux Enterprise Server (SLES) 12 SP3

NOTE: For more information on Hewlett Packard Enterprise certified and supported ProLiant servers for OS and virtualization software and latest listing of software drivers available for the server, visit HPE Server OS and Virtualization Software website. Click here to access HPE Server Operating Systems and Virtualization Software website .

top

Physical specifications

Specification	Description
Dimensions (H x W x D)	Small Form Factor (SFF) drives: 8.73 x 44.55 x 67.94 cm (3.44 x 17.54 x 26.75 in) Large Form Factor (LFF) drives: 8.73 x 44.55 x 73.02 cm (3.44 x 17.54 x 28.75 in)
Weight (Approximate)	Minimum: 14.9 kg (32.75 lb) Maximum: 23.6 kg (51.5 lb)

top

Electrical specifications

Specification	Description
Rated line voltage	100 to 120 V ac 200 to 240 V ac
BTU rating	Maximum For 800 W power supply 3207 BTU/hr (At 100 V ac) 3071 BTU/hr (At 200 V ac) 3112 BTU/hr (At 240 V ac) for China only For 500 W power supply 1979 BTU/hr (At 100 V ac) 1911 BTU/hr (At 200 V ac) 1965 BTU/hr (At 240 V ac) for China only
Rated Steady-State power	For 1400 W power supply 1400 W (At 240 V ac) For 800 W power supply: 800 W (At 100 V ac) 800 W (At 240 V ac) 800 W (At 240 V ac) input for China only For 500 W power supply: 500 W (At 100 V ac) 500 W (At 240 V ac) 500 W (At 240 V ac) input for China only
Maximum peak power	For 1400 W power supply: 1400 W (At 200 to 240 1 V ac) 1400 W (At 240 V ac) input for China only For 800 W power supply: 800 W (At 100 to 127 V ac) 800 W (At 200 to 240 1 V ac) 800 W (At 240 V ac) input for China only For 500 W power supply: 500 W (At 100 to 127 V ac) 500 W (At 200 to 240 V ac) 500 W (At 240 V ac) input for China only

top

Environmental specifications

Specification

Description

Standard operating temperature

10° to 35° C (50° to 95° F)

Extended ambient temperature

5° to 10° C (41° to 50° F)

Non operating temperature

-30° to 60° C (-22° to 140° F)

Operating relative humidity

8% to 90%

Non operating relative humidity

5% to 95%

Operating altitude

3050 m (10,000 ft)

Non operating altitude

9144 m (30,000 ft)

Acoustic noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted soundpressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordancewith ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle	LWAd	LpAm
	4.8 B Entry	37 dBA Entry
	4.4 B Base	31 dBA Base
	4.6 B Perf	31 dBA Perf
Operating	LWAd	LpAm
	4.8 B Entry	37 dBA Entry
	4.4 B Base	31 dBA Base
	4.6 B Perf	31 dBA Perf

NOTE:

Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only.
Product conformance to cited product specifications is based on sample (Type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

top

HPE ProLiant DL385 (G10) 7262 3.2GHz 8C 1P 16GB-R 12LFF 800W RPS Server | P16690-B21

Comes with:

Looking to Customize?

Base Standard Capabilities

Specs 1

Product features

Specs 2

Software overview

Physical specifications

Electrical specifications

Environmental specifications

You may also like

Currency

Welcome to the Request Express Quoting Form!
