Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Comes with:
- Processors - 1 x Intel® Xeon® E5-2620v4
- Memory - 16GB (1x16GB Registered DIMMs, 2400 MHz)
- Network Controller - HPE Embedded 1Gb Ethernet 4-port 331i Adapter, plus optional HPE FlexibleLOM or stand up card
- Storage Controller - HPE Flexible Smart Array P440ar/2GB
- Hard Drive - None ship standard

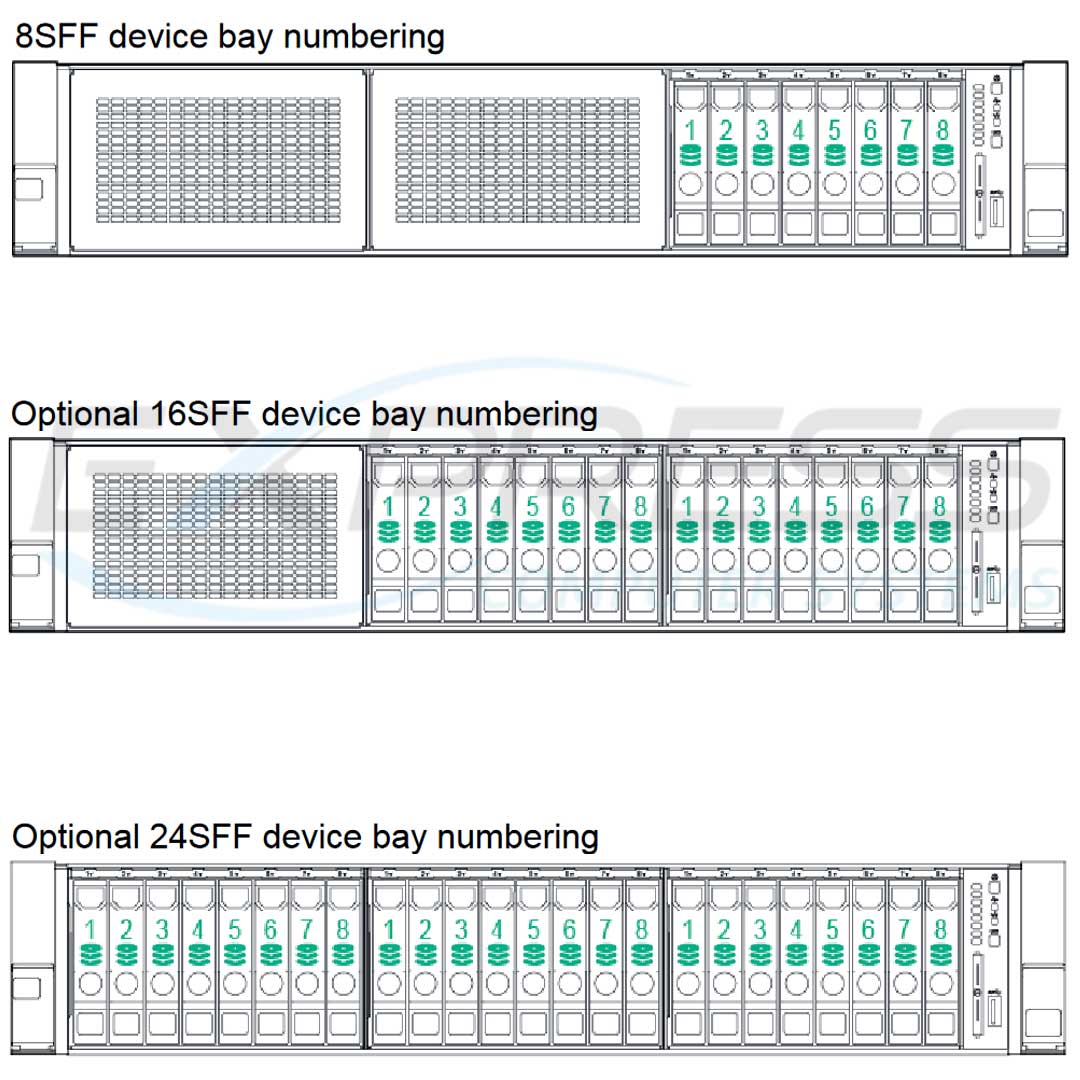

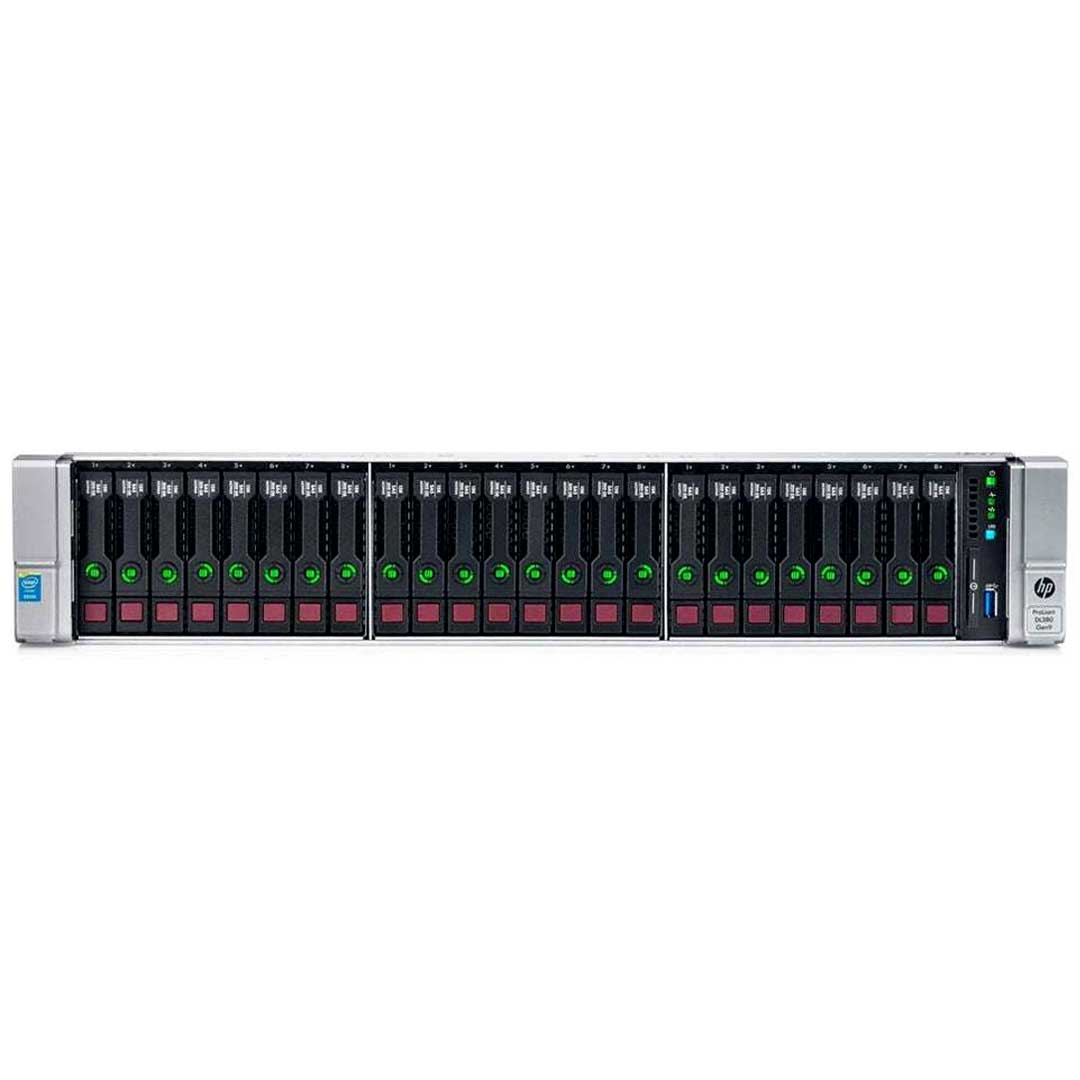

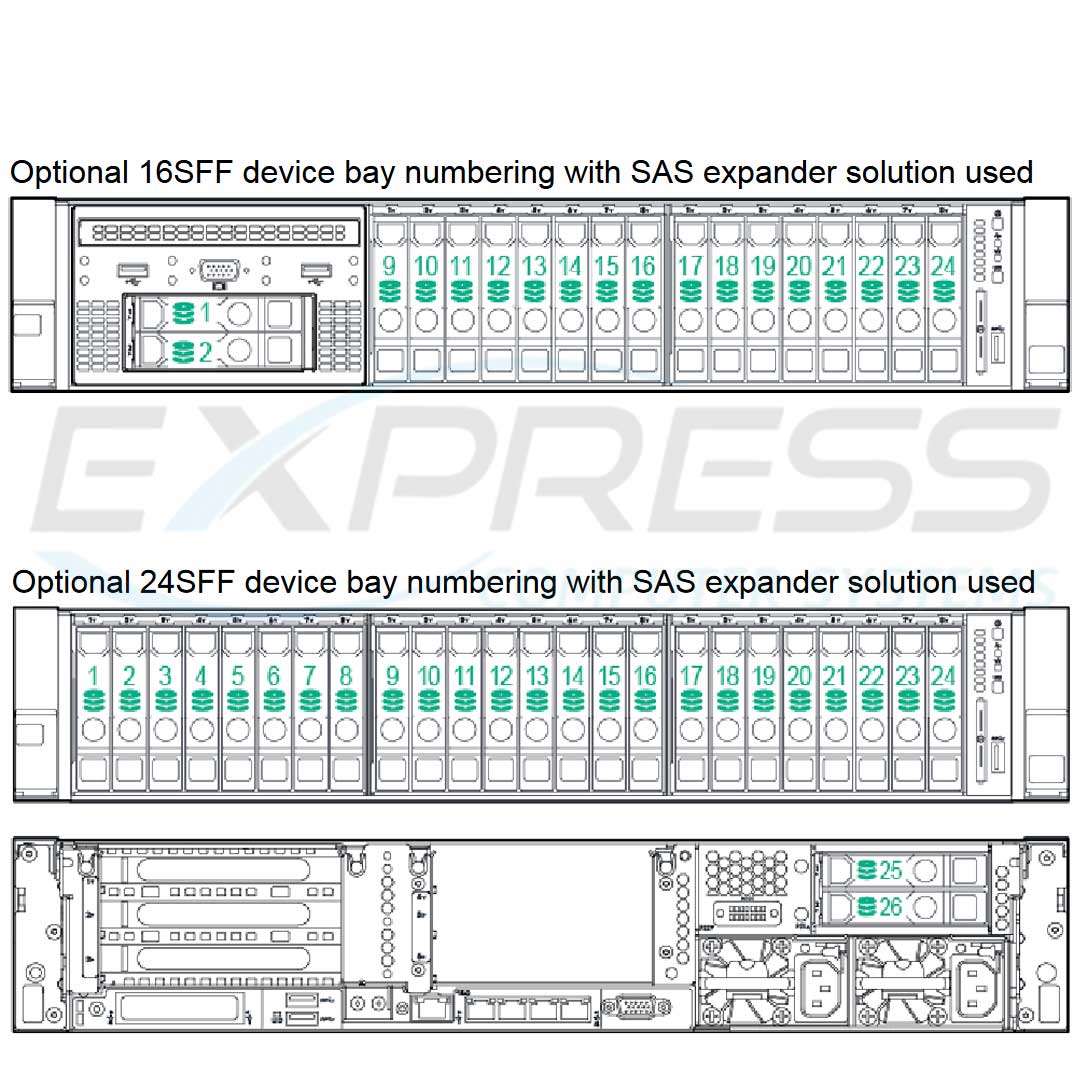

- Internal Storage - 8 SFF HDD Bays (upgradable to 24)
- Optical Drive Bay - Optional Universal Media Bay (724865-B21)
- Optical Drive - Optional DVD-ROM (726536-B21) or DVD-RW (726537-B21) via the Universal Media Bay (724865-B21)
- PCIe Slots - 3 PCIe slots (+3 PCI slots available with upgrade option, second processor required)
- Power Supply - (1) HPE 500W Flex Slot Platinum Power Supply
- Fans - 4 hot plug fans, redundant
- Management - iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), Insight Control (optional), HPE OneView (optional)
- Energy Start - N/A
- Form Factor - Rack (2U), HPE Easy Install Rails with CMA
Looking to Customize?
Not seeing the exact specs you need?
Start your build today with Express Computer Systems!
Start Customizing Today!
Spec Sheet 4
| Technical specifications | HP ProLiant DL380 Gen9 Server |
|---|---|
| Compute | Up to two Intel® Xeon® E5-2600 v3 series, 4/6/8/10/12/14/16/18 cores; PCIe 3.0, up to six available slot(s) |
| Memory | HP SmartMemory (24) DDR4, up to 2,133 MHz (768 GB max) |
| Storage | Standard HP Dynamic Smart Array B140i, choice of HP Flexible Smart Array or HP Smart SAS HBA controllers |
| Flash-backed write cache (FBWC) | 2 GB DDR3-1,866 MHz, 72-bit wide bus at 14.9 GB/s on P440ar |
| Battery | HP DL/ML/SL 96 W Smart Storage Battery |
| HP SmartDrives | 24 + 2 SFF/12 + 3 LFF max, HDD/SS |
| Networking | 4 x 1GbE Embedded + choice of FlexibleLOM + Standup |
| VGA/serial/USB ports/SD | Front VGA opt, rear VGA, and serial standard, 6 USB 3.0, microSD |
| GPU Support | Single-/double-wide and active/passive up to 10.5" (3) |
| On Premise management | HP OneView 5 and HP iLO Advance |
| On Cloud management | HP Insight Online with enhanced mobile app |
| On System management | Changes in HP iLO, HP Smart Update Manager (HP SUM), Intelligent Provisioning and scripting tools; plus the new UEFI and HP RESTful Interface Tool |
| Power and cooling | 94 percent efficient with Flexible Slot FF Hot plug fans with full N + 1 redundancy, optional high performance fans |
| Industry compliance | ASHRAE A3 and A4, lower idle power, and ENERGY STAR |
| Power discovery services | Supported |
| Location discovery services | Optional |
| Form factor/chassis depth | Rack (2U), 26.75" (SFF), 28.75" (LFF) |
| Serviceability — Easy install rails | Standard |
