Specs
Quick Specs
Form Factor:
2U Rack Server
Processor Max: 56 Cores (PP)2x 4th Gen Intel Xeon Scalable Processors
Memory Max: 2TBIntel Config - 16 DIMM DDR5 RDIMM Max: 1TB
Storage Max: 61.44TBUp to 4 x 2.5-inch NVMe SSD
Boot OptionsBOSS-N1
RAID Controller:S160 (SW RAID)
NIC/OCP2 x 1GbE (optional)
1 x OCP 3.0 (x8 PCIe lanes)
iDRAC9
PCIe Slots:4 PCIe slots (4 x16 Gen5)
GPU:4x Intel Data Center Max GPU Series 1550 OAM 600W Xelink GPUs
Other Versions:
Ideal for:
- Artificial Intelligence (AI)
- Data Analytics
- Deep Learning (DL)
- High-Performance Computing (HPC)
- Machine Learning (ML)
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | Technical Specifications** (NOTE: ** indicates Additional features Coming Soon.) | |
|---|---|---|
| Processor | Two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor | |
| Memory | • Only 16 DIMM slots are supported out of 32 DIMMs (with 8 DIMMs per processor) for XE9640 Intel GPU supported systems. RDIMM max 1TB. • 8 DIMMS, 16 DIMMs and 32 DIMMs for XE9640 NVIDIA GPU supported systems. RDIMM max 2TB. • Supports DDR5 RDIMM (registered DIMM) only. | |
| GPU | • NVIDIA H100 SXM 700W NVLINK GPUs • Intel Data Center Max GPU Series 1550 OAM 600W Xelink GPUs | |
| Storage controllers | • Internal boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs • Software RAID: S160 | |
| Drive bays | Front Bays • Up to 4 x 2.5-inch NVMe SSD drives, 61.44 TB max | |
| Power Supplies | 2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant Note: Mixed vendor PSUs in the same chassis is not recommended | |

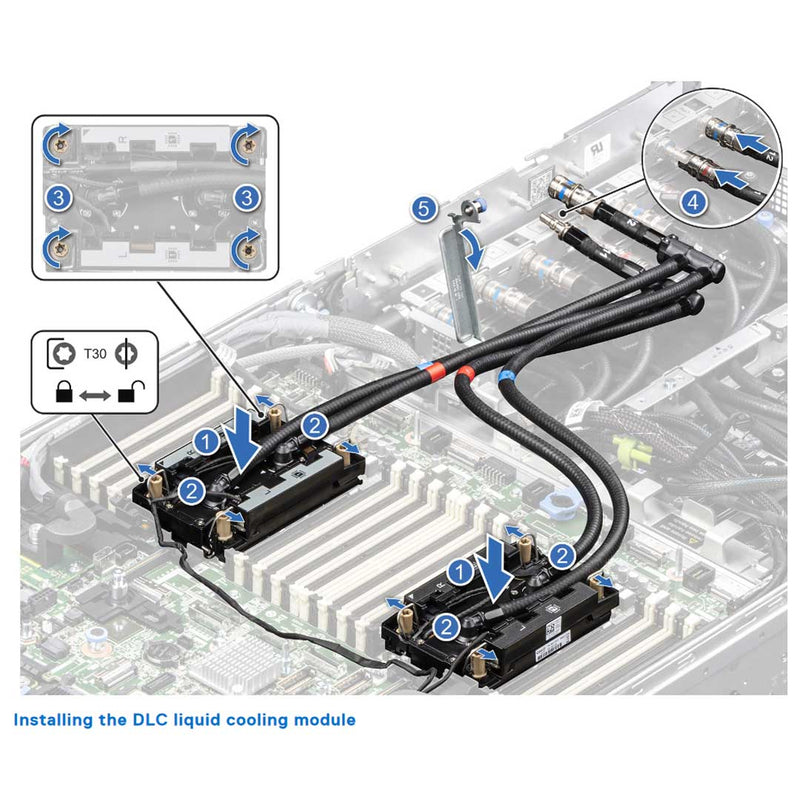

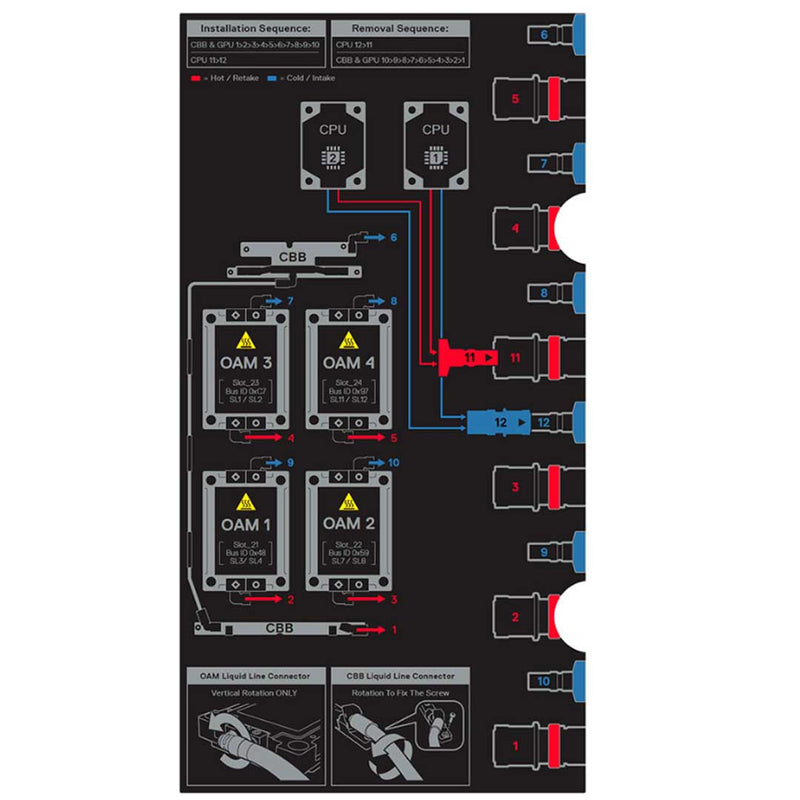

| Cooling Options | • Liquid Cooling with internal Manifold for GPUs and processors • Four sets (dual fan module) High performance (HPR) gold grade fans for Processors. All are hot swap fans | |
| Chipset | Intel ® C741 chipset | |
| PCIe | 2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5) | |
| Embedded NIC | 2 x 1 GbE (optional) | |
| Network Options | 1 x OCP 3.0 (x8 PCIe lanes) | |
| Dimensions and weight | • Height — 86.8 mm (3.41 inches) • Width — 482 mm (18.97 inches) • Depth — 926.5 mm (36.47 inches) with bezel — 912.8 mm (35.93 inches) without bezel • Weight — 43.2 kg (95.23 pounds) for XE9640 Intel GPU supported systems — 46.3 kg (102.07 pounds) for XE9640 NVIDIA GPU supported systems | |
| Form Factor | 2U rack server | |
| Embedded Management | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module | |
| Bezel/th> | Optional LCD bezel or security bezel | |
| OpenManage Software | • CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center | • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin |
| OpenManage Integrations | • BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow | • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
| Security | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) | • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |

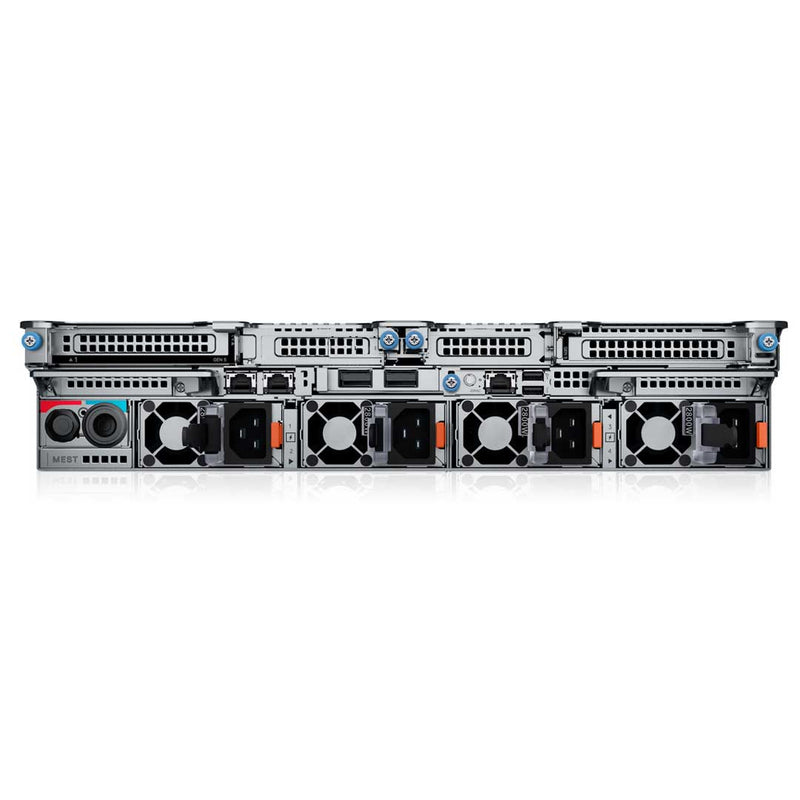

| Ports | Front ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA | Rear ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x RJ45 iDRAC9 ethernet port |
| Operating Systems and Hypervisors | • Canonical Ubuntu Server LTS • Red Hat Enterprise Linux | |
