Specs
Quick Specs
Form Factor:

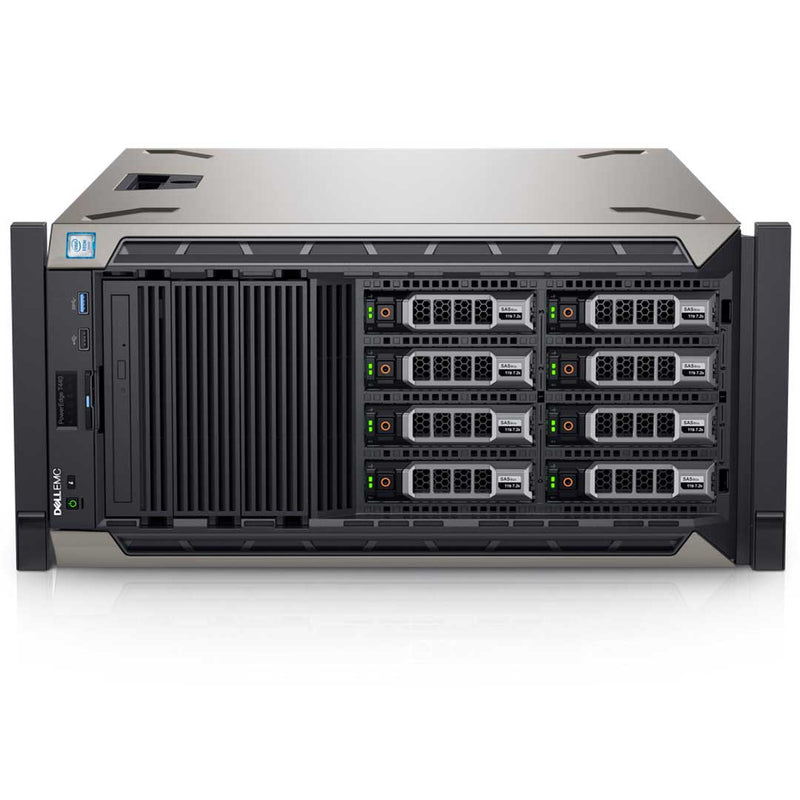

Tower server 5U (Rack conversion kit)
Processor Max: 16 Cores1x Gen 2 Intel Scalable Processors
Memory Max: 1TB16 DDR4 RDIMM/LRDIMM 2666Mhz
Storage Max: N/A8x 3.5" LFF SAS/SATA (HDD/SSD)
Boot OptionsBoot Optimized Server Storage (BOSS)
IDSDM
Internal USB
S140 (SW RAID)
PERC H330, H730P, H740P, H840, HBA330, 12Gbps SAS HBA (non-RAID)
2 x 1GbE LOM
Remote Management:iDRAC9
PCIe Slots:Up to 5 PCIe Gen3 slots
GPU:1x DW 300 W GPU supported 150 W
Other Versions
Ideal for:
- Web Tech
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | PowerEdge T440 Technical specification | |
|---|---|---|
| Processor | Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 16 cores per processor | |
| Memory | 16 DDR4 DIMM slots, Supports RDIMMs/LRDIMMs, speeds up to 2666MT/s, 1TB* max Supports registered ECC DDR4 DIMMs only | |
| Storage controllers | Internal controllers: PERC H330, H730P, H740P, HBA330, Software RAID (SWRAID) S140 External PERC (RAID): H840 External HBAs (non-RAID): 12Gbps SAS HBA Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 120GB, 240 GB | |
| Drive bays | Up to 4 x 3.5” SAS/SATA (HDD Cabled) Or, Up to 8 x 3.5” SAS/SATA (HDD/SSD) max 128TB Or, Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 61TB | |
| Power supplies | Up to 2 fans 495W, 750W, 1100W hot-plug; Gold efficiency 450W Cabled AC PSU | |
| Dimensions and weight | Form factor: Tower or rack, 5U | Chassis max depth: 594.82 mm |
| Embedded / At-Server | iDRAC9 iDRAC Direct | |
| Bezel | Optional security bezel | |
| Consoles & Mobile |
| |
| Integrations and connections | Integrations:
| Connections:
|
| Tools |
|
|
| Security |
|
|
| I/O & Ports |
| |
| Supported Operating systems | Canonical® Ubuntu® LTS Citrix® Hypervisor Microsoft Windows Server® LTSC with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® | |
Spec Sheet 4
| Feature | PowerEdge T440 | PowerEdge T430 |
|---|---|---|
| Processor | Second-Generation Intel® Xeon® Processor Scalable Family | Intel® Xeon® Processor E5- 2600 v4 |
| Memory Module | Up to 16x DDR4 RDIMMs (10+6) | Up to 12x (8+4) DDR4 RDIMMs |
| Chipset | Intel C620 | Intel C610 |
| Hard drive bays | Front:
● 4 or 8 x 3.5 -inch or ● 16 x 2.5 -inch ● Optional optical drive Internal: ● IDSDM + vFlash or ● BOSS (2 internal M.2) Bandwidth: ● 12 Gb SAS/6 Gb SATA |
Front:
● 4 or 8 x 3.5 -inch or ● 16 x 2.5 -inch ● Optional optical drive Internal: ● IDSDM Bandwidth: ● 12 Gb SAS/6Gb SATA |
| PCIe Slots | Up to 5 X PCIe Gen3 | Up to 4 x PCIe Gen3 + up to 2 x PCIe Gen2 + dedicated PERC slot |
| GPU support | 1x DW 300 W GPU supported 150 W | 2x DW 300 W GPU tested |
| Storage Controller | Software RAID:
● S140 Internal controllers: ● H750 ● H350 ● H740P ● H730P ● H330 External controllers: ● HBA355e ● H840 ● 12 Gb/s Ext SAS HBA SAS Hot Bus Adapters: ● HBA350i ● HBA 330 |
● S130, H330, H730, H730P, H810/H830 (ext)
● Chipset SATA/SW RAID: Yes |
| Embedded NIC | 2x 1 GbE (LOM : BCM5720) | 2x 1 GbE (LOM : BCM5720) |
| Power Supplies | ● 495 W AC Platinum
● 750 W AC Platinum ● 750 W AC Titanium ● 1100 W AC Platinum |
● 495 W AC Platinum
● 750 W AC Platinum ● 750 W AC Titanium ● 1100 W AC Platinum ● 1600 W Platinum |
| Remote Management | iDRAC9 | iDRAC8 |
| TPM | TPM China, TPM1.2, TPM2.0 | TPM China, TPM1.2, TPM2.0 |
| iDRAC port | Dedicated port (RJ45) | Micro USB |
| Fan | Up to two fans supported
● Internal Fan (1X4 type) ● External Fan (1X5 type) |
Up to two fans supported
● Internal Fan (1X4 type) ● External Fan (1X5 type) |

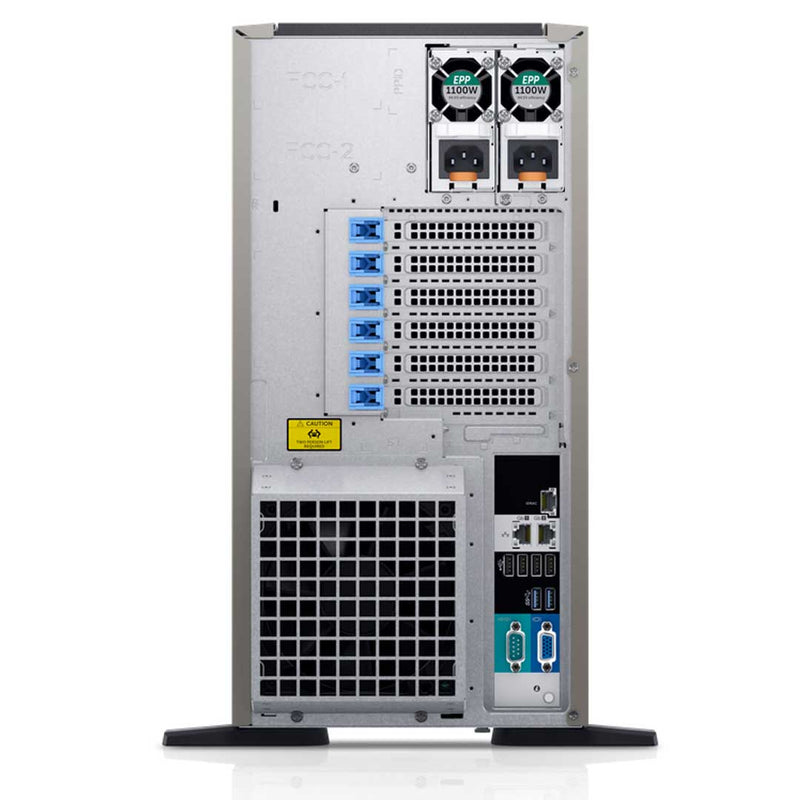

| Standard rear ports | ● 2 x RJ45 1GE LAN ports
● Rear system ID button ● iDRAC Enterprise Port (RJ45 port) ● Six USBs (4XUSB2.0 ; 2XUSB3.0) |
● 2 x RJ45 1GE LAN ports
● Rear system ID button ● CMA external LED jack ● iDRAC Enterprise Port (RJ45 port) ● Two USBs (1xUSB2.0, 1xUSB3.0) ● DB-15 VGA; DB-9 ● Serial; VFlash socket |
| PERC | PCIe PERC 9 or PERC 10 or PERC 11 | Mini-PERC 9 |
