SKU: DPE-R650-8X2.5

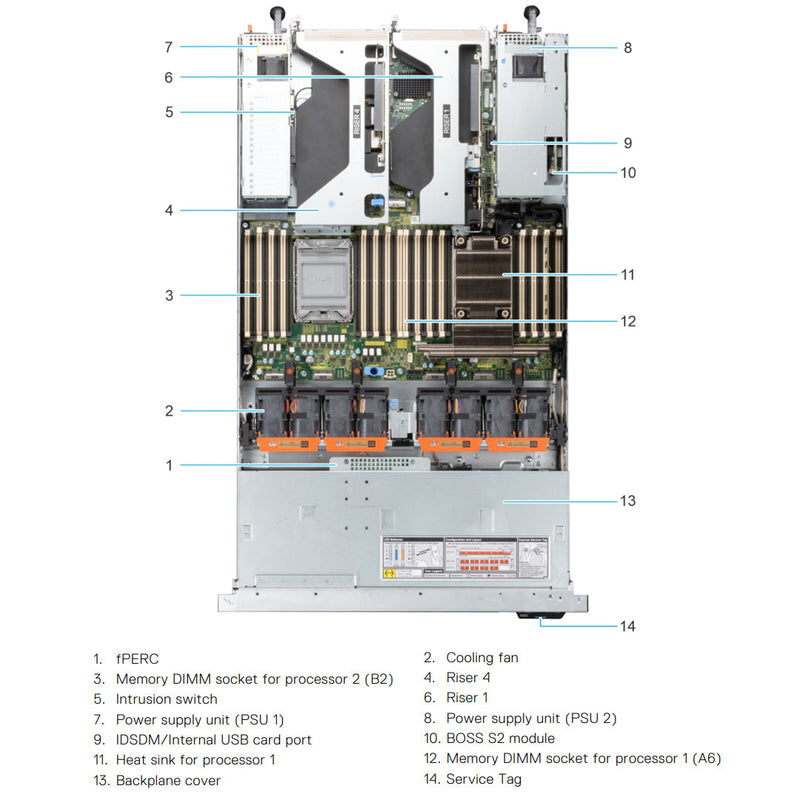

Dell PowerEdge R650 Rack Server Chassis (8x2.5")

Name: Dell PowerEdge R650 Rack Server Chassis (8x2.5")
Brand: Dell CTO
SKU: DPE-R650-8X2.5
Price: 2595.0 USD
Availability: InStock

Dell CTO

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

$2,595.00

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	Technical Specification
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
Memory	32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 4 TB max, speeds up to 3200 MT/s Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max Supports registered ECC DDR4 DIMMs only
Storage controllers	Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB External PERC (RAID): PERC H840, HBA355E

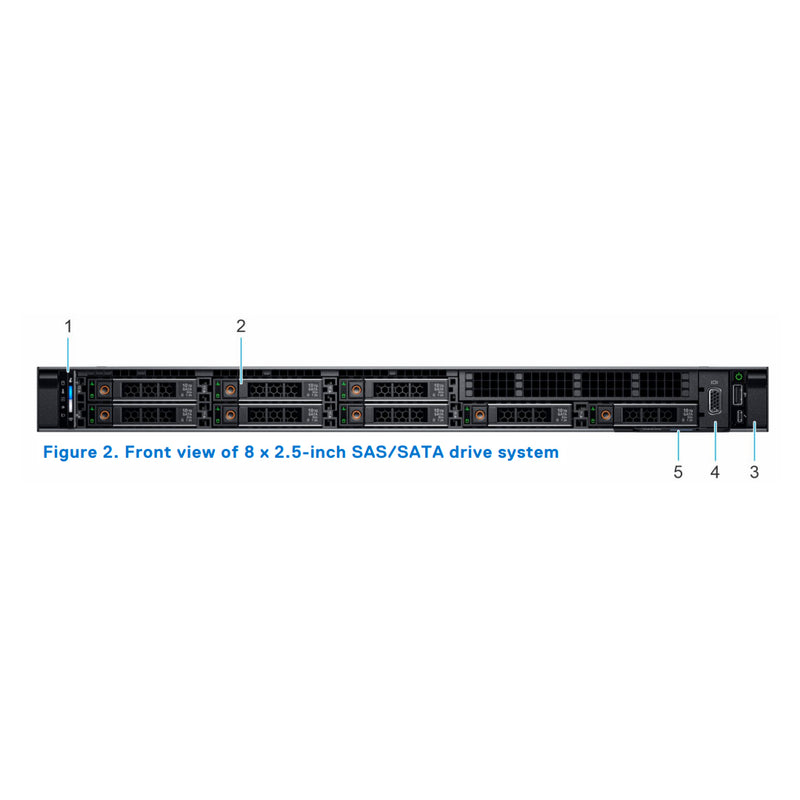

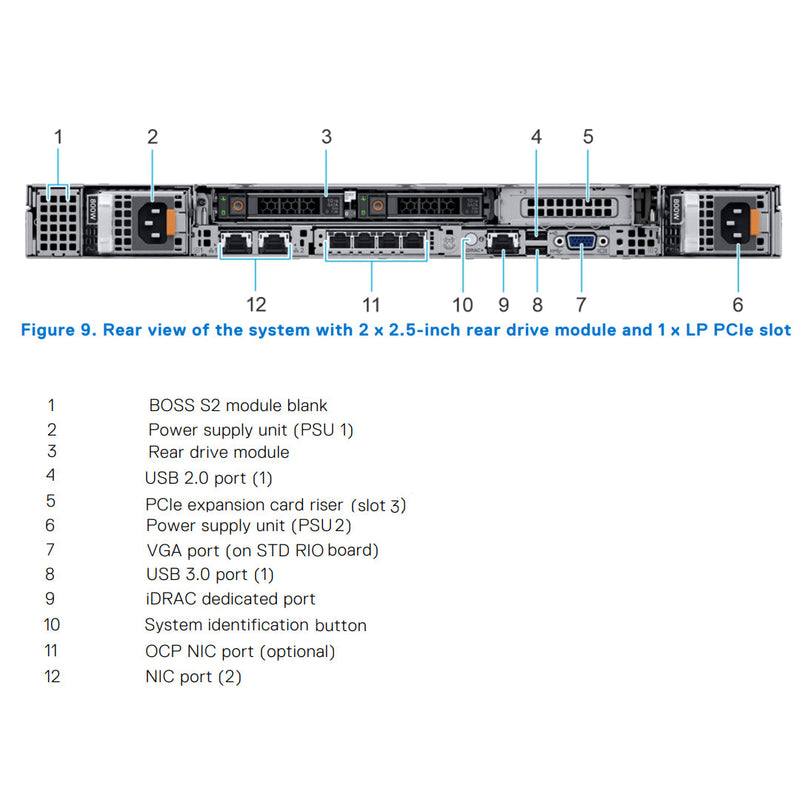

Drive bays	Front bays: Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Rear bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB
Power supplies	800 W Platinum AC/240 HVDC 1100 W Titanium AC/240 HVDC 1400 W Platinum AC/240 HVDC
Cooling options	Air cooling, optional processor liquid cooling
Fans	Standard fan/High performance SLVR fan/High performance GOLD fan Up to four sets (dual fan module) hot plug fans
Dimensions	Height – 42.8 mm (1.7 inches) Width – 482 mm (18.97 inches) Depth – 809 mm (31.85 inches) – without bezel 822.84 mm (32.39 inches) – with bezel
Form Factor	1U rack server
Embedded mgmt	iDRAC9 iDRAC Service Module iDRAC Direct Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage™ Software	OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin
Mobility	OpenManage Mobile
Integrations and Connections	OpenManage Integrations BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware vCenter and vRealize Operations Manager	OpenManage Connections IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager Nagios Core Nagios XI
Security	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM
Network Options	1 x OCP 3.0 (x8 PCIe lanes)
GPU Options	Up to three 75 W single-width GPU
Ports	Front Ports: 1 x USB 2.0 1 x VGA 1 x Dedicated iDRAC Direct micro-USB Internal Ports 1 x USB 3.0	Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x VGA (optional for liquid cooling configuration) 1 x Serial port (Optional) 2 x RJ45

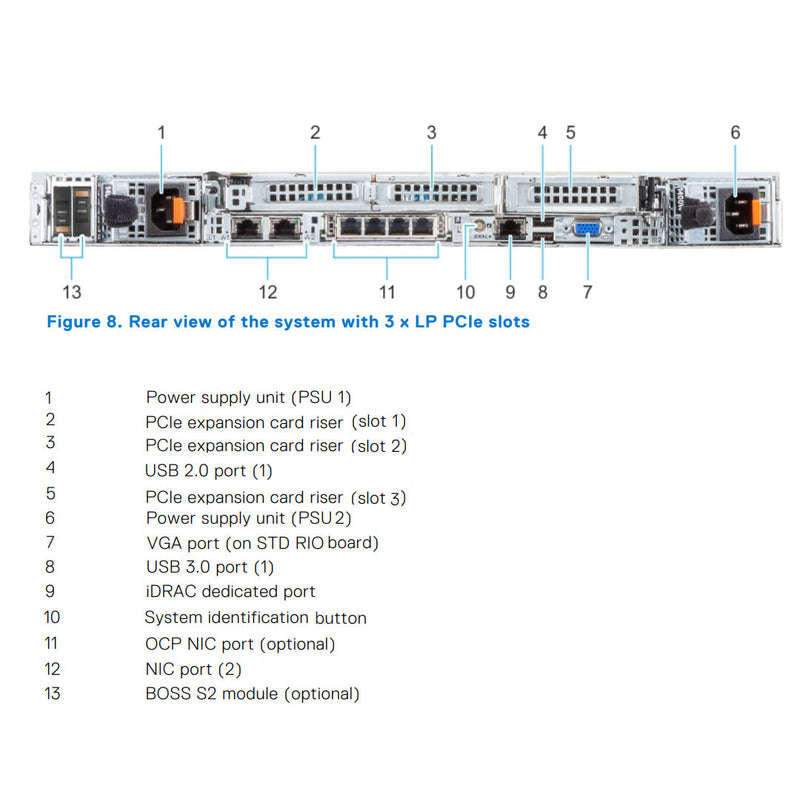

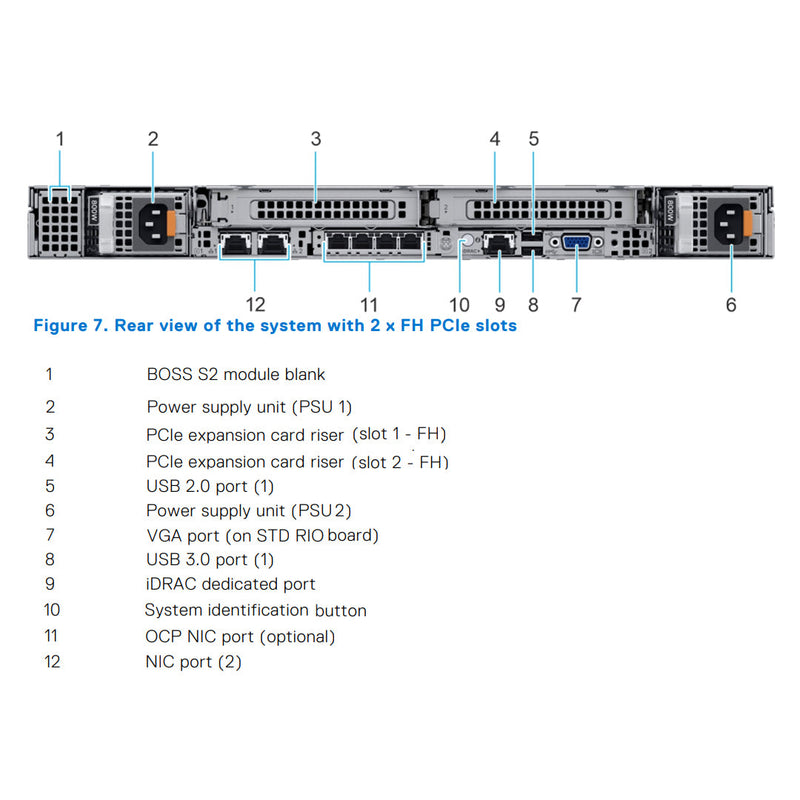

PCIe	2 x16 Gen4 low profile 1 x8 Gen4 low profile slot with SNAP I/O modules OR... 2 x PCIe Gen4 full height slots
Operating System and Hypervisors	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESXi

Spec Sheet 4

Feature	PowerEdge R650	PowerEdge R640
Processor	2 x 3rd Generation Intel® Xeon® Processor Scalable Family	2 x 2nd Generation Intel® Xeon® Processor Scalable Family
CPU interconnect	Intel Ultra Path Interconnect (UPI)	Intel Ultra Path Interconnect (UPI)
Memory	32 x DDR4 RDIMM, LRDIMM 16 x PMem ( Intel Optane Persistent Memory 200 Series)	24 x DDR4 RDIMM, LRDIMM 12 x NVDIMM 12 x PMem (Intel Optane Apache Pass)
Storage Drives	3.5 inches, 2.5 inches- 12 Gb SAS, 6 Gb SATA, NVMe	3.5 inches, 2.5 inches- 12 Gb SAS, 6 Gb SATA, NVMe
Storage Controllers	Adapters: HBA355E, H840 PERC: HBA355i, H345, H355, H745, H755, H755N BOSS- S1 adapter BOSS S2 SW RAID: S150	Adapters: HBA330, H330, H730P, H740P, H840, 12G SAS HBA Mini Mono: HBA330, H330, H730P, H740P SW RAID: S140
PCIe SSD	Up to 10+2 (10 x direct attach in front, and 2 x direct attach in rear)	Up to 10 (8 x direct attach, 2 x from PCIe bridge card)
PCIe Slots	Max 3 PCIe 4.0	Max 3 PCIe 3.0
OCP 2.0	OCP Type 1: (Connector A)	OCP Type 1: (Connector A)
LOM	2 x 1 Gb	NA
Networking	OCP 3.0 (x8 PCIe)	rNDC
Rack height	1U	1U
Power supplies	100~240 V AC/240 V DC: 800 W, 1100 W, 1400 W DC - 48 V ~- 60 V :1100 W	AC (Platinum): 495 W, 750 W, 1100 W, 1600W, 2000W, 2400W AC (Titanium): 750 W DC: 1100 W Mix Mode/HVDC: 750 W, 1100 W
System management	LC 4.x, OpenManage, QuickSync2.0, Digital License Key, iDRAC Direct (dedicated micro-USB port), Easy Restore	LC 3.x, OpenManage, QuickSync 2.0, OMPC3, Digital License Key, iDRAC Direct (dedicated micro-USB port), Easy Restore, vFlash
Internal GPU	Up to 3 x 75 W (SW)	Up to 3 x 70 W (SW)
Availability	Hot-plug drives Hot-plug redundant cooling Hot-plug redundant power supplies Hot-plug BOSS S2 IDSDM	Hot-plug drives Hot-plug redundant cooling Hot-plug redundant Power supplies BOSS IDSDM
