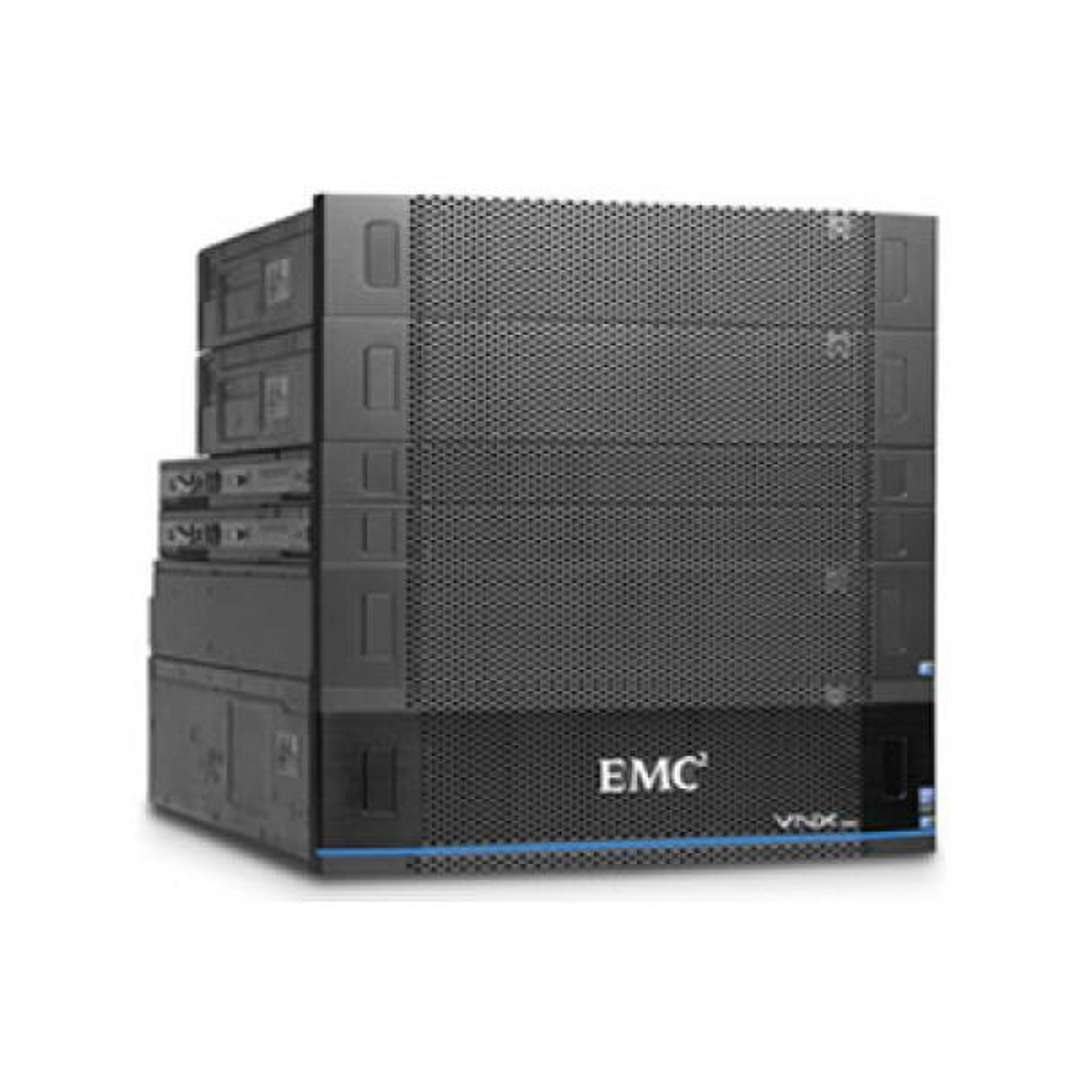

EMC VNX5400 Disk Processor Enclosure (DPE)

SKU: VNX5400

EMC VNX5400 Disk Processor Enclosure (DPE)

Name: EMC VNX5400 Disk Processor Enclosure (DPE)
Brand: EMC
SKU: VNX5400
Availability: InStock

EMC

| Server

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

Product Name:

EMC VNX5400 Disk Processor Enclosure (DPE)

Form Factor:

3U – 9U

Chassis Options:

15 x 3.5", 25 x 2.5", 60 x 3.5", 120 x 2.5"

Max Drives:

250

Drive Types:

SAS, NL-SAS, Flash

RAID Levels:

0, 1, 3, 5, 6, 10

Protocols Supported:

FC, iSCSI, FCoE, CIFS, NFS, Object

CPU:

Intel Xeon 4-core 1.8GHz with SMT

Memory:

Up to 16GB per SP (DDR3)

SP I/O Slots:

4x PCIe Gen3 x8 per SP

SP I/O Modules:

8Gb FC, 16Gb FC, 1GbE, 10GbE Optical/Twinax/RJ45, 10Gb FCoE

Power Supply Options:

AC 200–240V, AC 100–240V, DC

Data Movers:

1–4 supported with 2.13GHz CPUs, up to 6GB DDR3

Control Stations:

1–2 (1U each, with front-accessible hot-swappable SATA drives)

Supported DAEs:

2U/25, 3U/15, 4U/60, 3U/120 (varies by configuration)

VNX Gen 2 Controllers:

VNX5200
VNX5400
VNX5600
VNX5800
VNX7600
VNX8000

Ideal for:

Corporate IT
Data Analytics
Database
Virtual Desktop Interface (VDI)
Virtualization

The EMC VNX5400 Disk Processor Enclosure (DPE) is a scalable and high-performance unified storage system designed for mid-tier applications. With support for a wide range of DAEs and drive types, it accommodates demanding storage needs with flexible configuration options for block, file, and object access. Integrated support for NAS, FC, iSCSI, and FCoE ensures seamless storage provisioning across enterprise environments.

Powered by Intel Xeon processors and up to 16GB of memory per storage processor, the VNX5400 delivers efficient I/O operations and advanced RAID protection. It supports multiple I/O personality modules including 8Gb and 16Gb Fibre Channel, 1Gb/10Gb Ethernet, and FCoE. Its modular design allows up to 250 drives across several DAE types, providing both performance and capacity scalability in unified configurations.

Spec Sheet 4

EMC VNX5400 Technical Specifications

EMC VNX5400 TECHNICAL SPECIFICATIONS
Storage Type	Unified
Maximum Raw Capacity (per controller)	1000TB
Max FAST Cache	1TB
Number of Drives (Min/Max)	4/250

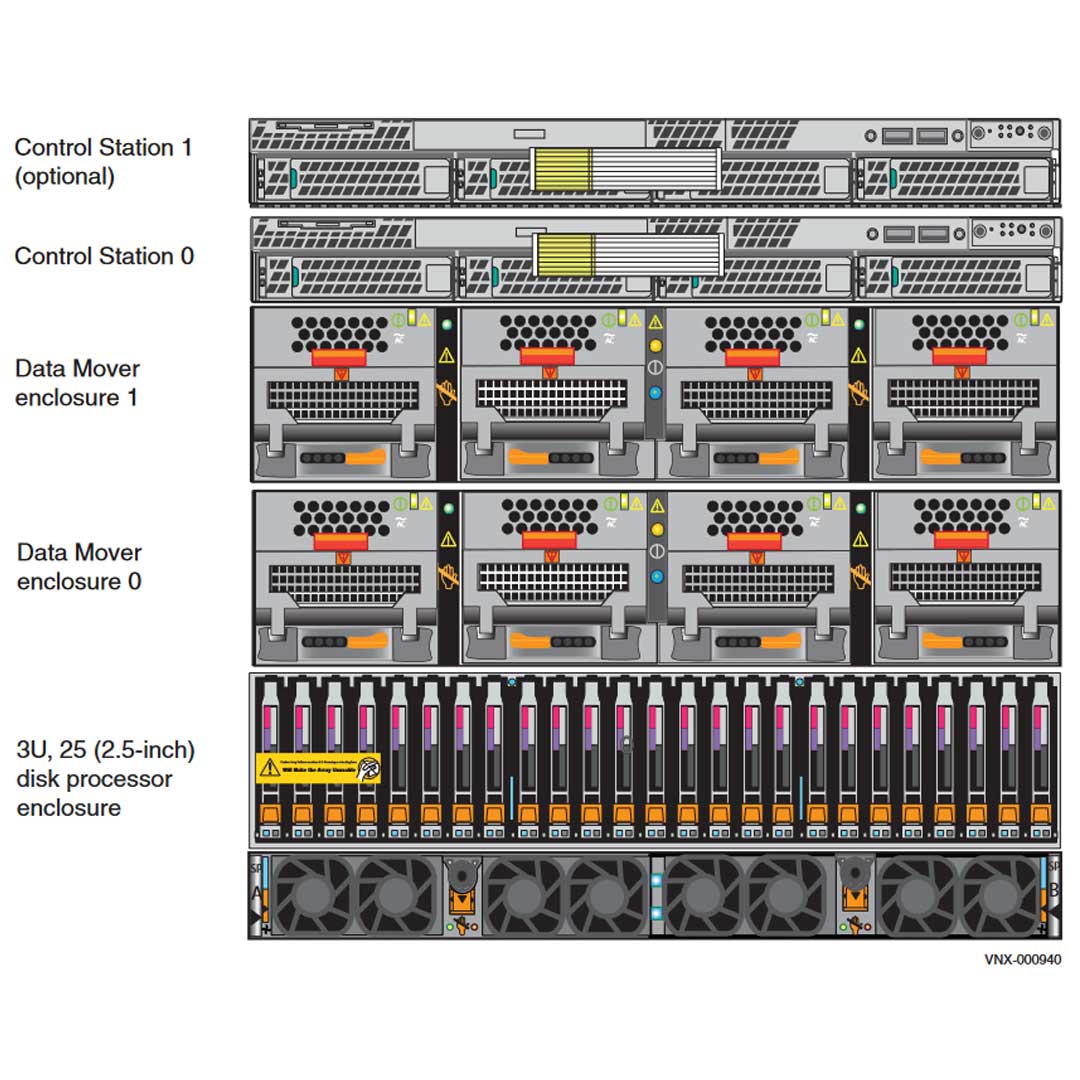

Array Enclosure	3U Disk Processor Enclosure - 25 x 2.5" SAS/Flash Drives
Drive Enclosure Options	25 x 2.5" NL-SAS/SAS/Flash Drives (2U) 15 x 3.5" NL-SAS/SAS/Flash (3U) 60 x 3.5" NL-SAS/SAS/Flash Drives (4U) 120 x 2.5" NL-SAS/SAS/Flash Drives (3U)
Drive Options	15 x 3.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 2TB 6Gbps 7.2K NL-SAS 3TB 6Gbps 7.2K NL-SAS 4TB 6Gbps 7.2K NL-SAS 25 x 2.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 1TB 6Gbps 7.2K NL-SAS 60 x 3.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 2TB 6Gbps 7.2K NL-SAS 3TB 6Gbps 7.2K NL-SAS 4TB 6Gbps 7.2K NL-SAS 120 x 2.5" Disk Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 1.2TB 6Gbps 10K SAS
Standby Power System	Internal Batteries, one for each storage processor
CPU / Memory Per Controller	2x Intel Xeon E5-2600 Quad Core 1.8GHz / 32GB per Controller
Max Block UltraFlex IO Modules per Array	8
Embedded IO Ports per Array	2 x 4 Lane SAS ports (for BE Connection)
Base 6Gbps SAS BE Buses per Array	2x 4 Lane
Max 6Gbps SAS BE Buses per Array	2x 4 Lane
Max Total Ports per Array	36
2/4/8 Gbps FC Max Ports per Array	32
1 GBaseT iSCSI Max Total Ports per Array	32
10 GbE iSCSI Max Total Ports per Array	16
Max FCoE Total Ports per Array	16

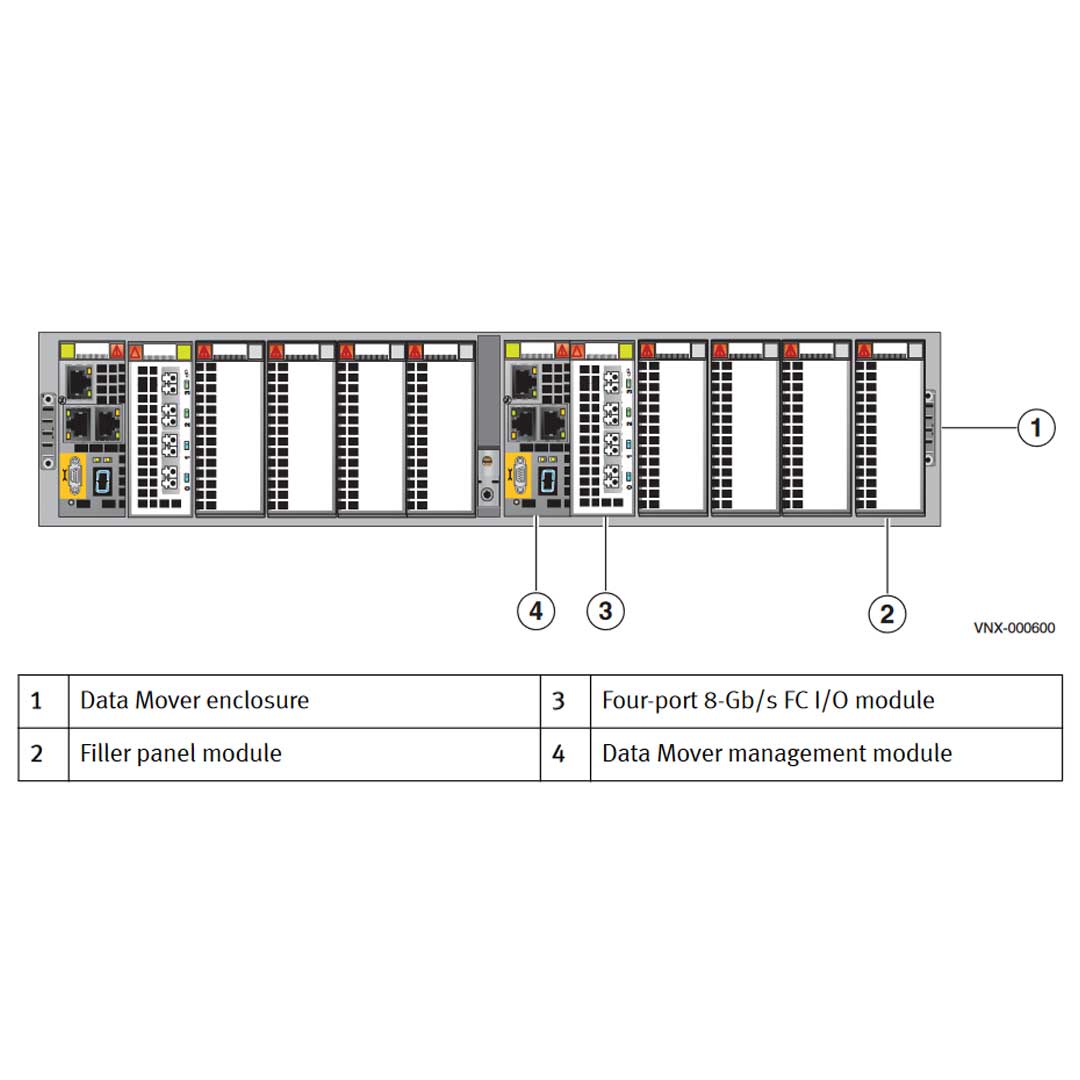

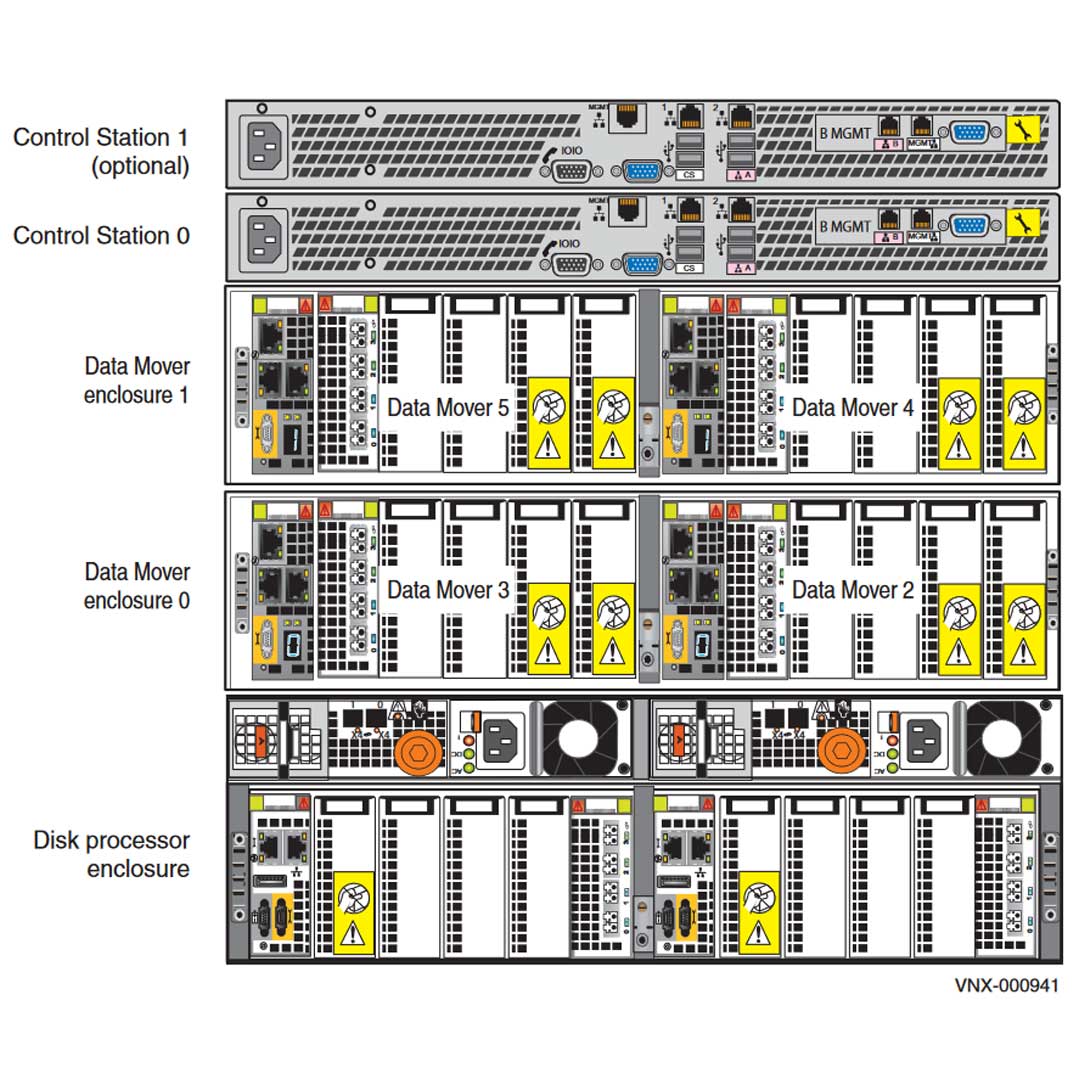

File Components
# File Data Movers	1-4

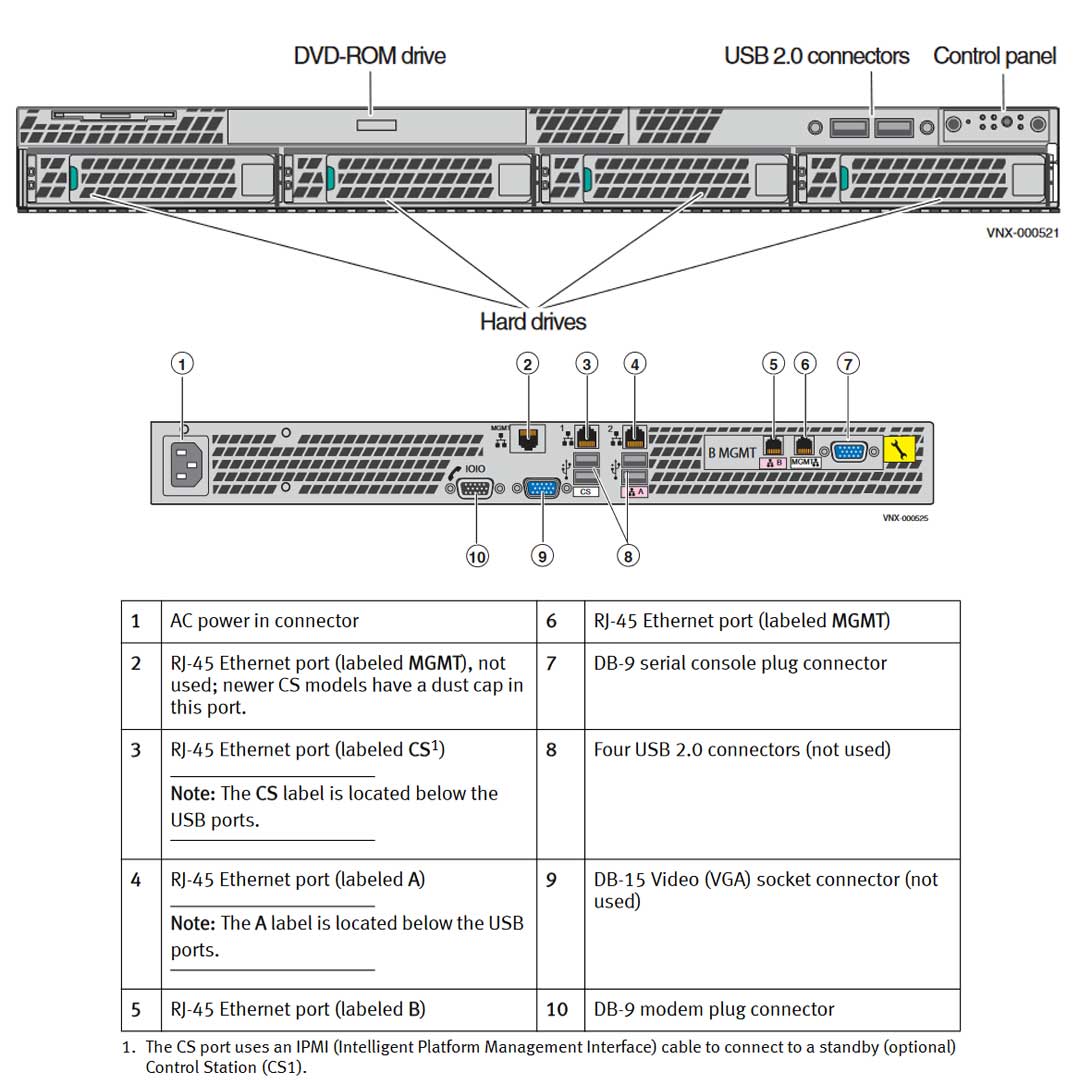

# Control Stations	1 x 1U Server Standard, 2nd x 1U Server Optional
Data Mover CPU/Memory	Intel Xeon 5600 / 6GB
Max File UltraFlex IO MOdules per Data Mover	3
Min/Max 2/4/8 Gbps FC Ports per Data Mover	4
Max IP Ports per Data Mover	8
Max 1 GBaseT Ports per Data Mover	8
Max 10GbE Ports per Data Mover	3
Management	LAN 2x 10/100/1000 Copper GbE
Functional Limits
Max Raw Capacity	1000TB
Max SAN Hosts	1,024
Max Max Number of Pools	20
Max Number of LUNs (Pool)	1000
Max Number of LUNs (Classic)	2048
Max Pool Based LUN Size	256TB (Virtual Pool LUN)
Max File System Size	16TB
Maximum Usable File Capacity per Data Mover	256TB
Compatible Disk Array Expansions (DAEs)	VNXB6GSDAE15 VNXB6GSDAE25 VNXB6GSDAE60 VNXB6GSDAE120
Protocols Supported	CIFS, NFS, pNFS, FC, FCoE, ISCSI
Power - 25 x 2.5" DPE
AC Line Current (Operating Maximum)	4.3A max at 200 Vac 8.0A max at 100V
Power Consumption (Operating Maxium)	860 VA (835 W) max (200V) 798 VA (768W) max (100V)
Power Factor	0.97 min at 200V at full load, low voltage 0.96 min at 100V at full load, low voltage
In-rush Current	30 A max for 1/2 line cycle, per line cord at 240 Vac
Startup Surge Current	29 A rms max for 50 ms, at any line voltage
AC Protection	10 A fuse on each power supply
AC Inlet Type	IEC320-C14 appliance coupler, per power zone
Dimensions
Height	5.25"
Width	17.5"
Depth	24"
Vertical Size	3 NEMA Units
Weight	90.395 lbs
ECS Warranty	1-Year Parts Replacement Warranty
