-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

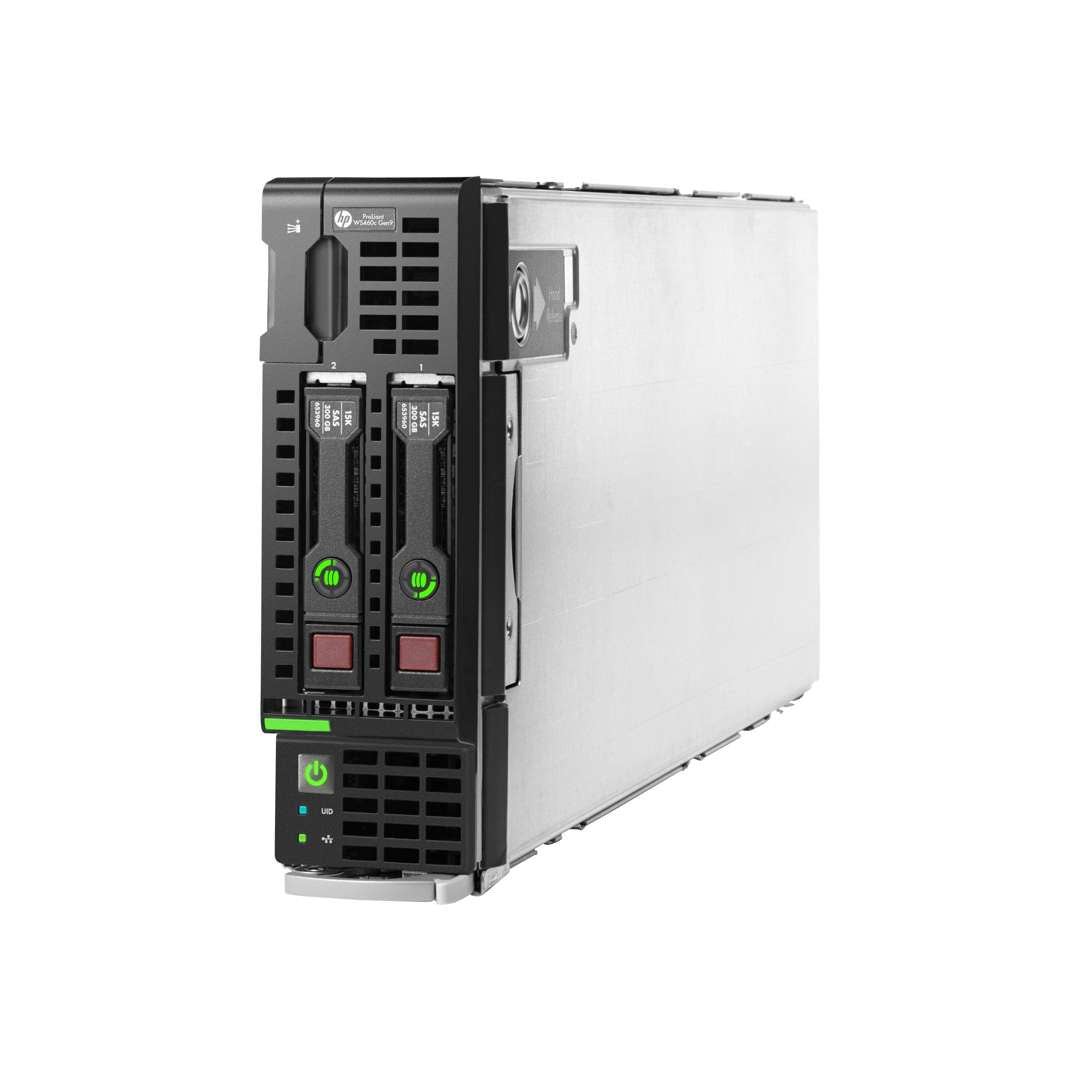

The HPE ProLiant WS460c Gen9 Graphics Server Blade now delivers even more performance with Up to two (2) Intel® Xeon® E5-2600 v3 or v4 family
processors. It is the industry’s first bladed technology to support up to six MXM form factor GPUs per blade, lowering the cost per user while enabling remote users to easily complete large model visualizations.
Comes with:
- BL460c Gen9 RC W PAN - 843305-001 - P03377-001
- BL460c SAS/SATA HDD Backplane - 744412-001
SAS/SATA Drives
Please make sure you select the correct chassis that has the SAS/SATA backplane installed. For SAS drives you'll need to install a SAS controller and Cables. For the SATA drives you'll need just the SATA cables. The System board comes with The HPE Smart Array B140 i Controller (chipset SATA). If RAID is required when using the B140 i, please choose ‘HPE FIO B140 i RAID Enable Kit - BIOS Setting’ (784308-B21).

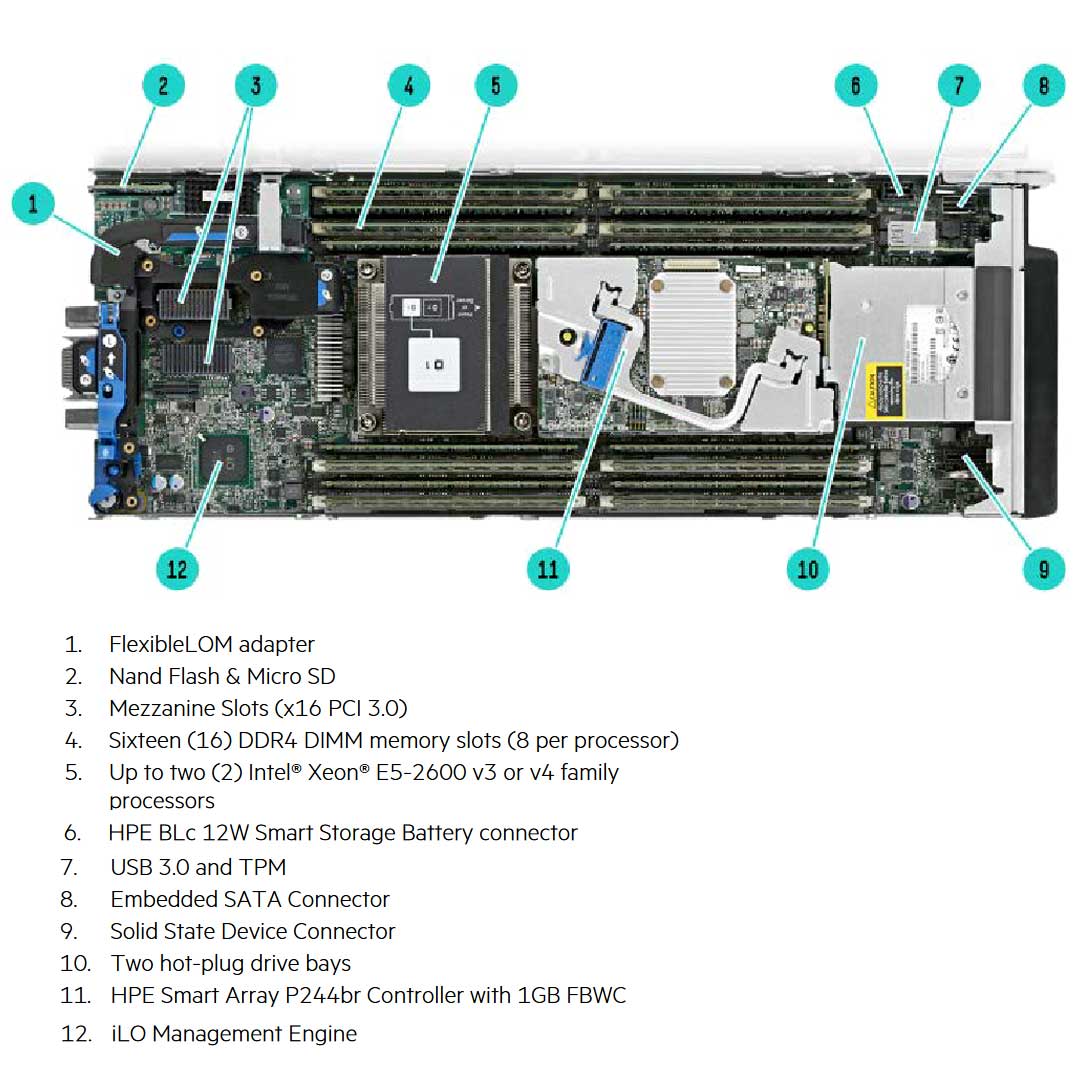

What's New for WS460c Gen9
- New Graphics options, including the NVIDIA Tesla M60 and Quadro M3000SE
- NVMe SFF Solid State Disk (SSD) support.
- 16 (8 per processor) 2400 MT/s DDR4 memory.
- 2 Socket System with support for the Intel E5-2600 v3 or v4 product family.
- 2 I/O expansion slots
- 1 FlexLOM
- TPM Security
- iLO Standard

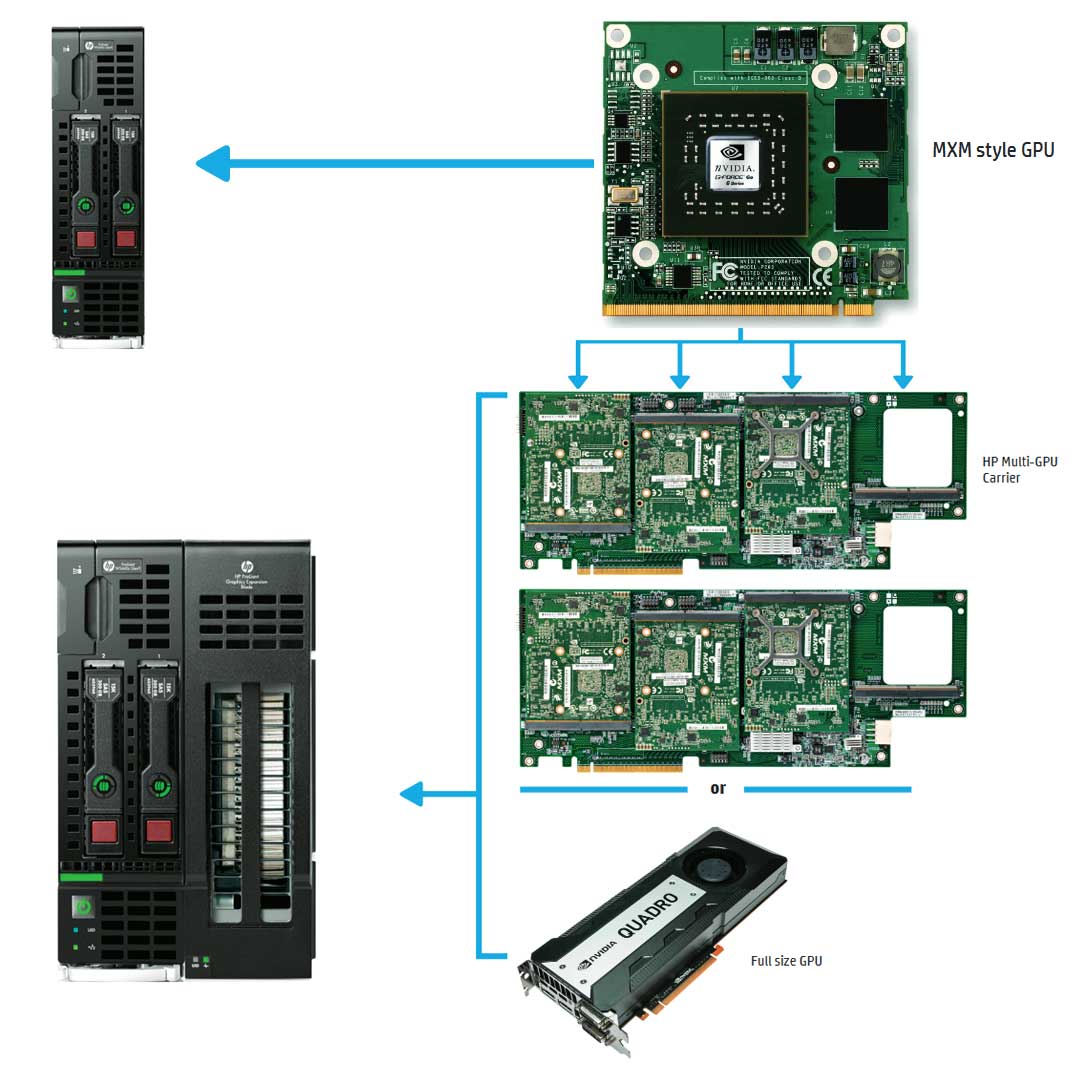

What GPU's can go into the HPE ws460c Blade Server?
The Single wide HPE ws460c without the Expansion Blade can handle 2 MXM gpu installed. Only Type-A can be installed on the mezzanine slot 1.
MXM Type-A Mezzanine Adapter:
- 792946-001 is for Type-A Mezzanine Cards
When AMD FirePro S7100X , NVIDIA Quadro K3100M, or Tesla M6 card is installed in Mezz slot 2, no other card may be installed in Mezz slot 1.
- 847623 - 001 is for the M6 and S7100x
- 792947-001 is ONLY for the K3100M
Single Width ws460c:
- AMD FirePro S7100X Mezzanine Type-B Graphics Kit (845803-B21 )
- AMD FirePro S4000X Mezzanine Type-A Graphics Kit (785918-B21)
- NVIDIA Quadro 1000M MXM Type-B Graphics Card (652673-001)
- NVIDIA Quadro K3100M Mezzanine Type-B Graphics Kit (753269-001)
- NVIDIA Quadro M3000SE Mezzanine Type-B Graphics Kit (867583-B21 )
- NNVIDIA Tesla M6 Mezzanine Type-B Graphics Card (805132-B21 )
True Virtual GPU
Also known as “NVIDIA GRID vGPU” is the NVIDIA/Citrix/VMware implementation of the
technology, True Virtual GPU offers the benefit of GPU scaling like the software virtualized GPU (application programming interface [API] intercept) and provides the performance of a native NVIDIA graphics driver like the pass through models.
This technology is currently implemented by the NVIDIA GRID K1 and K2 products. The GRID GPU is shared between multiple VMs similar to API intercept. However, in this model each VM has direct access to the GPU via dedicated channels managed by the NVIDIA GRID vGPU Manager. Unlike the software virtualized GPU (API intercept) model, the NVIDIA vGPU Manager within the host hypervisor manages the VM to GPU channels, guaranteeing that each VM has a dedicated amount of Video RAM per user and direct access to the GPU. Administrators will have the ability to assign one to eight users per physical GPU depending on their workload needs.
