Quick Specs
| Configurations | Expansion card risers | PCIe Slots | Form factor | Controlling processor | Slot's electrical bandwidth/physical connector |
|---|---|---|---|---|---|
| Config2. R1A+R2A+R3 |

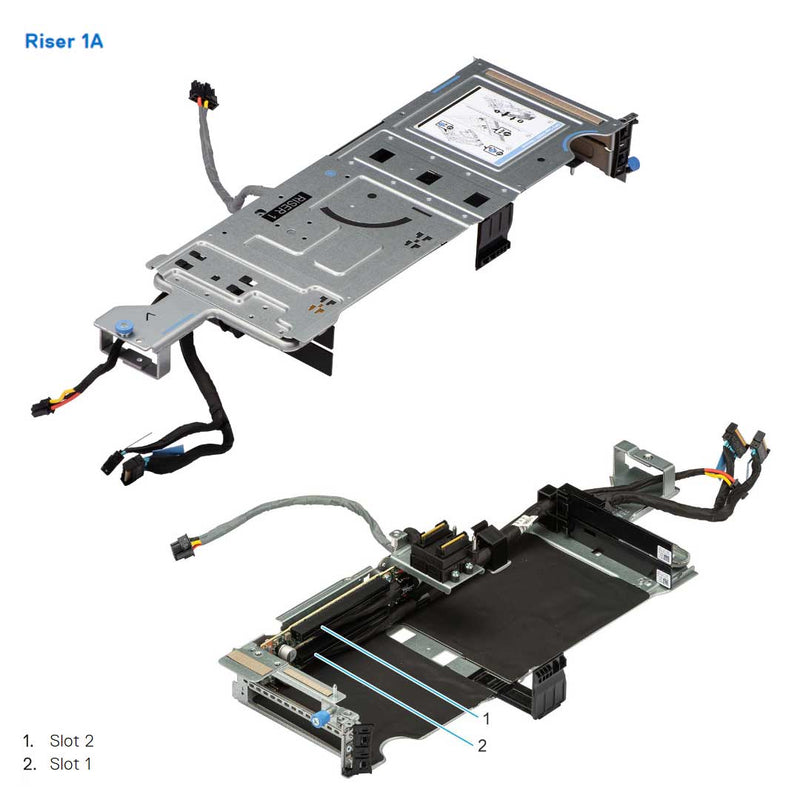

R1A | 1 | Full Length/Full height/SW | Processor 1 | PCIe Gen4 x16 (x16 connector) |
| 2 | Full Length/Full height/SW / DW | Processor 1 | PCIe Gen5 x16 (x16 connector) | ||
| R2A | 3 | Full Length/Full height/SW | Processor 2 | PCIe Gen4 x16 (x16 connector) | |
| 4 | Full Length/Full height/SW / DW | Processor 2 | PCIe Gen5 x16 (x16 connector) | ||

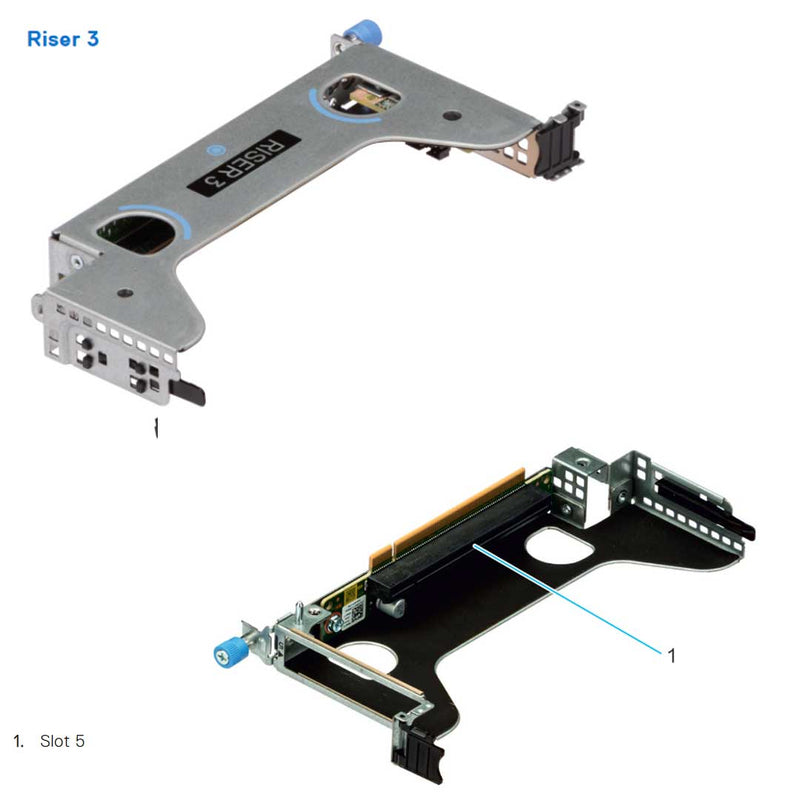

| R3 | 5 | Half length/Low profile/SW | Processor 2 | PCIe Gen4 x16 (x16 connector) |
Compatible With:
- Dell PowerEdge XR7620
