Quick Specs
| Configurations | Expansion card risers | PCIe Slots | Form factor | Slot's electrical bandwidth/ physical connector |
|---|---|---|---|---|
| Config 2. 6 x8 FH + 2 x8 LP | R1U | 1 | Full Height | PCIe Gen5 x8 (x16 connector) |
| 2 | Full Height | PCIe Gen5 x8 (x16 connector) | ||

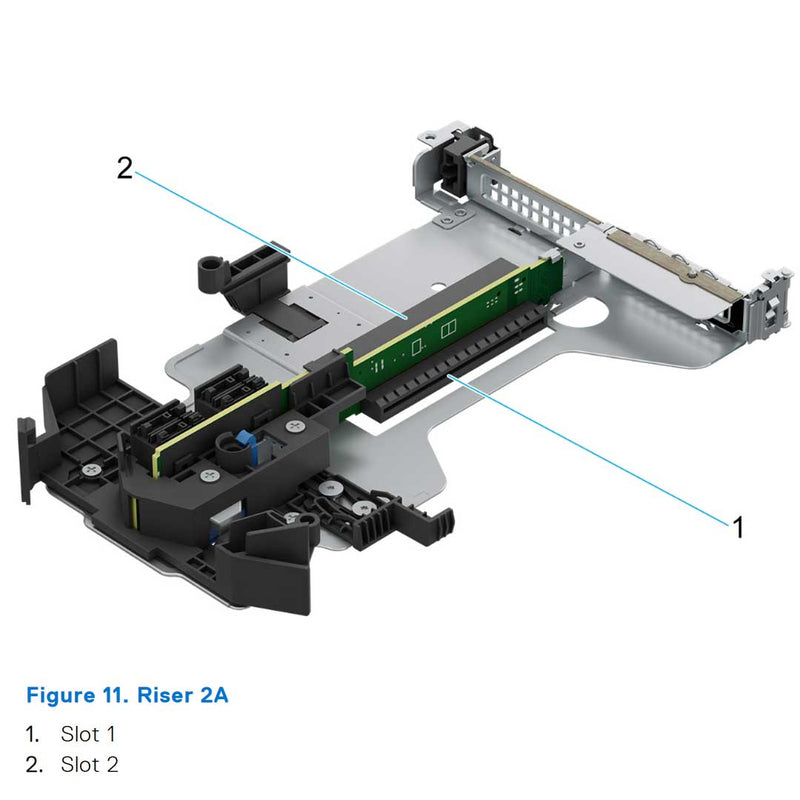

| R2A | 3 | Low Profile | PCIe Gen4 x8 (x16 connector) | |
| 6 | Low Profile | PCIe Gen4 x8 (x16 connector) | ||

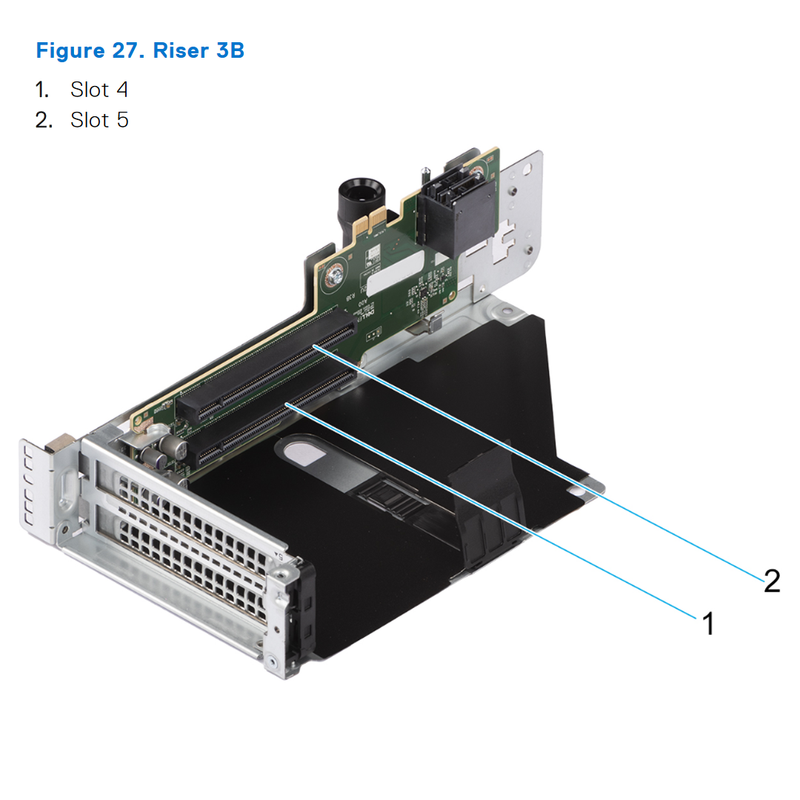

| R3B | 4 | Full Height | PCIe Gen4 x8 (x16 connector) | |
| 5 | Full Height | PCIe Gen4 x8 (x16 connector) | ||

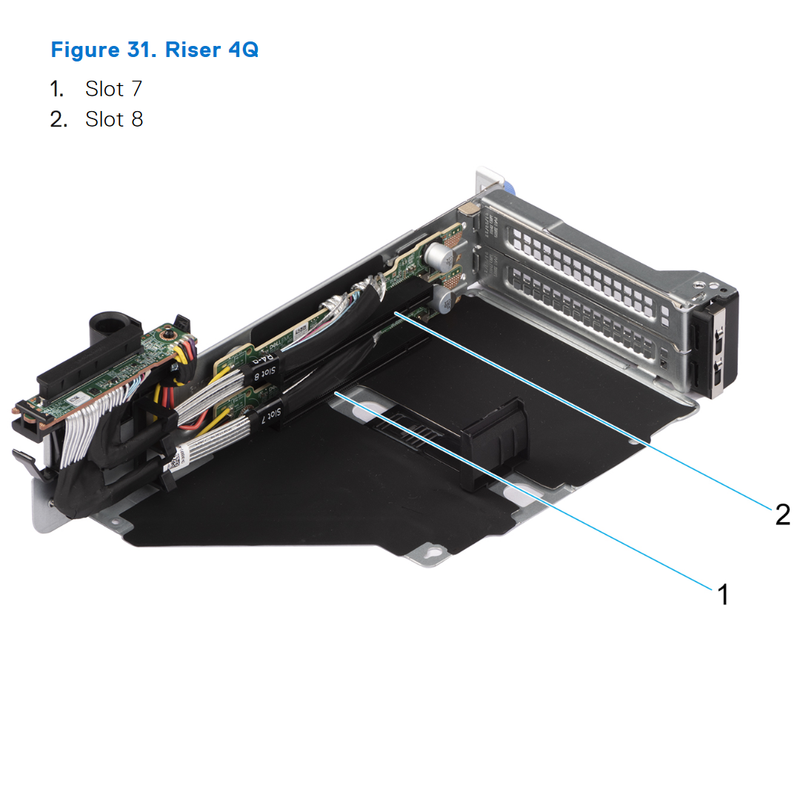

| R4Q | 7 | Full Height | PCIe Gen5 x8 (x16 connector) | |
| 8 | Full Height | PCIe Gen5 x8 (x16 connector) |
Compatible With:
- Dell PowerEdge R7615
