Dell PowerEdge R670 Riser Configuration | RC6
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Riser Config Specs
| Riser configurations (RC) | Expansion card risers | PCIe Slots | Form factor | Controlling processor | Slot's electrical physical/bandwidth connector |
|---|---|---|---|---|---|
| RC6 (rear): 2x16LP(G5) + 1x16OCP(G5) + 1 x8/x16 OCP(G5) |

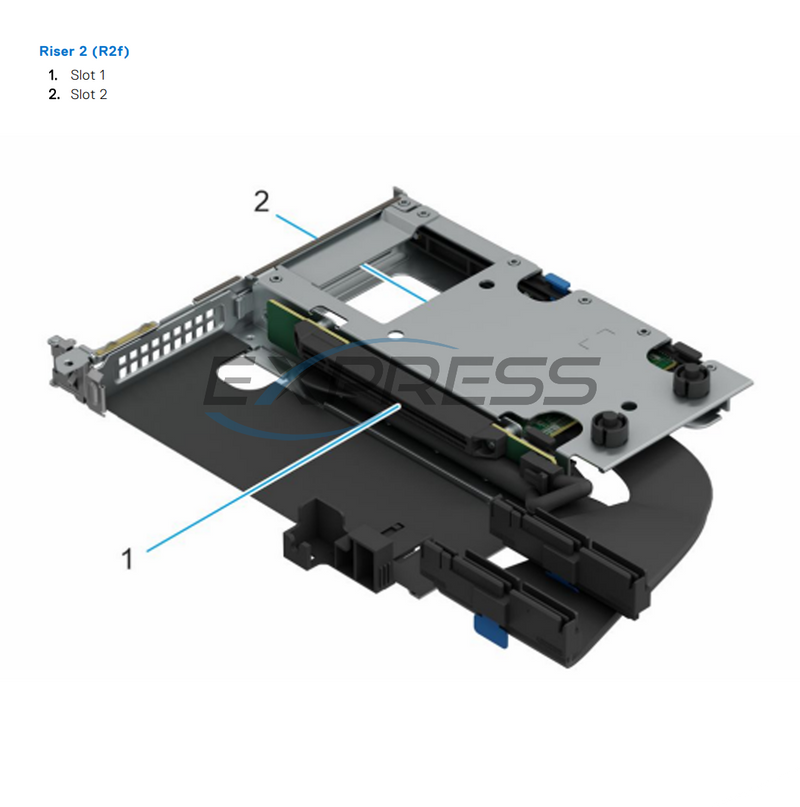

R2f | 1 | Low Profile | Processor 1 | PCIe Gen5 x16 (x16 connector) ) |
| 2 | OCP | Processor 1 | PCIe Gen5 x16 (OCP 4C+ connector) | ||
| R4a | 4 | Low Profile | Processor 0 | PCIe Gen5 x16 (x16 connector) | |
| BOSS | 3 | BOSS | Processor 0 | PCIe Gen3 x4 (1C connector) | |
| OCP | 5 | OCP | Processor 0 | PCIe Gen5 x16 (OCP 4C+ connector) |
Compatible With:
- Dell PowerEdge R670
(Click to View)
