-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

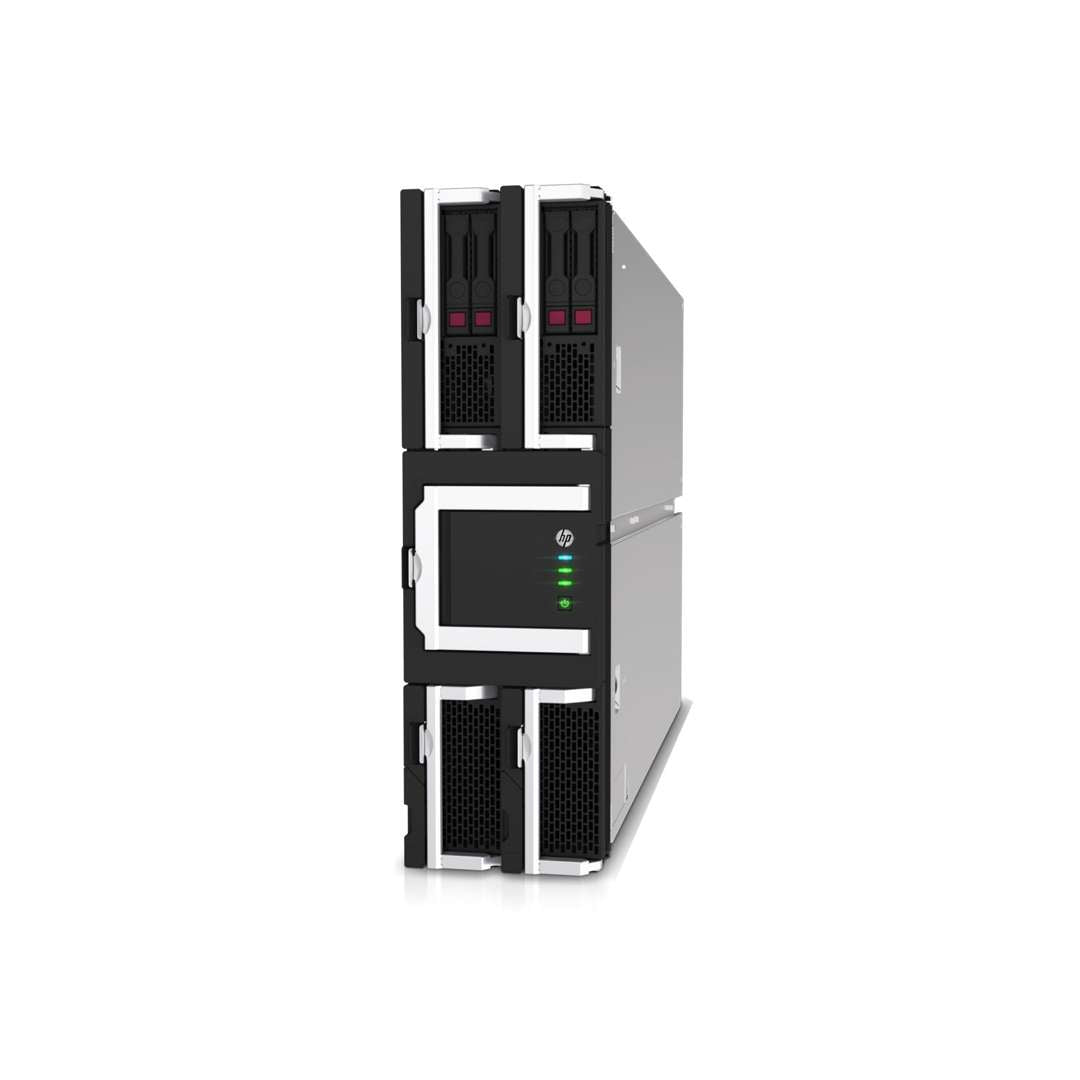

The HPE Synergy 680 Gen9 Compute Module is part of a Composable Infrastructure (CI) solution that is easily discovered and provisioned in minutes, and can be re-purposed just as simply. The HPE Synergy 680 Gen9 Compute Module delivers mission-critical availability and performance, as well as flexible memory, storage and fabric options in a full-height double-wide, 4-socket form factor.
Designed to support demanding enterprise data-intensive workloads, this module is powered by the Intel Xeon processors, supports up to 12 TB of DDR4 memory, HPE DDR4 memory, has flexible storage controller options, ten I/O connectors, and is part of a pool of flexible compute capacity within a Composable Infrastructure.
The HPE Synergy 680 Gen9 Compute Module supports up to 12 TB of DDR4 memory and Intel Xeon processors in a 4S full-height double-wide form factor for demanding workloads like business processing, decision support, IT infrastructure, and other mission-critical workloads with large memory demands.
The flexible design supports stateless configuration without drives, up to four SFF or eight uFF drives, NVMe workload acceleration, and direct attach composable storage to match demanding workload, data protection, and data security requirements.
Ten mezzanine connectors with simplified I/O architecture for expandability and a wide range of choice of storage and fabric choices.
The HPE Synergy 680 Gen9 Compute Module provides a composable compute resource that can be self-discovered, quickly provisioned, easily managed, and seamlessly redeployed to deliver the right compute capacity for changing workload needs.
HPE Synergy template-based provisioning enables fast time to service with a single point for defining compute module state, pooled storage, network connectivity, and boot image.
Please Upgrade Server
*This Configure to Order has not been created.
*You can still
Contact Us
for a quote on this server.
*Thank you.
The request has been sent.
Thank you.
Price as Configured:
$0
Base Standard Capabilities
Product features
Feature | Description | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cache memory | See processor list above for cores, model number, and cache memory size | |||||||||||||||||||||
Chipset | Intel C602J series chipset | |||||||||||||||||||||
On systemmanagementchipset | HPE iLO (Firmware HPE iLO4 2.0), 4GB NAND with 1GB USB user space configurable VIA UEFI and accessiblevia iLO. Read and learn more | |||||||||||||||||||||
Memoryprotection |
| |||||||||||||||||||||
Memory |
| |||||||||||||||||||||
Network controller |
Standard iLO network controller:
| |||||||||||||||||||||
Mezzanine connectors | Ten (10) I/O expansion mezzanine connectors (In PCIe discovery order):
Mezzanine options include:
| |||||||||||||||||||||
Storage controller |
| |||||||||||||||||||||
Maximum internal storage |
| |||||||||||||||||||||
Interfaces |
| |||||||||||||||||||||
Industry standard compliance |
| |||||||||||||||||||||
Frames | HPE Synergy 12000 Frame is the base for all Synergy products and supports:
| |||||||||||||||||||||
Graphics | Integrated matrox G200eh video controller
HPE iLO management on system management memory
| |||||||||||||||||||||
Form factor | HPE Synergy 680 Gen9 is a full-height double-wide compute module that plugs into the HPE Synergy frame12000 frame | |||||||||||||||||||||
Security |
| |||||||||||||||||||||
Fibre channelsupport | Up to four (4) optional fibre channel mezzanine HBAs are supported on the HPE Synergy 680 Gen9 | |||||||||||||||||||||
Compatible SAN | HPE Synergy 680 Gen9 compute modules are optimized for HPE MSA, EVA, 3PAR, XP, and LeftHand |
Software overview
Feature | Description |
|---|---|
Operating systemsand virtualizationsoftware supportfor computemodules |
|
Physical specifications
Specification | Description |
|---|---|
Height (H x W x D) with bezel | 127 x 430.3 x 600 mm (5.06 x 16.94 x 23.62 in) |
Weight |
|
Power specifications | For power specifications including input requirements, BTU rating, and power supplyoutput, please see the HPE Synergy frame TechSpecs.To review typical system power ratings use the HPE power advisor which is availableVIA the online tool located |
HPE smart arrayP542D controller | Storage interface
SAS connectors
SAS speed
PCIe link rate
Memory bus speed
Logical drivessupported
Max drivessupported
RAID support
Upgradeablefirmware
|
HPE smart arrayP240nr/1GBcontroller | Disk drive interface
Server interface
Cache memory
Logical drivessupported
Host memoryaddressing
RAID support
Other
|
HPE smart HBAH240nr smartHBA | Disk drive interface
Compute moduleinterface
Cache memory
Logical drivessupported
Host memoryaddressing
RAID support
Other
|
HPE Synergy2820C 10Gbconvergednetwork adapter | Type
Network processor
Data transfermethod
Network transferrate
IEEE compliance
Standard features
|
HPESynergy 3820C10/20Gbconvergednetwork adapter | Type
Network processor
Data transfermethod
Network transferrate
IEEE compliance
Standard features
|
Environmental specifications
Specification | Description |
|---|---|
Operating temperature | 10° to 35°C (50° to 95°F) |
Non-operating temperature | -30° to 60°C (-22° to 140°F) |
Extended ambientoperating support | For approved hardware configurations, the supported system inlet range is extendedto be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with analtitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m(2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: |
Relative operating humidity | 8% to 90% |
Relative non-operating humidity | 5% to 95% |
Altitude operating | 3050 m (10,000 ft) |
Non-altitude operating | 9144 m (30,000 ft) |
Acoustic noise | For acoustic noise specifications, please see the HPE Synergy frame 12000TechSpecs located at: <placeholder |
