NetApp FAS8200 Dual Controller Filer Head (HA)
Thanks for the request. We'll get back to you with in 24 hours.
Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.
Warranty | Return Policy
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
The NetApp FAS8200 is a high-performance storage system designed for enterprise environments, featuring a single-chassis configuration with dual high-availability (HA) controllers. It comes equipped with 256GB of memory and two 64-bit, 16-core processors running at 1.70 GHz. The system supports up to 480 drives, delivering a maximum storage capacity of 10.56PB, making it ideal for scalable and efficient data management.
For connectivity, the FAS8200 offers four 10Gb RJ45 Ethernet ports, four 10Gb SFP+ Ethernet ports, and eight UTA2 SFP+ ports supporting both 10Gb and 16Gb speeds. It also includes eight MiniSAS HD ports (12Gb) for high-speed storage expansion. With four PCIe slots per controller and compatibility with DS212C, DS224C, and DS460C disk shelves, this system provides flexible expansion options to accommodate growing storage needs.
The chassis is 3U in rack height, measuring 5.12 inches in height, 17.6 inches in width, and 28.94 inches in depth, with a maximum weight of 76 lbs. Each controller supports remote management and features advanced RAID configurations, including RAID 4, RAID 6 (RAID-DP), and RAID-TEC, ensuring high data integrity and system reliability. With its robust specifications, the FAS8200 is an excellent choice for enterprise storage solutions.
- Model: NetApp FAS8200
- Chassis: Single Chassis
- Total Rack Height: 3U
- Controllers: Dual Controller (HA)
- Memory: 256GB
- Processor Model: 2x 64-bit 16-core 1.70 Ghz
- Ethernet Ports: 4 x RJ45 (10Gb) + 4 x SFP (10Gb)
- UTA2 Ports: 8 x SFP+ (10Gb/16Gb)
- SAS Ports: 8 x MiniSAS HD (12Gb)
- PCIe Expansion Slots: 4 x PCIe
- Max Drives (total): 480
- Max Capacity: 10,560TB (10.56PB)
- Disk Shelves: DS212C, DS224C, DS460C
- Filer Heads: N/A
- Chassis Rack Height: 3U
- Chassis Heights: 5.12" (13 cm)
- Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
- Chassis Depth w/ Cable Mgmt: 28.94" (73.5 cm)
- Chassis Weight: up to 76.0 lb (34.5 kg)

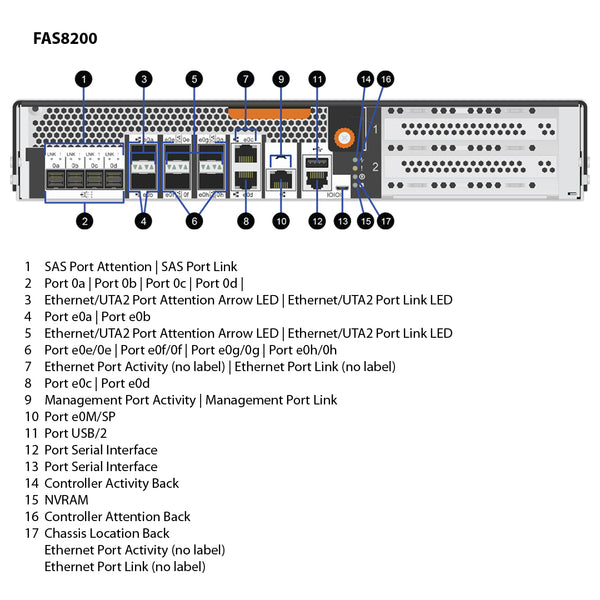

Controller Specs
- Max Controllers: 2 (Per Chassis)
- PCI Slot (per): 4 x PCIe
- Ethernet Ports (per): 4 x RJ45 (10Gb) + 4 x SFP+ (10Gb)
- Fibre Channel Ports (per): N/A
- UTA2 Ports (per): 8 x SFP+ (10Gb/16G)
- SAS Ports (per): 8 x MiniSAS HD (12Gb)
- Remote Management: Yes
- Processor Model (per): 2x 64-bit 16-core 1.70 Ghz
- Memory (Single/HA): 128GB/256GB
- NVMEM (Single/HA): 8GB/16GB
- Max Number of Internal Drives: 0
- Max Number Drives (total): 480
- Max Capacity: 10,560TB (10.56PB)
- Max # of MSATA Drives: 480
- Max # of SATA Drives: 480
- Max # of NL-SAS Drives: 480
- Max # of SAS Drives: 480
- Max # of SSD Drives: 240
- Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
- RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
- Max # of DS212C Shelves: 40 external
- Max # of DS224C Shelves: 20 external
- Max # of DS460C Shelves: 8 external
