NetApp FAS8080 EX Dual Controller Filer Head w/ IOXM (HA)
Thanks for the request. We'll get back to you with in 24 hours.
Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.
Warranty | Return Policy
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
The NetApp FAS8080 is a high-performance storage system designed for enterprise environments, featuring a dual chassis configuration and dual high-availability (HA) controllers with IOXM. It is equipped with 1256GB of memory and four 64-bit, 10-core processors running at 2.80 GHz. With 24 PCIe expansion slots and support for up to 1440 drives, this system delivers robust scalability and flexibility for demanding workloads.
Connectivity options include eight 1Gb RJ45 Ethernet ports, eight 10Gb SFP Ethernet ports, and eight UTA2 SFP+ ports supporting both 10Gb and 16Gb speeds. Additionally, the system provides eight QSFP SAS ports for high-speed storage expansion. Supporting multiple disk shelves, including DS212C, DS2246, and DS460C, the FAS8080 can reach a maximum capacity of 15PB, making it an ideal solution for large-scale data storage needs.

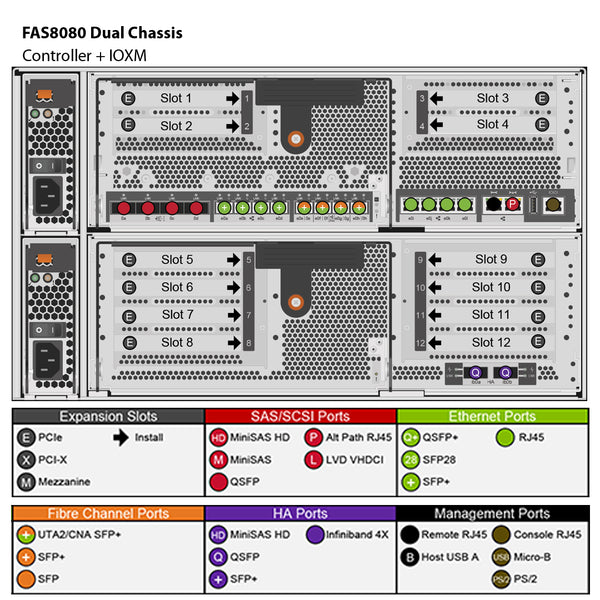

The chassis has a 6U rack height per unit, measuring 10.2 inches in height, 17.6 inches in width, and 28.9 inches in depth, with a maximum weight of 121.5 lbs. Each controller features 12 PCIe slots, four 1Gb RJ45 ports, four 10Gb SFP ports, and four UTA2 ports. With advanced RAID options, including RAID 4, RAID 6 (RAID-DP), and RAID-TEC, the NetApp FAS8080 ensures high data availability and resilience for enterprise applications.
- Model: NetApp FAS8080
- Chassis: Dual Chassis
- Total Rack Height: 12U
- Controllers: Dual Controller (HA) w/ IOXM
- Memory: 1256GB
- Processor Model: 4x 64-bit 10-core 2.80 Ghz
- Ethernet Ports: 8 x RJ45 (1Gb) + 8 x SFP (10Gb)
- UTA2 Ports: 8 x SFP+ (10Gb/16Gb)
- SAS Ports: 8 x QSFP (6Gb)
- PCIe Expansion Slots: 24 x PCIe
- Max Drives (total): 1440
- Max Capacity: 15,000TB (15PB)
- Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
- Filer Heads: N/A
- Chassis Rack Height: 6U
- Chassis Heights: 10.2" (25.9 cm)
- Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
- Chassis Depth w/ Cable Mgmt: 28.9" (73.4 cm)
- Chassis Weight: up to 121.5 lb (55.1 kg)
IOXM Specs
- PCIe Slots: 8
- Max Controllers: 1 (Per Chassis)
- PCI Slot (per): 4 x PCIe
- Ethernet Ports (per): 4 x RJ45 (1Gb) + 4 x SFP (10Gb)
- Fibre Channel Ports (per): N/A
- UTA2 Ports (per): 4 x SFP+ (10Gb/16G)
- SAS Ports (per): 4 x QSFP (6Gb)
- Remote Management: Yes
- Processor Model (per): 2x 64-bit 10-core 2.80 Ghz
- Memory (Single/HA): 128GB/256GB
- NVRAM (Single/HA): 16GB/32GB
- Max Number of Internal Drives: 0
- Max Number Drives (total): 1440
- Max Capacity: 15,000TB (15PB)
- Max # of MSATA Drives: 1440
- Max # of SATA Drives: 1440
- Max # of NL-SAS Drives: 1440
- Max # of SAS Drives: 1440
- Max # of SSD Drives: 240
- Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
- RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
- Max # of DS212C Shelves: 60 external
- Max # of DS2246 Shelves: 60 external
- Max # of DS224C Shelves: 60 external
- Max # of DS4243 Shelves: 60 external
- Max # of DS4246 Shelves: 60 external
- Max # of DS4448 Shelves: 30 external
- Max # of DS460C Shelves: 24 external
