    NetApp FAS2750 UTA2 Dual Controller 24x 2.5” (HA)


    Price: Request a Quote

    Brand:
    MPN:
    FAS2750A-UTA2
    Type:
    Filer Head
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

    NetApp FAS2750 UTA2 Dual Controller 24x 2.5” (HA)

    Powered by NetApp® ONTAP® data management software, we can help you build a storage infrastructure that is simple, secure, and trusted. NetApp FAS Storage Arrays provides customers with a balance of performance and capacity.

    The FAS2750 has two Controller Options, a UTA2 and a 10GBASE-T. Each controller comes with a different numbering of ports and protocols. All other aspects of this Filer are identical regarding supported drives, and capacity.


    The FAS2750 configuration ships with a 1TB NVMe Flash Cache internal adapter configured on each node.
    No upgrade of Flash Cache capacity is offered.


    Model & Form Factor
    • Model: NetApp FAS2750 UTA2
    • Form Factor: 2U
    • PCIe Expansion Slots: None
    • Disk Shelves: DS212C, DS224C, DS460C
    • Filer Heads: N/A
    Dimensions & Weight
    • Chassis Heights: 3.42" (8.69 cm)
    • Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm))
    • Chassis Depth w/ Cable Mgmt: 24.13" (61.3 cm)
    • Chassis Weight: up to 60.8 lb (27.6 kg)

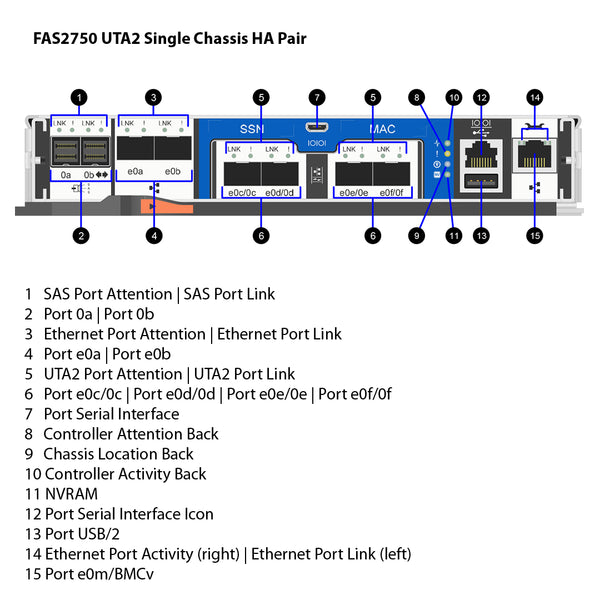

    Controller Specs
    • Controllers: UTA2 Dual Controller (HA Pair)
    • Max Controllers: 2
    • PCI Slot (per): None
    • Ethernet Ports (per): 2 x SFP+ (10Gb)
    • Fibre Channel Ports (per): N/A
    • UTA2 Ports (per): 4 x SFP+ (10Gb/16Gb)
    • SAS Ports (per): 2 x MiniSAS HD (12Gb)
    • Remote Management: Yes
    • Processor Model (per):1x 64-bit 12-core 1.50 Ghz
    • Memory (Single/HA): 32GB/64GB
    • NVME (Single/HA): 1024GB/2048GB
    • NVMEM (Single/HA): 4GB/8GB
    Storage
    • Max Number of Internal Drives: 24
    • Max Number Drives (total): 144
    • Max Capacity: 2,683TB (2.68PB)
    • Max Number of NL-SAS Drives: HA Pair: 144
    • Max Number of SAS Drives: HA Pair: 144
    • Max Number of SATA Drives: HA Pair: 144
    • Max Number of SSD Drives: HA Pair: 144
    • Drive Interface: NL-SAS, SAS, SATA, SSD
    • RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
    • Max Number of DS212C Shelves: 9 external
    • Max Number of DS224C Shelves: 1 internal + 5 external OR 0 internal + 6 external
    • Max Number of DS460C Shelves: 2 external

    UTA2 ports

    A UTA2 (Unified Target Adapter 2) port on a NetApp system is a flexible, multi-protocol port that can support both Fibre Channel (FC) and Ethernet-based protocols (FCoE or iSCSI over Ethernet). These ports allow NetApp controllers to connect to storage networks using different protocols without needing separate dedicated adapters.


    FAS2750 Parts Lists

    Ask about our NetApp Disk Shelves!
    We can create custom Turn-Key configurations based on your needs!
    Click here to view NetApp Disk Shelves

    This Product Is Compatible With The Following Systems:
