NetApp FAS2240-2 Dual Controller Filer Head (HA)
Thanks for the request. We'll get back to you with in 24 hours.
Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.
Warranty | Return Policy
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
The FAS2200 series is not only affordable, but also provides a more powerful platform than other systems in its class. The FAS2200 series supports SSDs across all FAS systems. FAS2200 series has the ability to get more out of applications and improve storage efficiency with ultra fast flash using Flash Pool technology.
You don't need to be a storage expert to deploy and manage NetApp storage systems. The NetApp FAS2200 series offers a powerful range of technologies to help increase the efficiency of your storage administrators. The FAS2200 series gives you the option to optimize your data whether it's stored on flash or disk for better performance and management simplicity.
Clustered Data ONTAP allows you to expand to more nodes. Seamlessly upgrade to other NetApp systems while using the same operating system and software tools. FAS2240 gives you the ability to convert your storage system to an external disk shelf for upgrading to larger NetApp systems. NetApp FAS2240-2 utilizes up to 144 disks and can supply up to 518TB of raw capacity in a 2U/24 drive configuration.
- Model: NetApp FAS2240-2
- Form Factor: 2U
- PCIe Expansion Slots: 1 Slot (Per Node)
- Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246
- Filer Heads: N/A
- Chassis Heights: 3.34" (8.49 cm)
- Chassis Width w/o Mounting Flanges: 17.61" (44.72 cm)
- Chassis Depth w/ Cable Mgmt: 23.13" (58.75 cm)
- Chassis Weight: 55.6 lb (25.2 kg)

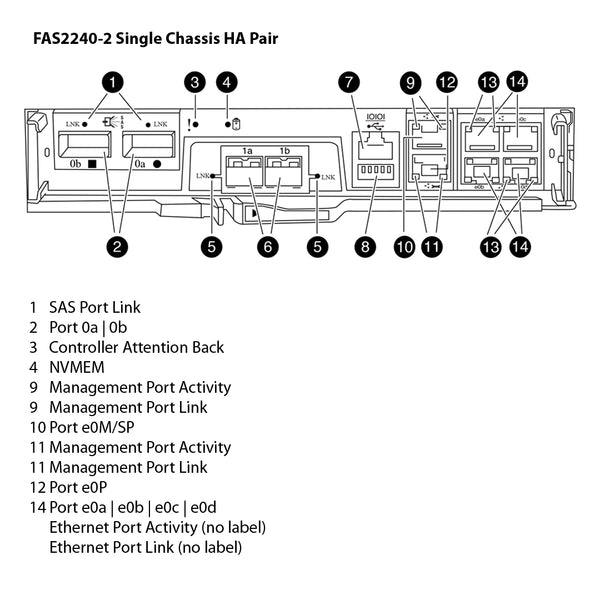

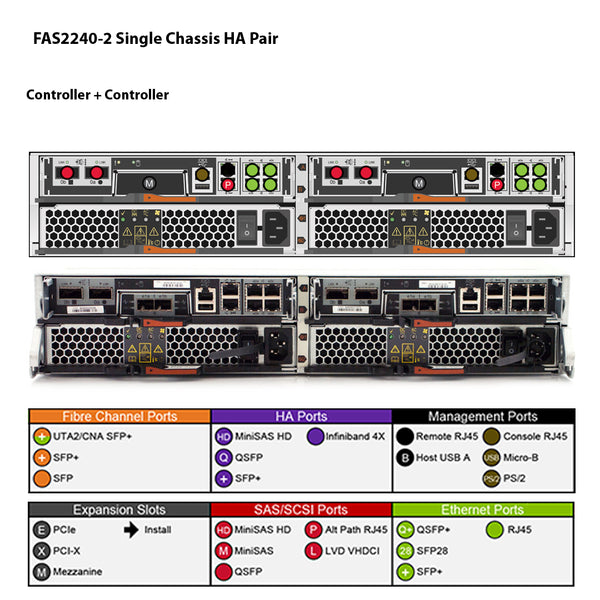

Controller Specs
- Controllers: Dual Controller (HA)
- Max Controllers: 2
- PCI Slot (per): 1 Internal Slot
- Ethernet Ports (per): 4x RJ45 (1Gbps)
- Fibre Channel Ports (per): N/A
- UTA2 Ports (per): N/A
- SAS Ports (per): 2x QSFP (6Gbps)
- Remote Management: Yes
- Processor Model (per):1x 64-bit 2-core with HT 1.73 Ghz
- Memory (Single/HA): 6GB/12GB
- NVMEM (per): 0GB
- Max Number of Internal Drives: 24
- Max Number Drives (total): 144
- Max Capacity: 1,603TB (1.6PB)
- Max Number of NL-SAS Drives: HA Pair: 120
- Max Number of SAS Drives: HA Pair: 144
- Max Number of SATA Drives: HA Pair: 120
- Max Number of SSD Drives: HA Pair: 96
- Drive Interface: NL-SAS, SAS, SATA, SSD
- RAID: RAID 4, RAID 6 (RAID-DP)
- Max Number of DS212C Shelves: 5 external
- Max Number of DS2246 Shelves: 1 internal + 5 external
- Max Number of DS224C Shelves: 5 external
- Max Number of DS4243 Shelves: 5 external
- Max Number of DS4246 Shelves: 5 externa
