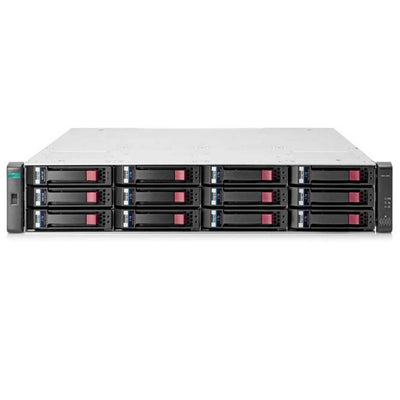

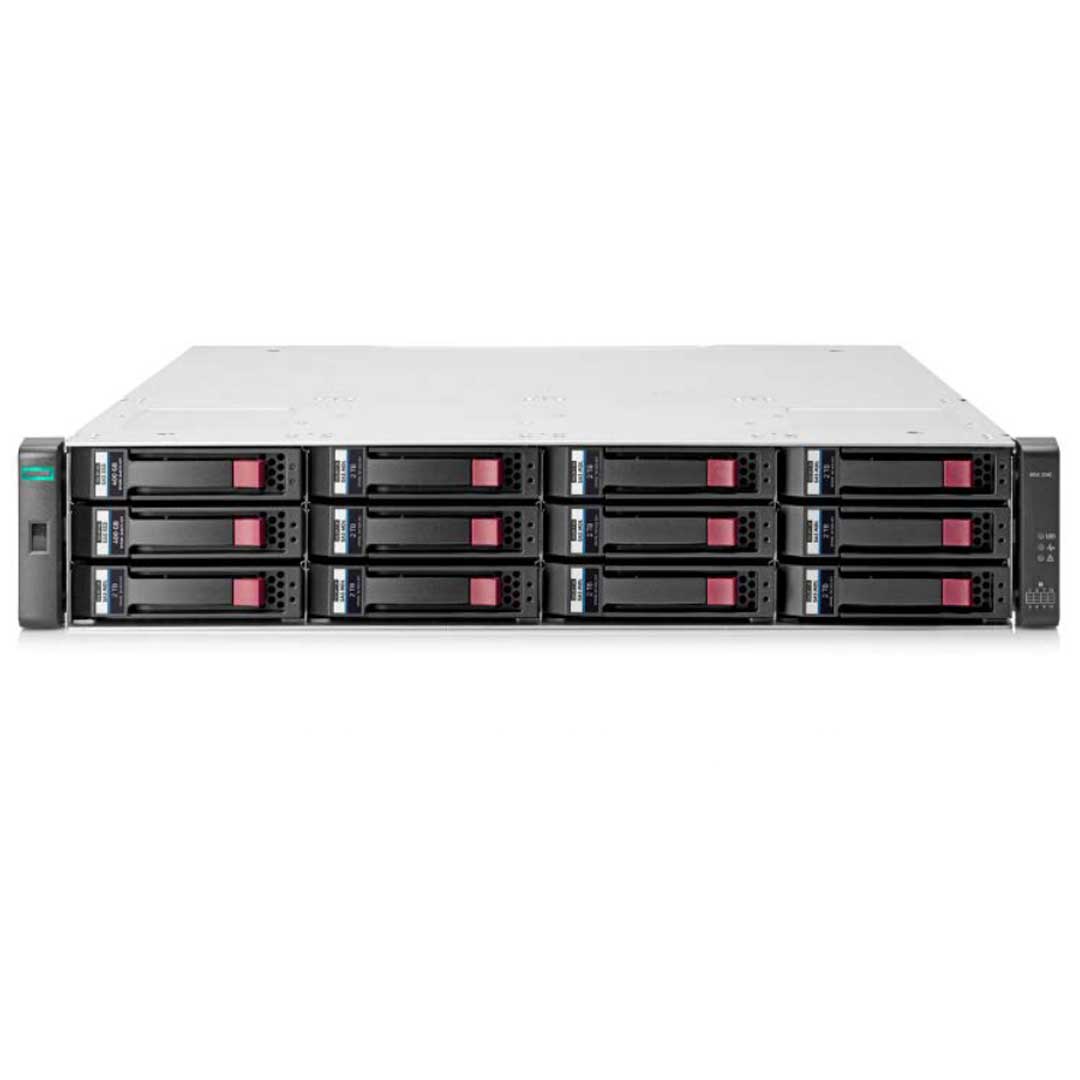

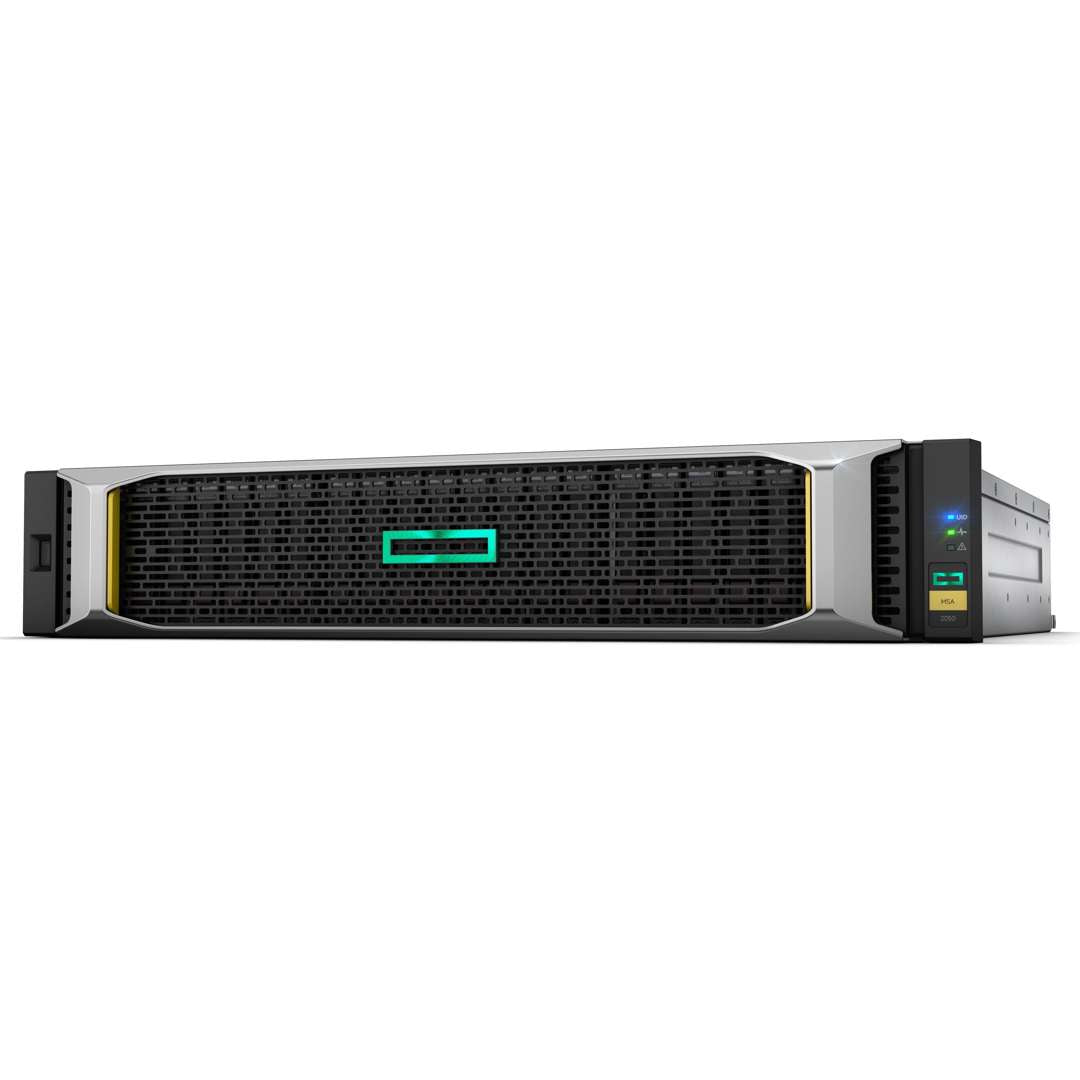

HPE MSA 2052 SAN Dual Controller LFF TAA Storage w/2 800GB SSD | R4Y03A

HPE MSA 2052 SAN Dual Controller LFF TAA Storage w/2 800GB SSD | R4Y03A

Price: Request a Quote

Brand:

HPE

MPN:

R4Y03A

Type:

Storage Array

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

HPE MSA 2052 SAN Dual Controller LFF TAA Storage w/2 800GB SSD | R4Y03A

Includes

(1) MSA 2050-branded LFF array chassis
(2) AC power supplies
(2) MSA 2050 SAN controllers
(2) 800GB Mixed Use SSDs
(1) Advanced Data Services LTU
(2) .7m PDU cords (IEC C14)
(1) rack-mount kit
SFPs not included.

The two 800GB SSDs are shipped integrated in the MSA 2050 array. The Advanced Data Services LTU is shipped with the MSA 2050 array and requires license activation.

Notes: The MSA 2052 does not support single controller configurations. Single-controller support is provided only when a controller fails over to its partner controller.

Notes: Two PDU cables: one 142263-008 (Black) and one 1422633-013 (Grey), ship standard with all AC-powered enclosures.

Looking for seriously simple and affordable flash storage? The hybrid flash HPE MSA 2052 SAN Storage system with the new Gen10 ProLiant Branding is designed for affordable application acceleration that is ideal for small and remote office deployments. But do not let the low cost fool you. The HPE MSA 2052 SAN Storage system gives you the combination of simplicity, flexibility to grow now and into the future, and advanced features you may not expect to find in an entry-priced array. Start with 1.6 TB of flash capacity included and scale as needed with any combination of solid state disks (SSD), high-performance enterprise, or lower-cost midline SAS-based drives.

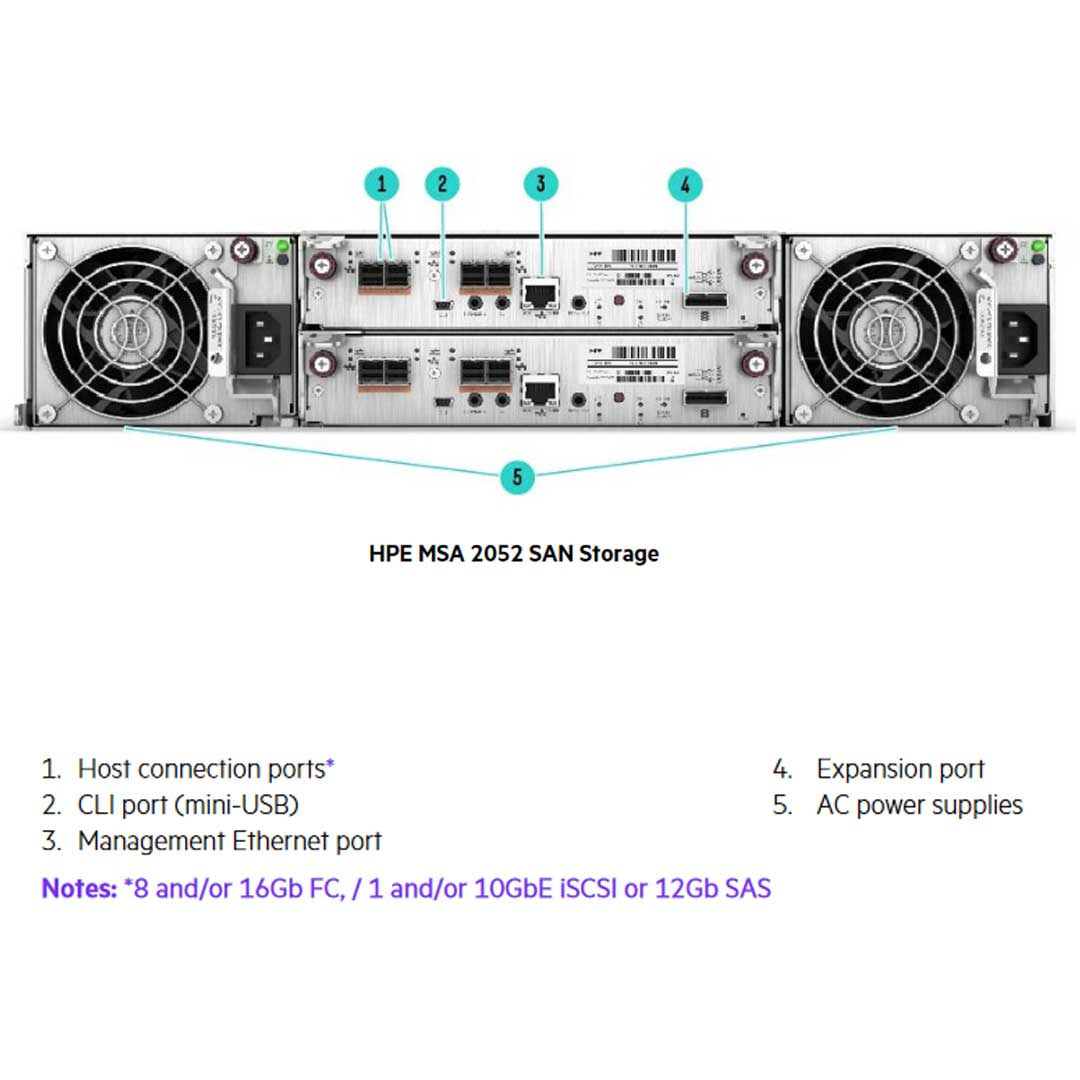

SAN controller
MSA 2052 SAN controller supports 8Gb FC, 16Gb FC, 1GbE iSCSI or 10GbE iSCSI host connectivity. .
SAS controller
MSA 2052 SAS controller supports 12Gb host connectivity.

HPE MSA Storage has been the industry-leading entry storage Fibre Channel platform for the past eight years, with nearly 500,000 storage systems sold worldwide. Delivering performance in excess of 200,000 IOPS, the hybrid flash MSA 2052 Storage system can save you up to 40% with an all-inclusive software suite and 1.6 TB of flash capacity included. It’s seriously simple and affordable flash storage to help you get the most performance for the lowest cost.

Affordable Application Acceleration
The HPE MSA 2052 SAN Storage performs in excess of 200,000 IOPS delivering
outstanding application acceleration for small to medium-sized businesses either
locally or remotely.
Delivers 2x more performance than the previous HPE MSA 2042 SAN Storage
generation [2].

Advanced Data Services With No Experience Required
The HPE MSA 2052 SAN Storage is easy to install, easy to use, easy to maintain, no
storage previous expertise required.
Automated tiering dynamically responds to workload changes, so you don’t have to.

This Product Is Compatible With The Following Systems:

HPE Series msa 2052

HPE MSA 2052 SAN Dual Controller LFF TAA Storage w/2 800GB SSD | R4Y03A Spec Sheet

Manuals

Spec Sheet

Manuals

Spec Sheet

Storage Array Specs

Array
Access Type	Block
Form Factor	2U, SFF or LFF
Number of controllers per array	2
Number of host ports per array	8
FC host connectivity	8/16Gb
iSCSI host connectivity	1Gb or 10GbI
SAS host connectivity	6/12Gb
Cache, per array
Max Read cache per array	8TB
Data (read/write) cache + system memory per array	16GB
Pool Capacity (with Large Pool Support)	562 TB (512 TiB)
RAID Levels supported	Virtual mode RAID 0, 1, 5, 6, 10 Notes: Read Cache Only
Enclosures
Expansion Drive Enclosures	0-7 enclosures
LFF/SFF array/enclosure mixing	Supported
Maximum number of drives per array enclosure	24 SFF/12 LFF
Maximum number of drives per drive enclosure	24 SFF/12 LFF
Drive enclosure interface type	6Gb SAS
Drives
Maximum total HDDs per array	192 SFF / 96 LFF
Maximum total SSDs per array	192 SFF / 96 LFF
Max raw capacity per array enclosure	76.8 TB SFF / 168TB LFF
Max raw capacity per drive enclosure	76.8 TB SFF / 168TB LFF
Max raw capacity per array	614.4TB SFF / 1344TB LFF
Integrated SSDs	2x800GB Mixed Use SSDs
Drive Capacities
SFF SSDs	800GB, 960GB, 1.6TB, 1.92TB, 3.2TB
LFF SSDs	800GB, 960GB, 1.92TB
SFF HDDs	15K: 600GB, 900GB 10K: 600GB, 1.2TB, 1.8TB, 2.4TB
LFF HDDs	7.2K: 4TB, 6TB, 8TB, 10TB, 12TB, 14TB
SEDs	Encryption not supported
