HPE ProLiant DL580 Rack Server (G10) CTO

Name: HPE ProLiant DL580 Rack Server (G10) CTO
Brand: HPE
SKU: HPE-DL580-G10-CTO
Availability: InStock

HPE

| CTO Servers |

HPE-DL580-G10-CTO

.price-ui--loading { display: block !important; opacity: 1 !important; }

Configure for Pricing

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

What's New

(4) Intel Xeon Scalable 1st / 2nd Gen
(48) 2933MT/s DDR4 12 DIMMs per CPU
Supports 128GB LRDIMMs
(16) PCIe Gen3.0 slots
Supports up to (48) Drives
Supports NVMe U.3 SSDs - Upper Bay Only
Supports up to (4) PSUs
Supports up to GPUs
HPE Smart Array S100i SR Gen10 SW RAID
HPE iLO 5 ASIC

Other Versions

(Click to View)

Ideal for:

Cloud Servers
Corporate IT
Database

The HPE ProLiant DL580 Gen10 Server is a high-density, four-socket server with high performance, scalability and reliability, all in a 4U chassis. Supporting the latest 2 nd generation of Intel® Xeon® Scalable processors, the HPE ProLiant DL580 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to sixteen PCIe 3.0 slots, up to 12 TB of HPE Persistent Memory plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5.

The HPE ProLiant DL580 Gen10 Server is the ideal server for business critical workloads, virtualization, server consolidation, database, business processing, graphics intensive and general 4P data-intensive applications where the right performance is paramount.

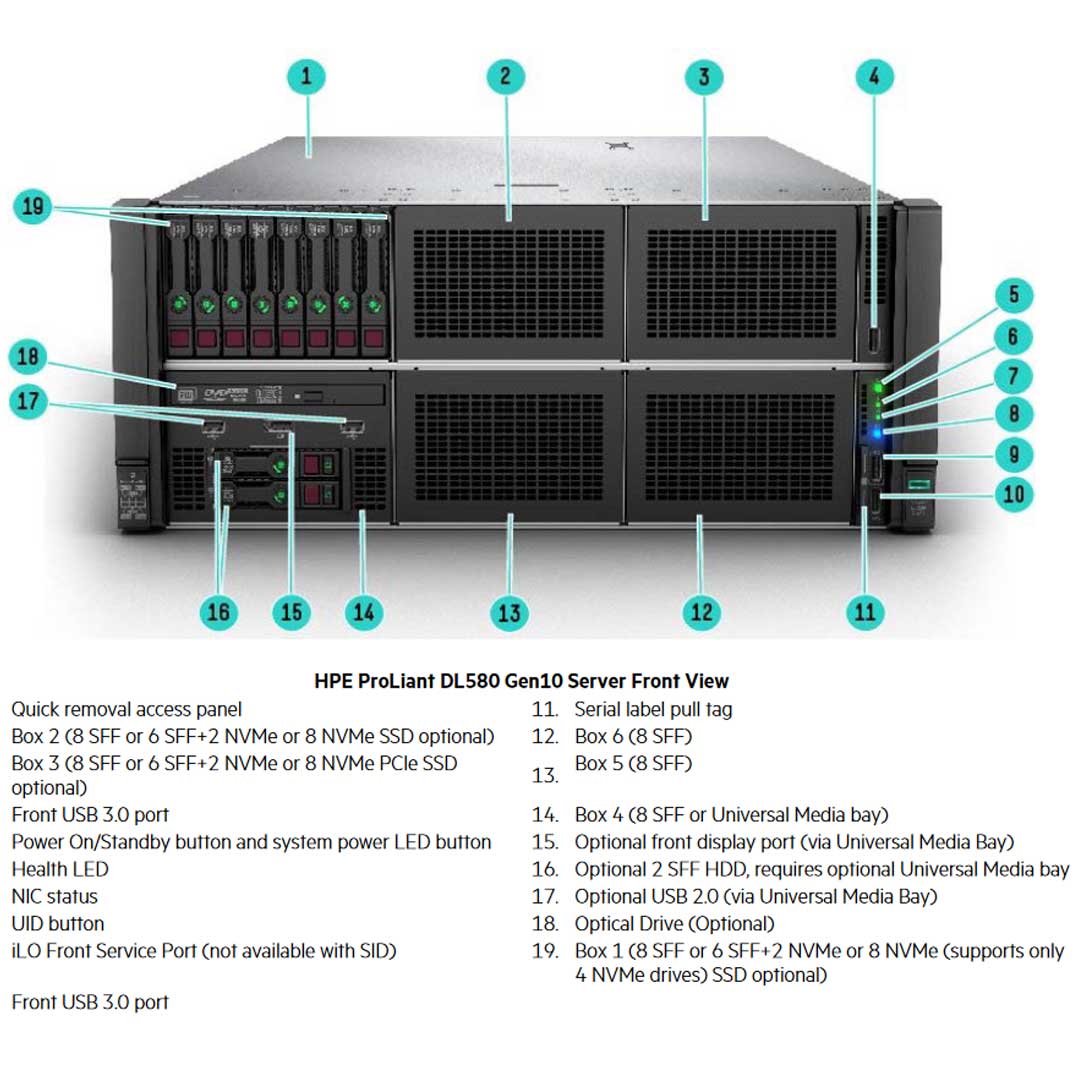

HPE DL580 Chassis Options | (48) Drives

The HPE DL580 Gen 10 has 8 Boxs and supports SAS/SATA and NVMe drives. The 8 NVMe Drive Cage can only be placed in Box 1, 2, or 3. Box 1 will only support NVMe drives 1-4, drive bays 5-8 are not functional. The max number of NVMe drives is (20) and you must have all 4 processors installed.

The Universal Media Bay (872267-B21) is not available with the 48 SFF front end, and can only be populated in Box 4. The media bay can support 2 NVMe via the optional 2 SFF premium kit (880121-B21). Not all configurations supporting the UMB 2SFF are shown. Primary 6-slot Riser (872336-B21) and/or Secondary and Tertiary 8-slot Riser (872338-B21) must be selected to support this option.

HPE DL580 Gen 10 4U Rack Server 40 Drives

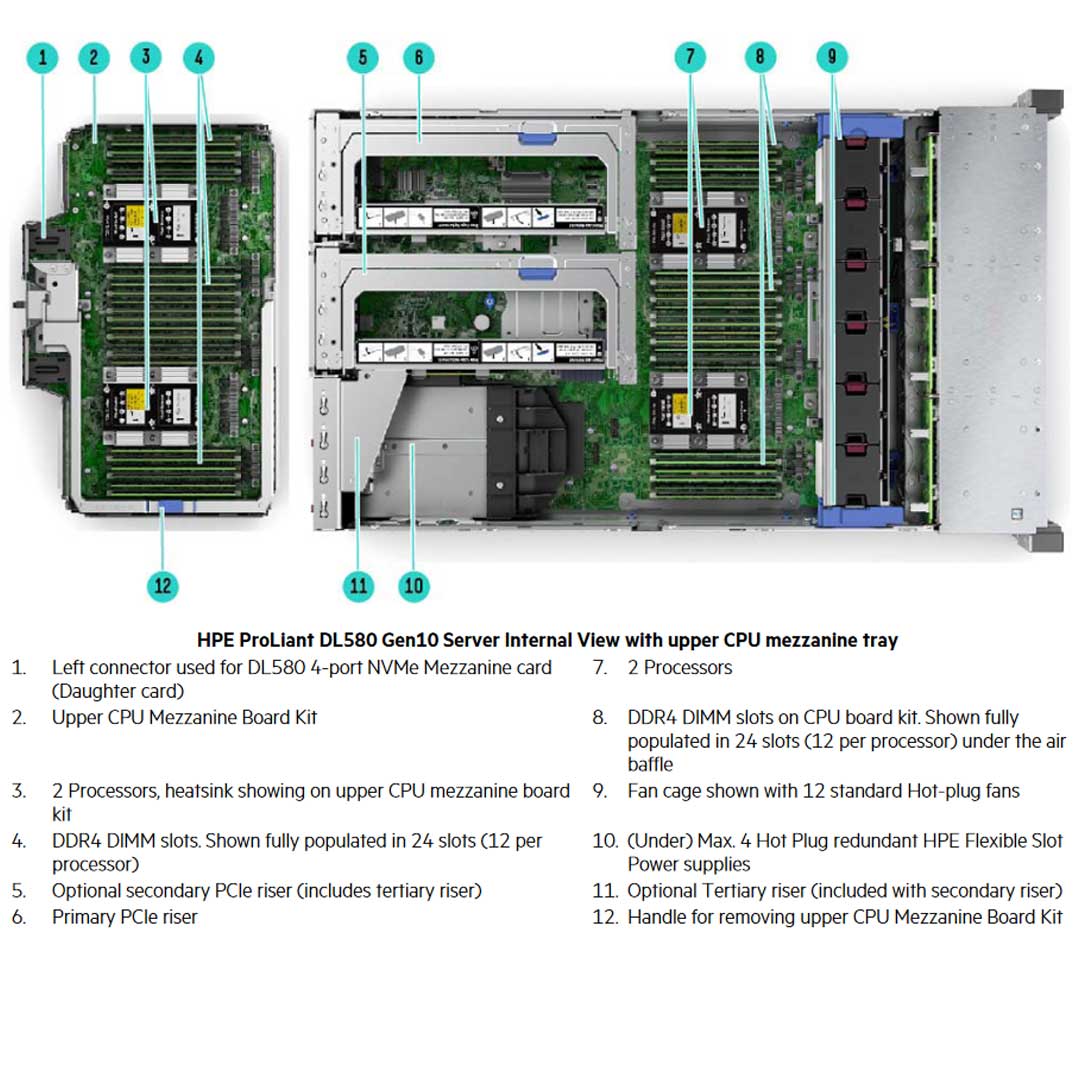

HPE Memory | (48) DIMMs

The HPE DL580 Gen 10 server is a 4 Socket, 48 DIMM system. But this can only be accomplished with the installation of the CPU Mezzanine Board Kit (872222-B21) or the v2 CPU Mezzanine Board Kit (P07991-B21). Both these kits provide 2 extra Processors and 24 Extra DIMMs. A CPU Mezzanine Board stacks on top of the processors in this 4U HPE Rack Server.

HPE DL580 Gen 10 CPU Mezzanine 4 Processors Kit

Persistent Memory Required DIMMs - Click to Open

Configuration	HPE Persistent Memory kits	Number of RDIMM or LRDIMM required
1P	1 2 4 6	6 4,6 or 8 6 6
2P	2 4 8 12	12 8, 12, or 16 12 12
4P	4 8 16 24	24 16, 24, or 32 24 24

This server supports up to 6 TB of LRDIMM memory or 12 TB with HPE Persistent Memory in configurations using 2nd-generation Intel Xeon Scalable processors. It features 48 DIMM slots (12 per processor). Memory speeds vary depending on the processor and configuration, with up to 2933 MT/s supported for certain setups. Note that mixing RDIMM and LRDIMM memory is not supported, and persistent memory is only compatible with 2nd-generation processors.

Max Memory Capacity:

(LRDIMM) 6 TB 48 x 128 LRDIMM @ 2933 MT/s 2 DPC
(RDIMM) 5 TB 24 x 64 GB RDIMM @ 2933 MT/s 1 DPC
(RDIMM) 3.0 TB 48 x 64 GB RDIMM @ 2666 MT/s 2 DPC
(HPE Persistent Memory) 12 TB 24 x 512 GB Memory Kit @ 2666 MT/s

NVMe configurations

The HPE ProLiant DL580 Gen10 supports up to 20 NVMe drives for high-performance storage, achievable through specific configurations. To maximize NVMe capacity, you need the Primary NVMe Slimline Riser (878360-B21) and the Secondary and Tertiary 8-slot or 9-slot Risers (872338-B21 or 872340-B21), along with all four processors installed. Each NVMe port supports two drives, and the drive count depends on riser and processor configurations. For example, 8 NVMe drives can be placed in Boxes 2 and 3, while Boxes 1 and 4 may support additional drives with specific configurations like the Universal Media Bay (872267-B21).

Limitations include partial functionality in some configurations (e.g., only 4 NVMe drives active in Box 1 without a fourth processor) and the need for precise riser and drive bay setups to avoid non-optimal configurations.

(20) NVMe Configurations

(4) Box 1 + (8) Box 2 + (8) Box 3

(2) Box 1 + (8) Box 2 + (8) Box 3 + (2) UMB

HPE strongly encourages customers to choose an NVMe configuration based on processor quantity and desired maximum NVMe drive needs. Configuring the server based on the recommendations presented in the table below will help guide customers.

NVMe Drive Configurations - Click to Open

Maximum NVMe Drives supported	Proc QTY	Riser Configuration	Drive Kit NVMe 8 SSD Express Bay (878362-B21)	Drive Kit Premium 6SFF and 2 NVMe (878364-B21)	Drive Kit UMB 2SFF Premium HDD (880121-B21)
2	1	Primary 6-slot Riser (872336-B21)	0	0	1
2	1	Primary 6-slot Riser (872336-B21)	0	1	0
2	2	Primary 6-slot Riser (872336-B21)	0	1	0
2	2	Primary 6-slot Riser (872336-B21)	0	0	1
2	2	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 9-slot Riser (872340-B21)	0	0	1
2	2	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 9-slot Riser (872340-B21)	0	1	0
2	2	Primary 7-slot Riser (878214-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	0	1
2	2	Primary 7-slot Riser (878214-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	1	0
4	2	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	1	1
4	2	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	2	0
2	3	Primary 6-slot Riser (872336-B21)	0	0	1
2	3	Primary 7-slot Riser (878214-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	0	1
2	3	Primary 7-slot Riser (878214-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	1	0
4	3	Primary 6-slot Riser (872336-B21)	0	2	0
4	3	Primary 6-slot Riser (872336-B21)	0	1	1
4	3	Primary 6-slot Riser (872336-B21)	1	0	0
4	3	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 9-slot Riser (872340-B21)	0	2	0
4	3	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 9-slot Riser (872340-B21)	0	1	1
6	3	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	1	0	0
6	3	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	3	0
6	3	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	2	1
16	3	Primary NVMe Slimline Riser (878360-B21); includes the 4-port NVMe Mezzanine card + Secondary and Tertiary 8-slot Riser (872338-B21)	2	0	0
16	3	Primary NVMe Slimline Riser (878360-B21); includes the 4-port NVMe Mezzanine card + Secondary and Tertiary 8-slot Riser (872338-B21)	2	0	0
18	3	Primary NVMe Slimline Riser (878360-B21); includes the 4-port NVMe Mezzanine card + Secondary and Tertiary 8-slot Riser (872338-B21)	2	0	1
2	4	Primary 6-slot Riser (872336-B21)	0	0	1
2	4	Primary 7-slot Riser (878214-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	1	0
2	4	Primary 7-slot Riser (878214-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	0	1
4	4	Primary 6-slot Riser (872336-B21)	0	2	0
4	4	Primary 6-slot Riser (872336-B21)	0	1	1
4	4	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 9-slot Riser (872340-B21)	0	2	0
4	4	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 9-slot Riser (872340-B21)	0	1	1
4	4	Primary 7-slot Riser (878214-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	2	0
4	4	Primary 7-slot Riser (878214-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	1	1
6	4	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	3	0
8	4	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	1	0	0
8	4	Primary 6-slot Riser (872336-B21) + Secondary and Tertiary 8-slot Riser (872338-B21)	0	3	1
16	4	Primary NVMe Slimline Riser (878360-B21); includes the 4-port NVMe Mezzanine card + Secondary and Tertiary 9-slot Riser (872340-B21)	2	0	0
18	4	Primary NVMe Slimline Riser (878360-B21); includes the 4-port NVMe Mezzanine card + Secondary and Tertiary 8-slot Riser (872338-B21)	2	0	1
20	4	Primary NVMe Slimline Riser (878360-B21); includes the 4-port NVMe Mezzanine card + Secondary and Tertiary 8-slot Riser (872338-B21)	3	0	0

HPE Smart Storage Controllers

The HPE Smart Array S100i SR Gen10 SW RAID operates exclusively in UEFI mode. For legacy support, an additional controller is required, and CTO orders should include the Legacy Mode Settings part (758959-B22). By default, the S100i SR RAID is disabled and must be manually enabled using the HPE FIO Enable Smart Array SW RAID option (784308-B21).

Only standup controllers are supported, with no support for AROC controllers. For configurations with up to 48 SFF drives, installation of both the 12Gb SAS Expander and the P824i-p Controller is necessary. If using Performance Smart Array controllers or Persistent Memory (Pmem DIMMs), an energy pack must be added. The system supports up to two HPE 96W Smart Storage Batteries (P01366-B21) with 145mm cable kits, which are sold separately and can support multiple devices (up to 24 per battery).

HPE ProLiant DL580 Gen10 CTO Rack Server Storage Controllers

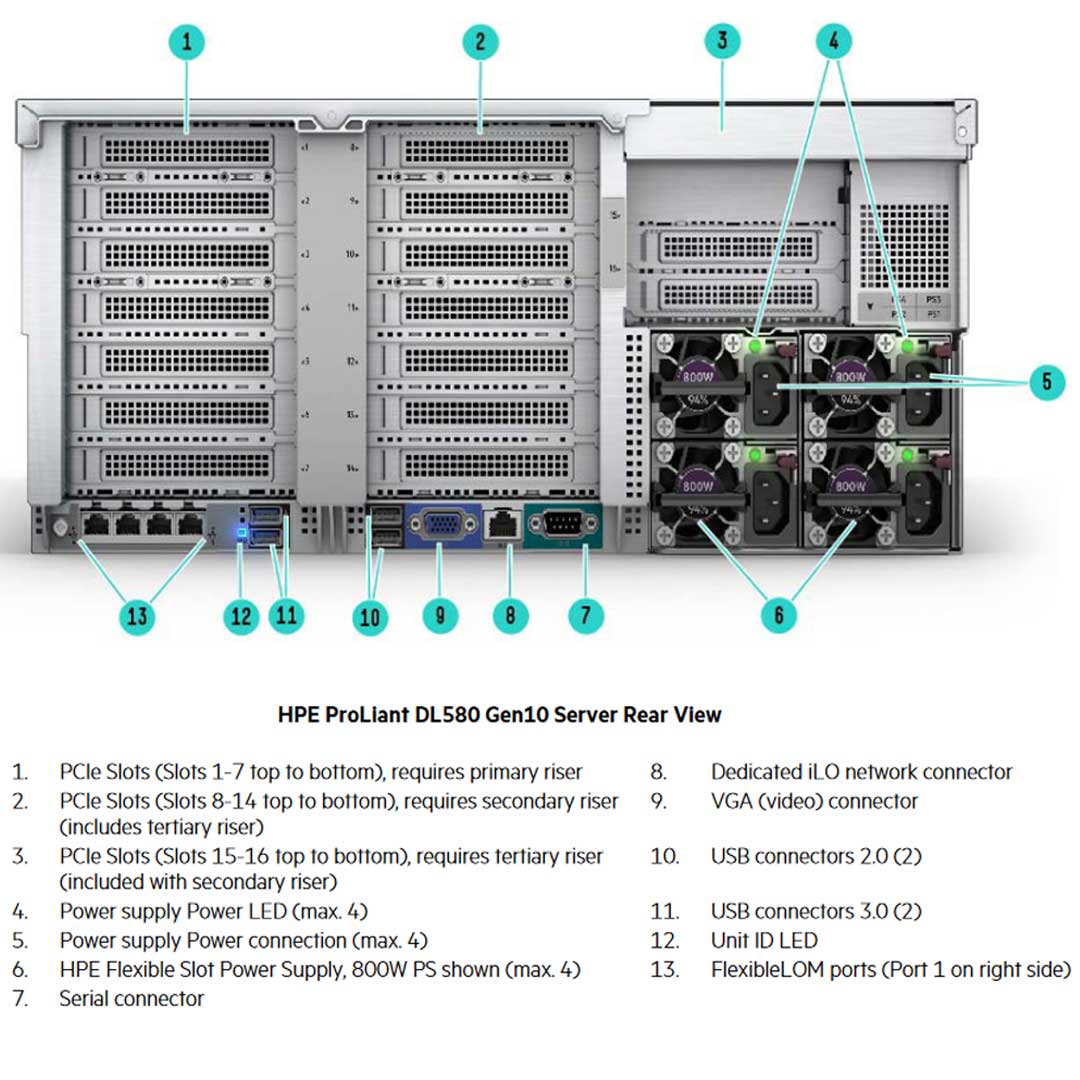

The DL580 Gen10 offers significant expansion capabilities with its 7-slot riser cage. However, its riser configuration is complex. The primary riser is essential, while the secondary riser, which includes a tertiary riser, can only be installed after the primary riser. This configuration limits the maximum number of risers to two. Importantly, internal storage controllers and SAS expanders are exclusively supported in the primary and tertiary risers, not the secondary.

PCIe Riser Specs - Click to Open

Primary 6-slot Riser (Optional) 872336-B21
Expansion Slot #	Technology	Bus/Connector Width	Form Factor/Connector	Notes
2	PCIe 3.0	x16	Full Length/Full Height	Proc 3
3	PCIe 3.0	x8	Full Length/Full Height	Proc 3
4	PCIe 3.0	x16	Full Length/Full Height	Proc 3
5	PCIe 3.0	x8	3/4 Length/Full Height	Proc 1
6	PCIe 3.0	x8	3/4 Length/Full Height	Proc 1
7	PCIe 3.0	x8	3/4 Length/Full Height	Proc 1
None (J4)	NVMe	x8	Slimline	Proc 1
None (J3)	NVMe	x8	Slimline	Proc 3

Primary 7-slot Riser (Optional) 878214-B21
Expansion Slot #	Technology	Bus/Connector Width	Form Factor/Connector	Notes
1	PCIe 3.0	x8	Full Length/Full Height	Proc 3
2	PCIe 3.0	x16	Full Length/Full Height	Proc 3
3	PCIe 3.0	x8	Full Length/Full Height	Proc 3
4	PCIe 3.0	x16	Full Length/Full Height	Proc 3
5	PCIe 3.0	x8	3/4 Length/Full Height	Proc 1
6	PCIe 3.0	x16	3/4 Length/Full Height	Proc 1
7	PCIe 3.0	x8	3/4 Length/Full Height	Proc 1

Secondary and Tertiary 8-slot Riser (Optional) 872338-B21
Expansion Slot #	Technology	Bus/Connector Width	Form Factor/Connector	Notes
9	PCIe 3.0	x16	Full Length/Full Height	Proc 4
10	PCIe 3.0	x8	Full Length/Full Height	Proc 4
11	PCIe 3.0	x16	Full Length/Full Height	Proc 4
12	PCIe 3.0	x8	Half Length/Full Height	Proc 2
13	PCIe 3.0	x8	Half Length/Full Height	Proc 2
14	PCIe 3.0	x8	Half Length/Full Height	Proc 2
15	PCIe 3.0	x8	Half Length/Full Height	Proc 2
16	PCIe 3.0	x8	Half Length/Full Height	Proc 2
None (J4)	NVMe	x8	Slimline	Proc 2
None (J3)	NVMe	x8	Slimline	Proc 4

Secondary and Tertiary 9-slot Riser (Optional) 872340-B21
Expansion Slot #	Technology	Bus/Connector Width	Form Factor/Connector	Notes
8	PCIe 3.0	x8	Full Length/Full Height	Proc 4
9	PCIe 3.0	x16	Full Length/Full Height	Proc 4
10	PCIe 3.0	x8	Full Length/Full Height	Proc 4
11	PCIe 3.0	x16	Full Length/Full Height	Proc 4
12	PCIe 3.0	x8	Half Length/Full Height	Proc 2
13	PCIe 3.0	x16	Half Length/Full Height	Proc 2
14	PCIe 3.0	x8	Half Length/Full Height	Proc 2
15	PCIe 3.0	x8	Half Length/Full Height	Proc 2
16	PCIe 3.0	x8	Half Length/Full Height	Proc 2

Primary NVMe Slimline Riser (Optional) 878360-B21 (includes the 4-port NVMe Mezzanine card)
Expansion Slot #	Technology	Bus/Connector Width	Form Factor/Connector	Notes
None (J4)	NVMe	x8	Slimline	Proc 3
None (J5)	NVMe	x8	Slimline	Proc 3
None (J6)	NVMe	x8	Slimline	Proc 3
None (J8)	NVMe	x8	Slimline	Proc 3

4-port NVMe Mezzanine card (included with 878360-B21)
Expansion Slot #	Technology	Bus/Connector Width	Form Factor/Connector	Notes
None	NVMe	x8	Slimline	Proc 3
None	NVMe	x8	Slimline	Proc 3
None	NVMe	x8	Slimline	Proc 3
None	NVMe	x8	Slimline	Proc 3

HPE DL580 Gen10 GPU / Workload Accelerator

A maximum of four GPU cards can be supported, two in primary riser expansion slots (2 and 4) and another two in secondary riser expansion slots (9 and 11). A GPU bracket (P00268-B21) kit is needed to install GPUs in slots 4 and 11 and must be ordered along with the GPU cable kits 871829-B21 (for P40, V100). If more than 3 GPUs are selected, then 2 of the 8-pin Keyed Cable Kit (871829-B21) are required.

Primary riser expansion slots 2 and 4 are connected to Processor 3. Secondary riser expansion slots 9 and 11 are connected to Processor 4. This mandates a minimum of 3 processors for a 2 GPU configuration and 4 processors for a 4 GPU configuration.

For GPGPU Thermal considerations please read the Quickspec manual. Not all GPUs can support the same number of drives or configurations.

HPE DL580 Gen 10 Rack Server PCIe Riser Options

GPU Specs - Click to Open

HPE Computational Accelerators
Part number	Card	Qty support	Processor support	PCIe speed
Q0V80C	NVIDIA Tesla P40 24GB Module	4	All	Gen3
Q9U36C	NVIDIA Tesla V100 PCIe 32GB Module	4	All	Gen3
R0Z45C	HPE NVIDIA Quadro RTX6000 GPU	4	All	Gen3
R1F97C	HPE NVIDIA Quadro RTX8000 GPU	4	All	Gen3
R9P49C	NVIDIA A100 80GB PCIe Non-CEC Accelerator for HPE	4	All	Gen3
R9S37C	NVIDIA A40 48GB PCIe Non-CEC Accelerator for HPE	4	All	Gen3

Networking Abilities | FlexibleLOM

Networking flexibility is provided by FlexibleLOM adapters, supporting 1 Gb, 10 Gb, 25 Gb, or 100 Gb Ethernet options. Standard configurations include 4-port 1 Gb adapters or higher-performing 10/25 Gb adapters. Custom configurations with additional NIC cards are possible, but ensure compatibility with risers and slot availability.

The FlexibleLOM has a dedicated slot on the side of the system board. This frees up a PCIe slot for other components like GPUs, or controllers.

HPE ProLiant DL580 Gen10 Rack Server FlexibleLOM Slot

HPE DL580 Gen10 Power Supply Units | (4)

12 Hot Plug Fans (with N+1 redundancy) (Standard)

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

1 + 1 Redundancy—In a two-power supply configuration, the server will continue to operate if one power supply fails. This mode is not applicable in a four-power supply configuration.
2 + 2 Redundancy—In a four-power supply configuration, the server will continue to operate if two power supplies fail or if one AC feed loses power.
3 + 1 Redundancy—In a four-power supply configuration, the server will continue to operate if a single power supply fails. The server will initiate operating system shutdown if two power supplies fail. No AC power redundancy is possible.
4 + 0 Redundancy—In a four-power supply configuration, there is no power supply redundancy. The server consumes more power than what redundancy can supply, and will initiate operating system shutdown if one or more power supplies

HPE DL580 Gen10 Plus Lights Out! iLO 5 ASIC

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.

UEFI

Configure and boot your servers securely with industry-standard Unified Extensible
Firmware Interface (UEFI).

RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards..

Intelligent Provisioning

Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.

Current Configuration

(List below serves as quick links to each section)

Server Chassis

HPE Processors

Bezel and more

HPE Memory

Drive Options

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE NVMe

PCI Riser Options

HPE M.2

Networking Adapters

FlexibleLOM

InfiniBand

Host Bus Adapters (HBAs)

Storage Controller

GPU

Optical Drives

Boot Devices

iLO Server Management

Rail Kit

Power Supply Unit (PSU)

Select Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Add to Cart

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Current Configuration

Server Chassis

HPE Processors

Bezel and more

HPE Memory

Drive Options

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE NVMe

PCI Riser Options

HPE M.2

Networking Adapters

FlexibleLOM

InfiniBand

Host Bus Adapters (HBAs)

Storage Controller

GPU

Optical Drives

Boot Devices

iLO Server Management

Rail Kit

Power Supply Unit (PSU)

Select Warranty

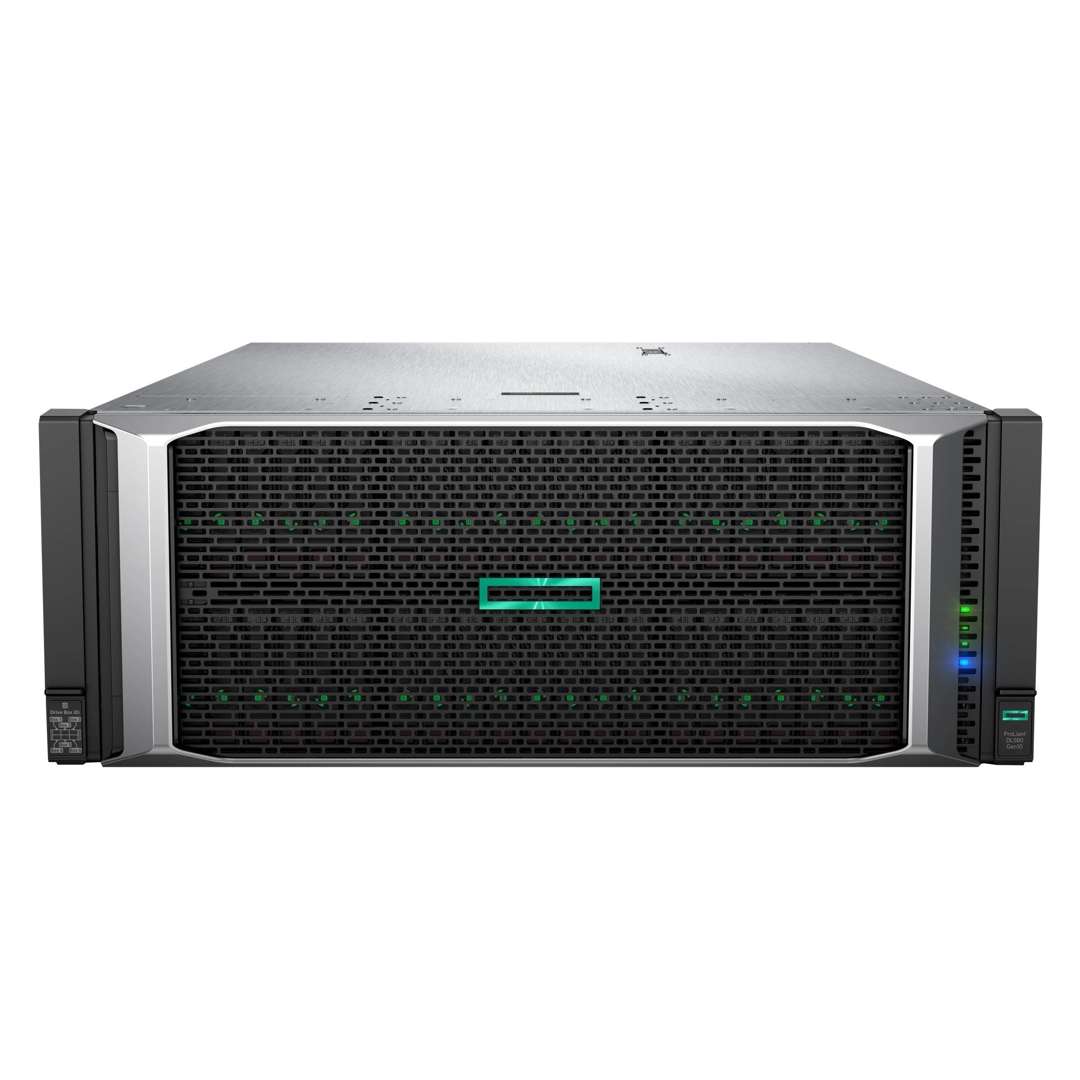

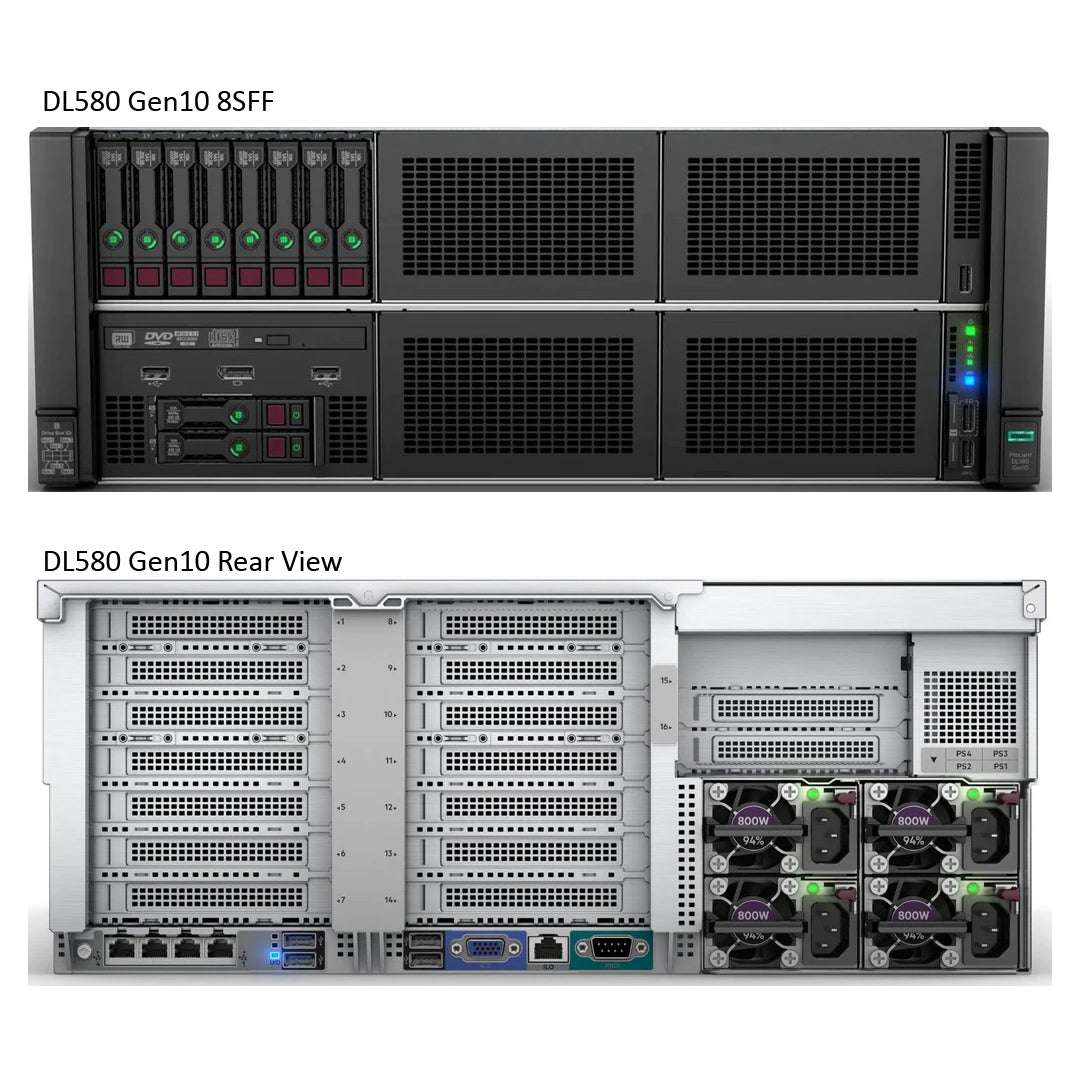

HPE ProLiant DL580 Rack Server (G10) CTO

Multi-Quantity Discounts Available for ALL Line Items

READ ME

Server Chassis

HPE Processors

Intel Xeon Gold

Intel Xeon Platinum

Bezel and more (Optional)

HPE Memory (Optional)

Drive Options (Optional)

HPE SFF Drives SAS (2.5in) (Optional)

HPE SFF Drives SATA (2.5in) (Optional)

HPE NVMe (Optional)

PCI Riser Options (Optional)

HPE M.2 (Optional)

Networking Adapters (Optional)

FlexibleLOM (Optional)

InfiniBand (Optional)

Host Bus Adapters (HBAs) (Optional)

Storage Controller (Optional)

GPU (Optional)

Optical Drives (Optional)

Boot Devices (Optional)

iLO Server Management (Optional)

Rail Kit (Optional)

Power Supply Unit (PSU)

Select Warranty

What's New

Ideal for:

Persistent Memory Required DIMMs - Click to Open

NVMe Drive Configurations - Click to Open

PCIe Riser Specs - Click to Open

GPU Specs - Click to Open

Current Configuration

Server Chassis

HPE Processors

Bezel and more

HPE Memory

Drive Options

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE NVMe

PCI Riser Options

HPE M.2

Networking Adapters

FlexibleLOM

InfiniBand

Host Bus Adapters (HBAs)

Storage Controller

GPU

Optical Drives

Boot Devices

iLO Server Management

Rail Kit

Power Supply Unit (PSU)

Select Warranty

You may also like
