Dell PowerEdge R740xd2 Rack Server | Configurable

Dell

| CTO Servers



READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Processors

Supports up to (2) Intel Xeon Scalable Processor
Do not mix processors.

Intel Xeon Gen 1 Scalable Processors

Intel Xeon Gen 2 Scalable Processors

Bezel (Optional)

Security bezel

Rear Drive Cage (Optional)

Up to 2 x 3.5” SAS/SATA (HDD) max 32TB
Or up to 2 x 2.5” SAS/SATA (SSD) max 15.36TB
The 2.5" Drives will be installed in a 3.5" HD Carrier

Memory

8 DIMMs per processor (up to 16 DIMMs in a dual-processor configuration)

HDD 3.5" Drives (Optional)

Supports up to (12) Drives in Bay 1, (12) Drives in Bay 2, and (2) Drives in the Rear Drive Cage.

HDD 2.5" Drives (Optional)

These drives will come in a 3.5" HD Carrier.
Supports up to (8) Drives In Bay 2 and (2) Drives in the Rear Drive Cage.

SSD 2.5" Drives (Optional)

These drives will come in a 3.5" HD Carrier.
Supports up to (8) Drives In slots 16 through 23.

Network Daughter Card (rNDC) LOM (Optional)

Riser Options (Optional)

The R740xd2 supports a no riser option as well.
The only risers that can be installed together are the Left and Right Low-Profile risers.

RAID Controllers (Optional)

Embedded S140 software RAID installed by default
The Mezzanine PERC's are installed with a dedicated PERC Riser slot next to the CPU.

Boot Optimized Storage Subsystem (BOSS-S1): (Optional)

You can select up to (2) M.2 SSD Cards

Internal Dual SD Module (IDSDM) (Optional)

Rail Kits (Optional)

Trusted Platform Module (TPM) (Optional)

iDRAC9 Remote Options (Optional)

Default iDRAC9 Express

Power Supplies

Supports up to (2) PSU's

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs
Form Factor:

2U rack server

Processor | Max: 22 Cores

2x Gen2 Intel Xeon Scalable

Memory | Max: 1TB

16 ECC DDR4 RDIMM 2933Mhz
LRDIMM is not supported.

Storage | Max: 384TB Front + Mid, 32TB Rear

Front bays: 12x LFF SAS/NL-SAS/SATA (HDD/SSD)
Mid bay: 12x LFF SAS/SATA (HDD/SSD)
Rear bay: 2x LFF or SFF SAS/SATA (HDD/SSD)
Mixed Bay: 16 HDD + 8 SSD *SSD in slots 16 through 23
NOTE: 2.5" drives in 3.5" carriers are supported for SAS, and SATA SSD.

Boot Options

Boot Optimized Server Storage (BOSS)
Internal Dual SD module (IDSDM) w/ a 16GB vFlash card

RAID Controller:

S140 (software RAID)
H330, H730P, H740P, H840, HBA330, 12Gbps SAS HBA

NIC/LOM | Max Speed: 25GbE SPF+

2 x 1GbE BaseT LOM + (optional LOM riser)
(Many Options to choose from)

Remote Management:

iDRAC9 Express (default) with Lifecycle Controller

PCIe Slots:

Up to 5 PCIe 3.0 slots (3x 16 + 2x 4) + Dedicated LOM slot

GPU: None
Other Versions

(Click to View)

Ideal for:
  • Data Analytics
  • Video Streaming
Hard Drives Configurations Options
  • 24x 3.5" (12+12 with single PERC)
  • 24x 3.5" front + 2x 3.5" rear (12+12+2 with single PERC)
  • 24x 3.5" front + 2x 3.5" rear (12+12+2 rear chipset SATA)
  • 24x 3.5" front + 2x 3.5" rear (Dual PERC: Bay 1 and 2 on first PERC, Bay 0 on second PERC)

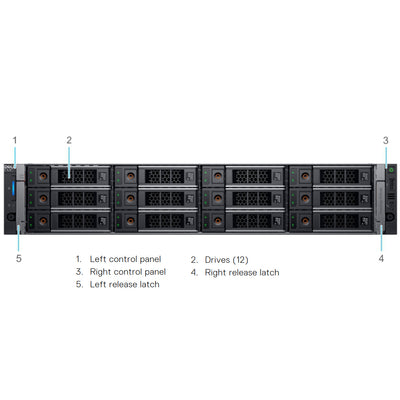

Image of the Front Drive Cage for the R740xd2 Rack server by Dell. Front Drive Cage

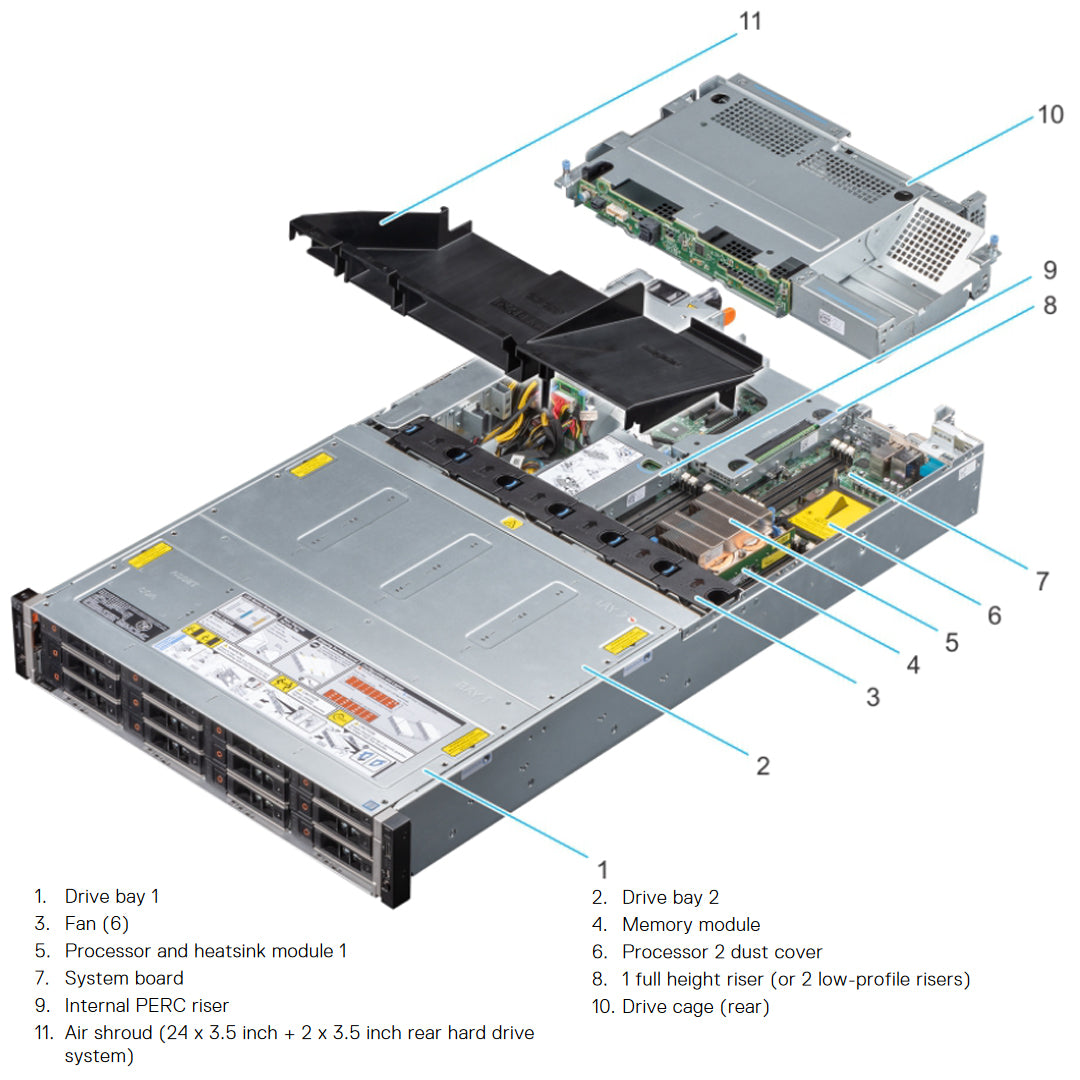

Image of the Mid Drive Cage for the R740xd2 Rack server by Dell. Mid Drive Cage
Image of the Rear Drive Cage for the R740xd2 Rack server by Dell. Rear Drive Cage

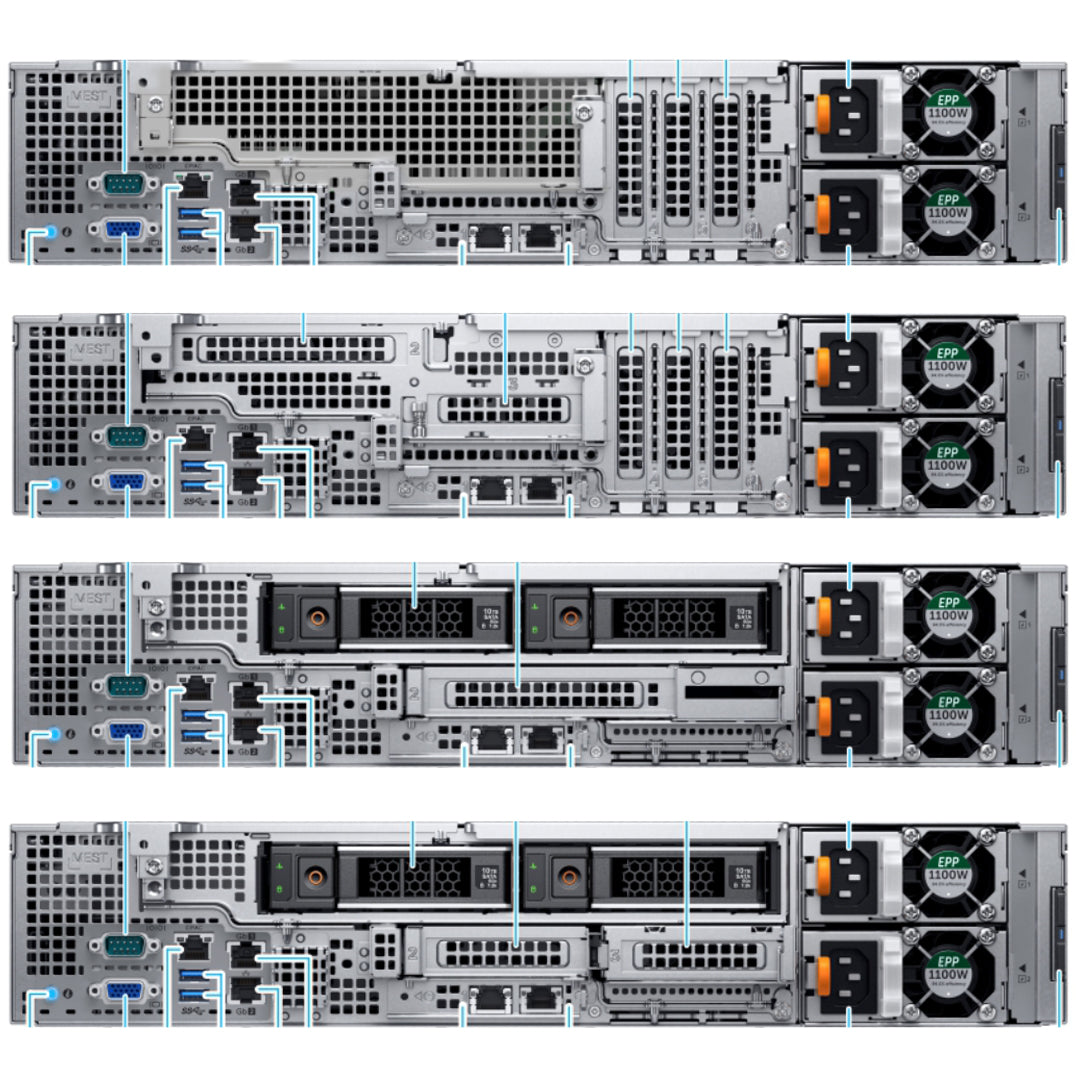

Chassis options Configurations
Twenty-four drive chassis

Front-accessible storage options include up to twenty-four 3.5" SATA or nearline SAS drives across slots 0–23, or up to eight 2.5" SAS/SATA SSDs installed in slots 16–23.
Twenty-four front + two rear drive chassis

Storage flexibility includes up to twenty-four 3.5" SATA or nearline SAS drives, front-accessible in slots 0–23, plus up to two additional 3.5" SAS/SATA drives accessible from the rear.

NOTE:

Slot placement varies by configuration — single PERC setups use slots 24–25, while dual PERC configurations, including S140 software RAID, use slots 0–1.
Memory

The Dell EMC PowerEdge R740xd2 offers 16 DDR4 registered DIMM (RDIMM) slots, supporting memory bus frequencies of 1866, 2133, 2400, 2666, and 2933 MT/s.

DIMM type DIMM rank DIMM capacity Single processor Dual processors
Min RAM Max RAM Min RAM Max RAM
RDIMM Single rank 8 GB 8 GB 80 GB 16 GB 128 GB
Dual rank 16 GB 16 GB 160 GB 32 GB 256 GB
Dual rank 32 GB 32 GB 320 GB 64GB 512 GB
Dual rank 64 GB 64 GB 640 GB 128 GB 1024 GB
Storage Controllers

A dedicated system board slot houses the storage controller PERC on this system, using a distinctive setup where a riser card holds a Mini-Mono style PERC card.

Internal controllers External controllers
● PERC H740P
● PERC H730P
● PERC H330
● HBA330
● S140		 ● 12 Gbps SAS HBA
● PERC H840
Image of the PERC Riser in the R740xd2 Rack server by Dell.

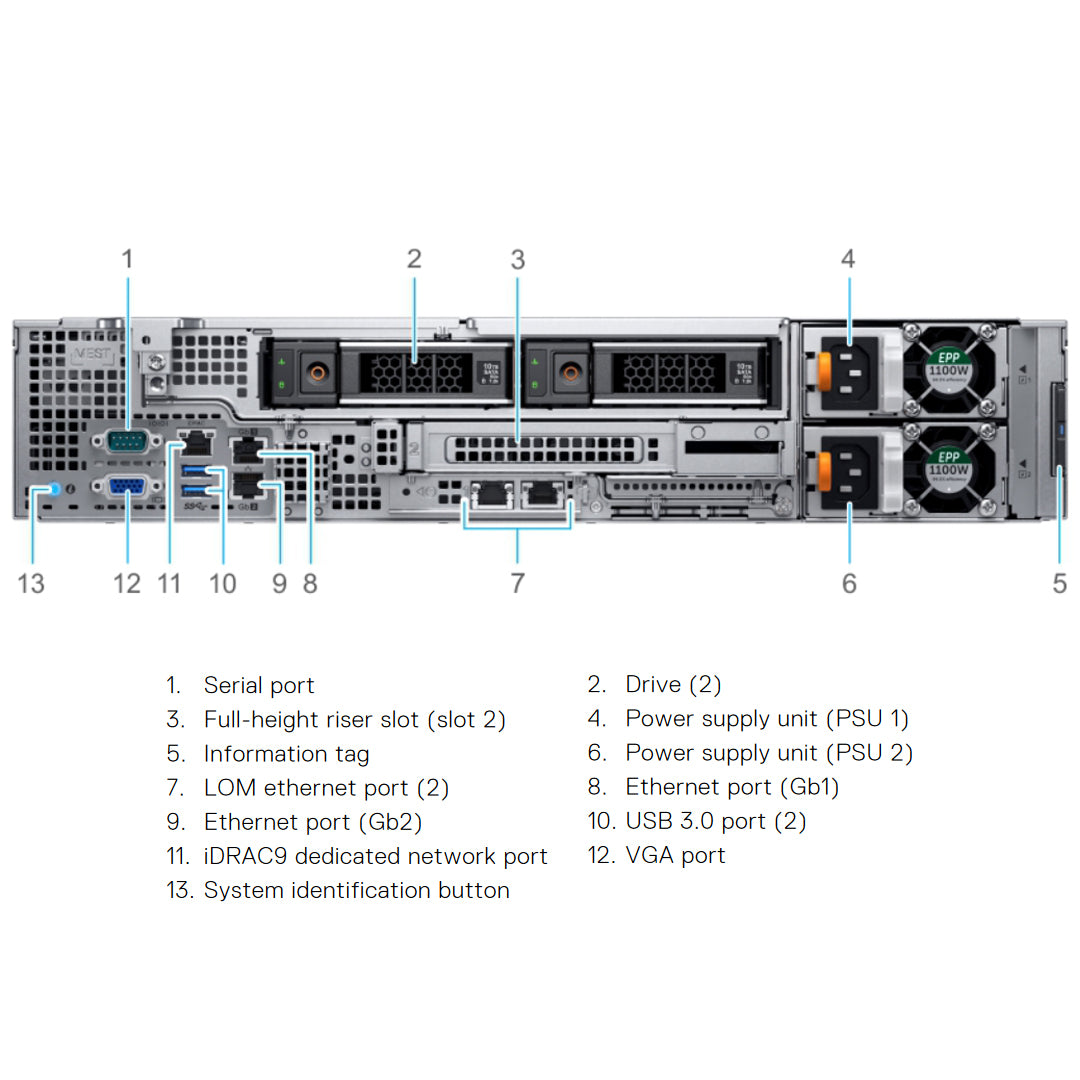

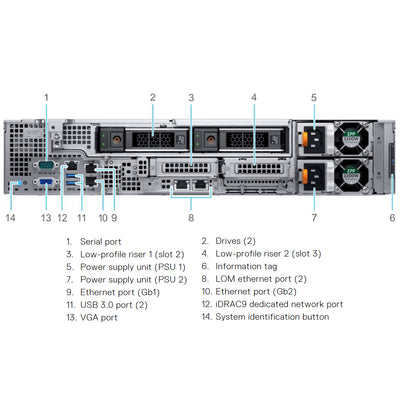

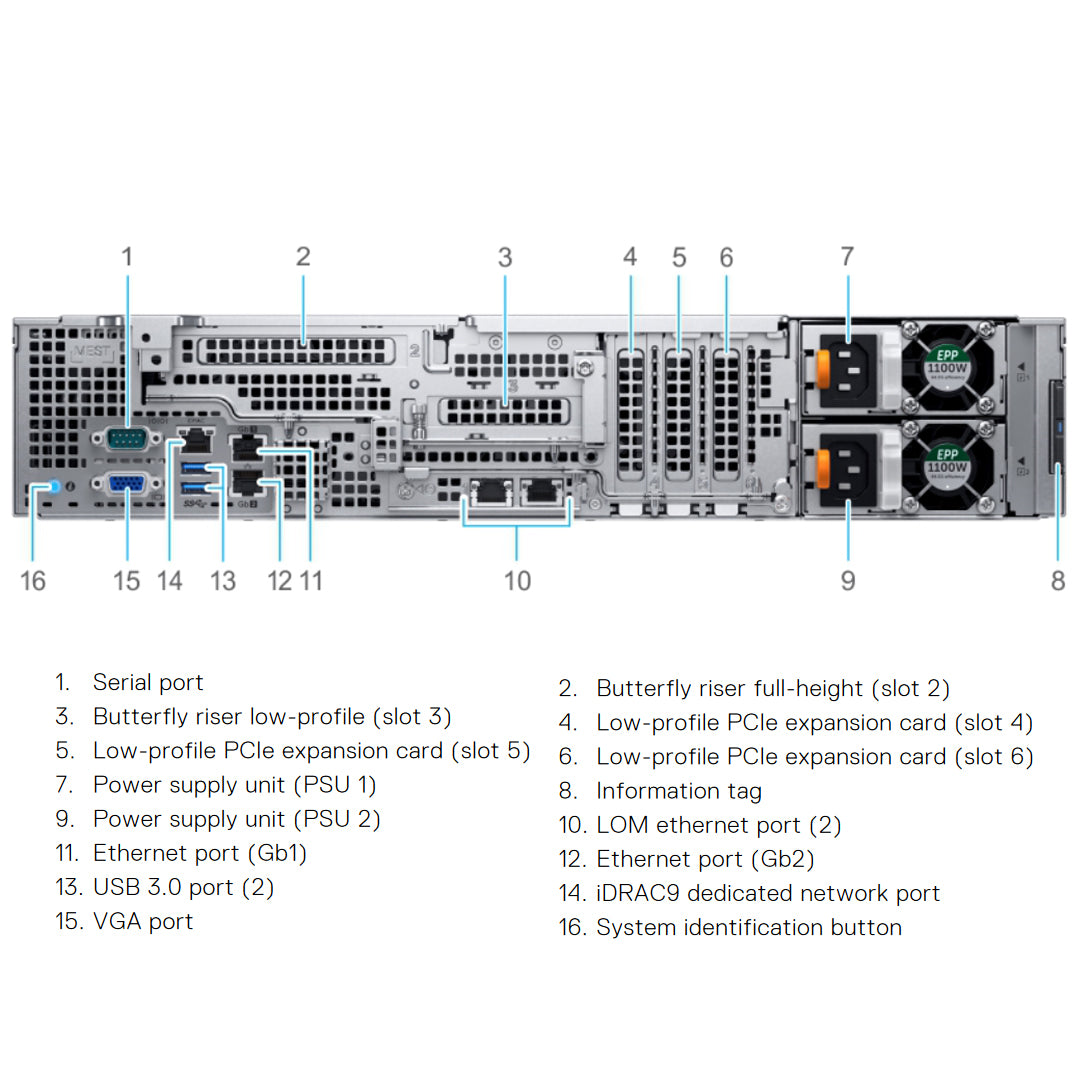

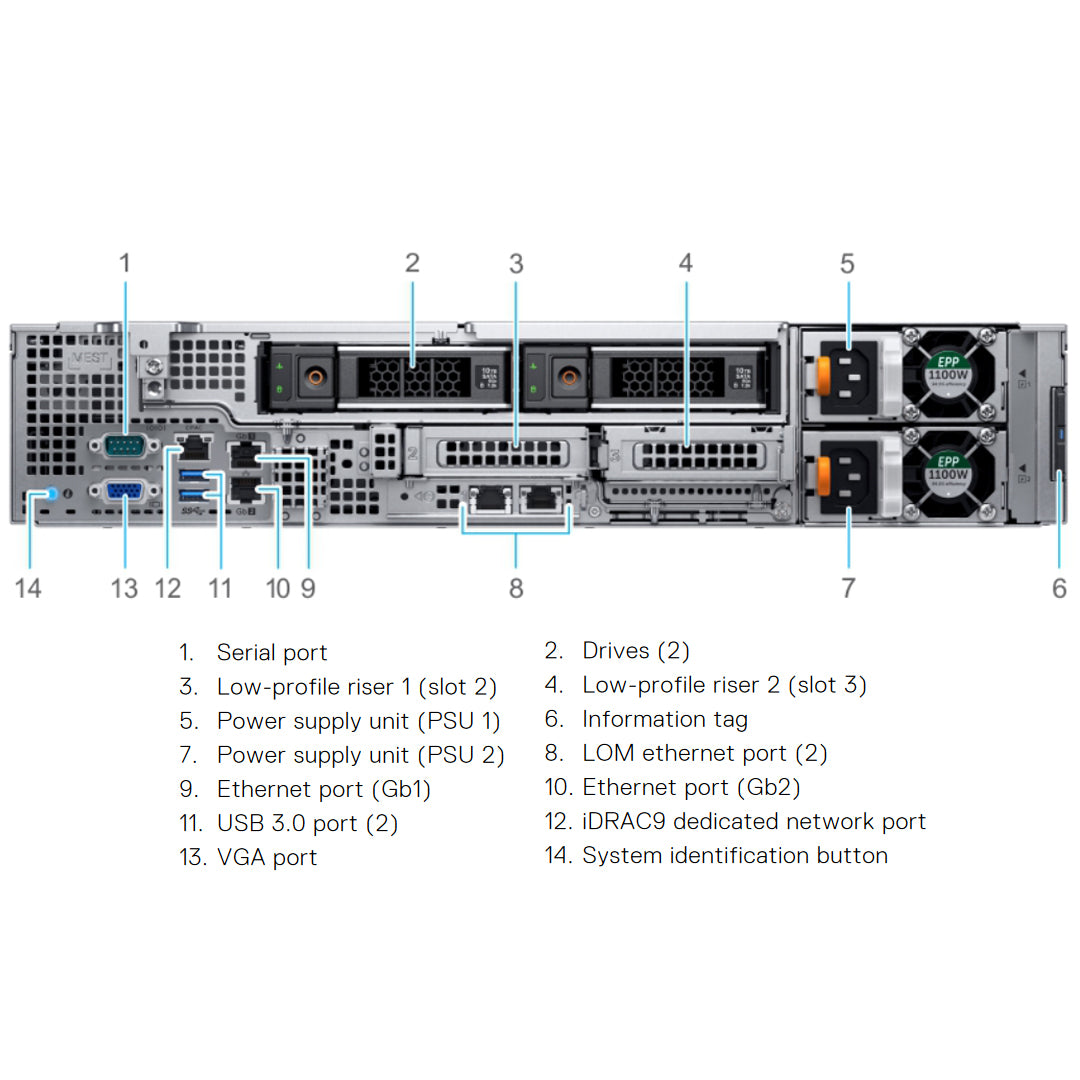

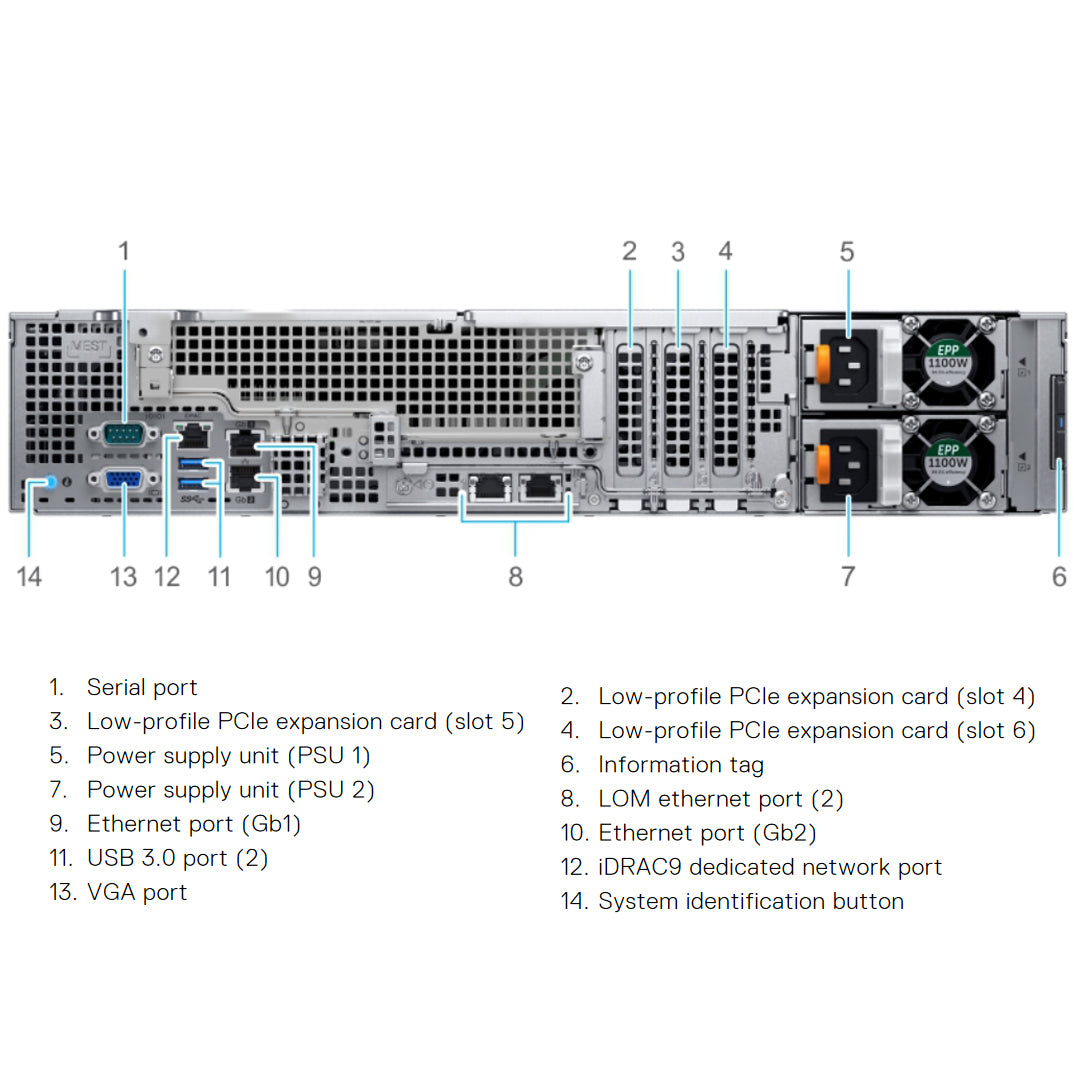

PCIe Expansion Riser Slots Options

Three PCIe riser kits are available for the R740xd2, alongside up to 3 PCIe slots on the system board that work without any riser card or kit — though not every configuration supports these slots. See the manual or table below for details.

Processor 1 Processor 2 PCH
PCie slots on the riser Card support Riser 2 (LOM riser) Right riser Butterfly riser On Planar Internal riser Left riser On Planar On Planar
PCIe slot-1 Unique to Dell x8
PCIe slot-2 Low profile half length x16
PCIe slot-2 Full height half length x16 x8 or x16
PCIe slot-3 Low profile half length x8 x16
PCIe slot-4 Low profile half length x16
PCIe slot-5 NOTE: PCIe slot 5 has open backend and bigger PCIe card connections can be inserted in this slot. Low profile half length x4
PCIe slot-6 Low profile half length x4
Image of the Split Butter-fly Riser Kit for the R740xd2 Rack server by Dell. Split Butter-Fly Riser
Image of the Full Height Riser Kit for the R740xd2 Rack server by Dell. Full Height Riser
Image of the Low-Profile Riser Kit for the R740xd2 Rack server by Dell. Low-Profile Riser
Power & Dimensions
Power Supply Unit (PSU)
PSU Class Frequency
1100 W AC Platinum 50/60 Hz
750 W AC Platinum 50/60 Hz
750 W Mixed Mode Platinum 50/60 Hz
Dimensions & Weight
  • Length: 879.826mm (34.26")
  • Width: 482.0 mm (18.9")
  • Height: 86.8 mm (3.41")
  • Weight: 40 kg (88.2 lb)

Current Configuration

(List below serves as quick links to each section)

Server Chassis

Processors

Bezel

Rear Drive Cage

Memory

HDD 3.5" Drives

HDD 2.5" Drives

SSD 2.5" Drives

Network Daughter Card (rNDC) LOM

Riser Options

RAID Controllers

Boot Optimized Storage Subsystem (BOSS-S1):

Internal Dual SD Module (IDSDM)

Rail Kits

Trusted Platform Module (TPM)

iDRAC9 Remote Options

Power Supplies

ECS Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

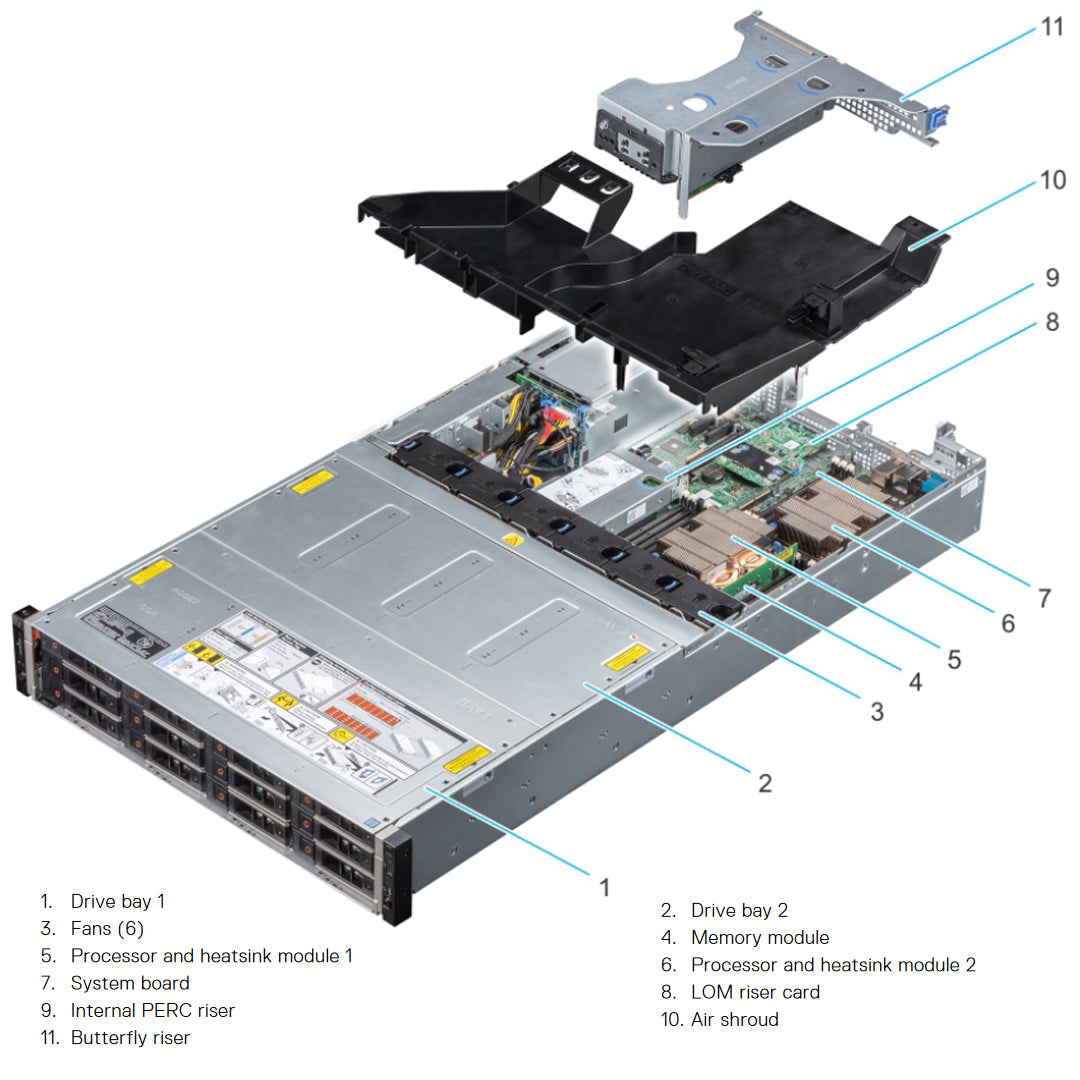

Base Standard Capabilities

FeaturesTechnical specification
ProcessorUp to two 2nd Generation Intel® Xeon® Scalable processors, up to 22 cores each
Memory16 DDR4 RDIMM slots, up to 2933MT/s, 1TB max
Supports registered ECC DDR4 DIMMs only
Storage controllersInternal Controllers: PERC H330, H730P, HBA330
External Controllers (RAID): 12Gbps SAS HBA
Software RAID:S140
Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB
Internal Dual SD Module
Drive baysFront bays:
  • Up to 24 x 3.5” SAS/SATA (HDD) max 384TB
  • Or 16 x 3.5” SAS/SATA (HDD) + up to 8 x 2.5” SAS/SATA (SSD) max 317.44TB
Rear bays:
  • Up to 2 x 3.5” SAS/SATA (HDD) max 32TB
  • Or up to 2 x 2.5” SAS/SATA (SSD) max 15.36TB
Power supplies750W Platinum
750W 240VDC Platinum
1100W Platinum
1100W 380VDC Platinum
Hot plug power supplies with full redundancy option
6 fans with N +1 redundancy
DimensionsForm factor: Rack (2U)
Height: 86.8mm (3.4”)
Width: 448.0mm (17.6”)
Depth: 810.0mm (31.9”)
Weight: 40.0kg (88.2lbs)
*Dimensions do not include the PSU handle, rack latches or bezel
Embedded managementiDRAC9, iDRAC Direct
BezelOptional security bezel
OpenManage SoftwareOpenManage Enterprise, OpenManage Power Center, OpenManage Mobile
Integrations and connectionsIntegrations:
Microsoft System Center
VMware vCenter
BMC Software
Red Hat Ansible Modules		Connections:
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition,
Micro Focus Operations Manager i (OMi)
Nagios® Core
Nagios® XI
ToolsDell EMC RACADM CLI
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
iDRAC Service Module
iDRAC RESTful API with Redfish
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
SecurityTPM 1.2/2.0 optional
Cryptographically signed firmware
Secure Root of Trust
Secure Boot
Secure Erase
System Lockdown (requires iDRAC Enterprise or Datacenter)
I/O & PortsNetwork daughter card options:
  • 2 x 1GbE BaseT LOM + (optional LOM riser)
  • 2 x 1GbE BaseT or 2 x10GbE SFP+
  • 2 x 10GbE BaseT or 2x 25GbE SPF+
  • 2 x 16Gb Fibre Channel
Front Ports:
  • 1 x USB 3.0
  • 1 managed (micro-usb)
  • dedicated IDRAC Direct USB
Rear Ports:
  • Video
  • Serial
  • iDRAC dedicated LAN
  • 2 x USB 3.0
Internal ports:
  • 1 x USB 3.0
Video card:
  • VGA
PCIe:
  • Up to 5 x Gen3 slots (3 x16 + 2 x4)
Supported operating systemsCanonical® Ubuntu® LTS
Citrix® Hypervisor
Microsoft Windows Server® LTSC with Hyper-V
Oracle® Linux
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
