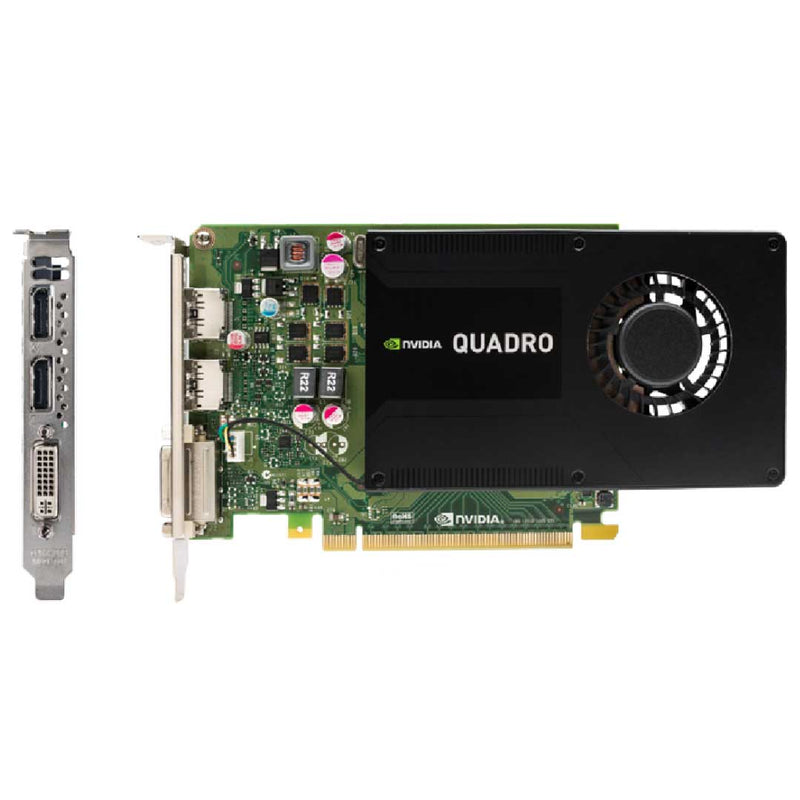

The NVIDIA Quadro K2200 delivers exceptional power-efficient 3D application performance. 4 GB of GDDR5 GPU memory with fast bandwidth enables you to create large, complex models, and a flexible single-slot form factor makes it compatible with even the most space and power-constrained chassis. Plus, an all-new display engine drives up to four displays with DisplayPort 1.2 support for ultra-high resolutions up to 3840x2160 @ 60 Hz with 30-bit color.
FEATURES
- Two DisplayPort 1.2 Connectors
- DisplayPort with Audio
- DVI-I Dual-Link Connector
- VGA Support
- NVIDIA nView ™ Desktop Management Software Compatibility
- HDCP Support
- NVIDIA Mosaic
SPECIFICATIONS
- GPU Memory 4 GB GDDR5
- Memory Interface 128-bit
- Memory Bandwidth 80.0 GB/s
- NVIDIA CUDA Cores 640
- System Interface PCI Express 2.0 x16
- Max Power Consumption 68 W
- Thermal Solution Ultra-Quiet Active Fansink
- Form Factor 4.376” H × 7.97” L, Single Slot, Full Height
- Display Connectors DVI-I DL + 2x DP 1.2
- Max Simultaneous Displays 3 Direct, 4 DP 1.2 Multi-Stream
- Max DP 1.2 Resolution 3840 x 2160 at 60 Hz
- Max DVI-I DL Resolution 2560 × 1600 at 60 Hz
- Max DVI-I SL Resolution 1920 × 1200 at 60 Hz
- Max VGA Resolution 2048 × 1536 at 85 Hz
- Graphics APIs Shader Model 5.0, OpenGL 4.53 , DirectX 11.24 , Vulkan 1.03
- Compute APIs CUDA, DirectCompute, OpenCL™
Compatible With:
- Dell R6615
- Dell R6625
