2U rack server
Storage | Max: 12012 LFF SAS, NL-SAS, SED (HDD/SSD)
Mix and match drives:Supported

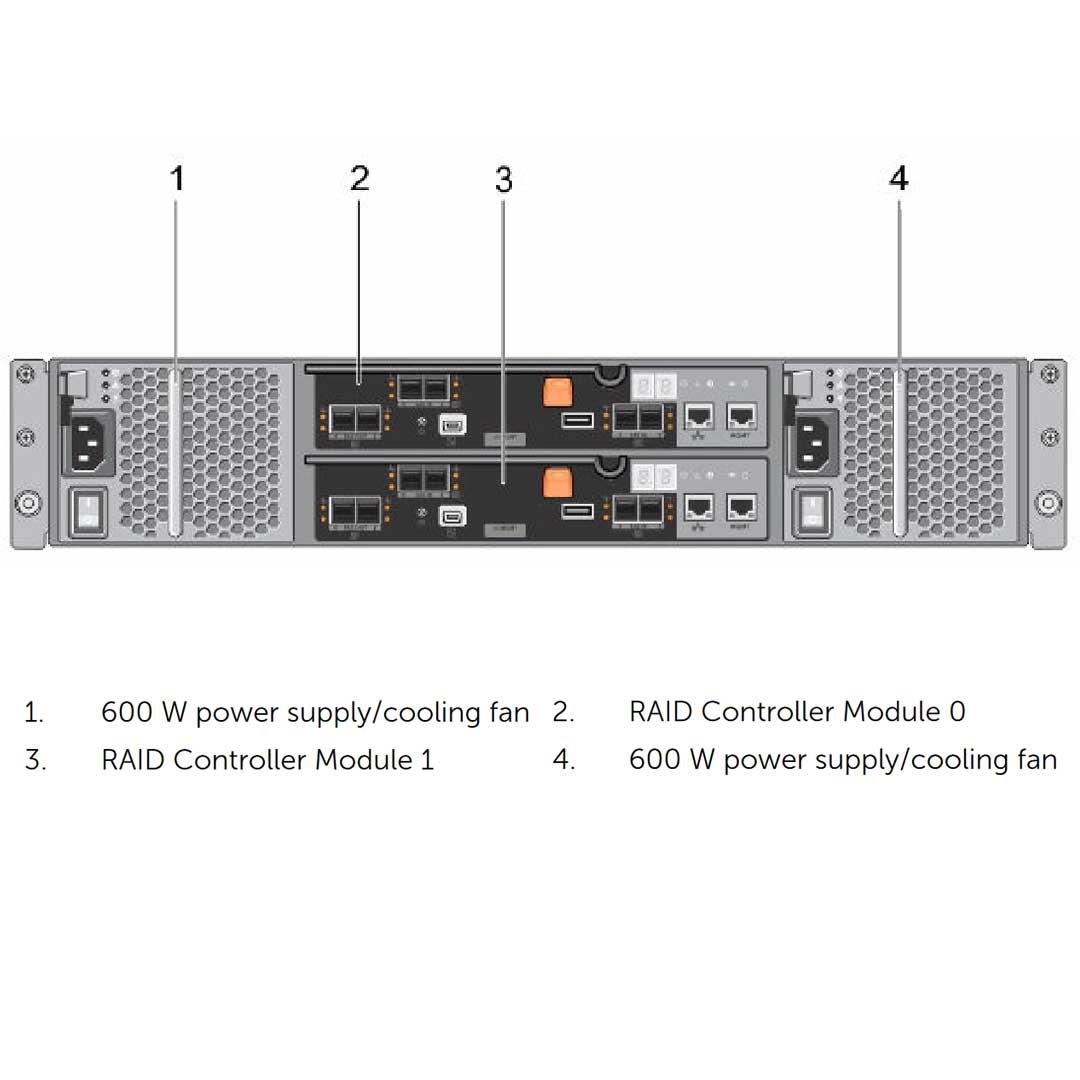

Controllers:Supports up to 2
Cache Per Controller:4GB or 8GB
Connection Controller Types:- 4 x 12Gb SAS
- 2 x 10GBASE-T iSCSI and 2 x 12Gb SAS ports per controller
- 4 x 16Gb Fibre Channel and 2 x 12Gb SAS ports per controller
- Four 12Gb SAS Host Connectivity
- Two 6Gb SAS Expansion Connectivity
- One RJ-45 1Gb Ethernet Remote Management
- One RJ-45 1Gb Reserved Port
Host Connectivity:
Single Controller Models:
Supports up to 4 servers directly connected
Dual Controller Models:Supports up to 8 servers directly connected in a non-HA configuration or 4 servers in a HA configuration
Expansion Storage:Scale up to 120 total drives using MD1200 and/or MD1220 expansion enclosures
MD3200 Series
Data Speeds1Gb iSCSI
6Gb SAS
Server Options
MD3060e
MD3200 12 Bay SAS
MD3200i 12 Drive iSCSI
MD3220 24 Drives SAS
MD3220i 24 Drives iSCSI
MD3400 Series
Speeds12Gb SAS
10GBase-T iSCSI
16Gb FC
Server OptionsMD3400 12 Drives
MD3420 24 Drives
MD3460 60 Drives
MD3600 Series
Speeds10GBase-T iSCSI
8Gb FC
Server Options
MD3600i 12 Drives iSCSI
MD3600f 12 Drives Fibre
MD3620i 24 Drives iSCSI
MD3620f 24 Drives Fibre
MD3660i 60 Drives iSCSI
MD3660f 60 Drives Fibre
MD3800 Series
Speeds10GBase-T iSCSI + 12Gb SAS
16 FC + 12Gb SAS
Server Options
MD3800i 12 Drives iSCSI
MD3800f 12 Drives Fibre
MD3820i 24 Drives iSCSI
MD3820f 24 Drives Fibre
MD3860i 60 Drives iSCSI
MD3860f 60 Drives Fibre
The new 12Gb SAS controllers offer the latest technology in high-speed connectivity. The MD3 models offer improved performance and double the existing bandwidth. Your data should be available when you need it. The MD3 Series offers 8GB cache on dual-controller options in SAS, providing up to 16 GB total cache per array. The next generation of MD3 has the efficiency you need to meet your demanding I/O requirements. You get high availability and high performance without sacrificing ease of use.

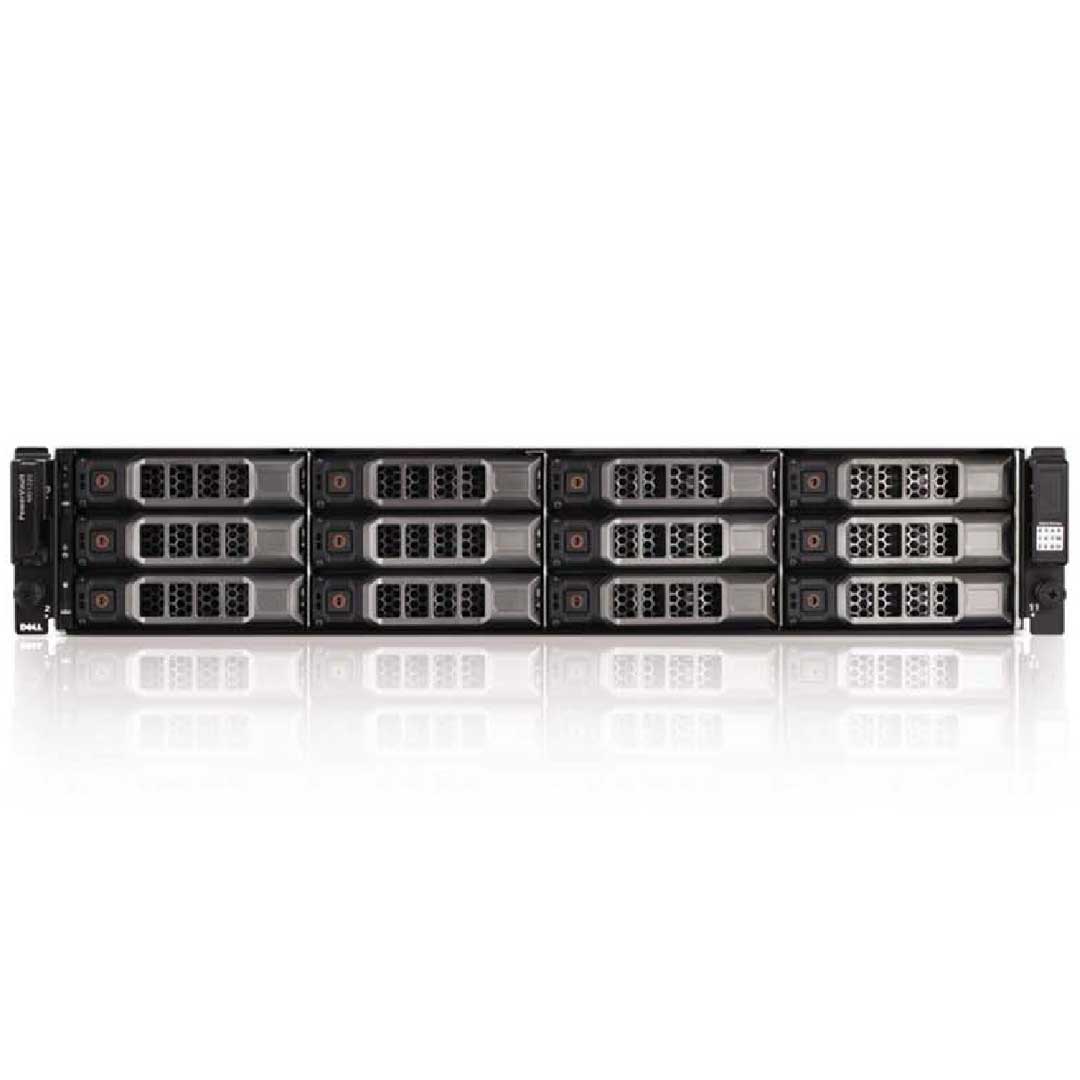

Reduce the effort required to store and manage your data. The MD3 Series is available in 12 x 3.5” hard drive or 24 x 2.5” hard drive form factors, or in the high-density enclosure that holds up to 60 x 2.5” or 3.5” hard drives. And because your storage needs are almost guaranteed to grow, capacity can be added as you need it. The 12- and 24-drive form factors can scale up to 120 drives when attached to the PowerVault MD1200 or MD1220 expansion enclosure. The 60-HDD array can expand to 180 drives with its own, specially designed high-density enclosure.
- Up to 8 direct attached servers with single I/O paths to a dual controller storage array
- Up to 4 direct attached servers with redundant I/O paths to a dual controller storage array
- Up to 32 physical hosts can be supported on a single storage system (includes both single and dual controller models)
- Up to 120 total drives consisting of SSD, SAS and/or near-line SAS drives per storage system
- SSD drives are limited to a single shelf (12 drives for a MD3400 or 24 drives for a MD3420 or 60 drives for a MD3460)
- MD1200 and/or MD1220 storage enclosures can be add to a MD3400 or MD3420 storage array for expansion up to 120 total hard drives
- MD3060e storage enclosure can be add to a MD3460 storage array for expansion up to 180 drives
- Up to 30 hard disk drives per disk group in a RAID 5 & RAID 6
- Up to 120 hard disk drives per disk group in a RAID1/10
- RAID level configurations 0, 1, 5, 6 or 10.
- Disk groups with different RAID levels can coexist in a single storage system.
- Disk groups are comprised of either SSD or SAS drives. A given disk group cannot have both SSD and SAS drives.
- Up to 512 virtual disks (LUNs) per storage array
- Each virtual disk can support 128 snapshots, with a maximum of 512 snapshots per storage array.
