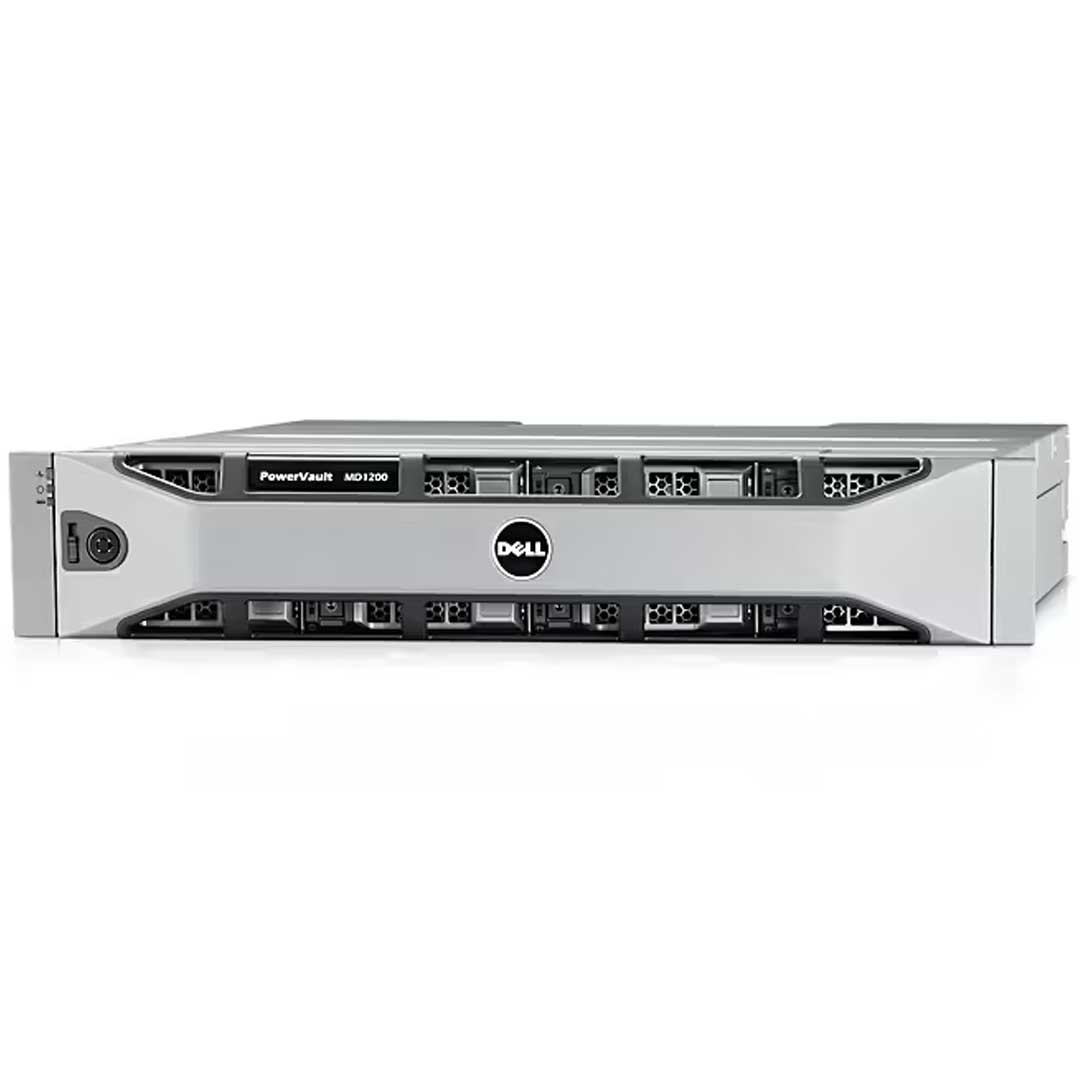

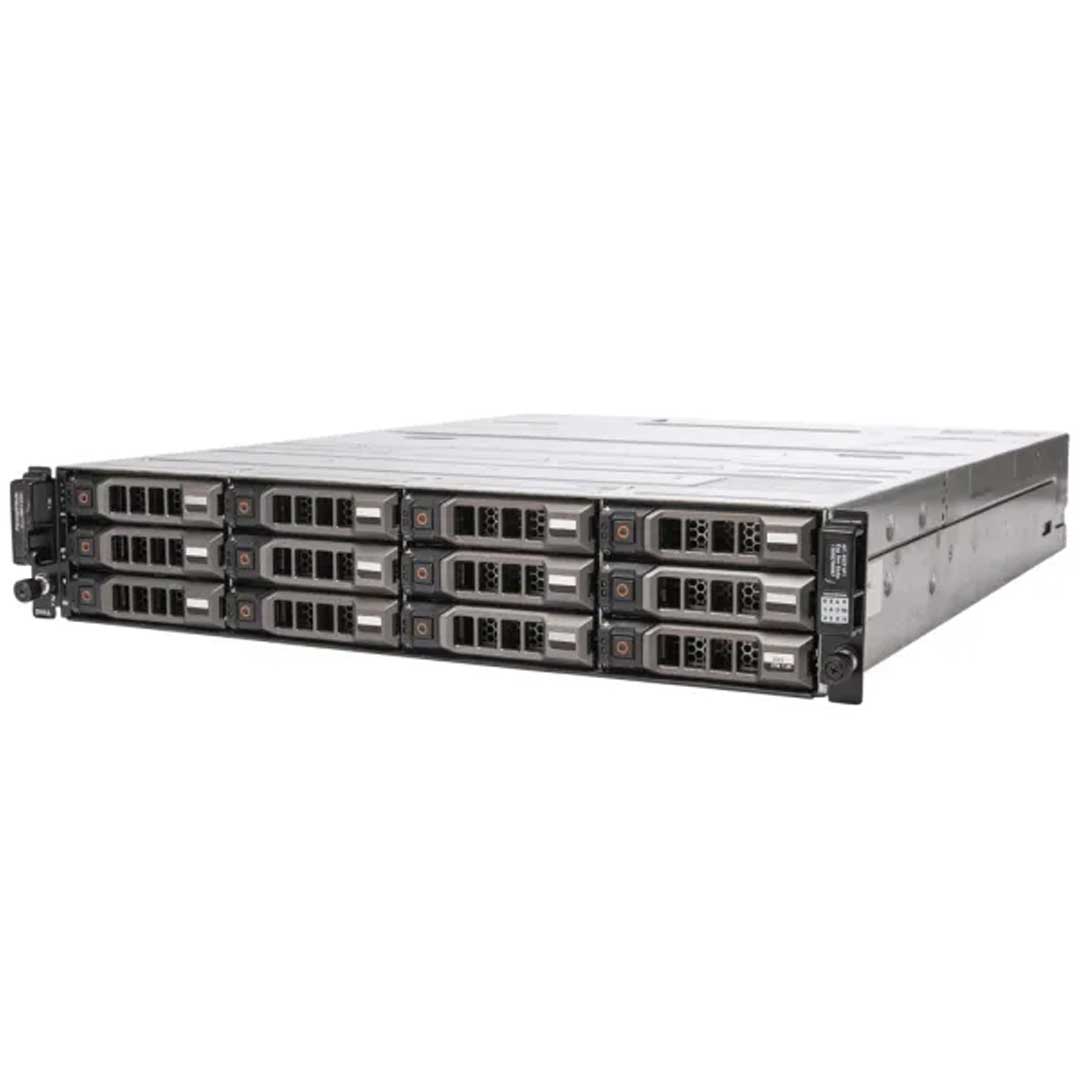

Dell PowerVault MD1200 12x3.5" 6Gb SAS DAS JBOD CTO
Quick Specs
2U rack server (JBOD)
Storage | Max: 48TB(12) LFF SAS (HDD/SSD)
HOST-RAID:(1) H800 or H810 PERC Controller
RAID levels 0, 1, 5, 6, 10, 50, and 60
Supports Mixed Drives on PERC H800 and up to 8 Arrays.

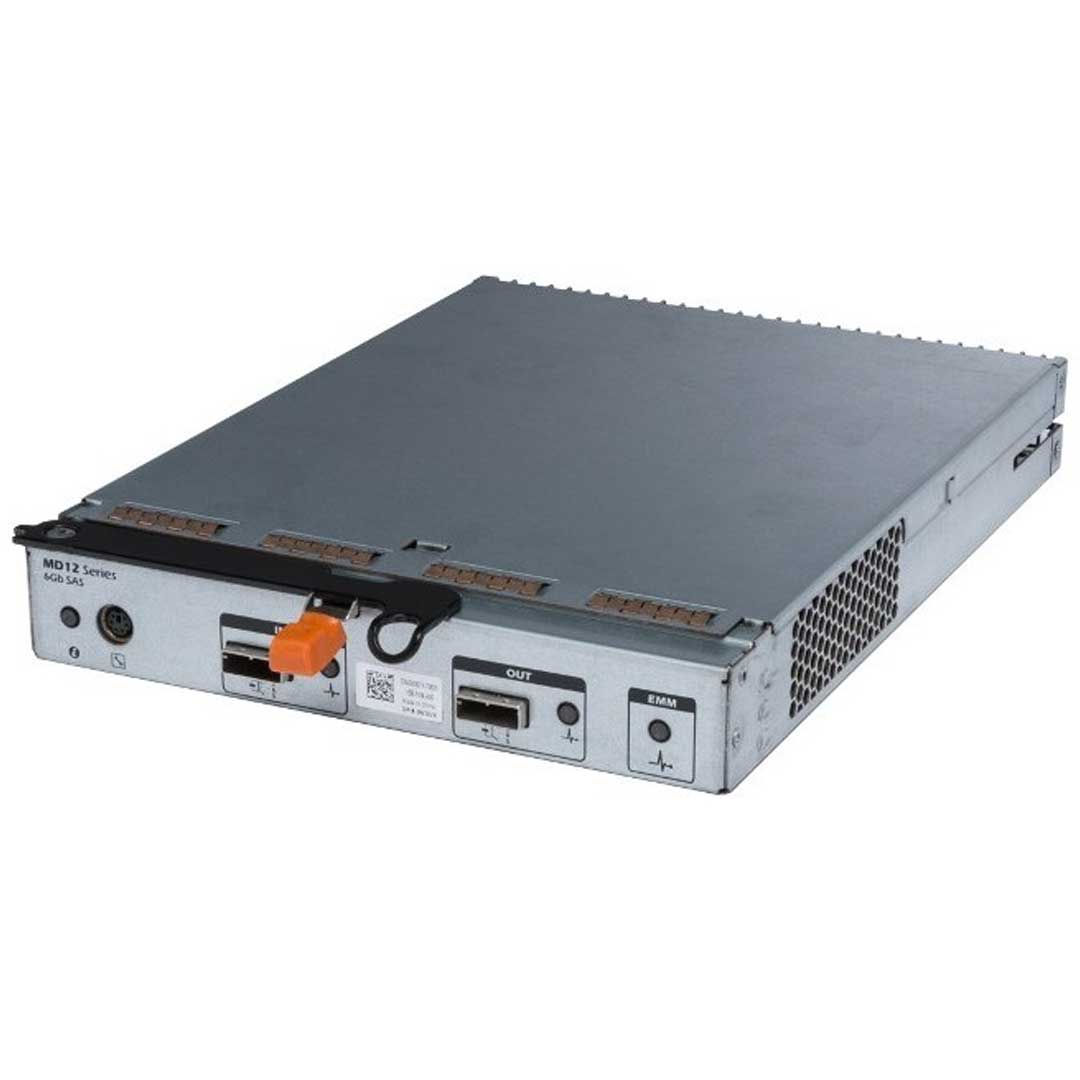

Supports up to (2) EMM

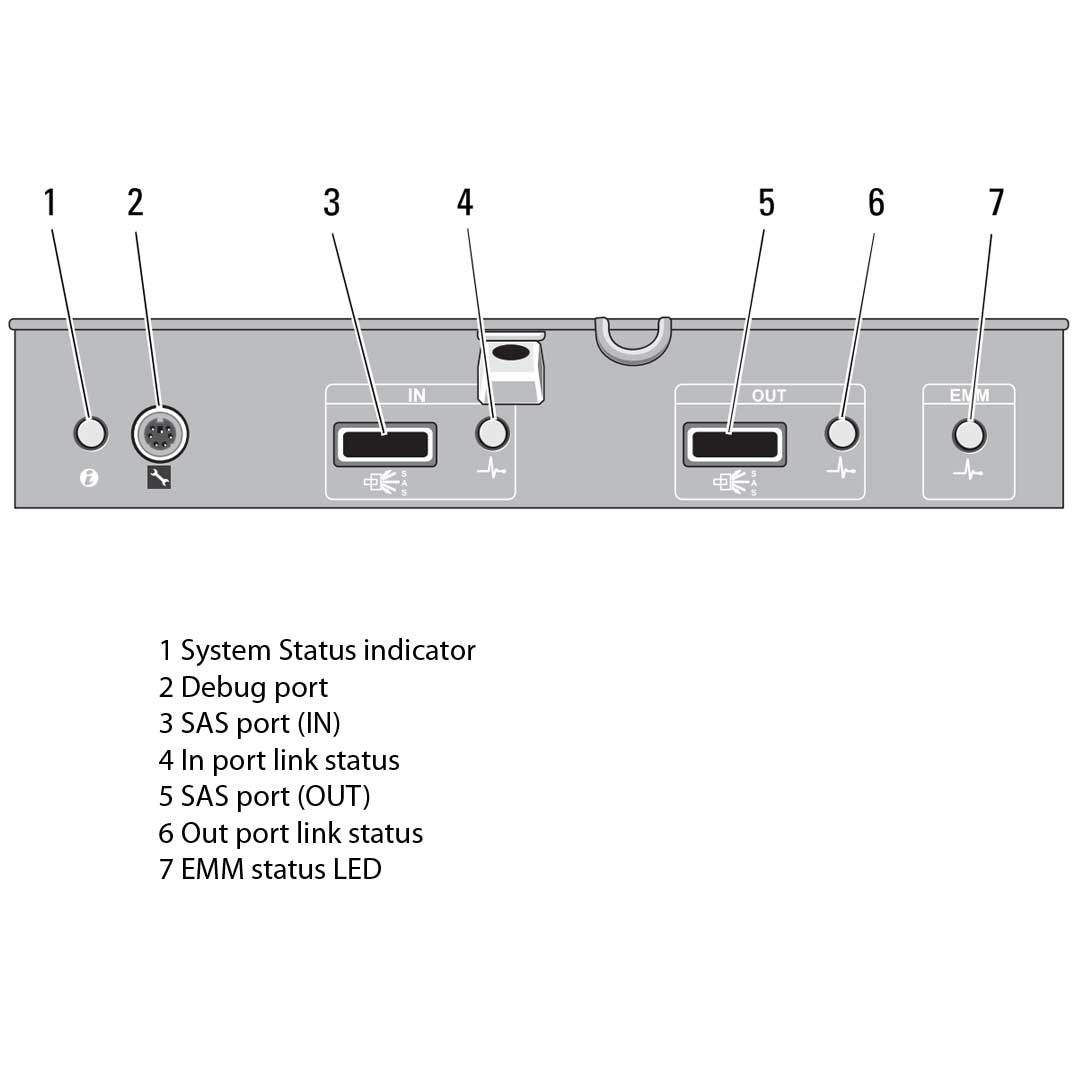

Ports Per Controller (EMM):Two 6Gb/s SAS
Ability to mix and match 7.2K (nearline), 10K, and 15K RPM SAS Hard Disk Drives (HDDs) with Solid State Drives (SSDs).
This includes SAS HDDs that support Self-Encrypting Drive (SED) technology on a single PERC H800 or H810 HostRAID adapter.
The Dell™ PowerVault™ MD1200 direct-attached storage is the second generation of our low-cost, high-capacity expansion enclosure that improves density, versatility, and performance to enhance support for mainstream and capacity-intensive applications.
The Dell™ PowerVault™ MD1200 expansion enclosure is optimized to satisfy applications that use lots of capacity and move large amounts of data. It is the first Dell enclosure that allows you to mix and match 2.5 and 3.5 inch drives in a 2-unit, 12-drive solution.
- Seamless server expansion for 6Gb/s SAS environments
- Supports mainstream and capacity-intensive applications such as e-mail, backup to disk, and video streaming
- Deployment and drive versatility good for investment protection and data tiering
The PowerVault MD1200 offers seamless expansion for Dell™ PowerEdge™ servers with the PERC H800 HostRAID adapter and provides expansion storage for Dell Compellent, EqualLogic and PowerVault array series. It gives customers the versatility to expand storage as their business grows.
- Easily expand your server capacity: This expansion array can support twelve 2.5-inch or 3.5-inch SAS HDDs and SAS SSDs in a 2U array and expands up to 8 arrays behind a single PERC H800 HostRAID adapter.
- Versatility and flexibility to meet most business needs: With the ability to mix 2.5-inch and 3.5-inch enclosures behind a single PERC H800 HostRAID adapter
Keeping your data safe
One of the key features of the PowerVault MD1200 is the redundant path with I/O load balancing. This means that even if one cable path fails from one port of the PERC H800, you can still access your data through the second port. This redundancy ensures that your business operations can continue seamlessly, without any disruptions to data access.
If you are connecting this JBOD to a Compute server. The PowerVault™ MD1200 and MD1220 require the PERC H800 for Server connectivity. The PERC H800 or H810 is a PCIe 2.0, dual port (2 x4), hardware RAID controller offering 512MB standard battery-backed cache and RAID level support for RAID 0, 1, 5, 6, 10, 50, and 60. The key features of the PERC H800:
- 6Gb/s SAS (SAS 2.0)
- Enables daisy-chaining up to 8 enclosures (4 per port)
- Enables mixing 2.5-inch and 3.5-inch enclosures in the same daisy-chain
- Enables Redundant Path with Automatic I/O load balancing
- Supports Self-Encrypting Drive (SED)
- Requires specific SED drive part numbers
