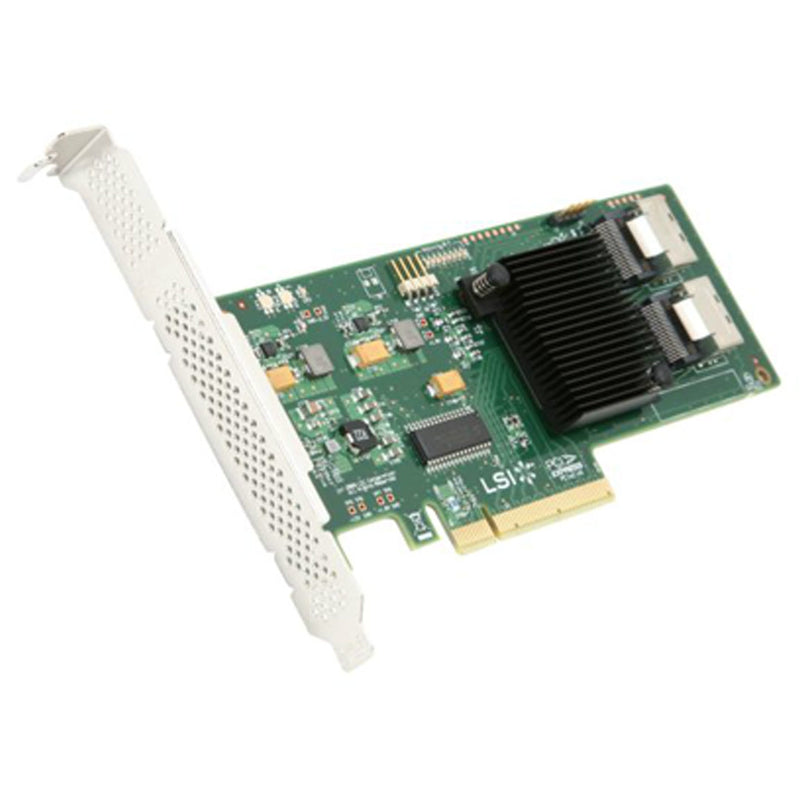

The LSI® SAS 9211-8i PCI Express® (PCIe®)-to-Serial Attached SCSI (SAS) host bus adapter (HBA), hereinafter referred to as the LSI SAS 9211-8i HBA, provides high-performance internal storage connectivity for servers and workstations. The LSI SAS 9211-8i HBA provides eight lanes of 6Gb/s SAS connectivity and is matched with eight lanes of PCIe 2.0 5Gb/s performance. The low-profile design of the SAS HBA includes a full-height bracket and low-profile mounting bracket that creates a universal fit for any server. The LSI SAS 9211-8i HBA is based on the Fusion-MPT™-architected LSI SAS 2008 controller that integrates the latest enhancements in PCIe 2.0 technology and 6Gb/s SAS technology.
The LSI SAS 9211-8i HBA has onboard Flash memory for the firmware, and BIOS and NVSRAM for Integrated RAID support (RAID 0, RAID 1, RAID 10, and RAID 1E).
- This section lists the LSI SAS 9211-8i HBA features.
- Implements one LSI SAS 2008 eight-port 6Gb/s to PCIe 2.0 controller
- Supports eight-lane, full-duplex PCIe 2.0 performance
- Supports eight internal 6Gb/s SATA+SAS ports
- Supports SATA and SAS link rates of 1.5Gb/s, 3.0Gb/s, and 6.0Gb/s
- Provides two x4 internal mini-SAS connectors (SFF-8087)
- Supports passive cable
- Supports Integrated RAID (RAID 0, RAID 1, RAID 10, and RAID 1E)
- Supports up to 256 SATA or SAS end devices
- Offers a full-height bracket and low-profile bracket
- Provides activity LEDs
- Provides a universal asynchronous receiver/transmitter (UART) debug/diagnostic port
- Dell C8000
- Dell C8220
- Dell C8220x
(Click to View)
Base Standard Capabilities
| LSI SAS 9202-16e Host Bus Adapter | ||
|---|---|---|
| IO Controller | Two, LSISAS2008/ Fusion MPT 2.0 | |
| Storage Connectivity Data Transfer Rates | 16 ports; 6Gb/s SAS 2.0 compliant | |
| SAS Bandwidth | Half Duplex 600 MB/s per lane | |
| Port Configurations | 16 ea, x1 ports (individual drives) 4 ea, x4 wide ports 2ea , x8 wide ports | |
| Host Bus | x16 lane, PCI Express 2.0 compliant | |
| Physical Dimensions | Low Profile (2.7” x 6.6”) | |
| Connectors | Four HD mini-SAS external connectors (SFF8644) | |
| Brackets | Full height and low profile | |
| Cable Support | Passive, Active Copper | |
| PCI Card Type | 3.3 V Add-in Card | |
| Operating Voltage | +12V +/-8%; 3.3V +/-8% | |
| PCI Power (Nominal) | 17W typical (Airflow min 200 LFM) | |
| Device Support | 1024 Non-RAID SAS/SATA devices | |
| Environmental | Operating 0oC to 55oC 5 to 90% Non-condensing | Storage -45°C to 105°C 5 to 90% Non-condensing |
| MTBF | > 1,000,000 hours | |
| Regulatory Certifications | EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE | |
| OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware | |
