Home / iSCSI / Dell PowerVault MD3660i (60x3.5") Chassis
SKU: DPV-MD3660i-Chassis

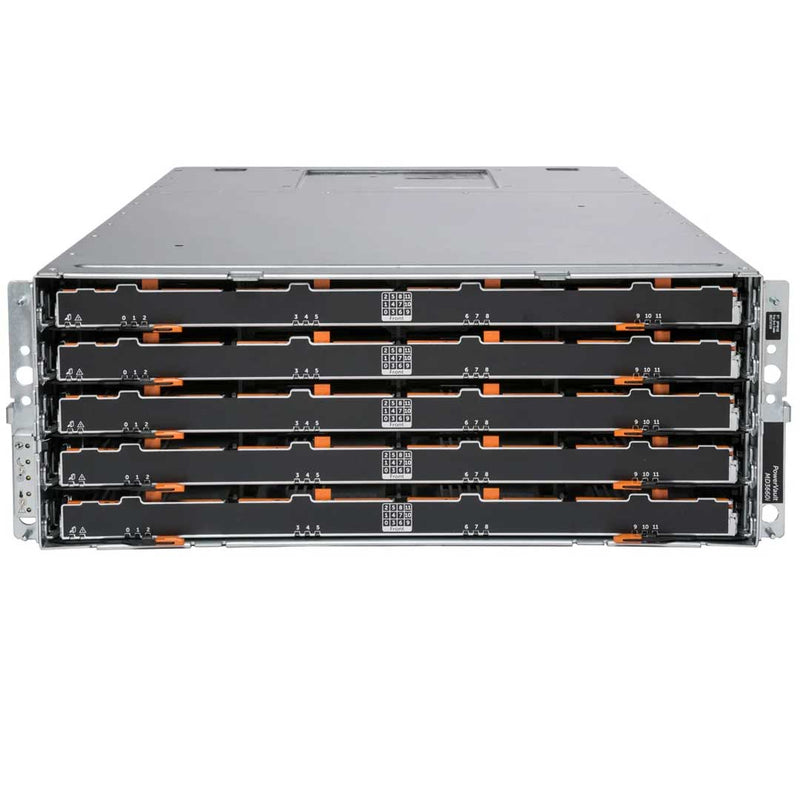

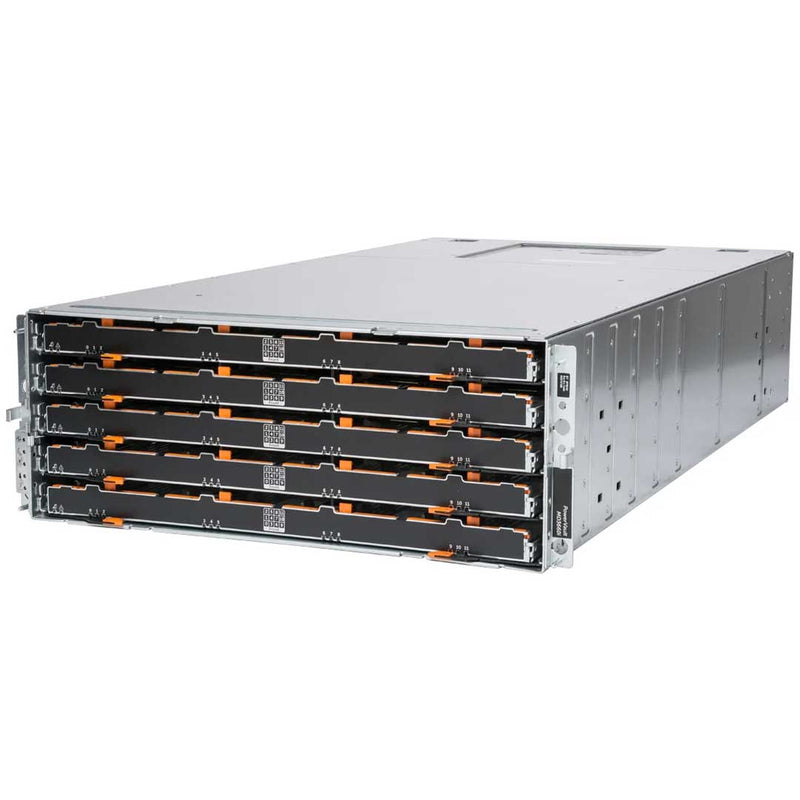

Dell PowerVault MD3660i (60x3.5") Chassis

Dell

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

4U rack server

Storage | Max: 180

60 LFF SAS, NL-SAS (HDD/SSD)

Mix and match drives:

Supported

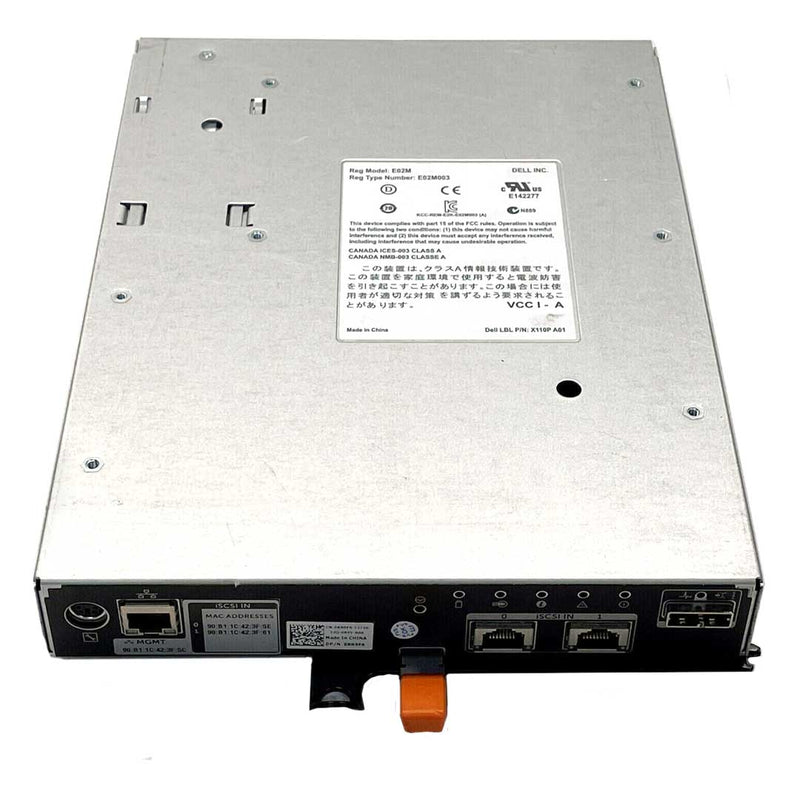

Controllers:

Supports up to 2

Cache Per Controller:

Single controller: 2GB, 4GB
Dual controller: 2GB, 4GB. 8GB

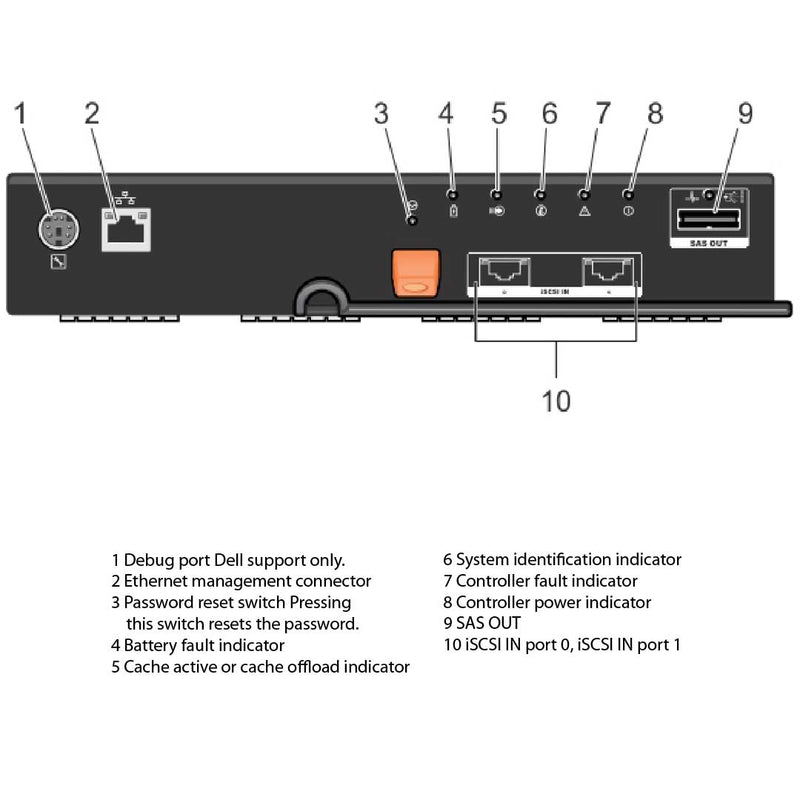

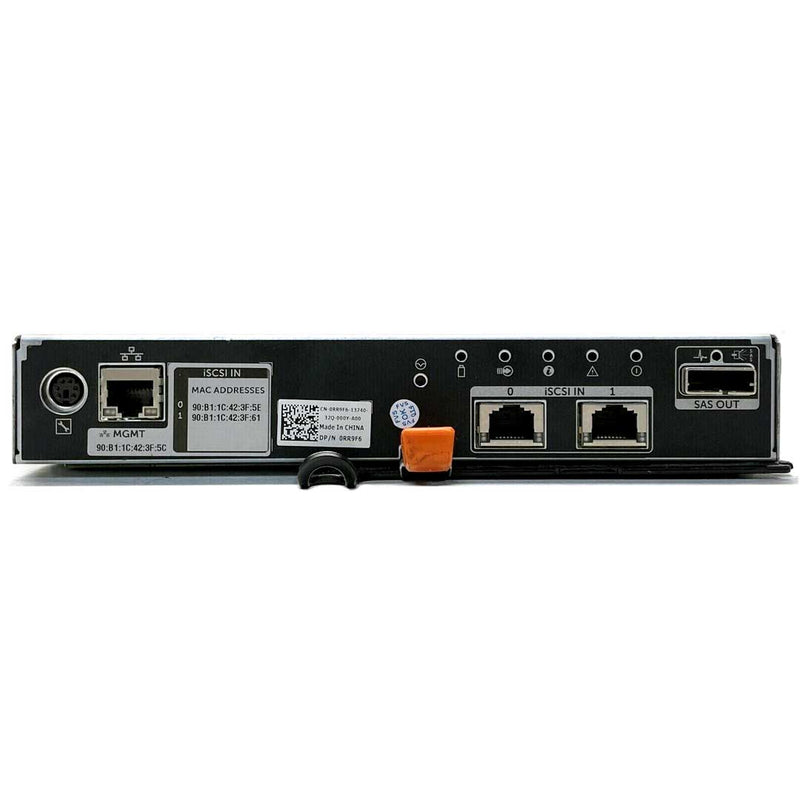

Ports Per Controller:
  • Two 10Gbe Base-T iSCSI Host Connectivity
  • One x4 6Gb SAS Expansion Connectivity
  • One RJ-45 1Gb Ethernet Remote Management
Host Connectivity:
Single Controller Models:

Supports up to 4 servers directly connected

Dual Controller Models:

4 servers in a HA configuration

Expansion Storage:

Up to 180 drives using MD3060e dense enclosures

Other Storage Arrays in the MD Series (JBOD)

MD3200 Series

Data Speeds

1Gb iSCSI

6Gb SAS

Server Options

MD3060e

MD3200 12 Bay SAS

MD3200i 12 Drive iSCSI

MD3220 24 Drives SAS

MD3220i 24 Drives iSCSI

MD3400 Series

Speeds

12Gb SAS

10GBase-T iSCSI

16Gb FC

Server Options

MD3400 12 Drives

MD3420 24 Drives

MD3460 60 Drives

MD3600 Series

Speeds

10GBase-T iSCSI

8Gb FC

Server Options

MD3600i 12 Drives iSCSI

MD3600f 12 Drives Fibre

MD3620i 24 Drives iSCSI

MD3620f 24 Drives Fibre

MD3660i 60 Drives iSCSI

MD3660f 60 Drives Fibre

MD3800 Series

Speeds

10GBase-T iSCSI + 12Gb SAS

16 FC + 12Gb SAS

Server Options

MD3800i 12 Drives iSCSI

MD3800f 12 Drives Fibre

MD3820i 24 Drives iSCSI

MD3820f 24 Drives Fibre

MD3860i 60 Drives iSCSI

MD3860f 60 Drives Fibre

The Dell EMC PowerVault MD3660i Series storage array is a high-availability storage solution designed to provide redundant access to data storage. It can support both single and dual RAID controller configurations and offers 10G/1000 BaseT connectivity to the host server. The array can support up to 60 3.5" HDD/SSD drives and up to 4 servers directly connected per controller, with a maximum of 180 drives when combined with expansion enclosures MD3060e.

Keeping pace with the latest technology

The Dell PowerVault MD3660i is available in single and dual controller models, with a maximum storage capacity of 16GB (8GB per controller). With 2 x 10GBASE-T iSCSI ports per controller, you can connect your system to your network and start accessing your data right away.

The Dell PowerVault MD3660i also offers the flexibility to mix and match drives to create a tiered-storage environment. Additionally, you can scale up to 180 drives with MD3060e expansion enclosures, allowing you to expand your storage capacity as your business grows.

Versatile options your way

The Dell PowerVault MD3660i delivers fast and reliable access to your data. Maximize your system's performance with 10GBase-T iSCSI, 2GB, 4GB or 8GB cache per controller, and solid-state drive (SSD) support, allowing you to achieve lightning-fast read and write speeds.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Spec Sheet 4

Feature Dell PowerVault MD3800 Series
Feature MD3 SAS MD3 10GBASE-T MD3 Fibre Channel
Number of drives/form factor
  • 12/2U: MD3400
  • 24/2U: MD3420
  • 60/4U: MD3460
  • 12/2U: MD3600i
  • 24/2U: MD3620i
  • 60/4U: MD3660i
  • 12/2U: MD3800f
  • 24/2U: MD3820f
  • 60/4U: MD3860f
Drive types SAS, NL-SAS, SSD, SED
3.5” drive options SAS 15K RPM: 300GB, 450GB, 600GB
NL-SAS 7.2K RPM: 500GB, 1TB, 2TB, 3TB, 4TB, 6TB, 8TB, 10TB
SAS 10K RPM: 600GB
SSD: 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) (available with 3.5” HDD carriers)
2.5” drive options SAS 15K RPM: 146GB, 300GB, 600GB
NL-SAS 10K RPM: 146GB, 300GB, 600GB, 900GB, 1.2TB, 1.8TB
SAS 10K RPM: 500GB, 1TB, 2TB
SSD: 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)
Expansion Capabilities Up to 180 drives using MD3060e dense enclosures
Connection 2 x 10GBASE-T iSCSI and
Host connectivity Dual controllers on dense 60-drive 4U arrays
Single controller: 2GB, 4GB cache
Dual controller: 2GB, 4GB. 8GB cache
RAID Levels Support for RAID levels 0, 1, 10, 5, 6;
Up to 180/1924 physical disks per group in RAID 0, 10;
Up to 30 physical disks per group in RAID 5, 6;
Up to 512 virtual disks; DDP
Dynamic Disk Pools DDP available on all models, separate or parallel to traditional RAID
OS support Microsoft® Windows®, VMware®, Microsoft Hyper-V®, Red Hat® and SUSE®
Optional premium features
Snapshots Up to 128 snapshots per virtual disk and 512 per system (optional on all models)
Snapshots plus VDC 511 VDCs in sum but maximum 8 simultaneous VDCs on the array (optional on all models)
HPT Standard on MD3860f, MD3860i, MD3460
Remote Replication Asynchronous and synchronous remote replication
Array Management Modular Disk Storage Manager
Physical dimensions
Height x width x depth MD3660i/MD3060e: 17.78 cm (7.0”) x 48.26 cm (19.0”) x 82.55 cm (32.5”)
Maximum weight MD3660i/MD3060e: 105.24kg (232 lb)
Rails MD3 2U versions support Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
Environment
Power MD3 dense models — AC: 1755W
Heat dissipation (max) MD3 dense models: 5988 BTU/hr
Voltage MD3 dense models: 220V AC, auto ranging
Frequency range 50/60Hz
Temperature Operating: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour
MD3 2U models support Fresh Air cooling, up to 35°C
Relative humidity Operating: 20% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour
Altitude MD3 dense models: Operating: -30.5 m to 3000 m (-100 ft to 9,840 ft) (For altitudes above 2950 ft, the maximum operating temperature is derated 1.8°F/1000 ft)
OEM-ready version available on certain models From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.
