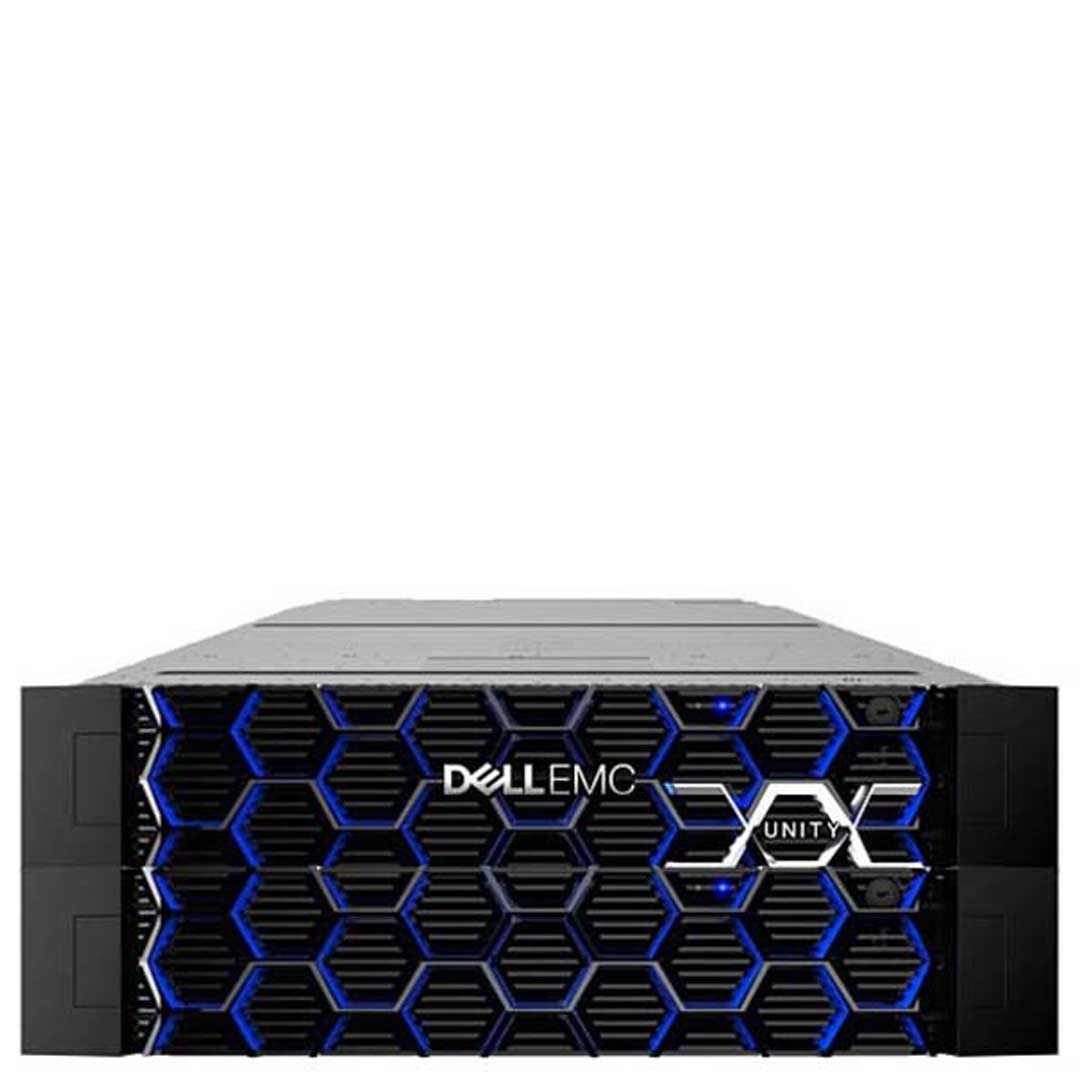

Dell EMC Unity 450F All Flash

Name: Dell EMC Unity 450F All Flash
Brand: Dell
SKU: DEU-450F
Availability: OutOfStock

Dell

| Server

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor: 2U
Max Drives (Dell Unity OE 4.1 and later): 5/250
Max Drives (Dell Unity OE 4.0 only): N/A
Max. raw capacity (PB): 4PB
Drives Supported: SAS, and Flash
Max DAE 2U 25x2.5": 9
Max DAE 3U 80x2.5": 2
RAID Options: 1/0, 5, 6
Max Memory: 128GB
Supported Back-End I/O modules: None
I/O Supported: Support for File, Block (FC, iSCSI & FCoE) and Unified

Disk Array Enclosure (DAE)

The Dell EMC Unity 450F supports all two types of DAE’s. When calculating the number of drives make sure to count the DPE drives as well in the total.

2U 25-drive DAE with 2.5” drives
3U 80-drive DAE with 2.5” drives

25-drive DPE:

3.4 inches high x 17.5 inches wide x 24.17 inches deep (8.64 cm x 44.45 cm x 61.39 cm) 44 lb (20 kg)

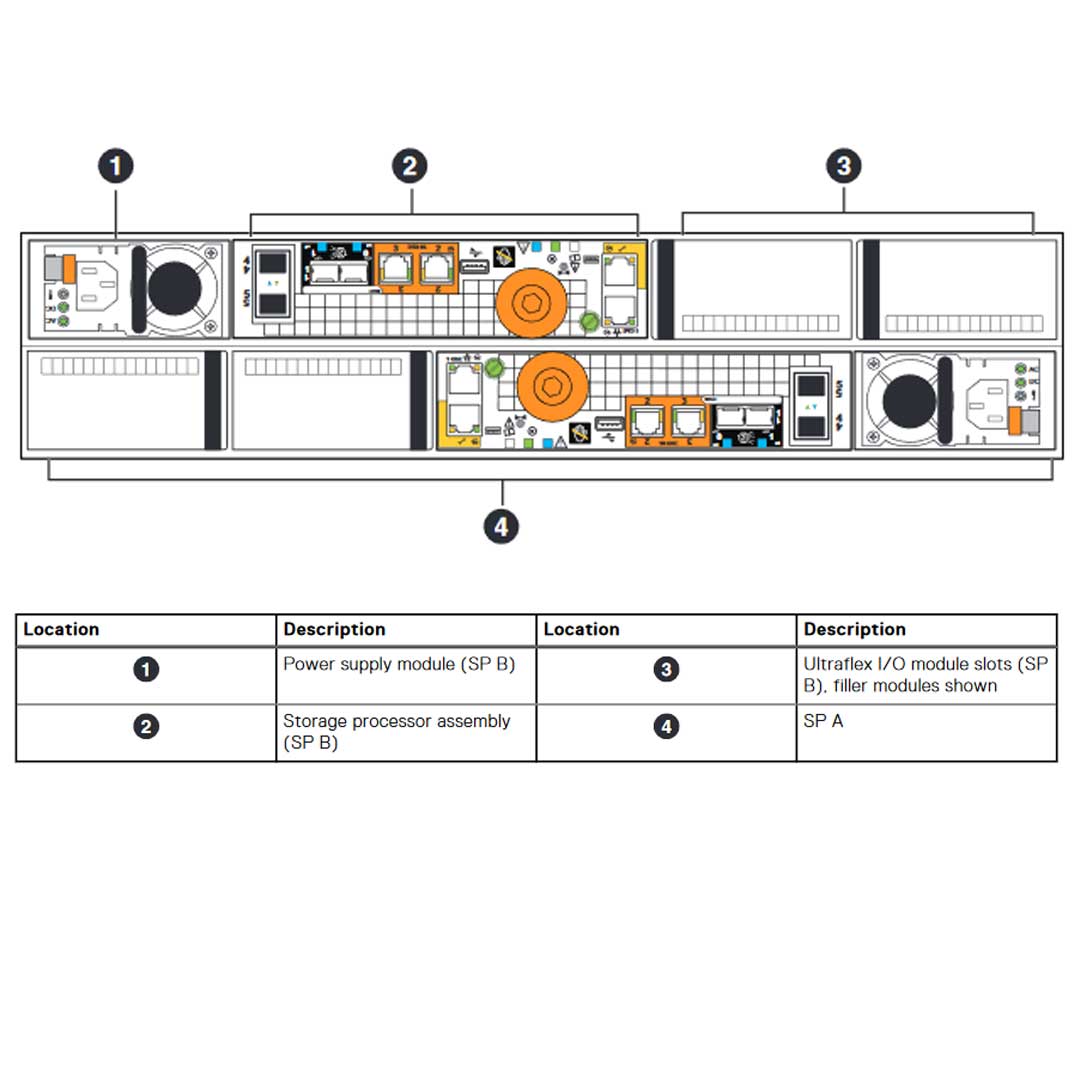

The all-flash Models support only 1 Drive Carrier type, the 25x2.5”. Each Dell Unity 450F has 2 Storage Processors (SP’s) in the rear with 2 CNA ports and 2 Module slots that can hold up to 6 different modules.

Please Note: The Dell EMC Unity hybrid models are the only ones to support FAST and FAST VP technology which helps with tiered storage and accessibility to high-frequency data.

Storage Processor (SP):

The Dell EMC Unity 450F has 2 Storage Processors.

Each SP comes with:

Intel Xeon E5-2630 10-Core 2.2 GHz processor.
4 16GB DDR4 DIMM for a total of 64GB of memory
2 embedded CNA ports (4 configurations possible)
2 10GbaseT ports
2 mini-HD SAS ports
2 PCI 3.0, x8 lane I/O module slots (6 Modules supported)

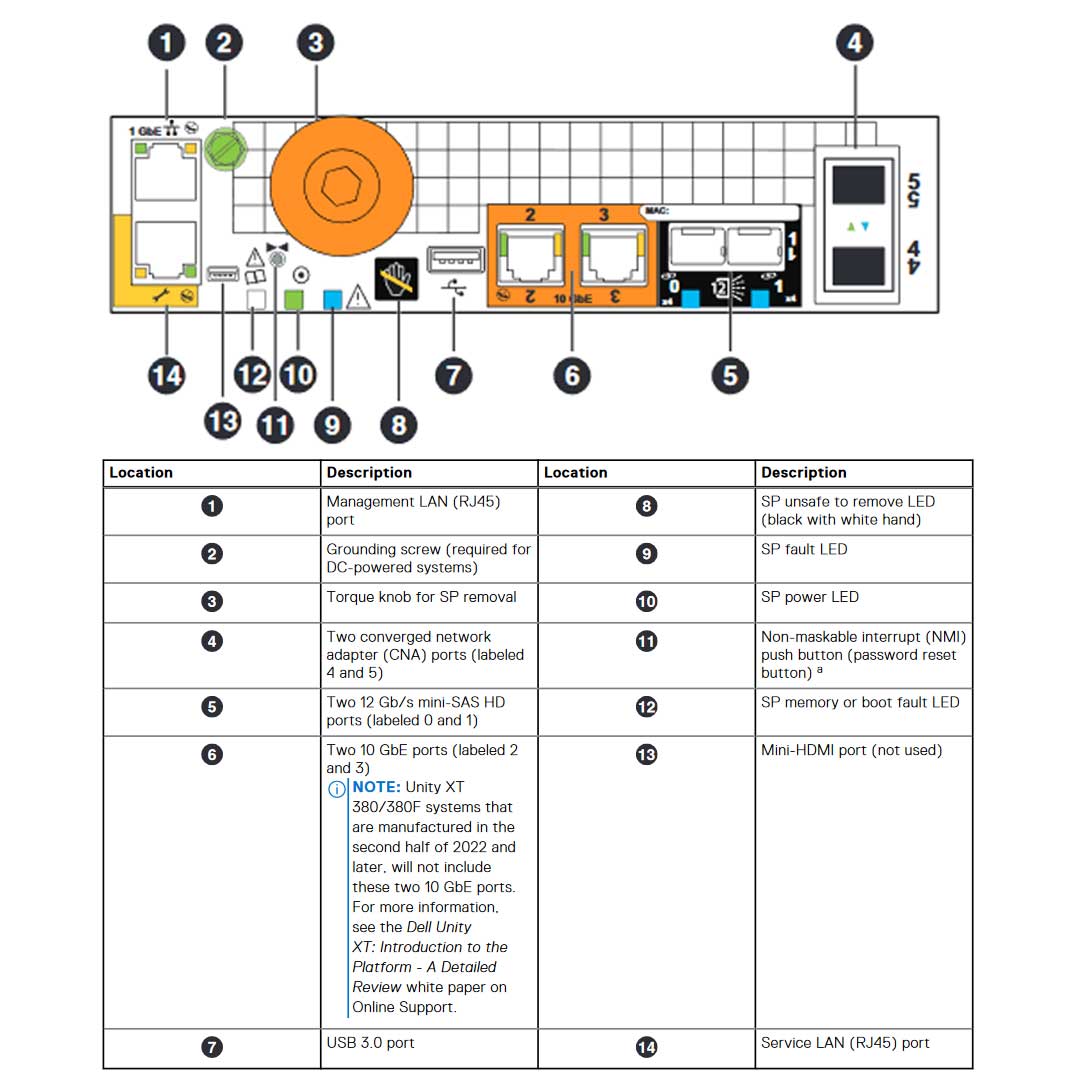

CNA Ports:

Each SP contains two integrated CNA ports (labeled 4 and 5). These ports are PCI Express 3.0 x4 adapters that provide interfaces that can be configured as Ethernet, or Fibre Channel, but once set to a protocol, cannot be changed. If CNA ports are set to Ethernet, you can use 1Gb/s, 10Gb/s SFPs, Twin-AX for File (IP), or iSCSI Block access. If the ports are set to Fibre Channel, then you can use SFPs supporting 4, 8, 16 Gb/s FC multi-mode, or single-mode SFPs supporting 16Gb/s only.

Note: The four CNA ports cannot be configured independently; they must all be configured with the same network protocol.

I/O Modules:

Each SP has two slots that can support 6 different options.

Four-port 12-Gb/s SAS I/O module
Four-port 16-Gb/s Fibre Channel I/O module
Four-port 10-Gb/s optical I/O module
Four-port 10GBASE-T I/O module
Four-port 1GBASE-T I/O module
Two-port 10Gb/s optical I/O module

Note: When adding new I/O modules, always install I/O modules in pairs—one module in SP A and one module in SP B. Both SPs must have the same type of I/O modules in the same slots. Please read the manual below for more details to each module listed above.

Standby Power Supply

25 DPE

AC 100 to 240 VAC ± 10%, single phase, 47 to 63 Hz
DC Line Voltage -39 to -72 V DC (Nominal -48V or -60V power systems)
