Home / Fibre Channel / NetApp FAS6290 Single Controller Filer Head /w IOXM (Stand Alone)
SKU: FAS6290

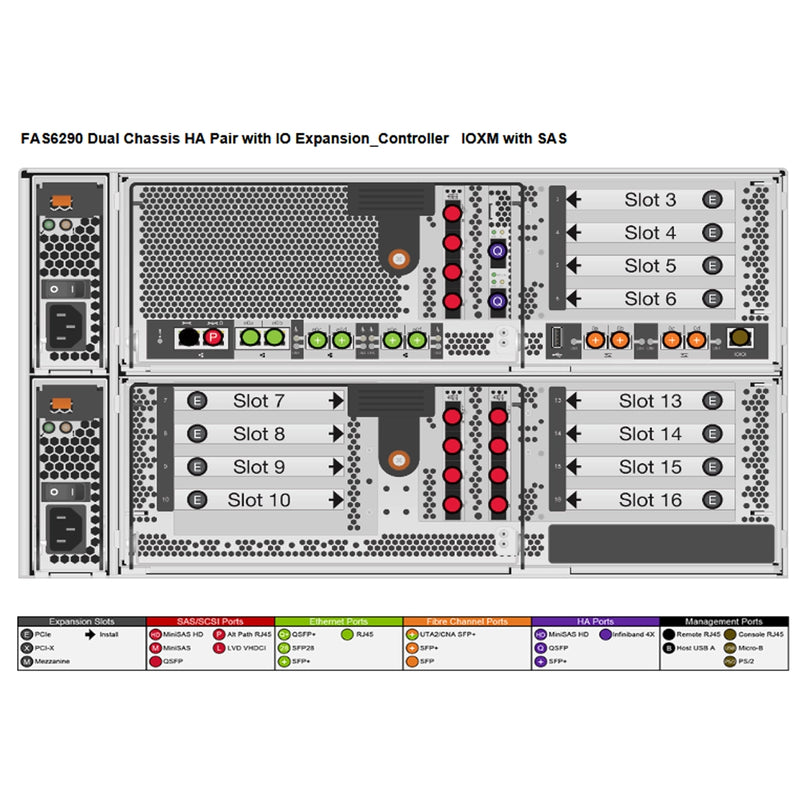

NetApp FAS6290 Single Controller Filer Head /w IOXM (Stand Alone)

NetApp

| Filer Head
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

System Config
  • Model: NetApp FAS6290
  • Chassis: Single Chassis
  • Total Rack Height: 6U
  • Controllers: Single Controller (Stand Alone) w/ IOXM
  • Memory (HA): 96GB
  • Processor Model: 2x 64-bit 6-core 2.93 Ghz
  • Ethernet Ports: 2 x RJ45 (1Gb) + 4 x SFP (10Gb)
  • Fibre Channel Ports: 4 x SFP (8Gb)
  • PCIe Expansion Slots: 15 x PCIe
  • Max Drives (total): 1440
  • Max Capacity: 15,000TB (15PB)
  • Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
  • Filer Heads: N/A
Dimensions & Weight
  • Chassis Rack Height: 6U
  • Chassis Heights: 10.18" (25.86 cm)
  • Chassis Width w/o Mounting Flanges: 17.59" (44.68 cm)
  • Chassis Depth w/ Cable Mgmt: 29" (73.66 cm)
  • Chassis Weight: up to 125.4 lb (56.9 kg)
Controller Specs
  • Max Controllers: 2 (Per Chassis)
  • PCI Slot (per): 15 x PCIe
  • Ethernet Ports (per): 2 x RJ45 (1Gb) + 4 x SFP (10Gb)
  • Fibre Channel Ports (per): 4 x SFP (4Gb)
  • UTA2 Ports (per): N/A
  • SAS Ports (per): N/A
  • Remote Management: Yes
  • Processor Model (per): 2x 64-bit 6-core 2.93 Ghz
  • Memory (Single/HA): 96GB/192GB
  • NVRAM (Single/HA): 4GB/8GB
Storage
  • Max Number of Internal Drives: 0
  • Max Number Drives (total): 1440
  • Max Capacity: 15,000TB (15PB)
  • Max # of MSATA Drives: 1440
  • Max # of SATA Drives: 1440
  • Max # of NL-SAS Drives: 1440
  • Max # of SAS Drives: 1440
  • Max # of SSD Drives: 240
  • Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
  • RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
  • Max # of DS212C Shelves: 60 external
  • Max # of DS2246 Shelves: 60 external
  • Max # of DS224C Shelves: 60 external
  • Max # of DS4243 Shelves: 60 external
  • Max # of DS4246 Shelves: 60 external
  • Max # of DS4448 Shelves: 30 external
  • Max # of DS460C Shelves: 24 external
FAS6290 Parts Lists
NetApp FAS6290 Adapters View Adapters
NetApp FAS6290 Transceiver(s)View Transceiver(s
NetApp FAS6290 Data Cables View Data Cables
NetApp FAS6290 Power Cables View Power Cables
NetApp FAS6290 Rail Kits View Rail Kits
