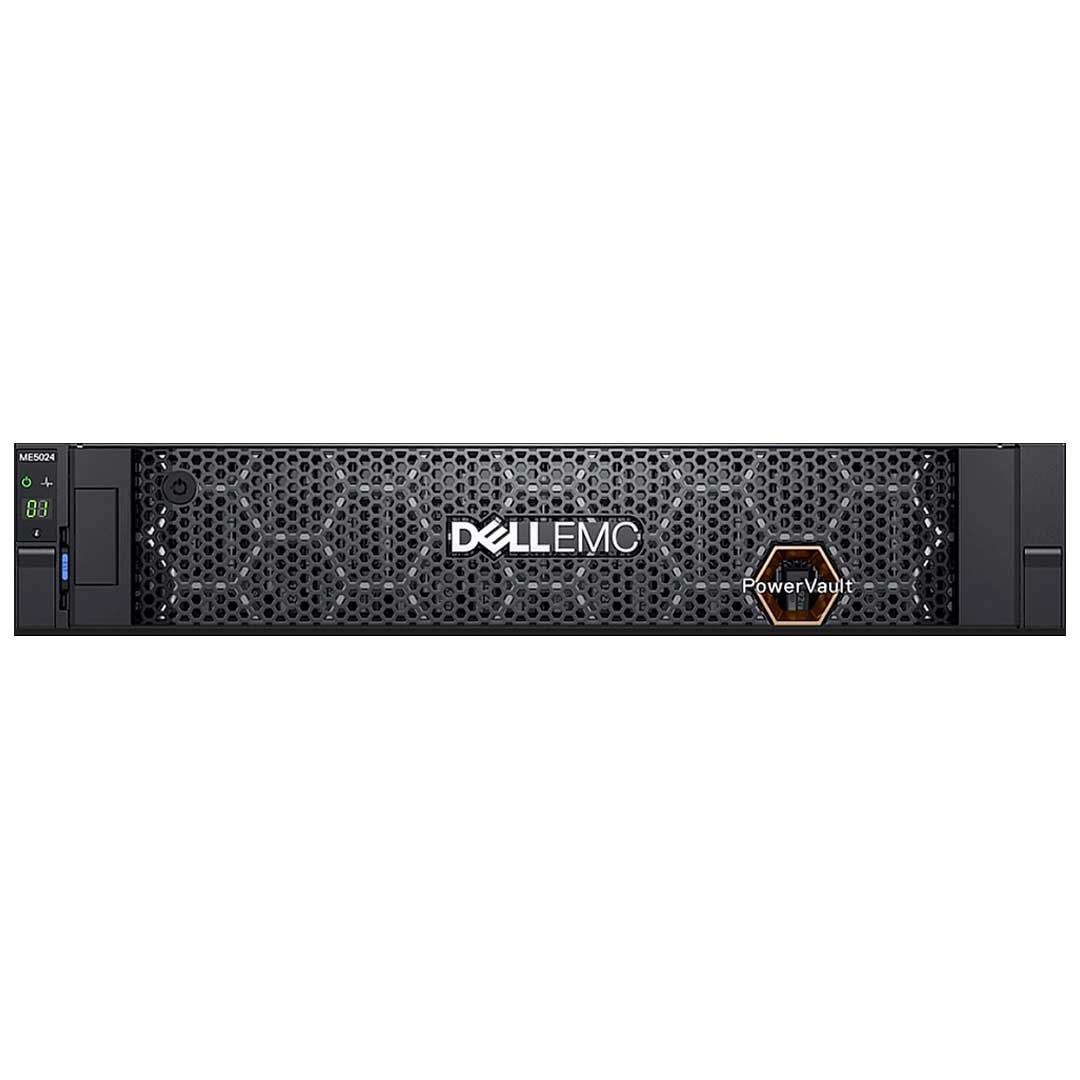

Dell PowerVault ME5024 (24x2.5") Chassis

SKU: DPV-ME5024-Chassis

Dell PowerVault ME5024 (24x2.5") Chassis

Name: Dell PowerVault ME5024 (24x2.5") Chassis
Brand: Dell
SKU: DPV-ME5024-Chassis
Price: 12950.0 USD
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

$12,950.00

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Storage:

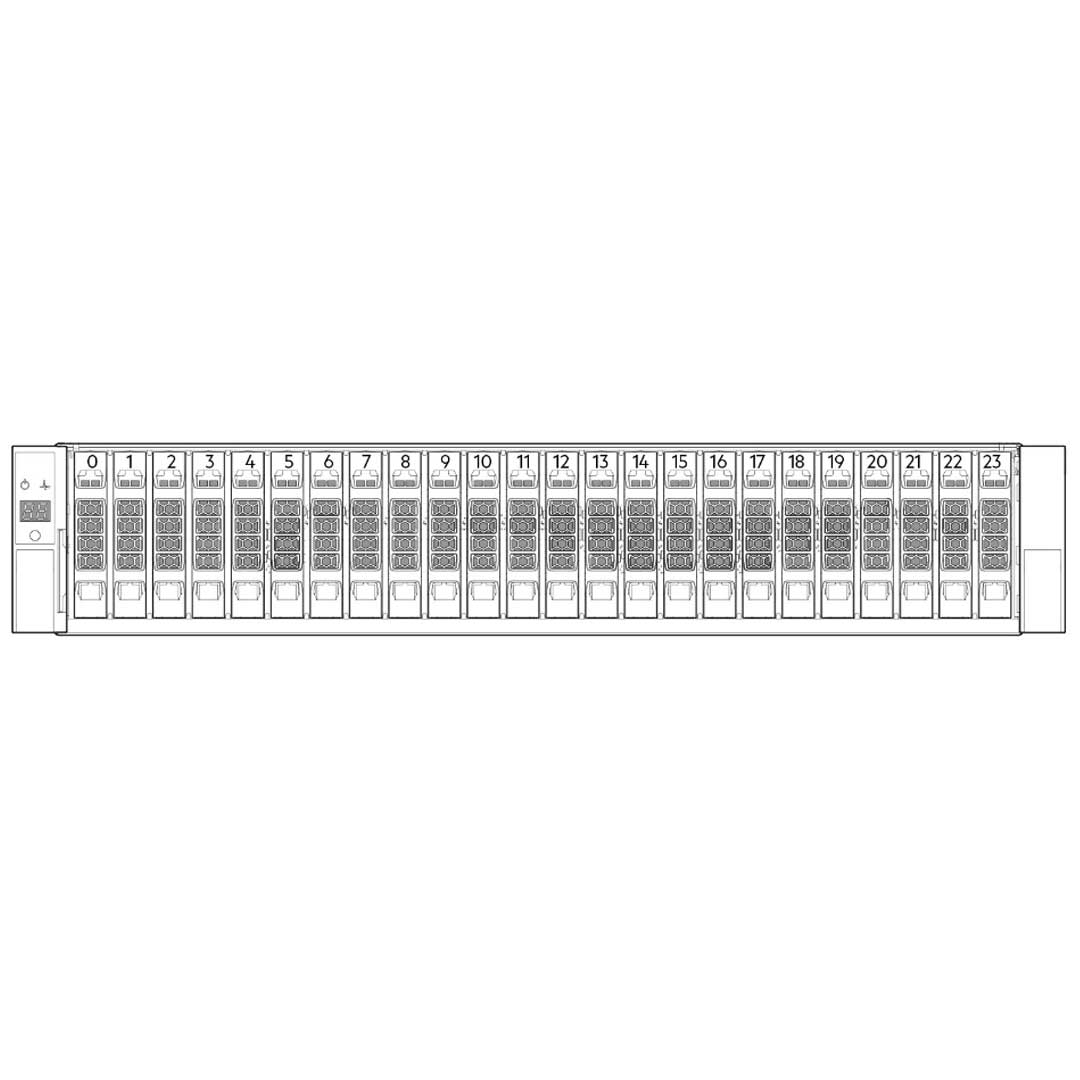

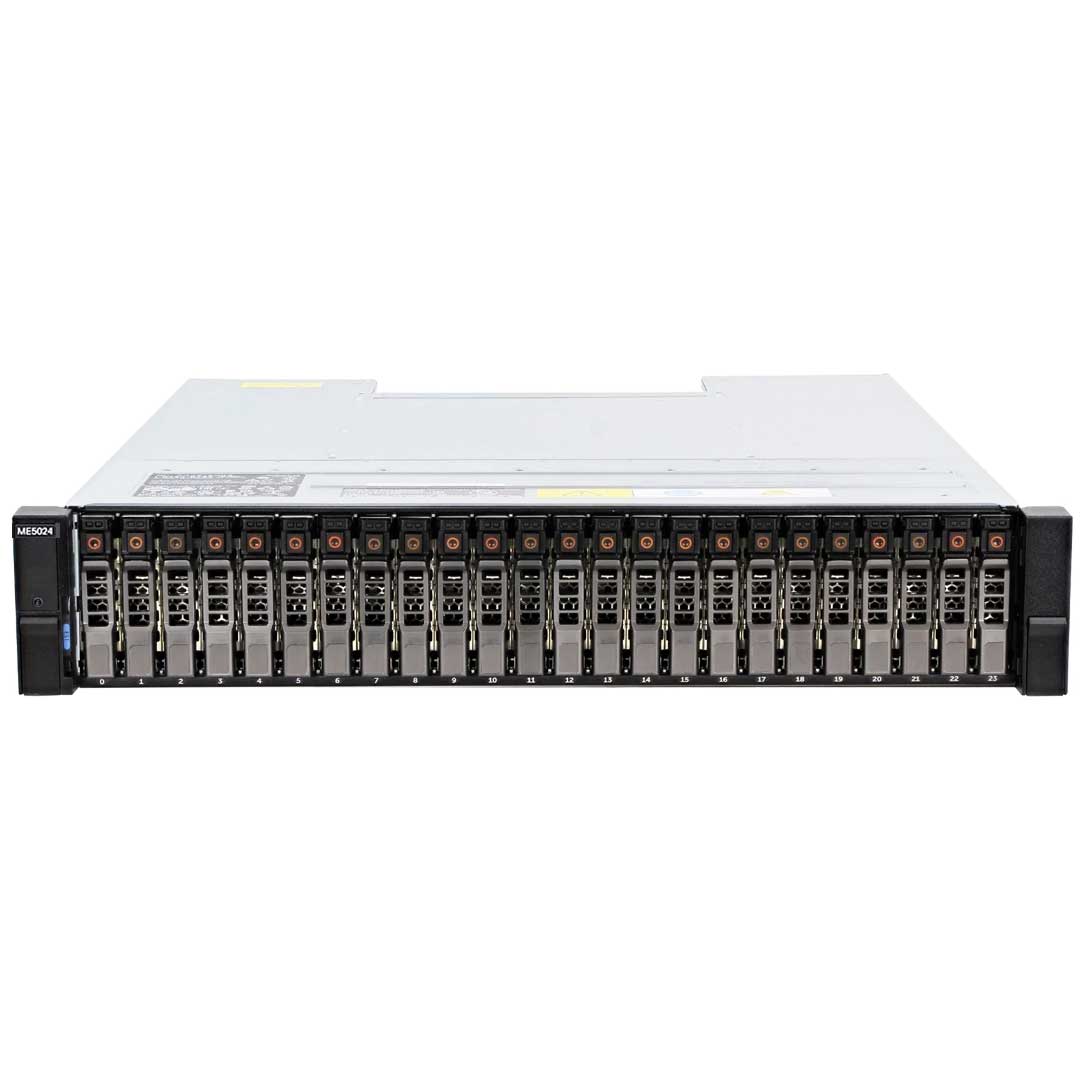

24 x 2.5” drive bays

Max Storage:

276 Drives | 5.22PB (with 3xME484 expansion)

Controller:

Supports up to 2

Controller Options:

4x 32Gb/s FC
4x 25GbE iSCSI
4x 10Gbase-T iSCSI
4x 12Gb mini-SAS

Processor Per Controller:

Intel® Xeon Processor

Cache Per Controller:

16GB

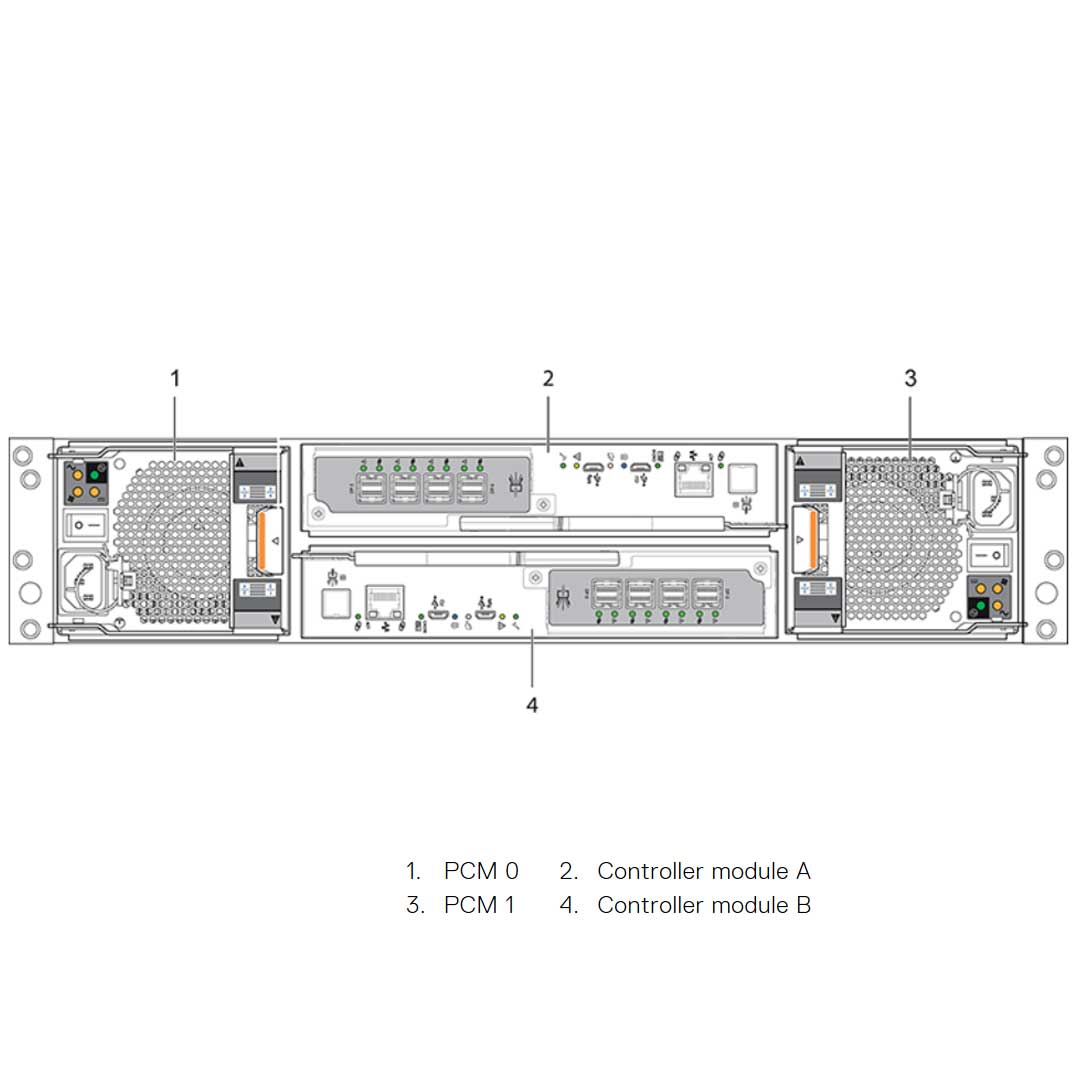

Ports Per Controller:

One 1GBase-T RJ-45 Ethernet port for Remote Management
One 12Gb/s SAS port for Expansion Connectivity

Other ME5 Versions

Expansion Options

(Click to View)

Dell PowerVault ME5 Delivers Significantly More Compared with Dell PowerVault ME4

2X more performance
4X more capacity
70% more throughput
4X larger virtual pools
Faster host protocols
Faster Intel Xeon Processor
Cross-gen replication
Simpler, intuitive management
PowerEdge 16G ready

Dell PowerVault ME5, the new gold standard for entry storage, affordably brings the essential features and data devices of mid-to-high-end storage to small-medium businesses (SMBs). PowerVault ME5 unleashes substantial performance, capacity, and bandwidth gains over its predecessor system without compromising simplicity, features, or business outcomes. Designed to meet several SMB data storage challenges, PowerVault ME5 reduces complexity, drives more performance, supports higher capacity, ensures data protection, and achieves budget stability when supporting a diverse SMB workload and application environment.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Spec Sheet 4

PowerVault ME5 Specifications
Chassis Overview
Chassis format	All-in-one: dual controllers, internal drive bays, networking and with expansion options
Rack size	2U or 5U
Controllers	2 hot-swappable per chassis (dual active) Single/dual controller support for 2U Dual controller only support for 5U
Processor	Intel® Xeon Processor
Internal storage	ME5012: 12 x 3.5” drive bays (2.5” drive carriers supported) ME5024: 24 x 2.5” drive bays ME5084: 84x 3.5” drive bays (2.5” drive carriers supported)
System memory	16GB per controller (32GB total)
Expansion Capacity
Expansion enclosures	ME412: 12 x 3.5” drive bays (12Gb SAS) ME424: 24 x 2.5” drive bays (12Gb SAS) ME484: 84 x 3.5” drive bays (12Gb SAS)
Min/Max drive count	ME5012: 2/264 ME5024: 2/276 ME5084: 28/336
Max raw capacity	ME5012: 2.40PB (with 9xME412 expansion) \| ME5012: 1.89PB (with 9xME424 expansion) ME5024: 2.34PB (with 9xME412 expansion) \| ME5012: 1.83PB (with 9xME424 expansion) ME5012: 5.28PB (with 3xME484 expansion) \| ME5024: 5.22PB (with 3xME484 expansion) ME5084: 6.72PB (with 3xME484 expansion)
NAS Support	Supported with NX Series Windows NAS appliance
Storage media	SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system: NLSAS 7.2K 3.5” – 4TB, 8TB, 12TB, 16TB, 16TB FIPS, 20TB SAS 10K 2.5” – 1.2TB, 2.4TB, 2.4TB FIPS SSD – 960GB RI, 1.6TB MU, 1.92TB, 3.84TB, 3.84TB FIPS, 7.68TB RI SDD and HDD: FIPS-certified SEDs
Network, Expansion Enclosure and I/O
Host interface	FC, iSCSI (optical or BaseT), SAS
Max 32Gb FC ports	8 per array (support auto-negotiate to 16Gb)
Max 25Gb iSCSI ports	8 SFP+ or SFP28 ports per array
Max 10Gb iSCSI ports	8 BaseT ports per array (only support auto negotiate to 1Gb)
Max 12Gb SAS ports	8 12Gb SAS ports
Max management ports	2 per array (1Gb BASE-T)
Disk expansion protocol	12Gb SAS
Disk interface expansion ports	2 x 12Gb SAS (wide-Port) per array (1 port per controller) Up to 9 2U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 5U base array
Functional
Array configurations	All-flash, hybrid flash, HDD only arrays
Storage format	Native block-level SAN or DAS
Data Optimization
RAID support	RAID 1, 5, 6, 10, or ADAPT RAID; any combination of RAID levels can exist in single array
ADAPT RAID	Distributed erasure coding that reduces rebuild times when drive failures occur
Physical Base System
Rack size	ME5012: 2U ME5024: 2U ME5084: 5U
Base system height	ME5012: 8.79 cm (3.46 inches) ME5024: 8.79 cm (3.46 inches) ME5084: 22.23 cm (8.75 inches)
Base system width	ME5012: 48.30 cm (19.01 inches) ME5024: 48.30 cm (19.01 inches) ME5084: 48.30 cm (19.01 inches)
Base system depth	ME5012: 60.29 cm (23.74 inches) ME5024: 60.29 cm (23.74 inches) ME5084: 97.47 cm (38.31 inches)
Weight (max configuration)	ME5012: 32.00 kg (71.00 lbs) ME5024: 30.00 kg (66.00 lbs) ME5084: 135.00 kg (298.00 lbs)
Weight (empty)	ME5012: 4.80 kg (10.56 lbs) without drives ME5024: 4.80 kg (10.56 lbs) without drives ME5084: 64.00 kg (141.00 lbs) without drives
Base System Power
Power/wattage	ME5012: 580W ME5024: 580W ME5084: 2200W
Heat dissipation	ME5012: 1980 BTU ME5024: 1980 BTU ME5084: 7507 BTU
Voltage	ME5012: 100-240 VAC ME5024: 100-240 VAC ME484: 200-240 VAC
Physical Expansion Enclosure
Rack size	ME412: 2U ME424: 2U ME484: 5U
Base system height	ME412: 8.79 cm (3.46 inches) ME424: 8.79 cm (3.46 inches) ME484: 22.23 cm (8.75 inches)
Base system width	ME412: 48.30 cm (19.01 inches) ME424: 48.30 cm (19.01 inches) ME484: 48.30 cm (19.01 inches)
Base system depth	ME412: 60.29 cm (23.74 inches) ME424: 60.29 cm (23.74 inches) ME484: 97.47 cm (38.31 inches)
Weight (max configuration)	ME412: 32.00 kg (71.00 lbs) ME424: 30.00 kg (66.00 lbs) ME484: 135.00 kg (298.00 lbs)
Weight (empty)	ME412: 4.80 kg (10.56 lbs) without drives ME424: 4.80 kg (10.56 lbs) without drives ME484: 64.00 kg (141.00 lbs) without drives
Expansion System Power
Power/wattage	ME412: 580W ME424: 580W ME484: 2200W
Heat dissipation	ME412: 1980 BTU ME424: 1980 BTU ME484: 7507 BTU
Voltage	ME412: 100-240 VAC ME424: 100-240 VAC ME484: 200-240 VAC
