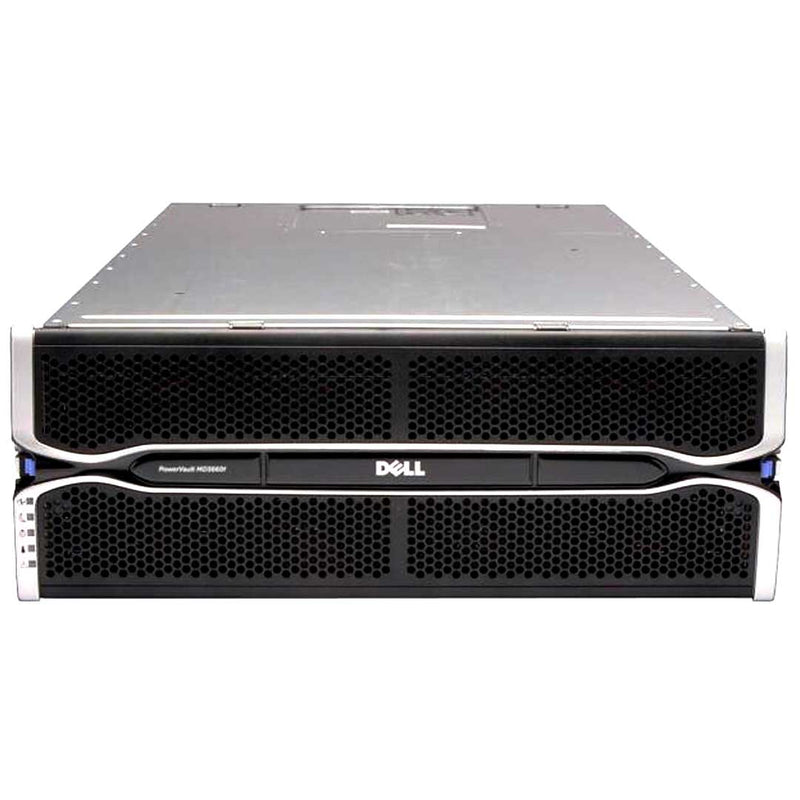

Dell PowerVault MD3660f 60x3.5" 8Gb Fibre Channel (FC) SAN Storage Array CTO
Quick Specs
4U rack server
Storage | Max: 12060 LFF SAS, NL-SAS (HDD/SSD)
Mix and match drives:Supported
Controllers:Supports up to 2
Cache Per Controller:Single controller: 2GB, 4GB
Dual controller: 2GB, 4GB. 8GB

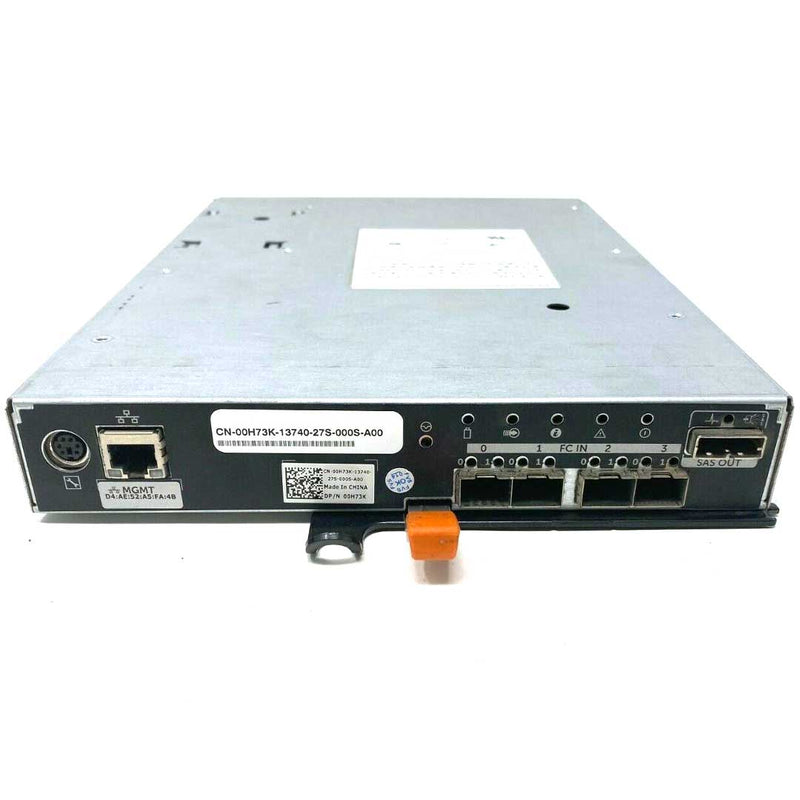

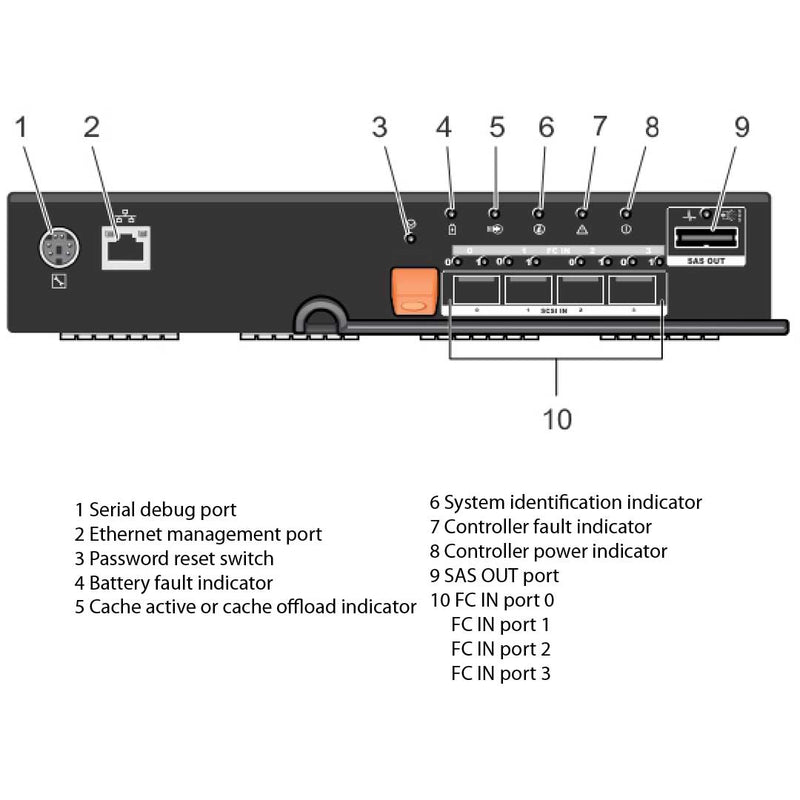

- Four 8Gb/s FC Fibre Channel Host Connectivity
- One x4 6Gb SAS Expansion Connectivity
- One RJ-45 1Gb Ethernet Remote Management
Single Controller Models:
N/A
Dual Controller Models:N/A
Expansion Storage:Up to 120 drives using MD3060e dense enclosures
Other Storage Arrays in the MD Series (JBOD)
MD3200 Series
Data Speeds1Gb iSCSI
6Gb SAS
Server Options
MD3060e
MD3200 12 Bay SAS
MD3200i 12 Drive iSCSI
MD3220 24 Drives SAS
MD3220i 24 Drives iSCSI
MD3400 Series
Speeds12Gb SAS
10GBase-T iSCSI
16Gb FC
Server OptionsMD3400 12 Drives
MD3420 24 Drives
MD3460 60 Drives
MD3600 Series
Speeds10GBase-T iSCSI
8Gb FC
Server Options
MD3600i 12 Drives iSCSI
MD3600f 12 Drives Fibre
MD3620i 24 Drives iSCSI
MD3620f 24 Drives Fibre
MD3660i 60 Drives iSCSI
MD3660f 60 Drives Fibre
MD3800 Series
Speeds10GBase-T iSCSI + 12Gb SAS
16 FC + 12Gb SAS
Server Options
MD3800i 12 Drives iSCSI
MD3800f 12 Drives Fibre
MD3820i 24 Drives iSCSI
MD3820f 24 Drives Fibre
MD3860i 60 Drives iSCSI
MD3860f 60 Drives Fibre
The Refurbished Dell PowerVault MD3660f, a high-density storage array that is perfect for businesses seeking to optimize their storage needs. With the ability to support up to 60 3.5" HDD/SSD and 8Gb Fibre Channel (FC) connectivity, this storage array can efficiently manage data-intensive applications and virtual environments.
Gain a new level of management efficiency
The MD3660f offers the flexibility to mix and match drive types, enabling businesses to create a tiered storage environment that can meet their specific storage requirements. With the capability to scale up to 120 drives with MD3060e expansion enclosures, you can easily expand your storage capacity as your business grows.
This storage array from Dell is equipped with advanced MD Storage Manager software, which simplifies the management of administrative tasks, including configuration, re-configuration, expansion, maintenance, and performance tuning. The software offers two different management paths and features an enterprise window that can monitor multiple systems through a single interface.
With the Refurbished Dell PowerVault MD3660f, you can reduce the effort required to store and manage your data, allowing you to focus on growing your business. Additionally, this storage array is available at an affordable price, making it a cost-effective solution for businesses seeking to optimize their storage needs.
