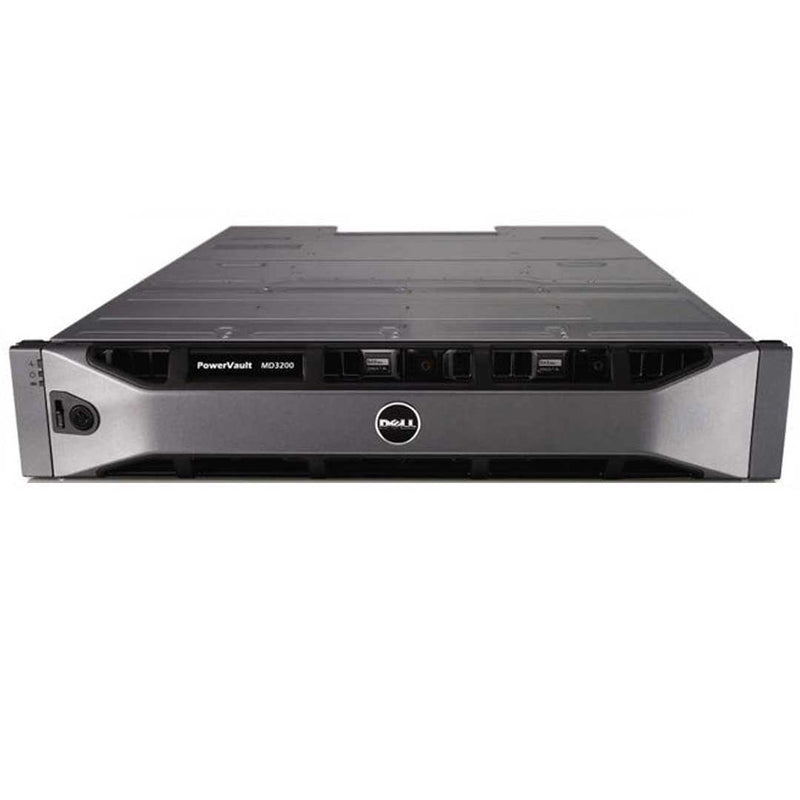

Dell PowerVault MD3220 24x2.5" 6Gb SAS SAN Storage Array CTO
Quick Specs
2U rack server

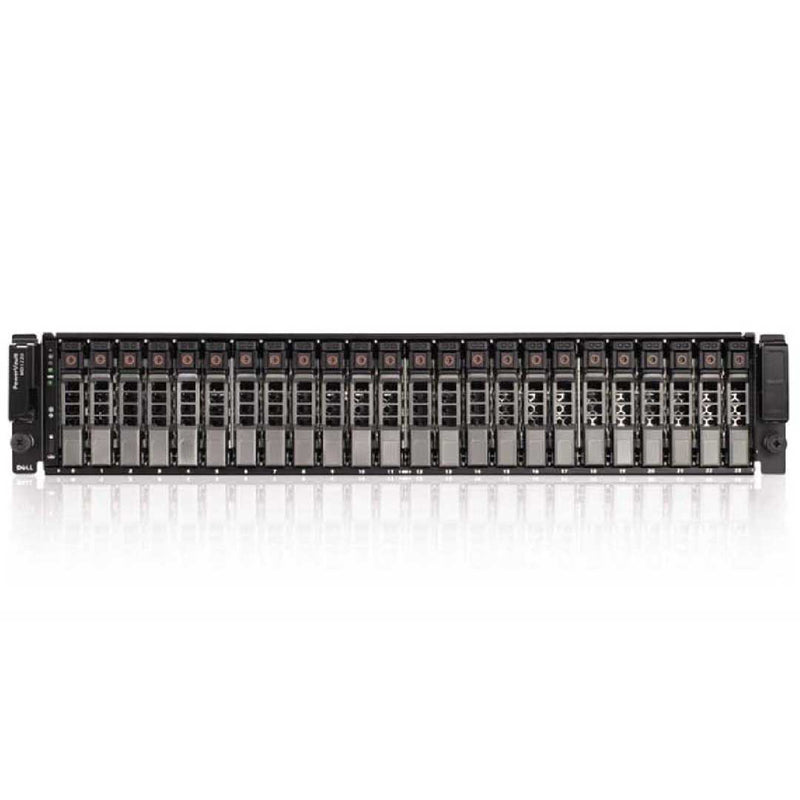

Storage | Max: 120 Drives24 SFF SAS (HDD/SSD)
Mix and match drives:Supported

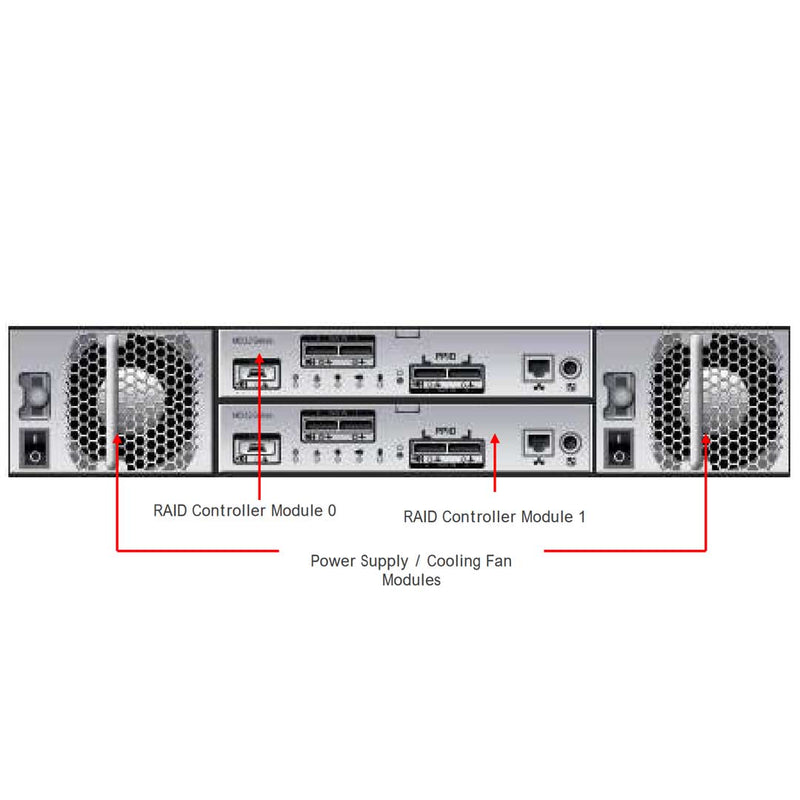

Controllers:Supports up to 2
Cache Per Controller:2GB or 4GB

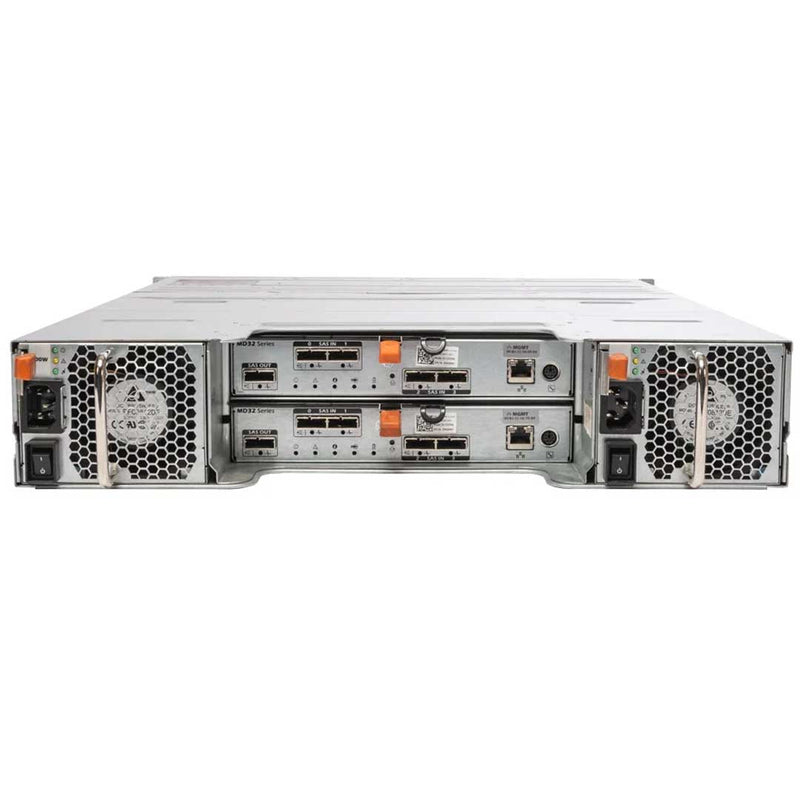

Ports Per Controller:- one-fourth x4 6Gb SAS Host Connectivity
- One x4 6Gb SAS Expansion Connectivity
- One RJ-45 1Gb Ethernet Remote Management
- One PS/2 Serial Service Management
Host Connectivity:
Requires the use of the 6Gb SAS HBA.
Single Controller Models:Supports up to 4 servers directly connected
Dual Controller Models:Supports up to 8 servers directly connected in a non-HA configuration or 4 servers in a HA configuration
Expansion Storage:Scale up to 120 (180 disks with premium feature kit) total drives using MD1200 and/or MD1220 expansion enclosures
Other Storage Arrays in the MD Series (JBOD)
MD3200 Series
Data Speeds1Gb iSCSI
6Gb SAS
Server Options
MD3060e
MD3200 12 Bay SAS
MD3200i 12 Drive iSCSI
MD3220 24 Drives SAS
MD3220i 24 Drives iSCSI
MD3400 Series
Speeds12Gb SAS
10GBase-T iSCSI
16Gb FC
Server OptionsMD3400 12 Drives
MD3420 24 Drives
MD3460 60 Drives
MD3600 Series
Speeds10GBase-T iSCSI
8Gb FC
Server Options
MD3600i 12 Drives iSCSI
MD3600f 12 Drives Fibre
MD3620i 24 Drives iSCSI
MD3620f 24 Drives Fibre
MD3660i 60 Drives iSCSI
MD3660f 60 Drives Fibre
MD3800 Series
Speeds10GBase-T iSCSI + 12Gb SAS
16 FC + 12Gb SAS
Server Options
MD3800i 12 Drives iSCSI
MD3800f 12 Drives Fibre
MD3820i 24 Drives iSCSI
MD3820f 24 Drives Fibre
MD3860i 60 Drives iSCSI
MD3860f 60 Drives Fibre
The Dell™ PowerVault™ MD3200/MD3220 series of storage arrays is a high-performance 6Gb shared storage solution providing high availability data access. As the next generation of our directly connected shared Serial Attached SCSI (SAS) arrays, this series offers exceptional flexibility and scalability and is ideal for consolidating up to one-fourth servers in clustered or virtualized environments. The PowerVault MD3200 array is well-suited for deployments where cost per GB is a key requirement. The PowerVault MD3220 array is an optimal solution when cost/performance (IOPS) is a primary consideration
Connecting the MD3200 and MD3220 to servers requires the use of the 6Gb SAS HBA. The SAS 5/E HBA will not work with the MD3200 series of arrays.
Below are general configuration rules for MD3200 series of arrays.
- Up to 8 direct attached servers with single I/O paths to a dual controller storage array
- Up to 4 direct attached servers with redundant I/O paths to a dual controller storage array
- Up to 32 physical hosts can be supported on a single storage system (includes both single and dual controller models)
- Up to 120 total drives consisting of SSD, SAS and/or near-line SAS drives per storage system
- SSD drives are limited to a single shelf (12 drives for a MD3200 or 24 drives for a MD3220)
- MD1200 and/or MD1220 storage enclosures can be add to a MD3200 or MD3220 storage array for expansion up to 120 total hard drives
- Up to 30 hard disk drives per disk group in a RAID 5 & RAID 6
- Up to 120 hard disk drives per disk group in a RAID1/10
- RAID level configurations 0, 1, 5, 10 or 6.
- Disk groups with different RAID levels can coexist in a single storage system.
- Disk groups are comprised of either SSD or SAS drives. A given disk group cannot have both SSD and SAS drives.
- Up to 256 virtual disks (LUNs) per storage array
- Each virtual disk can support 8 snapshots, with a maximum of 128 snapshots per storage array.
The Dell PowerVault MD3200 series of arrays raises the bar for scalability and flexibility in the entry-level storage space. You can connect up to one-fourth high-availability servers or eight non-redundant servers for balanced performance in mixed virtualized workloads. MD3200 series arrays are ideal for Microsoft® Hyper-V™ and VMware® ESX virtual environments.
