SKU: FAS2750-UTA2-2P-1C
NetApp FAS2750 UTA2 8-Node Metro Cluster IP Filer Head (8Node-MC)
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
Powered by NetApp® ONTAP® data management software, we can help you build a storage infrastructure that is simple, secure, and trusted. NetApp FAS Storage Arrays provides customers with a balance of performance and capacity.
The FAS2750 has two Controller Options, a UTA2 and a 10GBASE-T. Each controller comes with a different numbering of ports and protocols. All other aspects of this Filer are identical regarding supported drives, and capacity.
The FAS2750 configuration ships with a 1TB NVMe Flash Cache internal adapter configured on each node.
No upgrade of Flash Cache capacity is offered.
Model & Form Factor
- Model: NetApp FAS2750 UTA2
- Form Factor: 2U
- PCIe Expansion Slots: None
- Disk Shelves: DS212C, DS224C, DS460C
- Filer Heads: N/A
- Chassis Heights: 3.42" (8.69 cm)
- Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm))
- Chassis Depth w/ Cable Mgmt: 24.13" (61.3 cm)
- Chassis Weight: up to 60.8 lb (27.6 kg)
Controller Specs
- Controllers: UTA2 Dual Controller (Metro Cluster)
- Max Controllers: 2
- PCI Slot (per): None
- Ethernet Ports (per): 2 x SFP+ (10Gb)
- Fibre Channel Ports (per): N/A
- UTA2 Ports (per): 4 x SFP+ (10Gb/16Gb)
- SAS Ports (per): 2 x MiniSAS HD (12Gb)
- Remote Management: Yes
- Processor Model (per):1x 64-bit 12-core 1.50 Ghz
- Memory (Single/8-Node MC): 32GB/256GB
- NVME (Single/8-Node MC): 1024GB/8192GB
- NVMEM (Single/8-Node MC): 4GB/32GB
- Max Number of Internal Drives: 24
- Max Number Drives (total): 288
- Max Capacity: 4,396TB (4.39PB)
- Max # of NL-SAS Drives: Cluster: 288; DR Group: 144; HA Pair: 72
- Max # of SAS Drives: Cluster: 288; DR Group: 144; HA Pair: 72
- Max # of SATA Drives: Cluster: 288; DR Group: 144; HA Pair: 72
- Max # of SSD Drives: Cluster: 288; DR Group: 144; HA Pair: 72
- Drive Interface: NL-SAS, SAS, SATA, SSD
- RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
- Max Number of DS212C Shelves: 16 external
- Max Number of DS224C Shelves: 4 internal + 8 external
- Max Number of DS460C Shelves: 4 external
UTA2 ports
A UTA2 (Unified Target Adapter 2) port on a NetApp system is a flexible, multi-protocol port that can support both Fibre Channel (FC) and Ethernet-based protocols (FCoE or iSCSI over Ethernet). These ports allow NetApp controllers to connect to storage networks using different protocols without needing separate dedicated adapters.
MetroCluster
A MetroCluster is a high-availability (HA) and disaster recovery (DR) solution from NetApp that provides synchronous data replication between two geographically separated sites. It ensures zero data loss and automatic failover in case of a site failure.
8-Node MetroCluster
An 8-node MetroCluster expands the architecture to four HA pairs (eight controllers total) across two sites, offering increased performance, scalability, and redundancy. This configuration is suited for large enterprises with high I/O workloads and critical applications that require greater throughput and storage capacity while maintaining zero data loss failover across sites.
FAS2750 Parts Lists
View Drives
View Adapters
View Transceiver(s
View Data Cables
View Power Cables
View Rail KitsAsk about our NetApp Disk Shelves!
We can create custom Turn-Key configurations based on your needs!
Click here to view NetApp Disk Shelves
Compatible With:
- NetApp FAS2750
(Click to View)
Storage Limits
| Max # of Drives (Total) | Max # of Internal Drives | Max # of NL-SAS Drives | Max # of SAS Drives | Max # of SATA Drives | Max # of SSD Drives | Max # of DS212C Shelves | Max # of DS2246 Shelves | Max # of DS224C Shelves | Max # of DS4243 Shelves | Max # of DS4246 Shelves | Max # of DS460C Shelves |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 144 | 24 | 144 | 144 | 144 | 144 | 9 external | 5 external | 1 internal + 5 external | 5 external | 5 external | 2 external |
Capacity Limits
| Marketing Maximum Raw Capacity - Node | HA Pair | Cluster | Effective Capacity - Node | HA Pair | Cluster |
|---|---|---|---|---|---|
| 1963200 | 1963200 | Detailed Matrix | 8713663.2 | 8713663.2 | N/A |
Core Cluster Limits
| Max SVM's - NAS - Node / HA Pair / Cluster | Max LIF's - NAS - Node / HA Pair / Cluster | Max Connections - NAS - Node / HA Pair(Non-Scalable) | Max Flexible Volumes - NAS - Aggregate (Single data Agg. per Node) / Aggregate (Multiple data Agg. per Node) / Node/ HA Pair / Cluster | Max Flexible Volumes with DPO - NAS - Node/ HA Pair / Cluster | Max Lock Manager Locked Objects - Node/HA Pair/Cluster | Max Intercluster LIFs - Node | Min Root Aggregate (MiB) - Node | Min Root Volume (GiB) - Node | Max IPsec Policies - SVM / Cluster | Max Auditing-Enabled SVMs - Cluster |
|---|---|---|---|---|---|---|---|---|---|---|
| N/A / N/A / 512 | 512 / 512 / 3072 | 100000 / 100000 | N/A / N/A / 1000 / 2000 / 15000 | 1500 / 3000 / 12000 | 1200000 / 1200000 / 12288000 | 8 | 191488 | 150 | 256 / 1500 | 50 |
System Maximums and Limits
| Max Nodes per Cluster (NAS / SAN) | Max FabricPool Size | Max Infinite Volume Data Constituent Size | Max FlexGroup Data Constituent Size | Min Root Volume Size | NetApp Volume Encryption |
|---|---|---|---|---|---|
| Not Supported / Not Supported | 8400 TiB | Not Supported | 150 GiB [1] | Supported |
Processor
| Processor Model | Processor Architecture | Processor Speed | Processor Count (Per Node) | Processor Count (Per Config) | Processor Cores (Per CPU) | Processor Cores (Per Node) | Processor Cores (Per Config) |
|---|---|---|---|---|---|---|---|
| 64-bit 12-core 1.50 Ghz | 64 bit | 1.50 Ghz | 1 | 2 | 12 | 12 | 24 |
Memory
| Detailed Memory Matrix | NVME (Per Node) | NVME (Per Config) | NVMEM (Per Node) | NVMEM (Per Config) | RAM (Per Node) | RAM (Per Config) |
|---|---|---|---|---|---|---|
| Platform Memory Specifications | 1024 GB | 2048 GB | 4 GB | 8 GB | 32 GB | 64 GB |

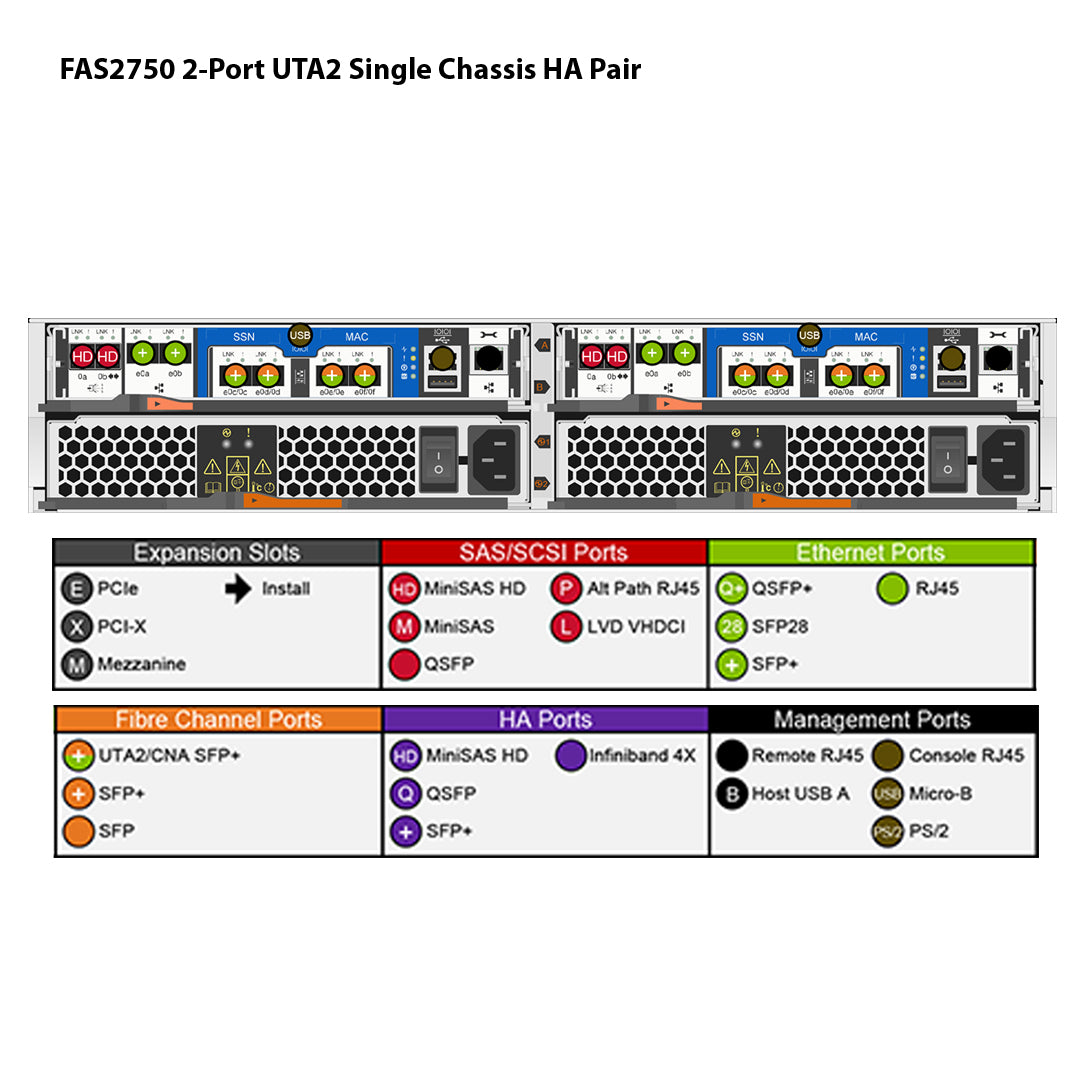

Onboard Ports
| Full Onboard Ports Matrix | Ethernet Ports | Fibre Channel | Ports UTA2 Ports | Expansion Slots | SAS Ports |
|---|---|---|---|---|---|
| Onboard Ports & Cables | 4 x SFP+ (10Gb) | - | - | 4 x MiniSAS HD (12Gb) |
Physical Characteristics
| Rack Units | Chassis Height | Chassis Width with Mounting Flanges | Chassis Width without Mounting Flanges | Chassis Depth with Cable Mgmt | Chassis Depth without Cable Mgmt | Chassis Weight |
|---|---|---|---|---|---|---|
| 2 | 3.35" (8.5 cm) | 18.9" (48 cm) | 17.6" (44.7 cm) | 24.13" (61.3 cm) | 19.02" (48.3 cm) | See Below |
System Clearance Dimensions
| Front Clearance (Cooling) | Front Clearance (Maintenance) | Rear Clearance (Cooling) | Rear Clearance (Maintenance) |
|---|---|---|---|
| 6.03" (15.3 cm) | 24.03" (61 cm) | 6.03" (15.3 cm) | 13" (33 cm) |
Environmental Requirements
| Operating Temp / Humidity / Altitude | Storage Temp / Humidity / Altitude | Transit Temp / Humidity / Altitude | Acoustic Noise - Sound Power / Pressure | Input Power Voltage |
|---|---|---|---|---|
| 41 to 113 deg F - 5 to 45 deg C / 8 to 90 % / Up to 10000.0 ft - Up to 3048.0 m | -40 to 158 deg F - -40 to 70 deg C / 10 to 95 % / Up to 40000.0 ft - Up to 12192.0 m | -40 to 158 deg F - -40 to 70 deg C / 10 to 95 % / Up to 39989.8 ft - Up to 12192 m | 6.9 bels / 51 dBA | 100 to 120 |
Storage OS Requirements
| Full OS Matrix | Recommended Version | Minimum OS | Maximum OS |
|---|---|---|---|
| View Full OS Report Below | 9.11.1 | 9.11.1RC1 | 9.11.1 |
Storage and Firmware
| Full Firmware Matrix | BIOS | BMC |
|---|---|---|
| Full Firmware ReportBelow | 11.15* | 11.8* |
Product Standards Compliance
| Full Compliance and Certificates Report | Cert. EMC/EMI | Cert. Safety | Cert. Safety/EMC/EMI | Cert. Safety/EMC/EMI/RoHS | Standard Safety/EMC/EMI | Standard Safety |
|---|---|---|---|---|---|---|
| Compliance and Certificates ReportBelow | AMCA, FCC, ICES, KC, Morocco, VCCI | BIS, CB, CSA, G_K_U-SoR, IRAM, NOM, NRCS, SONCAP, TBS | EAC, UKRSEPRO | BSMI, CE DoC, UKCA DoC | BS-EN-55024, BS-EN55035, CISPR 32, EN55022, EN55024, EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, IC more... | ANSI/UL60950-1, ANSI/UL62368-1, BS-EN62368-1, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 62368-1, CNS 14336, EN60825-1 more... |
NFS Cluster Limits
| Max Export Policies | Max Export Rules | Max NFSv4 Access Control Entries | Max Client Objects - Node / HA Pair | Max pNFS objects - Node / HA Pair |
|---|---|---|---|---|
| 24000 | 200000 | 1024 | 10000 / 10000 | 524288 / 524288 / 1048576 |
WAFL Cluster Limits - All Maximums
| Size 64-bit Aggregate (TiB) | Size 64-bit Volume (TiB) | File size 64-bit Volume (TiB) | Snapshot - Volume / Node / HA Pair | Char's Snapshot | Hard links - File | inodes/files - Volume | qtrees - Volume / Node / HA Pair / Cluster | Concurrent DataMotion for Volumes ops - Node / HA Pair |
|---|---|---|---|---|---|---|---|---|
| 800 | 100 | 16 | 1023 / 1023000 / 2046000 | 255 | 100000 | 2000000000 | 4995 / 100000 / 200000 / 400000 | 16 / 16 |
Quality of Service Cluster Limits
| Max Policy Groups - Cluster | Max QoS User Workloads - Cluster |
|---|---|
| 12000 | 40000 |
SAN Cluster Limits - All Maximums
| SVMs - Node / HA Pair / Cluster | Flexible Vol - Node / HA Pair / Cluster | Flexible Vol with DPO - Node / HA Pair / Cluster | LUNs Vol - Node / HA Pair / Cluster | LUN mappings - Node / HA Pair / Cluster | LUN size (TiB) - LUN | Maximum FC queue depth available | SAN Hosts (ITNs) - Port / Node / HA Pair / Cluster | LIFS - iSCSI - Port / Portset / Node / HA Pair / Cluster | LIFS - FCP - Port / Portset / Node / HA Pair / Cluster | igroups - Node / HA Pair / Cluster | Initiators - igroup / Node / HA Pair / Cluster | Portsets - Node / HA Pair / Cluster | iSCSI sessions - Node / HA Pair / Cluster |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 125 / 250 / 1000 | N/A / N/A / 1000 / 2000 / 12000 | 1500 / 3000 / 12000 | 1024 / 8192 / 16384 / 65536 | 8192 / 16384 / 65536 | 16 | 2048 | 512 / 4096 / 8192 / 32768 | 32 / 32 / 512 / 1024 / 4096 | 32 / 32 / 512 / 1024 / 4096 | 2048 / 4096 / 16384 | 256 / 2048 / 4096 / 16384 | 2048 / 4096 / 16384 | 4096 / 8192 / 32768 |
CIFS Cluster Limits - All Maximums
| Connected shares - Node / HA Pair | Regular shares - Node / HA Pair / Cluster | Open files - Connection / Node / HA Pair | Local users - Cluster | Local groups - Cluster | Local group members - Cluster |
|---|---|---|---|---|---|
| Detailed Matrix / 800000 | N/A / N/A / 60000 | 600000 / 600000 / 600000 | 5000 | 10000 | 30000 |
Data Protection Cluster Limits - All Maximums
| NDMP Sessions - Node / HA Pair (Non-Scalable) | Data Protection Mirrors - Volume / Node / HA Pair / Cluster | Load Sharing Mirrors - NAS SVM | Concurrent Snap Mirror / SnapVault transfers - Node | DP Mirror fan-out - Volume | LS Mirror fan-out - NAS SVM | Clusters that can be peered - Cluster | Volumes, SnapMirror relationship - FlexGroup / FlexGroup-Node /HA Pair / Cluster | SnapMirror Synchronous relationships - Volume / Node / HA Pair (Non-Scalable) | Flexible Volumes in SVM DR - SVM / HA Pair | SVM Disaster recovery - Cluster |
|---|---|---|---|---|---|---|---|---|---|---|
| 36 / 36 | 1 / 1000 / 2000 / 15000 | 2 | 100 | 8 | 2 | 255 | 200 / 50 / 1000 / 6000 | 1 / 20 / 20 | 300 / 1000 | 128 |
NVMe/oF Cluster Limits - All Maximums
| Storage virtual machines (SVMs), NVMe/oF - Cluster | Flexible volumes, NVMe/oF - Node / HA Pair / Cluster | Flexible volumes with DPO, NVMe/oF - Node / HA Pair / Cluster | Namespaces - Volume / Node / HA Pair / Cluster | Subsystems - SVM / Cluster | Namespace Mappings - Subsystem / Node / HA Pair / Cluster | Namespace Size | Hosts - Subsystem | LIFS, NVMe/oF - Port / SVM / Node / HA Pair / Cluster | I/O Queue Count, NVMe/TCP - Controller | I/O Queue Depth - NVMe/TCP | Controllers, NVMe/TCP - Node |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 1000 / 2000 / 12000 | 1500 / 3000 / 12000 | 1024 / 8192 / 16384 / 65536 | 512 / 512 | 1024 / 8192 / 16384 / 65536 | 16 | 64 | 16 / 8 / 32 / 32 / 32 | 2 | 128 | 1024 |
FlexCache Cluster Limits - All Maximums Cache
| Degree of fan-out - Origin | Origin Volumes - Node / HA Pair | Constituent Volumes - Node / HA Pair | Volumes - Node / HA Pair | Origin ConstituentVolumes - Node / HA Pair |
|---|---|---|---|---|
| 100 | 100 / 200 | 800 / 1600 | 100 / 200 | 800 / 1600 |
S3 Cluster Limits - All Maximums
| Number of Buckets - Vserver / Cluster | Number of Objects - Bucket | Number of Users - Vserver / Cluster | Size of the Bucket (PB) - Vserver |
|---|---|---|---|
| 12000 / 12000 | 400000000000 | 4000 / 96000 | 20 |
Consistency Groups - All Maximums
| Number of Consistency Groups - Cluster | Number of Parent Consistency Groups - Cluster | Consistency Groups and Parents - Cluster | Child Consistency Groups in a Parent - Parent Group | Flexible Volumes in a Consistency Group | Flexible Volumes for Child Consistency Groups under a Parent Group | Flexible Volumes in a Child Consistency Group |
|---|---|---|---|---|---|---|
| 15000 | 15000 | 15000 | 5 | 80 | 80 |
Platform LED for FAS2750 2-port UTA2 Single Chassis HA Pair
| LED Label | LED Name | Type | Status Indicator | Description | |||||
|---|---|---|---|---|---|---|---|---|---|

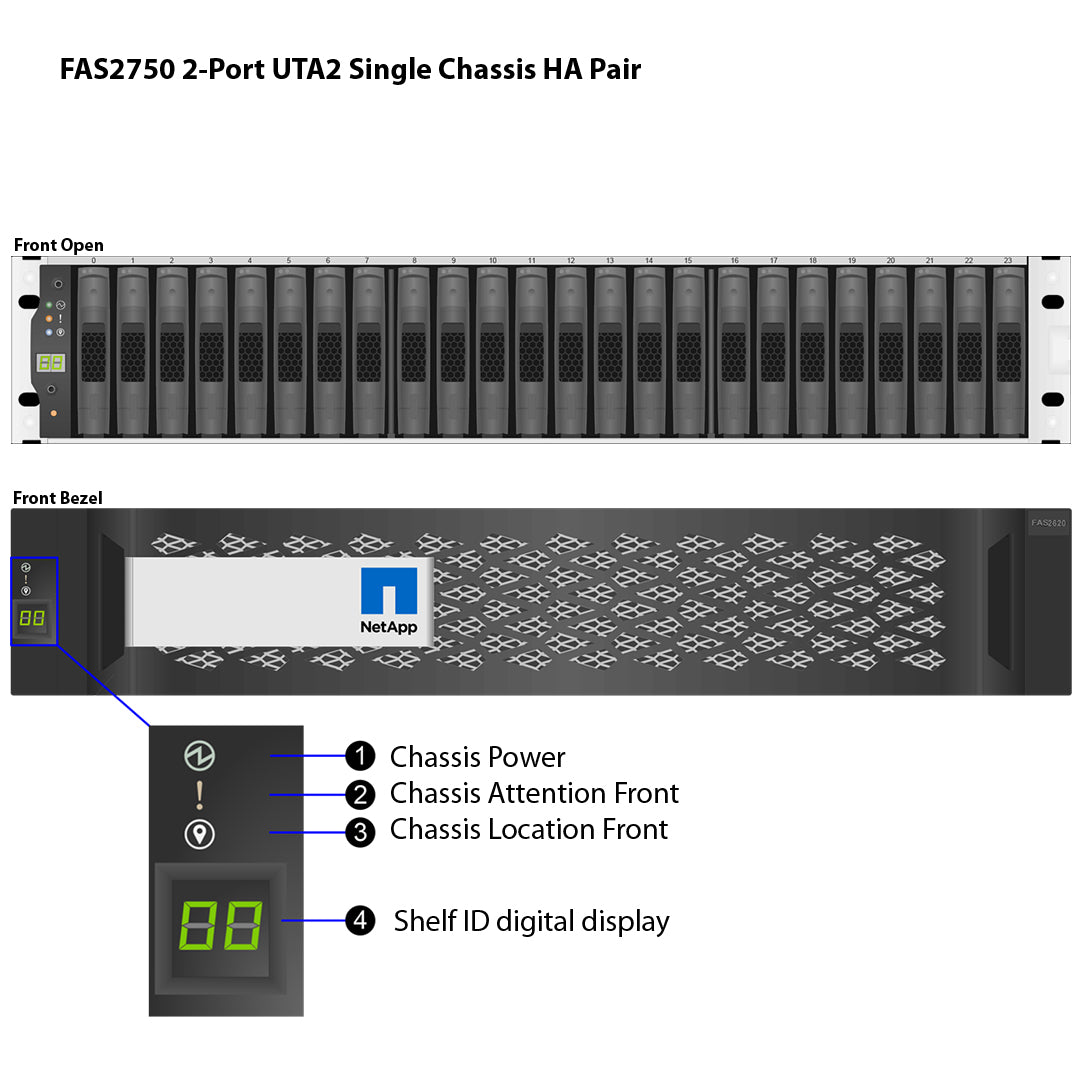

| Front View | |||||||||
| 1 | Chassis Power Config | - | On Green | At least one of the two PSUs is delivering power to the system. | |||||
| - | - | - | Off | Neither PSU is delivering power to the system. | |||||
| 2 | Chassis Attention LED, front | - | On Amber | The system halted or a fault occurred in the chassis. | |||||
| - | - | - | Off | The system is operating normally. | |||||
| 3 | Location LED on chassis front | - | On or flashing blue | The LED has been manually activated to aid in physically locating equipment | |||||
| - | - | - | Off | The LED has not been manually activated to aid in physically locating equipment | |||||
| 4 | Shelf ID Digital Display | - | Number Displayed | Digital Shelf ID | |||||

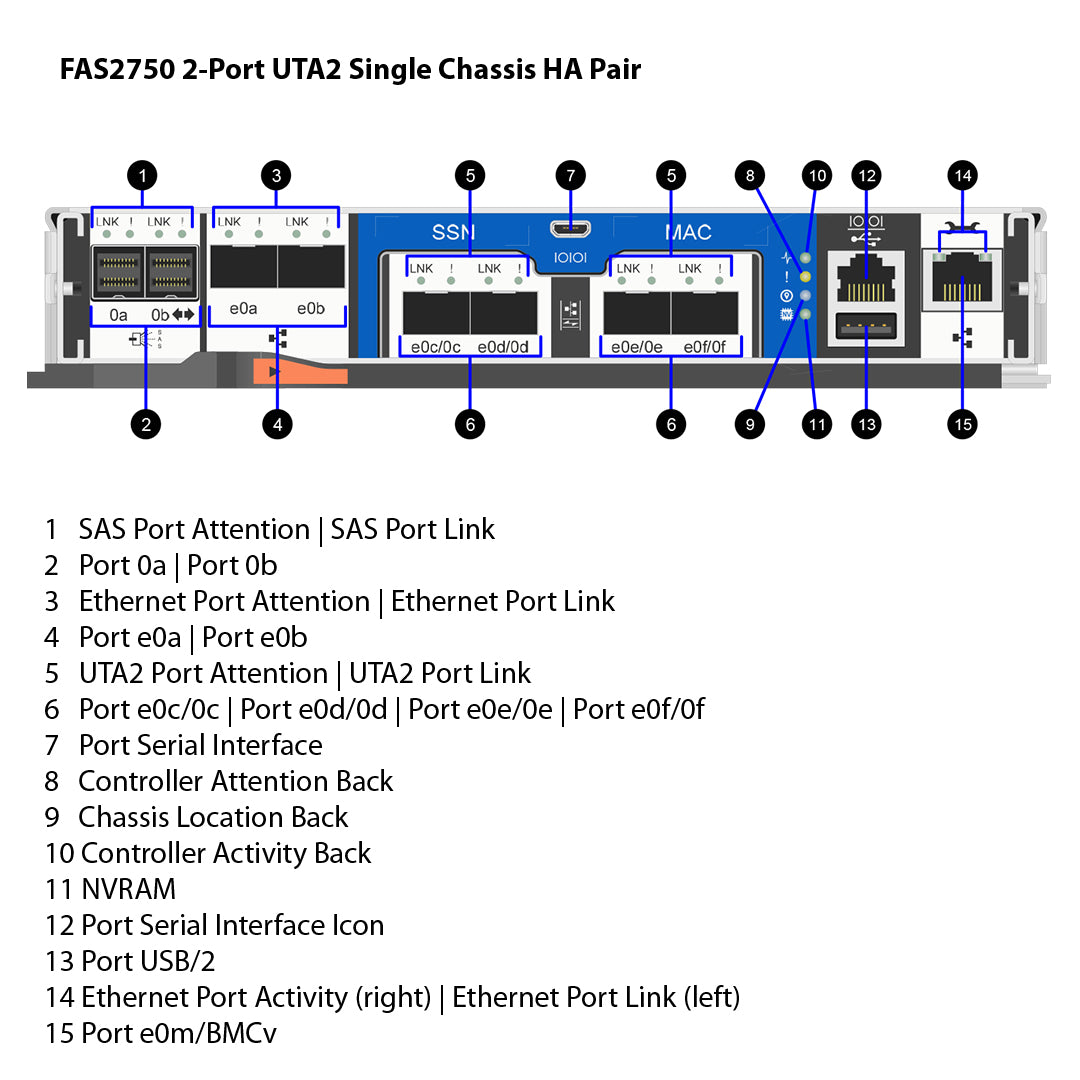

| Back View | |||||||||
| LED Label | LED Name | Type | Status Indicator | Description | |||||
| - | 0a Port SAS 2 LED Onboard Config | Attention | Yellow | SAS link requires attention | |||||
| - | - | - | Off | SAS link operates as normal | |||||
| - | - | Link | Green | Link is established on at least one external SAS lane | |||||
| - | - | - | Off | No link is established on any external SAS lane | |||||
| - | 0b Port SAS 2 LED Onboard Config | Attention | Yellow | SAS link requires attention | |||||
| - | - | - | Off | SAS link operates as normal | |||||
| - | - | Link | Green | Link is established on at least one external SAS lane | |||||
| - | - | - | Off | No link is established on any external SAS lane | |||||
| - | e0a Port Ethernet SFP Config | Attention | Yellow | Ethernet Port requires attention. | |||||
| - | - | - | Off | Ethernet port operates as normal | |||||
| - | - | Link | Green | A connection is established to the port. | |||||
| - | - | - | Off | No connection is established on the port. | |||||
| - | e0b Port Ethernet SFP Config | Attention | Yellow | Ethernet Port requires attention. | |||||
| - | - | - | Off | Ethernet port operates as normal | |||||
| - | - | Link | Green | A connection is established to the port. | |||||
| - | - | - | Off | No connection is established on the port. | |||||
| - | e0c/0c Port UTA2 Config (Ethernet personality) | Attention | Off | Port is operating as normal | |||||
| - | - | Link | Green | A connection is established to the port. | |||||
| - | - | - | Yellow | Port requires attention | |||||
| - | - | - | Off | No connection is established on the port. | |||||
| - | e0c/0c Port UTA2 Config (FC personality) | Attention | Off | Port is operating as normal | |||||
| - | - | Link | Green | A connection is established to the port. | |||||
| - | - | - | Yellow | Port requires attention | |||||
| - | - | - | Off | No connection is established on the port. | |||||
| - | e0d/0d Port UTA2 Config (Ethernet personality) | Attention | Off | Port is operating as normal | |||||
| - | - | Link | Green | A connection is established to the port. | |||||
| - | - | - | Yellow | Port requires attention | |||||
| - | - | - | Off | No connection is established on the port. | |||||
| - | e0d/0d Port UTA2 Config (FC personality) | Attention | Off | Port is operating as normal | |||||
| - | - | Link | Green | A connection is established to the port. | |||||
| - | - | - | Yellow | Port requires attention | |||||
| - | - | - | Off | No connection is established on the port. | |||||
| - | e0m/BMC Ethernet On/Off | Port Activity | Blinking green | Traffic is present on the active link | |||||
| - | - | - | Off | Off | |||||
| - | - | Port Link | Solid green | On | |||||
| - | - | - | Off | No link established | |||||
Supported Shelves Drives for FAS2750 2-Port UTA2 Single Chassis HA Pair
| Part No. | Capacity | RPM | Drive Type | Encryption | Root-Data Partitioning | Root-Data-Data Partitioning | Storage Pool Partitioning | Max Drive Count | FlexArray |
|---|---|---|---|---|---|---|---|---|---|
| FAS2750A 2-port UTA2 Internal Drives | |||||||||
| X319A | 7.6TB | N/A | SSD | No | No | Yes | No | 24 | No |
| X341A-R6 | 900GB | 10K | SAS | No | Yes | No | No | 24 | No |
| X342A-R6 | 1.2TB | 10K | SAS | No | Yes | No | No | 24 | No |
| X343A-R6 | 1.8TB | 10K | SAS | No | Yes | No | No | 24 | No |
| X356A-R6 | 3.84TB | N/A | SSD | No | No | Yes | Yes | 24 | No |
| X357A | 3.84TB | N/A | SSD | No | No | Yes | Yes | 24 | No |
| X358A [1] | 3.84TB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 24 | No |
| X365A-R6 [1] | 1.6TB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 24 | No |
| X371A | 960GB | N/A | SSD | No | No | Yes | Yes | 24 | No |
| X386A [1] | 960GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 24 | No |
| X416A-R5 [1] | 600GB | 10K | SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 24 | No |
| X417A-R6 [1] [2] | 900GB | 10K | SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 24 | No |
| X421A-R5 | 450GB | 10K | SAS | No | Yes | No | No | 24 | No |
| X422A-R5 | 600GB | 10K | SAS | No | Yes | No | No | 24 | No |
| X423A-R5 | 900GB | 10K | SAS | No | Yes | No | No | 24 | No |
| X425A-R6 | 1.2TB | 10K | SAS | No | Yes | No | No | 24 | No |
| X426A-R6 | 1.8TB | 10K | SAS | No | Yes | No | No | 24 | No |
| X427A [1] | 1.8TB | 10K | SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 24 | No |
| X427B-R6 [1] | 1.8TB | 10K | SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 24 | No |
| X438A-R6 | 400GB | N/A | SSD | No | No | Yes | Yes | 24 | No |
| X439A-R6 | 1.6TB | N/A | SSD | No | No | Yes | Yes | 24 | No |
| X440A-R6 [1] | 800GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 24 | No |
| X440B-R6 [1] | 800GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 24 | No |
| X446B-R6 | 200GB | N/A | SSD | No | No | No | Yes | 24 | No |
| X447A-R6 | 800GB | N/A | SSD | No | No | Yes | Yes | 24 | No |
| X670A | 15.3TB | N/A | SSD | No | No | Yes | No | 24 | No |
| DS212C with IOM12 / IOM12B / IOM12B / IOM12 shelf modules | |||||||||
| X302A-R5 | 1TB | 7.2K | SATA | No | Yes | No | No | 108 | No |
| X306A-R5 | 2TB | 7.2K | SATA | No | Yes | No | No | 108 | No |
| X308A-R5 | 3TB | 7.2K | SATA | No | Yes | No | No | 108 | No |
| X315A-R6 [1] [2] | 4TB | 7.2K | NL-SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 108 | No |
| X317A [1] | 6TB | 7.2K | NL-SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 108 | No |
| X318A-R6 | 8TB | 7.2K | NL-SAS | No | Yes | No | No | 108 | No |
| X322A [1] | 10TB | 7.2K | NL-SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 108 | No |
| X336A-R6 | 4TB | 7.2K | NL-SAS | No | Yes | No | No | 108 | No |
| X339A | 2TB | 7.2K | NL-SAS | No | Yes | No | No | 108 | No |
| X363A-R6 | 3.84TB | N/A | SSD | No | No | No | Yes | 108 | No |
| X364A | 3.84TB | N/A | SSD | No | No | No | Yes | 108 | No |
| X366A-R6 [1] | 1.6TB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | No | Yes | 108 | No |
| X374A | 960GB | N/A | SSD | No | No | No | Yes | 108 | No |
| X380A | 10TB | 7.2K | NL-SAS | No | Yes | No | No | 108 | No |
| X388A | 16TB | 7.2K | NL-SAS | No | Yes | No | No | 108 | No |
| X448A-R6 | 200GB | N/A | SSD | No | No | No | Yes | 108 | No |
| X449A-R6 | 800GB | N/A | SSD | No | No | No | Yes | 108 | No |
| X477A-R6 | 4TB | 7.2K | NL-SAS | No | Yes | No | No | 108 | No |
| X488A-R5 | 900GB | 10K | SAS | No | Yes | No | No | 108 | No |
| X489A-R6 | 1.2TB | 10K | SAS | No | Yes | No | No | 108 | No |
| X490A-R6 | 1.8TB | 10K | SAS | No | Yes | No | No | 108 | No |
| X575A-R6 | 400GB | N/A | SSD | No | No | No | Yes | 108 | No |
| X576A-R6 | 1.6TB | N/A | SSD | No | No | No | Yes | 108 | No |
| DS224C with IOM12 / IOM12B / IOM12 / IOM12B shelf modules | |||||||||
| X319A | 7.6TB | N/A | SSD | No | No | Yes | No | 120 | No |
| X341A-R6 | 900GB | 10K | SAS | No | Yes | No | No | 120 | No |
| X342A-R6 | 1.2TB | 10K | SAS | No | Yes | No | No | 120 | No |
| X343A-R6 | 1.8TB | 10K | SAS | No | Yes | No | No | 120 | No |
| X356A-R6 | 3.84TB | N/A | SSD | No | No | Yes | Yes | 120 | No |
| X357A | 3.84TB | N/A | SSD | No | No | Yes | Yes | 120 | No |
| X358A [1] | 3.84TB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 120 | No |
| X365A-R6 [1] | 1.6TB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 120 | No |
| X371A | 960GB | N/A | SSD | No | No | Yes | Yes | 120 | No |
| X386A [1] | 960GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 120 | No |
| X416A-R5 [1] | 600GB | 10K | SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 120 | No |
| X417A-R6 [1] [2] | 900GB | 10K | SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 120 | No |
| X421A-R5 | 450GB | 10K | SAS | No | Yes | No | No | 120 | No |
| X422A-R5 | 600GB | 10K | SAS | No | Yes | No | No | 120 | No |
| X423A-R5 | 900GB | 10K | SAS | No | Yes | No | No | 120 | No |
| X425A-R6 | 1.2TB | 10K | SAS | No | Yes | No | No | 120 | No |
| X426A-R6 | 1.8TB | 10K | SAS | No | Yes | No | No | 120 | No |
| X427A [1] | 1.8TB | 10K | SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 120 | No |
| X427B-R6 [1] | 1.8TB | 10K | SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 120 | No |
| X438A-R6 | 400GB | N/A | SSD | No | No | Yes | Yes | 120 | No |
| X439A-R6 | 1.6TB | N/A | SSD | No | No | Yes | Yes | 120 | No |
| X440A-R6 [1] | 800GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 120 | No |
| X440B-R6 [1] | 800GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 120 | No |
| X446B-R6 | 200GB | N/A | SSD | No | No | No | Yes | 120 | No |
| X447A-R6 | 800GB | N/A | SSD | No | No | Yes | Yes | 120 | No |
| X670A | 15.3TB | N/A | SSD | No | No | Yes | No | 120 | No |
| DS460C with IOM12 / IOM12B / IOM12B / IOM12 shelf modules | |||||||||
| X379A | 960GB | N/A | SSD | No | No | No | Yes | 20 | No |
| X375A | 4TB | 7.2K | NL-SAS | No | Yes | No | No | 120 | No |
| X376A | 8TB | 7.2K | NL-SAS | No | Yes | No | No | 120 | No |
| X377A | 10TB | 7.2K | NL-SAS | No | Yes | No | No | 120 | No |
| X378A [1] | 10TB | 7.2K | NL-SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 120 | No |
| X387A | 16TB | 7.2K | NL-SAS | No | Yes | No | No | 120 | No |
| DS2246 with IOM12 / IOM12B / IOM6 / IOM12 / IOM6 / IOM12B shelf modules | |||||||||
| X341A-R6 | 900GB | 10K | SAS | No | Yes | No | No | 120 | No |
| X342A-R6 | 1.2TB | 10K | SAS | No | Yes | No | No | 120 | No |
| X343A-R6 | 1.8TB | 10K | SAS | No | Yes | No | No | 120 | No |
| X356A-R6 | 3.84TB | N/A | SSD | No | No | Yes | Yes | 120 | No |
| X357A | 3.84TB | N/A | SSD | No | No | Yes | Yes | 120 | No |
| X358A [1] | 3.84TB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 120 | No |
| X365A-R6 [1] | 1.6TB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 120 | No |
| X371A | 960GB | N/A | SSD | No | No | Yes | Yes | 120 | No |
| X416A-R5 [1] | 600GB | 10K | SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 120 | No |
| X417A-R6 [1] [2] | 900GB | 10K | SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 120 | No |
| X421A-R5 | 450GB | 10K | SAS | No | Yes | No | No | 120 | No |
| X422A-R5 | 600GB | 10K | SAS | No | Yes | No | No | 120 | No |
| X423A-R5 | 900GB | 10K | SAS | No | Yes | No | No | 120 | No |
| X425A-R6 | 1.2TB | 10K | SAS | No | Yes | No | No | 120 | No |
| X426A-R6 | 1.8TB | 10K | SAS | No | Yes | No | No | 120 | No |
| X427A [1] | 1.8TB | 10K | SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 120 | No |
| X427B-R6 [1] | 1.8TB | 10K | SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 120 | No |
| X438A-R6 | 400GB | N/A | SSD | No | No | Yes | Yes | 120 | No |
| X439A-R6 | 1.6TB | N/A | SSD | No | No | Yes | Yes | 120 | No |
| X440A-R6 [1] | 800GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 120 | No |
| X440B-R6 [1] | 800GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | Yes | 120 | No |
| X446B-R6 | 200GB | N/A | SSD | No | No | No | Yes | 120 | No |
| X447A-R6 | 800GB | N/A | SSD | No | No | Yes | Yes | 120 | No |
| DS4246 with IOM12 / IOM12B / IOM12B / IOM6 / IOM12 / IOM6 shelf modules | |||||||||
| X302A-R5 | 1TB | 7.2K | SATA | No | Yes | No | No | 120 | No |
| X306A-R5 | 2TB | 7.2K | SATA | No | Yes | No | No | 120 | No |
| X308A-R5 | 3TB | 7.2K | SATA | No | Yes | No | No | 120 | No |
| X309A-R6 [1] [2] | 3TB | 7.2K | NL-SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 120 | No |
| X315A-R6 [1] [2] | 4TB | 7.2K | NL-SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 120 | No |
| X316A-R6 | 6TB | 7.2K | NL-SAS | No | Yes | No | No | 120 | No |
| X317A [1] | 6TB | 7.2K | NL-SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 120 | No |
| X318A-R6 | 8TB | 7.2K | NL-SAS | No | Yes | No | No | 120 | No |
| X322A [1] | 10TB | 7.2K | NL-SAS | FIPS 140-2 Level 2, NSE | Yes | No | No | 120 | No |
| X336A-R6 | 4TB | 7.2K | NL-SAS | No | Yes | No | No | 120 | No |
| X363A-R6 | 3.84TB | N/A | SSD | No | No | No | Yes | 120 | No |
| X366A-R6 [1] | 1.6TB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | No | Yes | 120 | No |
| X374A | 960GB | N/A | SSD | No | No | No | Yes | 120 | No |
| X380A | 10TB | 7.2K | NL-SAS | No | Yes | No | No | 120 | No |
| X441A-R5 | 100GB | N/A | SSD | No | No | No | No | 120 | No |
| X442A-R5 [4] | 100GB | N/A | SSD | No | No | No | No | 120 | No |
| X448A-R6 | 200GB | N/A | SSD | No | No | No | Yes | 120 | No |
| X449A-R6 | 800GB | N/A | SSD | No | No | No | Yes | 120 | No |
| X477A-R6 | 4TB | 7.2K | NL-SAS | No | Yes | No | No | 120 | No |
| X488A-R5 | 900GB | 10K | SAS | No | Yes | No | No | 120 | No |
| X489A-R6 | 1.2TB | 10K | SAS | No | Yes | No | No | 120 | No |
| X490A-R6 | 1.8TB | 10K | SAS | No | Yes | No | No | 120 | No |
| X575A-R6 | 400GB | N/A | SSD | No | No | No | Yes | 120 | No |
| X576A-R6 | 1.6TB | N/A | SSD | No | No | No | Yes | 120 | No |
| X577A-R6 [1] | 800GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | No | Yes | 120 | No |
| DS4243 [3] with IOM12 / IOM6 shelf modules | |||||||||
| X302A-R5 | 1TB | 7.2K | SATA | No | No | No | No | 120 | No |
| X306A-R5 | 2TB | 7.2K | SATA | No | No | No | No | 120 | No |
| X308A-R5 | 3TB | 7.2K | SATA | No | No | No | No | 120 | No |
| Footnote: | |||||||||
| [1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported. | |||||||||
| [2] In Flash Pool NSE SSD drives can only be used with NSE HDD drives. | |||||||||
| [3] The DS4243 shelf requires an upgrade to IOM6 or IOM12 Expander Modules starting with ONTAP 9.4RC1 and FAS27x0. | |||||||||
| [4] This drive does not support the sanitization feature. | |||||||||
Supported RAID Configurations - FAS2750 2-Port UTA2 Single Chassis HA Pair
| Drive Type | Drive Capacity Min | Drive Capacity Max | Minimum | Default | Maximum | ||||
|---|---|---|---|---|---|---|---|---|---|
| Data Aggregate | |||||||||
| RAID4 | |||||||||
| NL-SAS | 0 TB | 8 TB | 3 | 7 | 7 | ||||
| SAS | 0 TB | 5.999 TB | 3 | 8 | 14 | ||||
| SATA | 0 TB | 5.999 TB | 3 | 7 | 7 | ||||
| SSD | 0 TB | 15.3 TB | 3 | 8 | 14 | ||||
| RAID-DP | |||||||||
| NL-SAS | 0 TB | 5.999 TB | 5 | 14 | 20 | ||||
| NL-SAS | 6 TB | 10 TB | 5 | 14 | 14 | ||||
| SAS | 0 TB | 5.999 TB | 5 | 16 | 28 | ||||
| SATA | 0 TB | 5.999 TB | 5 | 14 | 20 | ||||
| SSD | 0 TB | 15.3 TB | 5 | 24 | 28 | ||||
| RAID-TEC | |||||||||
| NL-SAS | 0 TB | 16 TB | 7 | 21 | 29 | ||||
| SAS | 0 TB | 8 TB | 7 | 24 | 29 | ||||
| SATA | 0 TB | 8 TB | 7 | 21 | 29 | ||||
| SSD | 0 TB | 15.3 TB | 7 | 25 | 29 | ||||
| Root Aggregate | |||||||||
| RAID4 | |||||||||
| NL-SAS | 0 TB | 8 TB | 2 | - | 7 | ||||
| SAS | 0 TB | 5.999 TB | 2 | - | 14 | ||||
| SATA | 0 TB | 5.999 TB | 2 | - | 7 | ||||
| SSD | 0 TB | 15.3 TB | 2 | - | 14 | ||||
| RAID-DP | |||||||||
| NL-SAS | 0 TB | 5.999 TB | 3[1] | - | 20 | ||||
| NL-SAS | 6 TB | 16 TB | 3[1] | - | 14 | ||||
| SAS | 0 TB | 5.999 TB | 3[1] | - | 28 | ||||
| SATA | 0 TB | 5.999 TB | 3[1] | - | 20 | ||||
| SSD | 0 TB | 15.3 TB | 3[1] | - | 28 | ||||
| RAID-TEC | |||||||||
| NL-SAS | 0 TB | 16 TB | 7 | - | 29 | ||||
| SAS | 0 TB | 8 TB | 7 | - | 29 | ||||
| SATA | 0 TB | 8 TB | 7 | - | 29 | ||||
| SSD | 0 TB | 15.3 TB | 7 | - | 29 | ||||
| Footnote: | |||||||||
| 1The minimum number of disks in a RAID-DP group is three: at least one data disk, one regular parity disk, and one double-parity (dParity) disk. However, for non-root aggregates with only one RAID group, you must have at least 5 disks (three data disks and two parity disks). | |||||||||
Supported Adapter Cards - FAS2750 2-port UTA2 Single Chassis HA Pair
| Priority | Category | Bus Type | Mktg Part No. | Mfg Part No | Description | Plug Type | Optical Module Included? | Cables | Supported Protocol(s) | Min ONTAP | Max Qty [1] | Priority Slot Assignment | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Performance Acceleration | M.2 PCIe | X3311A | - | 111-03066 | Flash Cache,1.0TB,NVMe | No | N/A | 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1 | ||||||||||
| Footnote: | |||||||||||||||||||
| [1] Values shown for max quantity are per controller. HA configurations will support 2x the values shown. | |||||||||||||||||||
Supported Connections for FAS2750 2-port UTA2 Single Chassis HA Pair
| Configuration Type | Port Configuration | Image | Cluster Ports per Node | Switch Ports per Node |
|---|---|---|---|---|

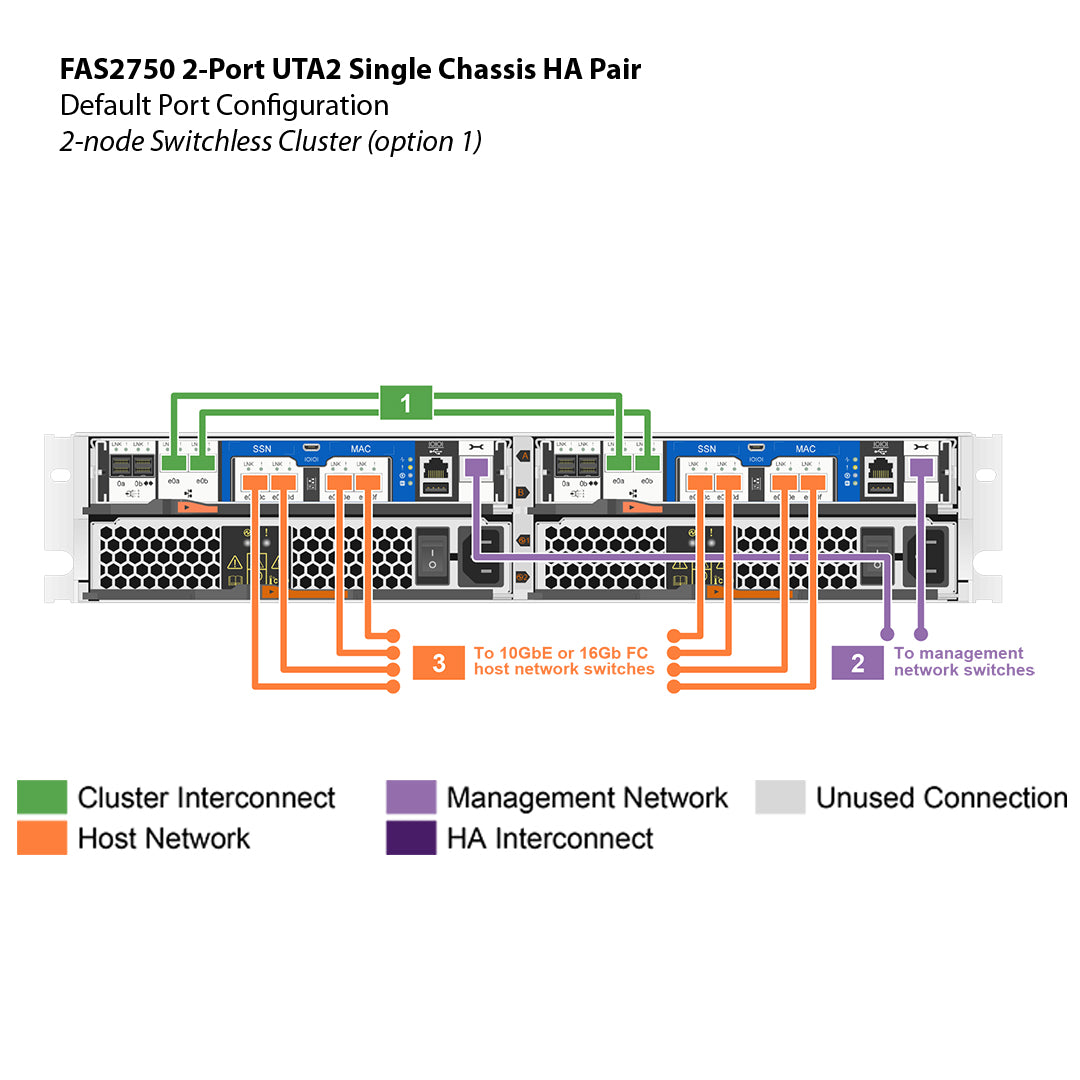

| 2-node Switchless Cluster (option 1) | Default | View Image Above | 2 | None |

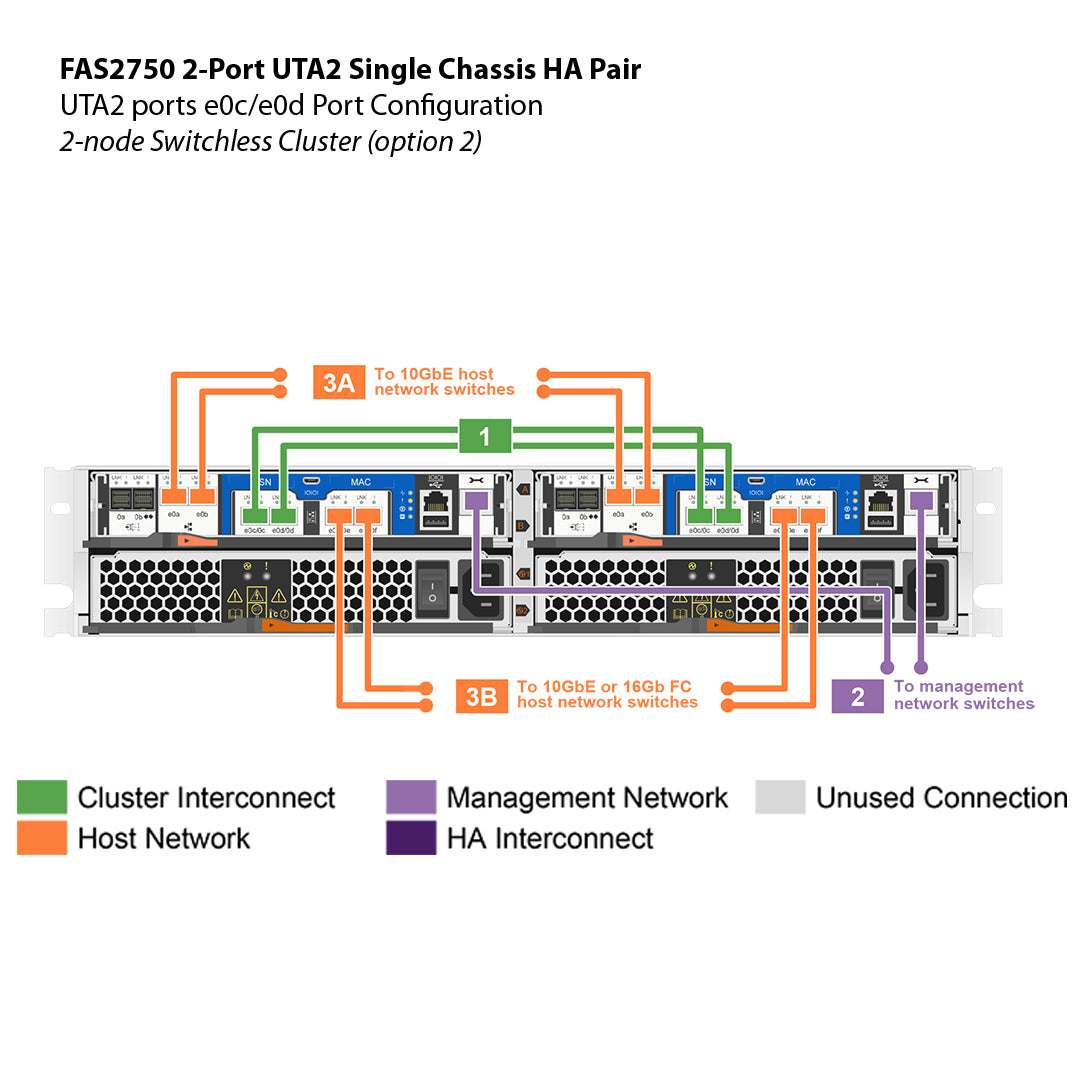

| 2-node Switchless Cluster (option 2) | UTA2 ports e0c/e0d | View Image Above | 2 | None |

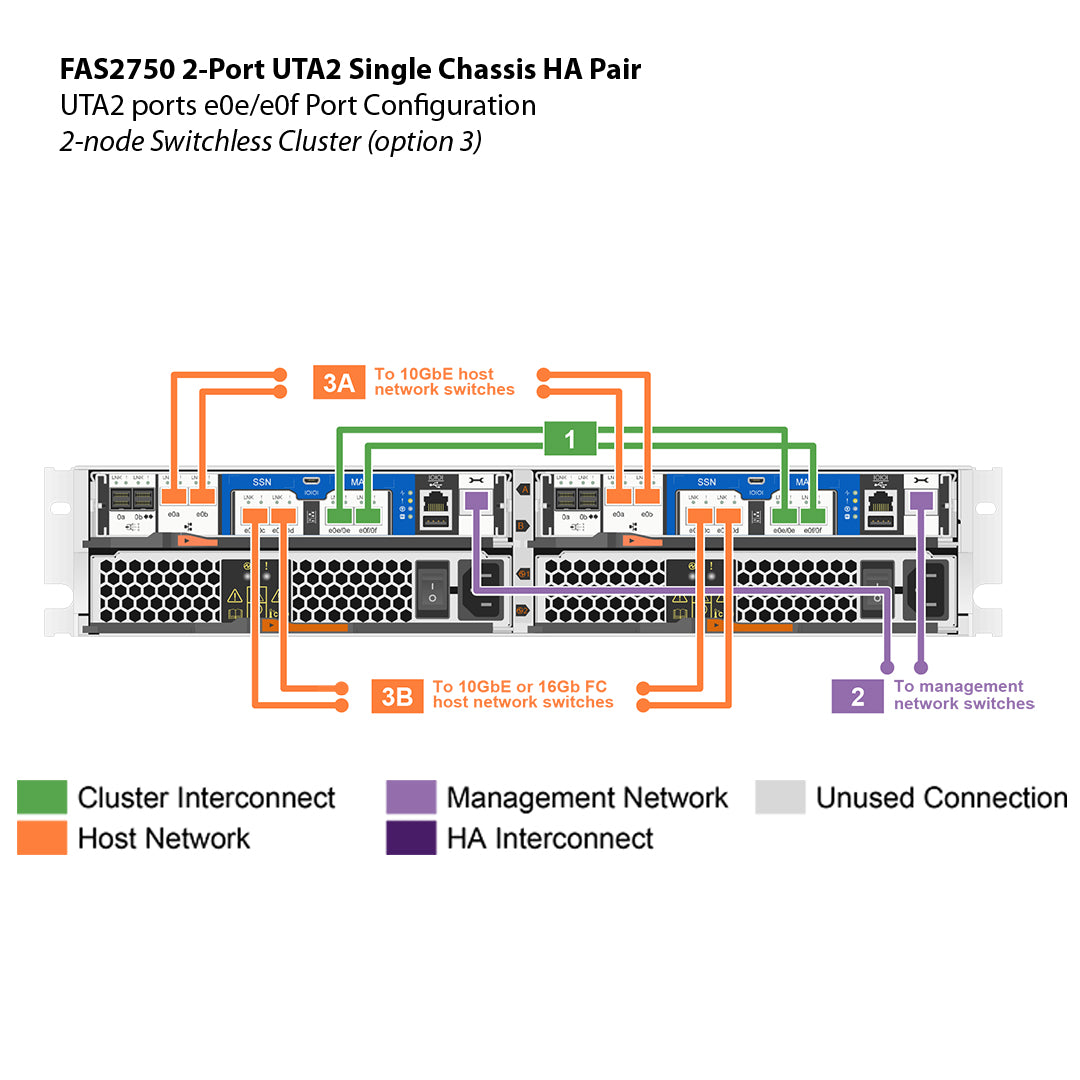

| 2-node Switchless Cluster (option 3) | UTA2 ports e0e/e0f | View Image Above | 2 | None |

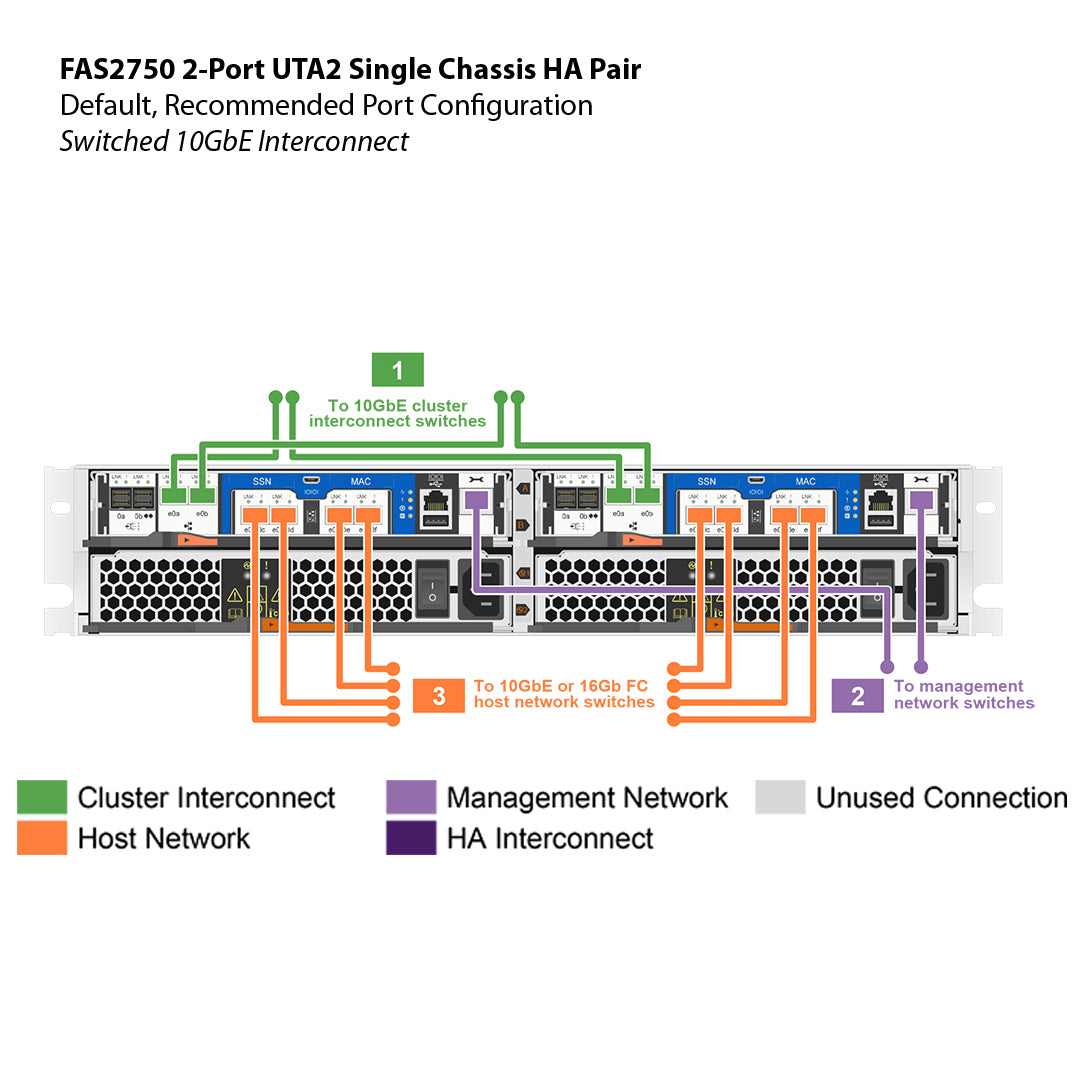

| Switched 10GbE Interconnect | Default, Recommended | View Image Above | 2 | 2 |

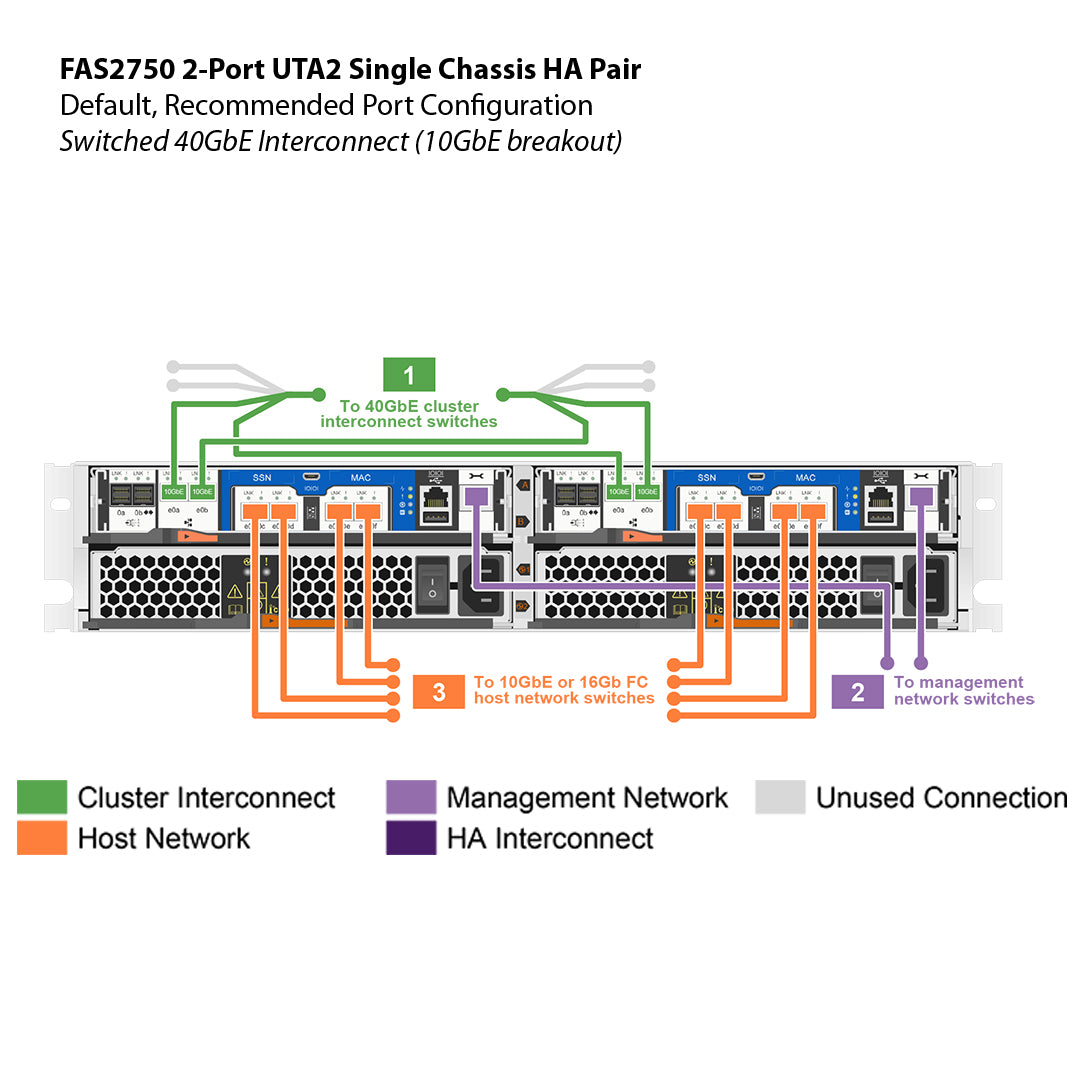

| Switched 40GbE Interconnect (10GbE breakout) | Default, Recommended | View Image Above | 2 | 1 |
Platform Mixing Rules - FAS2750 2-port UTA2 Single Chassis HA Pair
| Platform Configuration Type | Maximum Nodes (NAS) [1] | Maximum Nodes (SAN) [1] | Min ONTAP Version for Platform Mixing | ||||||
|---|---|---|---|---|---|---|---|---|---|
| FAS - Current Configuration(s) | |||||||||
| FAS2720A 10GBASE-T | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| FAS2720A 2-port UTA2 | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| FAS2720A UTA2 | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| FAS2750A 10GBASE-T | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| FAS2750A 2-port UTA2 | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| FAS2750A UTA2 | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| FAS500fA | 24 Nodes | 12 Nodes | 9.8RC1 | ||||||
| FAS8300A Ethernet Bundle | 24 Nodes | 12 Nodes | 9.7RC1 | ||||||
| FAS8300A FC Bundle | 24 Nodes | 12 Nodes | 9.7RC1 | ||||||
| FAS8700A Ethernet Bundle | 24 Nodes | 12 Nodes | 9.7RC1 | ||||||
| FAS8700A FC Bundle | 24 Nodes | 12 Nodes | 9.7RC1 | ||||||
| FAS9000A | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| FAS9500A | 24 Nodes | 12 Nodes | 9.10.1P3 | ||||||
| AllFlashFAS - Current Configuration(s) | |||||||||
| AFF A250A | 24 Nodes | 12 Nodes | 9.8RC1 | ||||||
| AFF A250A 100V | 24 Nodes | 12 Nodes | 9.8P4 | ||||||
| AFF A400A Ethernet Bundle | 24 Nodes | 12 Nodes | 9.7RC1 | ||||||
| AFF A400A FC Bundle | 24 Nodes | 12 Nodes | 9.7RC1 | ||||||
| AFF A700A | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| AFF A800A | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| AFF A900A | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
| AFF C190A 10GBASE-T | 24 Nodes | 12 Nodes | 9.6RC2 | ||||||
| AFF C190A 2-port UTA2 | 24 Nodes | 12 Nodes | 9.6RC2 | ||||||
| AFF C190A UTA2 | 24 Nodes | 12 Nodes | 9.6RC2 | ||||||
| FAS - Legacy EOA Configuration(s) | |||||||||
| FAS8200A | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| AllFlashFAS - Legacy EOA Configuration(s) | |||||||||
| AFF A220A 10GBASE-T | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| AFF A220A UTA2 | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| AFF A300A | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| AFF A320A | 24 Nodes | 12 Nodes | 9.6RC2 | ||||||
| AFF A700s | 24 Nodes | 12 Nodes | 9.4RC1 | ||||||
| Footnote: | |||||||||
| 1Maximum number of nodes within a cluster is determined by platform which supports the fewest number of nodes | |||||||||
Product Standard Compliance - FAS2750 2-port UTA2 Single Chassis HA Pair
| Standard | Description | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Certifications EMC/EMI | |||||||||
| AMCA | Australia and New Zealand (EMC covered by ACMA DoC) | ||||||||
| FCC | Federal Communications Commission (EMI Declaration of Conformity covering United States and Canada) | ||||||||
| ICES | ICES | ||||||||
| KC | Korea Communications Commission (EMC certificate for South Korea) | ||||||||
| Morocco | Morocco Declaration of Conformity | ||||||||
| VCCI | EMI Certificate for Japan | ||||||||
| Certifications safety | |||||||||
| BIS | Bureau of Indian Standard (Safety cert for India) | ||||||||
| CB | Certificate Body issued safety certificate covering International | ||||||||
| CSA | Canadian Standards Association issued Safety certificate covering North America | ||||||||
| G_K_U-SoR | Safety certificate for Gabon, Kenya and Uganda | ||||||||
| IRAM | Instituto Argentino de Normalización y Certificación (safety certificate for Argentina) | ||||||||
| NOM | Norma Oficial Mexicana (Safety cert for Mexico) | ||||||||
| NRCS | National Regulator for Compulsory Specifications (Safety cert for South Africa) | ||||||||
| SONCAP | Standards Organisation of Nigeria Conformity Assessment Programme (Safety cert for Nigeria) | ||||||||
| TBS | Tanzanian Bureau of Standards (Safety certificate for Tanzania) | ||||||||
| Certifications Safety/EMC/EMI | |||||||||
| EAC | Euro Asia Conformity (EMC and Safety Cert) covering (Russia, Kazakhstan, Belarus, Armenia, Kyrgyzstan Countries) | ||||||||
| UKRSEPRO | EMC/Safety certificate for Ukraine | ||||||||
| Certifications Safety/EMC/EMI/RoHS | |||||||||
| BSMI | Certificate for Taiwan | ||||||||
| CE DoC | European Union Declaration of Conformity | ||||||||
| UKCA DoC | UK Declaration of Conformity | ||||||||
| Standards EMC/EMI | |||||||||
| BS-EN-55024 | EMC standard for Great Britain | ||||||||
| BS-EN55035 | EMC standard for Great Britain | ||||||||
| CISPR 32 | EMI | ||||||||
| EN55022 | EMC Standard fo European Union | ||||||||
| EN55024 | EMC Standard fo European Union | ||||||||
| EN55032 | EMI Standard fo European Union | ||||||||
| EN55035 | EMC Standard for European Union | ||||||||
| EN61000-3-2 | EMC Standard for European Union | ||||||||
| EN61000-3-3 | EMC Standard for European Union | ||||||||
| FCC Part 15 Class A | EMI standard for United States | ||||||||
| ICES-003 | EMI Standard for Canada | ||||||||
| KS C 9832 | EMI Standard for South Korea | ||||||||
| KS C 9835 | EMC Standard for South Korea | ||||||||
| Standards Safety | |||||||||
| ANSI/UL60950-1 | Safety standard for United States | ||||||||
| ANSI/UL62368-1 | Safety standard for United States | ||||||||
| BS-EN62368-1 | Safety standard for Great Britain | ||||||||
| CAN/CSA C22.2 No. 60950-1 | Safety Standard for Canada | ||||||||
| CAN/CSA C22.2 No. 62368-1 | Safety Standard for Canada | ||||||||
| CNS 14336 | Safety Standard for Taiwan | ||||||||
| EN60825-1 | Laser Safety standard for European Union | ||||||||
| EN62368-1 | Safety standard for European Union | ||||||||
| IEC 62368-1 | Safety Standard for International | ||||||||
| IEC60950-1 | Safety standard for International | ||||||||
| IS 13252(part 1) | Safety Standard for India | ||||||||
Supported OS Version - FAS2750 2-port UTA2 Single Chassis HA Pair
| OS Major Version | Supported OS Version | Supported Milestones | Recommend Version | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Currently Supported OS | |||||||||
| ONTAP 9.11.1 | 9.11.1, 9.11.1RC1 | End of Full Support: 31-Jul-2025 End of Limited Support: 31-Jul-2027 End of Self-Service Support: 31-Jul-2030 |
9.11.1 | ||||||
| ONTAP 9.10.1 | 9.10.1P5, 9.10.1P6, 9.10.1P4, 9.10.1P3, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1 | End of Full Support: 31-Jan-2025 End of Limited Support: 31-Jan-2027 End of Self-Service Support: 31-Jan-2030 |
9.10.1P6 | ||||||
| ONTAP 9.9.1 | 9.9.1P10, 9.9.1P9, 9.9.1P8, 9.9.1P7, 9.9.1P6, 9.9.1P5, 9.9.1P4, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1 | End of Full Support: 30-Jun-2024 End of Limited Support: 30-Jun-2026 End of Self-Service Support: 30-Jun-2029 |
9.9.1P10, 9.9.1P9 | ||||||
| ONTAP 9.8 | 9.8P13, 9.8P12, 9.8P11, 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1 | End of Full Support: 31-Dec-2023 End of Limited Support: 31-Dec-2025 End of Self-Service Support: 31-Dec-2028 |
9.8P13, 9.8P12 | ||||||
| ONTAP 9.7 | 9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1 | End of Full Support: 31-Jan-2023 End of Limited Support: 31-Jan-2025 End of Self-Service Support: 31-Jan-2028 |
9.7P19 | ||||||
| EOS OS | |||||||||
| ONTAP 9.7 | 9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1 | End of Full Support: 31-Jan-2023 End of Limited Support: 31-Jan-2025 End of Self-Service Support: 31-Jan-2028 |
9.7P19 | ||||||
| ONTAP 9.6 | 9.6P18, 9.6P17, 9.6P16, 9.6P15, 9.6P14, 9.6P13, 9.6P12, 9.6P11, 9.6P10, 9.6P9, 9.6P8, 9.6P7, 9.6P6, 9.6P5, 9.6P4, 9.6P3, 9.6P2, 9.6P1, 9.6, 9.6RC2, 9.6RC1 | End of Full Support: 30-Jun-2022 End of Limited Support: 30-Jun-2024 End of Self-Service Support: 30-Jun-2027 |
9.6P18 | ||||||
| ONTAP 9.5 | 9.5P19, 9.5P18, 9.5P17, 9.5P16, 9.5P15, 9.5P14, 9.5P13, 9.5P12, 9.5P11, 9.5P10, 9.5P9, 9.5P8, 9.5P7, 9.5P6, 9.5P5, 9.5P4, 9.5P3, 9.5P2, 9.5P1, 9.5, 9.5RC1 | End of Full Support: 31-Jan-2022 End of Limited Support: 31-Jan-2024 End of Self-Service Support: 31-Jan-2027 |
9.5P19 | ||||||
| Definitions: | |||||||||
| [1]End of Full Support: The date marking the end of Full Support for a particular feature version of a NetApp system software and the beginning of Limited Support. Abbreviated as EOES. | |||||||||
| [2]End of Limited Support: The date marking the end of Limited Support for a particular feature version of a product and transition to Self-Service Support. Abbreviated as EOVS. | |||||||||
| [3]End of Self-Service Support: NetApp does not provide support for a version of a software product, but related documentation is still available on the NetApp Support Site. NetApp customers are expected to utilize documentation to resolve issues. | |||||||||
Supported Power Cords for FAS2750 2-port UTA2 Single Chassis HA Pair
| Marketing Part No. | End 1 / End 2 | Length | Description | |
|---|---|---|---|---|
| Non-Cabinet Power Cords | ||||
| X-50617-00 | IEC60320-C20 / IEC60320-C13 | 2.00 m | Power Cords,In-Cabinet,2m,C20-C13,E-Series | |
| X800B-R6 | CEE 7/7 (Schuko) / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V | |
| X800C-R6 | BS1363 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V | |
| X800D-R6 | JIS-C-8303 / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,Japan,15A/125V | |
| X800E-R6 | NEMA 5-15P / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,North America,15A/125V | |
| X800F-R6 | AS/NZS 3112 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V | |
| X800G-R6 | SEV 1011 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Switzerland,10A/250V | |
| X800H-R6 | IRAM 2073 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Argentina,10A/250V | |
| X800I-R6 | GB2099 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,China,10A/250V | |
| X800J-R6 | DHCR107-2-D1 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Demark,10A/250V | |
| X800K-R6 | SANS 164-1 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V | |
| X800L-R6 | SI32 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Israel,10A/250V | |
| X800M-R6 | CEI 23-16 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Italy,10A/250V | |
| X800N | EL208 / IEC60320-C13 | 2.50 m | Pwr Cord,10A,250V,2.5m,India | |
| X800P-R6 | NEMA 6-15P / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,North America,15A/250V | |
| X800T-R6 | CNS 10917-3 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V | |
| X800VB-R6 | NBR14136 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Brazil,10A/250V | |
| X800W-R6 | CNS10917/CNS690 / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,Taiwan,10A/250V | |
| X800Y-R6 | JIS-C-830 / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,Japan,15A/250V | |
| In-Cabinet Power Cords | ||||
| X-50617-00-0E-C | IEC60320-C13 / IEC60320-C20 | 1.83 m | Power Cord,In-Cabinet,2m,C20-C13,E-Series,0E,-C | |
| X1558A-R6 | IEC60320-C14 / IEC60320-C13 | 1.20 m | Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V | |
| X800-42U-35 | IEC60320-C14 / IEC60320-C13 | 0.89 m | Pwr Cord,In-Cabinet,C13-C14,35-inch | |
| X800-42U-43 | IEC60320-C14 / IEC60320-C13 | 1.09 m | Pwr Cord,In-Cabinet,C13-C14,43-inch | |
| X800-42U-64 | IEC60320-C14 / IEC60320-C13 | 1.63 m | Pwr Cord,In-Cabinet,C13-C14,64-inch | |
| X800-42U-R6 | IEC60320-C14 / IEC60320-C13 | 0.68 m | Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V | |
Onboard Ports Configuration: FAS2750 2-port UTA2 Single Chassis HA Pair
| Port Address | Description | Supported Protocols | Port Icon | Port Type | |||||
|---|---|---|---|---|---|---|---|---|---|
| 0a | Serial-Attached SCSI | SAS 6/12 Gb | SAS | MiniSAS HD | |||||
| 0b | Serial-Attached SCSI | SAS 6/12 Gb | SAS | MiniSAS HD | |||||
| e0a | Ethernet | Ethernet 10Gb | Ethernet | SFP+ | |||||
| e0b | Ethernet | Ethernet 10Gb | Ethernet | SFP+ | |||||
| e0c/0c [1] | Unified Target Adapter 2 | Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb | Ethernet/Fibre Channel | SFP+ | |||||
| e0d/0d [1] | Unified Target Adapter 2 | Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb | Ethernet/Fibre Channel | SFP+ | |||||
| e0m/BMC | Management | Ethernet 10/100/1000 Mb | Wrench | RJ45 | |||||
| Serial Interface | USB Serial Console | RS-232 115200bps | USB 2.0 | USB 2.0 Micro-B | |||||
| Serial Interface Icon | Serial Console | RS-232 115200bps | Serial Interface | RJ45 | |||||
| USB/2 | Storage Host Port | USB 2.0 | USB 2.0 | USB Type A | |||||
| Footnote: | |||||||||
| 1Connecting tape drives or tape libraries to the FC or UTA2 ports requires the use of a FC switch. | |||||||||
Supported Platform Configurations - FAS2750 2-port UTA2 Single Chassis HA Pair
| Platform Configuration | Description | Chassis Configuration | Chassis Count | Controller Count (per chassis) | IOXM Count (per chassis) | Rack Units (Per System) | Weight (Per Chassis) | Min ONTAP | |
|---|---|---|---|---|---|---|---|---|---|
| HA Pair | |||||||||
| FAS2750A 10GBASE-T | FAS2750 10GBASE-T Single Chassis HA Pair | CC | 1 | 2 | 0 | 2 | 42.77 lb (19.4 kg) | 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1 | |
| FAS2750A 2-port UTA2 | FAS2750A 2-port UTA2 | CC | 1 | 2 | 0 | 2 | 42.77 lb (19.4 kg) | 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1 | |
| FAS2750A UTA2 | FAS2750 UTA2 Single Chassis HA Pair | CC | 1 | 2 | 0 | 2 | 42.77 lb (19.4 kg) | 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1 | |
| MetroCluster | |||||||||
| FAS2750-4NMCIP 10GBASE-T | FAS2750 4-Node MetroCluster IP 10GBASE-T | CC-CC | 2 | 2 | 0 | 4 | 42.77 lb (19.4 kg) | 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1 | |
| FAS2750-4NMCIP UTA2 | FAS2750 4-Node Metro Cluster IP UTA2 | CC-CC | 2 | 2 | 0 | 4 | 42.77 lb (19.4 kg) | 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1 | |
Platform Memory Specifications - FAS2750 2-port UTA2 Single Chassis HA Pair
| Part Number | Description | Mfg Part Number | Non-Volatile | Qty | Capacity (GB) | NVRAM/NVMEM Used Capacity (GB) | RAM Used Capacity (GB) |
|---|---|---|---|---|---|---|---|
| X3222A | R7,IC,SODIMM,16GB,x8,ECC,REG | 107-00172 | no | 4 | 16 | 8 | 64 |
Supported Rail Kit for FAS2750 2-port UTA2 Single Chassis HA Pair
| Marketing Part No. | Manufacturing Part No. | Description | |
|---|---|---|---|
| NetApp System Cabinet Rail Kits | |||
| X877B-R6 | 111-00596 | Rail Kit II, NetApp Cabinet, R6 | |
| X8783A-R6 | 111-01110 | Rail Kit III, NetApp Cabinet, R6 | |
| Third-Party Cabinet Rail Kits | |||
| X-02659-00 | 113-00232 | Kit,4-Post,Square or Round-Hole, 24"-32" Rail | |
| X5526A-R6 | 111-00593 | Kit,4-Post.Square-Hole, 24"-32" Rail | |
| X5527A-R6 | 111-00864 | Kit,2-Post,Round-Hole | |
| X5529A-R6 | 111-00310 | Kit,4-Post,Swift,Square-Hole, 24"-32" Rail | |
Field Replacement Unit Parts - FAS2720 10GBASE-T Single Chassis HA Pair
| Marketing Part No. | Manufacturing Part No. | Description | |
|---|---|---|---|
| Adapter Card | |||
| X3311A | 111-03066 | SUB ASSY,NVME,FLASH,1.0TB | |
| Battery | |||
| X1847 | 271-01847 | Lithium System Battery CR2032 | |
| X1847-R6 | 271-01847 | Lithium System Battery CR2032,R6 | |
| X3152A | 111-02499 | ASSY,BATT,2CELL,HLDR,NV,FAS2650 | |
| Bezel | |||
| X80109A | 111-02980 | Bezel,FAS2750 | |
| Blank | |||
| X5055-R6 | 111-00812 | BLANK,CHASSIS FILLER,REAR,DS2246,R6 | |
| Boot Media | |||
| X3320A | 501-01119 | DRIVE,SSD,128GB,mSATA | |
| Cable Management Guide | |||
| X3322A | 111-02809 | SUB ASSY,SM,BKT,CBL MGMNT SET,FAS2650 | |
| Chassis | |||
| X5721A | 111-02889 | SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS224C | |
| Data Cable | |||
| X-SFP-H10GB-CU1M-R6 | 112-00210 | Cable,10GBase Copper SFP+ 1m | |
| X-SFP-H10GB-CU1M-R6-C | 112-00210 | Cable,10GBase Copper SFP+ 1m,-C | |
| X-SFP-H10GB-CU1M-R6-N-C | 112-00210 | Cable,10GBase Copper SFP+ 1m,-C | |
| X-SFP-H10GB-CU3M-R6 | 112-00211 | Cable,10GBase Copper SFP+ 3m | |
| X-SFP-H10GB-CU3M-R6-C | 112-00211 | Cable,10GBase Copper SFP+ 3m,-C | |
| X-SFP-H10GB-CU3M-R6-N-C | 112-00211 | Cable,10GBase Copper SFP+ 3m,-C | |
| X-SFP-H10GB-CU5M-R6 | 112-00212 | Cable,10GBase Copper SFP+ 5m | |
| X-SFP-H10GB-CU5M-R6-C | 112-00212 | Cable,10GBase Copper SFP+ 5m,-C | |
| X-SFP-H10GB-CU5M-R6-N-C | 112-00212 | Cable,10GBase Copper SFP+ 5m,-C | |
| X1983-1-R6 | 112-00210 | Cable,Twinax CU,SFP+,1M,X1962/X1963/X1967 | |
| X1983-3-R6 | 112-00211 | Cable,Twinax CU,SFP+,3M,X1962/X1963/X1967 | |
| X1983-5-R6 | 112-00212 | Cable,Twinax CU,SFP+,5M,X1962/X1963/X1967 | |
| X6536-R6 | 112-00090 | Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op | |
| X6536-R6-C | 112-00090 | Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C | |
| X6536-R6-N-C | 112-00090 | Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C | |
| X6537-R6 | 112-00091 | Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op | |
| X6537-R6-C | 112-00091 | Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C | |
| X6537-R6-N-C | 112-00091 | Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C | |
| X65420 | 112-00508 | Cable,ASSY,USB 2.0 MICRO-B,USB-A,2M | |
| X6546-R6 | 112-00074 | Cable,Cntlr-Shelf/Switch,30m,LC/SC,Op | |
| X6547-R6 | 112-00073 | Cable,Cntlr-Shelf/Switch,5m,LC/SC,Op | |
| X6553-R6 | 112-00188 | Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op | |
| X6553-R6-C | 112-00188 | Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C | |
| X6553-R6-N-C | 112-00188 | Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C | |
| X6554-R6 | 112-00189 | Cable,Cntlr-Shelf/Switch,15m,LC/LC,Op | |
| X6554-R6-C | 112-00189 | Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6 | |
| X6554-R6-N-C | 112-00189 | Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C | |
| X6560-R6 | 112-00194 | Cable,Ethernet,0.5m RJ45 CAT6 | |
| X6560-R6-C | 112-00194 | Cable,Ethernet,0.5m RJ45 CAT6,-C | |
| X6560-R6-N-C | 112-00194 | Cable,Ethernet,0.5m RJ45 CAT6 | |
| X6561-R6 | 112-00195 | Cable,Ethernet,2m RJ45 CAT6 | |
| X6561-R6-C | 112-00195 | Cable,Ethernet,2m RJ45 CAT6,-C | |
| X6561-R6-N-C | 112-00195 | Cable,Ethernet,2m RJ45 CAT6,-C | |
| X6562-R6 | 112-00196 | Cable,Ethernet,5m RJ45 CAT6 | |
| X6562-R6-C | 112-00196 | Cable,Ethernet,5m RJ45 CAT6,-C | |
| X6562-R6-N-C | 112-00196 | Cable,Ethernet,5m RJ45 CAT6,-C | |
| X6566B-05-N-C | 112-00297 | Cable,Direct Attach CU SFP+ 10G,0.5M,-C | |
| X6566B-05-R6 | 112-00297 | Cable,Direct Attach CU SFP+ 10G,0.5M | |
| X6566B-05-R6-C | 112-00297 | Cable,Direct Attach CU SFP+ 10G,0.5M,-C | |
| X6566B-2-N-C | 112-00299 | Cable,Direct Attach CU SFP+ 10G,2M,-C | |
| X6566B-2-R6 | 112-00299 | Cable,Direct Attach CU SFP+ 10G,2M | |
| X6566B-2-R6-C | 112-00299 | Cable,Direct Attach CU SFP+ 10G,2M,-C | |
| X6566B-3-N-C | 112-00300 | Cable,Direct Attach CU SFP+ 10G,3M,-C | |
| X6566B-3-R6 | 112-00300 | Cable,Direct Attach CU SFP+ 10G,3M | |
| X6566B-3-R6-C | 112-00300 | Cable,Direct Attach CU SFP+ 10G,3M,-C | |
| X6566B-5-N-C | 112-00301 | Cable,Direct Attach CU SFP+ 10G,5M,-C | |
| X6566B-5-R6 | 112-00301 | Cable,Direct Attach CU SFP+ 10G,5M | |
| X6566B-5-R6-C | 112-00301 | Cable,Direct Attach CU SFP+ 10G,5M,-C | |
| X6577-R6 | 112-00238 | Cable,Ethernet,30m RJ45 CAT6 | |
| X6577-R6-C | 112-00238 | Cable,Ethernet,30m RJ45 CAT6,-C | |
| X6577-R6-N-C | 112-00238 | Cable,Ethernet,30m RJ45 CAT6,-C | |
| X6584-R6 | 112-00290 | Cable,Ethernet,1m RJ45 CAT6 | |
| X6584-R6-C | 112-00290 | Cable,Ethernet,1m RJ45 CAT6,-C | |
| X6584-R6-N-C | 112-00290 | Cable,Ethernet,1m RJ45 CAT6,-C | |
| X6585-R6 | 112-00291 | Cable,Ethernet,3m RJ45 CAT6 | |
| X6585-R6-C | 112-00291 | Cable,Ethernet,3m RJ45 CAT6,-C | |
| X6585-R6-N-C | 112-00291 | Cable,Ethernet,3m RJ45 CAT6,-C | |
| X6592-R6 | 112-00246 | Cable,Ethernet,10m RJ45 CAT6 | |
| X6592-R6-N-C | 112-00246 | Cable,Ethernet,10m RJ45 CAT6,-C | |
| X6593-R6 | 112-00247 | Cable,Ethernet,20m RJ45 CAT6 | |
| X6593-R6-C | 112-00247 | Cable,Ethernet,20m RJ45 CAT6,-C | |
| X6593-R6-N-C | 112-00247 | Cable,Ethernet,20m RJ45 CAT6,-C | |
| X66020A-R6 | 112-00429 | Cable,Storage,MiniSAS HD,QSFP,12G,1m | |
| X66020A-R6-C | 112-00429 | Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C | |
| X66021A-R6 | 112-00430 | Cable,Storage,MiniSAS HD,QSFP,12G,2m | |
| X66021A-R6-C | 112-00430 | Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C | |
| X66022A-R6 | 112-00431 | Cable,Storage,MiniSAS HD,QSFP,12G,5m | |
| X66022A-R6-C | 112-00431 | Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C | |
| X66030A | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m | |
| X66030A-C | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m,-C | |
| X66030A-K-N | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m | |
| X66030A-N | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m | |
| X66030A-N-C | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m,-C | |
| X66031A | 112-00436 | Cable,12Gb,Mini SAS HD,1m | |
| X66031A-C | 112-00436 | Cable,12Gb,Mini SAS HD,1m,-C | |
| X66031A-K-N | 112-00436 | Cable,12Gb,Mini SAS HD,1m | |
| X66031A-N | 112-00436 | Cable,12Gb,Mini SAS HD,1m | |
| X66031A-N-C | 112-00436 | Cable,12Gb,Mini SAS HD,1m,-C | |
| X66032A | 112-00437 | Cable,12Gb,Mini SAS HD,2m | |
| X66032A-C | 112-00437 | Cable,12Gb,Mini SAS HD,2m,-C | |
| X66032A-K-N | 112-00437 | Cable,12Gb,Mini SAS HD,2m | |
| X66032A-N | 112-00437 | Cable,12Gb,Mini SAS HD,2m | |
| X66032A-N-C | 112-00437 | Cable,12Gb,Mini SAS HD,2m,-C | |
| X66034A | 112-00439 | Cable,12Gb,Mini SAS HD,5m | |
| X66034A-C | 112-00439 | Cable,12Gb,Mini SAS HD,5m,-C | |
| X66034A-K-N | 112-00439 | Cable,12Gb,Mini SAS HD,5m | |
| X66034A-N | 112-00439 | Cable,12Gb,Mini SAS HD,5m | |
| X66034A-N-C | 112-00439 | Cable,12Gb,Mini SAS HD,5m,-C | |
| X66040A | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m | |
| X66040A-C | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C | |
| X66040A-K-N | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m | |
| X66040A-N | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m | |
| X66040A-N-C | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C | |
| X66041A | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m | |
| X66041A-C | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C | |
| X66041A-K-N | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m | |
| X66041A-N | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m | |
| X66041A-N-C | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C | |
| X66042A | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m | |
| X66042A-C | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C | |
| X66042A-K-N | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m | |
| X66042A-N | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m | |
| X66042A-N-C | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C | |
| X66043A | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m | |
| X66043A-C | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C | |
| X66043A-K-N | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m | |
| X66043A-N | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m | |
| X66043A-N-C | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C | |
| X66044A | 112-00453 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m | |
| X66045A | 112-00454 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m | |
| X66046A | 112-00455 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m | |
| X66047A | 112-00456 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m | |
| X66047A-C | 112-00456 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C | |
| X66047A-N-C | 112-00456 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C | |
| X66048A | 112-00457 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m | |
| X66048A-C | 112-00457 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C | |
| X66048A-N-C | 112-00457 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C | |
| X66120-3 | 112-00545 | Cable,Direct Attach CU 40G QSFP/4x10G SFP,3m | |
| X66120-3-C | 112-00545 | Cable,Dir. Attach CU 40G QSFP/4x10G SFP,3m,-C | |
| X66120-3-N-C | 112-00545 | Cable,Dir Attach CU 40G QSFP/4x10G SFP,3m,-C | |
| X66120-5 | 112-00546 | Cable,Direct Attach CU 40G QSFP/4x10G SFP,5m | |
| X66120-5-C | 112-00546 | Cable,Dir. Attach CU 40G QSFP/4x10G SFP,5m,-C | |
| X66120-5-N-C | 112-00546 | Cable,Dir Attach CU 40G QSFP/4x10G SFP,5m,-C | |
| X66205-30 | 112-00261 | Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m | |
| X66205-30-C | 112-00261 | Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C | |
| X66205-30-N-C | 112-00261 | Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C | |
| X66205-5 | 112-00260 | Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m | |
| X66205-5-C | 112-00260 | Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C | |
| X66205-5-N-C | 112-00260 | Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C | |
| X66250-15 | 112-00346 | Cable,LC-LC,OM4,15m | |
| X66250-15-C | 112-00346 | Cable,LC-LC,OM4,15m,-C | |
| X66250-15-N-C | 112-00346 | Cable,LC-LC,OM4,15m,-C | |
| X66250-2 | 112-00342 | Cable,LC-LC,OM4,2m | |
| X66250-2-C | 112-00342 | Cable,LC-LC,OM4,2m,-C | |
| X66250-2-N-C | 112-00342 | Cable,LC-LC,OM4,2m,-C | |
| X66250-30 | 112-00347 | Cable,LC-LC,OM4,30m | |
| X66250-30-C | 112-00347 | Cable,LC-LC,OM4,30m,-C | |
| X66250-30-N-C | 112-00347 | Cable,LC-LC,OM4,30m,-C | |
| X66250-5 | 112-00344 | Cable,LC-LC,OM4,5m | |
| X66250-5-C | 112-00344 | Cable,LC-LC,OM4,5m,-C | |
| X66250-5-N-C | 112-00344 | Cable,LC-LC,OM4,5m,-C | |
| Disk Drive Blank-Filler | |||
| X5054-R6 | 108-00224 | BLANK,DSK DRV FILLER,DS2246,R6 | |
| Drive | |||
| X302A-R5 | 108-00268 | Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4 | |
| X306A-R5 | 108-00270 | Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4 | |
| X308A-R5 | 108-00277 | Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4 | |
| X309A-R6 [1] | 108-00301 | DSK DRV,3TB 7.2k,NSE,DS424x,FAS2220/2240-4 | |
| X315A-R6 [1] | 108-00368 | DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4 | |
| X316A-R6 | 108-00389 | Disk Drive,6TB 7.2k,DS4246,FAS2554 | |
| X317A [1] | 108-00399 | DSK DRV,6TB,7.2K,12G,NSE,DS212C | |
| X318A-R6 | 108-00455 | DSK DRV,8TB,7.2K,12G,DS212C | |
| X319A | 108-00687 | SSD,7.6TB,12G,DS224C | |
| X322A [1] | 108-00551 | DSK DRV,10TB,7.2K,12G,NSE,DS212C | |
| X336A-R6 | 108-00427 | DSK DRV,4TB,7.2K,12G,DS212C | |
| X339A | 108-00426 | DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620 | |
| X341A-R6 | 108-00430 | DSK DRV,900GB,10K,12G,DS224C | |
| X342A-R6 | 108-00432 | DSK DRV,1.2TB,10K,12G,DS224C | |
| X343A-R6 | 108-00433 | DSK DRV,1.8TB,10K,12G,DS224C | |
| X356A-R6 | 108-00468 | SSD,3.8TB,DS2246,FAS2552 | |
| X357A | 108-00572 | SSD,3.8TB,12G,DS224C,W/MSW | |
| X358A [1] | 108-00575 | SSD,3.8TB,12G,NSE,DS224C | |
| X363A-R6 | 108-00467 | SSD,3.8TB,FAS2520/2554 | |
| X364A | 108-00650 | SSD,3.8TB,DS212C,FAS2620,w/MSW | |
| X365A-R6 [1] | 108-00477 | SSD,1.6TB,NSE,DS2246,FAS2552 | |
| X366A-R6 [1] | 108-00470 | SSD,1.6TB,NSE,DS4246,FAS2554 | |
| X371A | 108-00546 | SSD,960GB,12G,DS224C,W/MSW | |
| X374A | 108-00573 | SSD,960GB,12G,DS212C,W/MSW | |
| X375A | 108-00590 | DSK DRV,4TB,7.2K,12G,DS460C | |
| X376A | 108-00591 | DSK DRV,8TB,7.2K,12G,DS460C | |
| X377A | 108-00592 | DSK DRV,10TB,7.2K,12G,DS460C | |
| X378A [1] | 108-00597 | DSK DRV,10TB,7.2K,12G,NSE,DS460C | |
| X379A | 108-00598 | SSD,960GB,12G,DS460C,W/MSW | |
| X380A | 108-00549 | DSK DRV,10TB,7.2K,12G,DS212C | |
| X386A [1] | 108-00806 | SSD,960GB,12G,NSE,DS224C | |
| X387A | 108-00886 | DSK DRV,16TB,7.2K,12G,DS460C | |
| X388A | 108-00885 | DSK DRV,16TB,7.2K,12G,DS212C | |
| X416A-R5 [1] | 108-00223 | Disk Drive,600GB 10k,NSE,DS224x,FAS2240-2 | |
| X417A-R6 [1] | 108-00246 | DSK DRV,900GB,10K,NSE,DS2246,2552/2240-2 | |
| X421A-R5 | 108-00220 | Disk Drive,450GB 10k,DS224x,FAS2240-2 | |
| X422A-R5 | 108-00221 | Disk Drive,600GB 10k,DS224x,2552/2240-2 | |
| X423A-R5 | 108-00222 | DSK DRV,900GB,10K,DS2246,2552/2240-2,R5 | |
| X425A-R6 | 108-00321 | DSK DRV,1.2TB,10K,DS2246,2552/2240-2 | |
| X426A-R6 | 108-00424 | DSK DRV,1.8TB,10K,DS2246,2552/2240-2 | |
| X427A [1] | 108-00476 | DSK DRV,1.8TB,10k,NSE,DS2246,FAS2552 | |
| X427B-R6 [1] | 108-00438 | DSK DRV,1.8TB,10K,12G,NSE,DS224C | |
| X438A-R6 | 108-00369 | SSD,400GB,DS224x,FAS2552/2240-2 | |
| X439A-R6 | 108-00372 | SSD,1.6TB,DS224x,FAS2552/2240-2 | |
| X440A-R6 [1] | 108-00374 | SSD,800GB,NSE,DS224x,FAS2240-2,FAS2552 | |
| X440B-R6 [1] | 108-00460 | SSD,800GB,12G,NSE,DS224C | |
| X441A-R5 | 108-00278 | Solid State Drive,100GB,DS424x | |
| X442A-R5 [2] | 108-00249 | Solid State Drive,100GB,3Gb,DS4243 | |
| X446B-R6 | 108-00323 | SSD,200GB,B,DS224x,FAS2240-2,FAS2552 | |
| X447A-R6 | 108-00260 | SSD,800GB,DS224x,FAS2552/2240-2 | |
| X448A-R6 | 108-00253 | SSD,200GB,DS4246,FAS2554/2240-4/2220 | |
| X449A-R6 | 108-00319 | SSD,800GB,DS4246,FAS2554/2240-4/2220 | |
| X477A-R6 | 108-00315 | DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4 | |
| X488A-R5 | 108-00298 | Disk Drive,900GB 10K,2520/2220 | |
| X489A-R6 | 108-00322 | Disk Drive,1.2TB 10K,2520/2220 | |
| X490A-R6 | 108-00425 | Disk Drive,1.8TB 10K,FAS2520 | |
| X575A-R6 | 108-00370 | SSD,400GB,DS424x,FAS2554/2240-4/2220 | |
| X576A-R6 | 108-00373 | SSD,1.6TB,DS424x,FAS2554/2240-4/2220 | |
| X577A-R6 [1] | 108-00375 | SSD,800GB,NSE,DS4246,FAS2554 | |
| X670A | 108-00530 | SSD,15.3TB,12G,DS224C | |
| Memory Module | |||
| X3222A | 107-00172 | SODIMM,16GB,ECC,FAS2650 | |
| X3311A | 111-03066 | SUB ASSY,NVME,FLASH,1.0TB | |
| Power Cord | |||
| X-50617-00 | Jumper Crd,In-Cab,2m,C20-C13,E-Series | ||
| X-50617-00-0E-C | Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C | ||
| X1558A-R6 | Jumper Crd,In-Cab,48-IN,C13-C14 | ||
| X1558A-R6-C | Jumper Crd,In-Cab,48-IN,C13-C14-C | ||
| X800-42U-35 | Jumper Crd,In-Cab,C13-C14,35-inch | ||
| X800-42U-35-C | Jumper Crd,In-Cab,C13-C14,35-inch,-C | ||
| X800-42U-35-K-N | Jumper Crd,In-Cab,C13-C14,35-inch | ||
| X800-42U-35-N | Power Cable,In-Cabinet,C13-C14,35-inch | ||
| X800-42U-43 | Jumper Crd,In-Cab,C13-C14,43-inch | ||
| X800-42U-43-C | Jumper Crd,In-Cab,C13-C14,43-inch,-C | ||
| X800-42U-43-K-N | Jumper Crd,In-Cab,C13-C14,43-inch | ||
| X800-42U-43-N | Power Cable,In-Cabinet,C13-C14,43-inch | ||
| X800-42U-64 | Jumper Crd,In-Cab,C13-C14,64-inch | ||
| X800-42U-64-C | Jumper Crd,In-Cab,C13-C14,64-inch,-C | ||
| X800-42U-64-K-N | Jumper Crd,In-Cab,C13-C14,64-inch | ||
| X800-42U-64-N | Power Cable,In-Cabinet,C13-C14,64-inch | ||
| X800-42U-R6 | Jumper Crd,In-Cab,C13-C14 | ||
| X800-42U-R6-C | Jumper Crd,In-Cab,C13-C14,-C | ||
| X800B-R6 | Power Cable,Continental Europe,R6 | ||
| X800B-R6-C | Power Cable,Continental Europe,-C,R6 | ||
| X800C-R6 | Power Cable,UK and Ireland,R6 | ||
| X800C-R6-C | Power Cable,UK and Ireland,-C,R6 | ||
| X800D-R6 | Power Cable,Japan,R6 | ||
| X800D-R6-C | Power Cable,Japan,-C,R6 | ||
| X800E-R6 | Power Cable,North America,R6 | ||
| X800E-R6-C | Power Cable,North America,-C,R6 | ||
| X800F-R6 | Power Cable,Australia/New Zealand,R6 | ||
| X800F-R6-C | Power Cable,Australia/New Zealand,-C,R6 | ||
| X800G-R6 | Power Cable,Switzerland,R6 | ||
| X800G-R6-C | Power Cable,Switzerland,-C,R6 | ||
| X800H-R6 | Power Cable,Argentina,R6 | ||
| X800H-R6-C | Power Cable,Argentina,-C,R6 | ||
| X800I-R6 | Power Cable,China,R6 | ||
| X800I-R6-C | Power Cable,China,-C,R6 | ||
| X800J-R6 | Power Cable,Denmark,R6 | ||
| X800J-R6-C | Power Cable,Denmark,-C,R6 | ||
| X800K-R6 | Power Cable,India,South Africa,R6 | ||
| X800K-R6-C | Power Cable,India,South Africa,-C,R6 | ||
| X800L-R6 | Power Cable,Israel,R6 | ||
| X800L-R6-C | Power Cable,Israel,-C,R6 | ||
| X800M-R6 | Power Cable,Italy,R6 | ||
| X800M-R6-C | Power Cable,Italy,-C,R6 | ||
| X800N | POWER CABLE,INDIA BIS | ||
| X800N-C | Power Cable,India BIS,-C | ||
| X800P-R6 | Power Cable,North America,250V,R6 | ||
| X800P-R6-C | Power Cable,North America,250V,-C,R6 | ||
| X800T-R6 | Power Cable,Taiwan,BSMI,R6 | ||
| X800T-R6-C | Power Cable,Taiwan,BSMI,-C,R6 | ||
| X800VB-R6 | Power Cable,Brazil,IEC-60906-1-Plug | ||
| X800W-R6 | Power Cable,Taiwan,250V,BSMI,R6 | ||
| X800W-R6-C | Power Cable,Taiwan,250V,BSMI,-C | ||
| X800Y-R6 | Power Cable,Japan,250V/15A | ||
| X800Y-R6-C | Power Cable,Japan,250V/15A,-C | ||
| Power Supply Unit | |||
| X5726A | 114-00148 | PSU,913W | |
| Processor Controller Module (PCM) | |||
| X3218A | 111-03965 | Controller,No MEM,CNA,C190,FAS2700 | |
| X3218B | 111-05221 | Controller,No MEM,CNA2,C190,FAS2700 | |
| X3219A | 111-04043 | Controller,No MEM,RJ45,FAS2700 | |
| PSU | |||
| X5726A | 114-00148 | PSU,913W | |
| Transceiver | |||
| X6567-R6 | 332-00378 | SFP Optical 1GB Shortwave Multimode | |
| X6567-R6-C | 332-00378 | SFP Optical 1GB Shortwave Multimode,-C | |
| X6567-R6-N-C | 332-00378 | SFP Optical 1GB Shortwave Multimode,-C | |
| X6568-R6 | 332-00374 | SFP Copper 1GB RJ-45 | |
| X6568-R6-C | 332-00374 | SFP Copper 1GB RJ-45,-C | |
| X6568-R6-N-C | 332-00374 | SFP Copper 1GB RJ-45,-C | |
| X6588-R6 | 332-00278R6 | SFP+Optical 8Gb Shortwave | |
| X6588-R6-C | 332-00278R6 | SFP+Optical 8Gb Shortwave,-C | |
| X6588-R6-N-C | 332-00278R6 | SFP+Optical 8Gb Shortwave,-C | |
| X6589-N-C | 332-00279R6 | SFP+Optical 10Gb Shortwave,-C | |
| X6589-R6 | 332-00279R6 | SFP+Optical 10Gb Shortwave | |
| X6589-R6-C | 332-00279R6 | SFP+ Optical 10Gb Shortwave,-C | |
| X6596-R6 | 332-00331 | SFP+ FC Optical 16Gb | |
| X6596-R6-C | 332-00331 | SFP+ FC Optical 16Gb,-C | |
| X6596-R6-N-C | 332-00331 | SFP+ FC Optical 16Gb,-C | |
| X6599A-N-C | 332-00363 | SFP+ Optical 10Gb Shortwave,-C | |
| X6599A-R6 | 332-00363 | SFP+ Optical 10Gb Shortwave | |
| X6599A-R6-C | 332-00363 | SFP+ Optical 10Gb Shortwave,-C | |
| Footnote: | |||
| [1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported. | |||
| [2] This drive does not support the sanitization feature. | |||
Supported Firmware Matrix - FAS2750 2-port UTA2 Single Chassis HA Pair
| Major OS Version | OS Version | Firmeware | |||||||
|---|---|---|---|---|---|---|---|---|---|
| BIOS | |||||||||
| ONTAP 9.11.1 | 9.11.1 | 11.15* | |||||||
| ONTAP 9.11.1 | 9.11.1RC1 | 11.16, 11.15* | |||||||
| ONTAP 9.10.1 | 9.10.1P5-P6 | 11.16, 11.15* | |||||||
| ONTAP 9.10.1 | 9.10.1P3-P4, 9.10.1P2, 9.10.1P1 | 11.16, 11.15, 11.13* | |||||||
| ONTAP 9.10.1 | 9.10.1, 9.10.1RC1 | 11.16, 11.15, 11.13, 11.11* | |||||||
| ONTAP 9.9.1 | 9.9.1P10 | 11.16, 11.15* | |||||||
| ONTAP 9.9.1 | 9.9.1P8-P9, 9.9.1P7 | 11.16, 11.15, 11.13* | |||||||
| ONTAP 9.9.1 | 9.9.1P4-P6, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1 | 11.16, 11.15, 11.13, 11.11* | |||||||
| ONTAP 9.8 | 9.8P13 | 11.16, 11.15* | |||||||
| ONTAP 9.8 | 9.8P11-P12 | 11.16, 11.15, 11.13* | |||||||
| ONTAP 9.8 | 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4 | 11.16, 11.15, 11.13, 11.11* | |||||||
| ONTAP 9.8 | 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1 | 11.16, 11.15, 11.13, 11.11, 11.9* | |||||||
| ONTAP 9.7 | 9.7P19, 9.7P17-P18, 9.7P16, 9.7P15, 9.7P14 | 11.16, 11.15, 11.13, 11.11* | |||||||
| ONTAP 9.7 | 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8 | 11.16, 11.15, 11.13, 11.11, 11.9* | |||||||
| ONTAP 9.7 | 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1 | 11.16, 11.15, 11.13, 11.11, 11.9, 11.7* | |||||||
| ONTAP 9.6 | 9.6P18, 9.6P17, 9.6P16, 9.6P15 | 11.16, 11.15, 11.13, 11.11* | |||||||
| ONTAP 9.6 | 9.6P13-P14, 9.6P12 | 11.16, 11.15, 11.13, 11.11, 11.9* | |||||||
| ONTAP 9.6 | 9.6P10-P11 | 11.16, 11.15, 11.13, 11.11, 11.9, 11.7* | |||||||
| ONTAP 9.6 | 9.6P9, 9.6P7-P8, 9.6P5-P6, 9.6P4, 9.6P3 | 11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5* | |||||||
| ONTAP 9.6 | 9.6P2, 9.6, 9.6P1, 9.6RC2, 9.6RC1 | 11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5* | |||||||
| ONTAP 9.5 | 9.5P19, 9.5P18 | 11.16, 11.15, 11.13, 11.11* | |||||||
| ONTAP 9.5 | 9.5P17, 9.5P16, 9.5P15 | 11.16, 11.15, 11.13, 11.11, 11.9* | |||||||
| ONTAP 9.5 | 9.5P14 | 11.16, 11.15, 11.13, 11.11, 11.9, 11.7* | |||||||
| ONTAP 9.5 | 9.5P13, 9.5P12, 9.5P10-P11, 9.5P9, 9.5P8, 9.5P7, 9.5P6, 9.5P5, 9.5P4, 9.5P2-P3, 9.5P1, 9.5, 9.5RC1 | 11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5, 11.4* | |||||||
| ONTAP 9.4 | 9.4P8, 9.4P7, 9.4P6, 9.4P5, 9.4P4, 9.4P3, 9.4P2, 9.4P1 | 11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5, 11.4, 11.2.1* | |||||||
| ONTAP 9.4 | 9.4, 9.4RC1 | 11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5, 11.4, 11.2.1, 11.2* | |||||||
| BMC | |||||||||
| ONTAP 9.11.1 | 9.11.1, 9.11.1RC1 | 11.8* | |||||||
| ONTAP 9.10.1 | 9.10.1P5-P6 | 11.8* | |||||||
| ONTAP 9.10.1 | 9.10.1P3-P4, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1 | 11.8, 11.7* | |||||||
| ONTAP 9.9.1 | 9.9.1P10, 9.9.1P8-P9, 9.9.1P7, 9.9.1P4-P6 | 11.8, 11.7* | |||||||
| ONTAP 9.9.1 | 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1 | 11.8, 11.7, 11.6* | |||||||
| ONTAP 9.8 | 9.8P13 | 11.8* | |||||||
| ONTAP 9.8 | 9.8P11-P12, 9.8P10, 9.8P9, 9.8P8 | 11.8, 11.7* | |||||||
| ONTAP 9.8 | 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3 | 11.8, 11.7, 11.6* | |||||||
| ONTAP 9.8 | 9.8P2, 9.8P1 | 11.8, 11.7, 11.6, 11.5P1* | |||||||
| ONTAP 9.8 | 9.8, 9.8RC1 | 11.8, 11.7, 11.6, 11.5P1, 11.5* | |||||||
| ONTAP 9.7 | 9.7P19, 9.7P17-P18 | 11.8, 11.7* | |||||||
| ONTAP 9.7 | 9.7P16, 9.7P15, 9.7P14, 9.7P13 | 11.8, 11.7, 11.6* | |||||||
| ONTAP 9.7 | 9.7P12, 9.7P11 | 11.8, 11.7, 11.6, 11.5P1* | |||||||
| ONTAP 9.7 | 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6 | 11.8, 11.7, 11.6, 11.5P1, 11.5* | |||||||
| ONTAP 9.7 | 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1 | 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4* | |||||||
| ONTAP 9.6 | 9.6P18, 9.6P17 | 11.8, 11.7* | |||||||
| ONTAP 9.6 | 9.6P16, 9.6P15 | 11.8, 11.7, 11.6* | |||||||
| ONTAP 9.6 | 9.6P13-P14 | 11.8, 11.7, 11.6, 11.5P1* | |||||||
| ONTAP 9.6 | 9.6P12, 9.6P10-P11 | 11.8, 11.7, 11.6, 11.5P1, 11.5* | |||||||
| ONTAP 9.6 | 9.6P9, 9.6P7-P8, 9.6P5-P6 | 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4* | |||||||
| ONTAP 9.6 | 9.6P4, 9.6P3 | 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2* | |||||||
| ONTAP 9.6 | 9.6P2 | 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1* | |||||||
| ONTAP 9.6 | 9.6, 9.6P1, 9.6RC2, 9.6RC1 | 11.8, 11.7, 11.6, 11.5P1, 11.5*, 11.4, 11.3P2, 11.3P1* | |||||||
| ONTAP 9.5 | 9.5P19 | 11.8, 11.7* | |||||||
| ONTAP 9.5 | 9.5P18 | 11.8, 11.7, 11.6* | |||||||
| ONTAP 9.5 | 9.5P17, 9.5P16 | 11.8, 11.7, 11.6, 11.5P1* | |||||||
| ONTAP 9.5 | 9.5P15, 9.5P14 | 11.8, 11.7, 11.6, 11.5P1, 11.5* | |||||||
| ONTAP 9.5 | 9.5P13, 9.5P12, 9.5P10-P11 | 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4* | |||||||
| ONTAP 9.5 | 9.5P9, 9.5P8, 9.5P7 | 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2* | |||||||
| ONTAP 9.5 | 9.5P6 | 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1* | |||||||
| ONTAP 9.5 | 9.5P5, 9.5P4, 9.5P2-P3, 9.5P1, 9.5, 9.5RC1 | 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1, 11.3, 11.2* | |||||||
| ONTAP 9.4 | 9.4P8 | 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1* | |||||||
| ONTAP 9.4 | 9.4P7, 9.4P6, 9.4P5, 9.4P4, 9.4P3 | 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1, 11.3, 11.1P3* | |||||||
| ONTAP 9.4 | 9.4P2 | 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1, 11.3, 11.1P3, 11.1P2* | |||||||
| ONTAP 9.4 | 9.4P1, 9.4, 9.4RC1 | 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1, 11.3, 11.1P3, 11.1P2, 11.1* | |||||||
| Footnote: | |||||||||
| [1]* Indicates that firmware is bundled with Storage OS Version | |||||||||
Product Certificates - FAS2750 2-port UTA2 Single Chassis HA Pair
| Certificate Name | Geo / Region / Country | Associated Products | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Battery Pack safety reports | |||||||||
| Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00045AWB | Global | Platforms : AFF A220, AFF A320, AFF A400, AFF A700s, AFF A800, AFF C190, FAS2620, FAS2650, FAS2720, FAS2750, FAS8300, FAS8700 | |||||||
| EMI and Safety certificates | |||||||||
| Declaraion of Similarity NAJ-1502 | Global | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 G-K-U-SoR | Gabon,Kenya,SaudiArabia,Uganda | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 (FXN Taiwan) BIS | BIS - India | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 (Jabil Mexico) BIS | BIS - India | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 (Jabil Singapore) BIS | BIS - India | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 60950-CB | CB - International | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 62368-CB | CB - International | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 ACMA | ACMA - Australia, New Zealand | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 BSMI | BSMI - Taiwan | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 CSA | CSA - United States, Canada | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 DoC CE | CE - European Union DoC | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 EAC | EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 IRAM | IRAM - Argentina | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 KC | KC - South Korea | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 Morocco | Morocco | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 NOM | NOM - Mexico | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 NRCS | NRCS - South Africa (Safety) | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 SONCAP | SONCAP - Nigeria | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 TBS | TBS - Tanzania | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 UKRSep | Global | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 VCCI | VCCI - Japan | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 FCC | FCC - United States | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| NAJ-1502 UKCA DOC | UKCA -United Kingdom | Platforms : E2812, FAS2620, FAS2720, SG5712 | |||||||
| PSU 80+ Platinum Certificates | |||||||||
| DCJ9133-01 Energy Star Report | Global | Platforms : AFF A220, AFF C190, ASA AFF A220, FAS2720, FAS2750 | |||||||
| TDPS-900AB A Energy Star Report | Global | Platforms : AFF A220, AFF C190, ASA AFF A220, FAS2720, FAS2750 | |||||||
| Voluntary Product Accessibility Template | |||||||||
| VPAT - NetApp Accessibility Conformance Report - NetApp FAS2720 | Global | Platforms : FAS2720 | |||||||
Size, Weight, Acoustic, Power FAS2750 2-port UTA2 Single Chassis HA Pair
| Associated Part No. | Configuration | Rack Units | Weight | Sound Power | Sound Pressure | Line Voltage Actual (Min to Max) | Amps Typical | Amps Worst | Watts Typical | Watts Worst | BTU / Hr Typical | BTU / Hr Worst |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Embedded Drive Config (Empty) | ||||||||||||
| FAS2750-100-C | FAS2750 2 PCM no drives | 2 | 42.8 lb (19.4 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 2.72 | 4.16 | 266 | 407 | 908 | 1390 |
| FAS2750-100-C | FAS2750 2 PCM no drives | 2 | 42.8 lb (19.4 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.34 | 2.04 | 261 | 399 | 891 | 1362 |
| Embedded Drive Config (Half) | ||||||||||||
| FAS2750-101-C | FAS2750 2 PCM 12x900GB HDD | 2 | 50.5 lb (22.9 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.95 | 5.39 | 387 | 528 | 1321 | 1803 |
| FAS2750-101-C | FAS2750 2 PCM 12x900GB HDD | 2 | 50.5 lb (22.9 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.94 | 2.65 | 380 | 518 | 1297 | 1768 |
| FAS2750-103-C | FAS2750 2 PCM 12x1.2TB HDD | 2 | 50.5 lb (22.9 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.8 | 5.24 | 372 | 513 | 1270 | 1751 |
| FAS2750-103-C | FAS2750 2 PCM 12x1.2TB HDD | 2 | 50.5 lb (22.9 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.87 | 2.57 | 365 | 503 | 1246 | 1717 |
| FAS2750-105-C | FAS2750 2 PCM 12x1.8TB HDD | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.76 | 5.2 | 368 | 509 | 1256 | 1738 |
| FAS2750-105-C | FAS2750 2 PCM 12x1.8TB HDD | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.85 | 2.55 | 361 | 499 | 1233 | 1704 |
| FAS2750-105-C | FAS2750 2 PCM 12x1.8TB HDD NSE | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.76 | 5.2 | 368 | 509 | 1256 | 1738 |
| FAS2750-105-C | FAS2750 2 PCM 12x1.8TB HDD NSE | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.85 | 2.55 | 361 | 499 | 1233 | 1704 |
| FAS2750-107-C | FAS2750 2 PCM 12x1.8TB HDD | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.76 | 5.2 | 368 | 509 | 1256 | 1738 |
| FAS2750-107-C | FAS2750 2 PCM 12x1.8TB HDD | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.85 | 2.55 | 361 | 499 | 1233 | 1704 |
| FAS2750-107-C | FAS2750 2 PCM 12x1.8TB HDD NSE | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.76 | 5.2 | 368 | 509 | 1256 | 1738 |
| FAS2750-107-C | FAS2750 2 PCM 12x1.8TB HDD NSE | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.85 | 2.55 | 361 | 499 | 1233 | 1704 |
| FAS2750-109-C | FAS2750 2 PCM 12x960GB SSD | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.24 | 4.67 | 317 | 457 | 1082 | 1560 |
| FAS2750-109-C | FAS2750 2 PCM 12x960GB SSD | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.59 | 2.29 | 311 | 448 | 1062 | 1529 |
| FAS2750-111-C | FAS2750 2 PCM 12x3.8TB SSD | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.21 | 4.64 | 314 | 454 | 1072 | 1550 |
| FAS2750-111-C | FAS2750 2 PCM 12x3.8TB SSD | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.58 | 2.28 | 308 | 445 | 1052 | 1519 |
| FAS2750-111-C | FAS2750 2 PCM 12x3.8TB SSD NSE | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.21 | 4.64 | 314 | 454 | 1072 | 1550 |
| FAS2750-111-C | FAS2750 2 PCM 12x3.8TB SSD NSE | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.58 | 2.28 | 308 | 445 | 1052 | 1519 |
| FAS2750-113-C | FAS2750 2 PCM 12x3.8TB SSD | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.21 | 4.64 | 314 | 454 | 1072 | 1550 |
| FAS2750-113-C | FAS2750 2 PCM 12x3.8TB SSD | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.58 | 2.28 | 308 | 445 | 1052 | 1519 |
| FAS2750-113-C | FAS2750 2 PCM 12x3.8TB SSD NSE | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.21 | 4.64 | 314 | 454 | 1072 | 1550 |
| FAS2750-113-C | FAS2750 2 PCM 12x3.8TB SSD NSE | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.58 | 2.28 | 308 | 445 | 1052 | 1519 |
| FAS2750-115-C | FAS2750 2 PCM 12x7.6TB | 2 | 48.7 lb (22.1 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.32 | 4.75 | 325 | 465 | 1110 | 1587 |
| FAS2750-115-C | FAS2750 2 PCM 12x7.6TB | 2 | 48.7 lb (22.1 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.63 | 2.33 | 319 | 456 | 1089 | 1557 |
| FAS2750-117-C | FAS2750 2 PCM 12x15.3TB SSD | 2 | 48.7 lb (22.1 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.34 | 4.78 | 327 | 468 | 1117 | 1598 |
| FAS2750-117-C | FAS2750 2 PCM 12x15.3TB SSD | 2 | 48.7 lb (22.1 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.64 | 2.35 | 321 | 459 | 1096 | 1567 |
| FAS2750-127-C | FAS2750 2 PCM 12x960GB SSD | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.24 | 4.67 | 317 | 457 | 1082 | 1560 |
| FAS2750-127-C | FAS2750 2 PCM 12x960GB SSD | 2 | 51.8 lb (23.5 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.59 | 2.29 | 311 | 448 | 1062 | 1529 |
| Embedded Drive Config (Full) | ||||||||||||
| FAS2750-102-C | FAS2750 2 PCM 24x900GB HDD | 2 | 58.2 lb (26.4 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 5.19 | 6.62 | 508 | 648 | 1734 | 2212 |
| FAS2750-102-C | FAS2750 2 PCM 24x900GB HDD | 2 | 58.2 lb (26.4 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.55 | 3.25 | 498 | 636 | 1700 | 2171 |
| FAS2750-104-C | FAS2750 2 PCM 24x1.2TB HDD | 2 | 58.2 lb (26.4 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.87 | 6.31 | 477 | 618 | 1628 | 2110 |
| FAS2750-104-C | FAS2750 2 PCM 24x1.2TB HDD | 2 | 58.2 lb (26.4 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.39 | 3.1 | 468 | 606 | 1598 | 2069 |
| FAS2750-106-C | FAS2750 2 PCM 24x1.8TB HDD | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.8 | 6.23 | 470 | 610 | 1605 | 2082 |
| FAS2750-106-C | FAS2750 2 PCM 24x1.8TB HDD | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.36 | 3.06 | 461 | 598 | 1574 | 2041 |
| FAS2750-106-C | FAS2750 2 PCM 24x1.8TB HDD NSE | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.8 | 6.23 | 470 | 610 | 1605 | 2082 |
| FAS2750-106-C | FAS2750 2 PCM 24x1.8TB HDD NSE | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.36 | 3.06 | 461 | 598 | 1574 | 2041 |
| FAS2750-108-C | FAS2750 2 PCM 24x1.8TB HDD | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.8 | 6.23 | 470 | 610 | 1605 | 2082 |
| FAS2750-108-C | FAS2750 2 PCM 24x1.8TB HDD | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.36 | 3.06 | 461 | 598 | 1574 | 2041 |
| FAS2750-108-C | FAS2750 2 PCM 24x1.8TB HDD NSE | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.8 | 6.23 | 470 | 610 | 1605 | 2082 |
| FAS2750-108-C | FAS2750 2 PCM 24x1.8TB HDD NSE | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.36 | 3.06 | 461 | 598 | 1574 | 2041 |
| FAS2750-110-C | FAS2750 2 PCM 24x960GB SSD | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.75 | 5.18 | 367 | 507 | 1253 | 1731 |
| FAS2750-110-C | FAS2750 2 PCM 24x960GB SSD | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.84 | 2.54 | 360 | 497 | 1229 | 1697 |
| FAS2750-112-C | FAS2750 2 PCM 24x3.8TB SSD | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.69 | 5.12 | 361 | 501 | 1233 | 1710 |
| FAS2750-112-C | FAS2750 2 PCM 24x3.8TB SSD | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.81 | 2.51 | 354 | 491 | 1209 | 1676 |
| FAS2750-112-C | FAS2750 2 PCM 24x3.8TB SSD NSE | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.69 | 5.12 | 361 | 501 | 1233 | 1710 |
| FAS2750-112-C | FAS2750 2 PCM 24x3.8TB SSD NSE | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.81 | 2.51 | 354 | 491 | 1209 | 1676 |
| FAS2750-114-C | FAS2750 2 PCM 24x3.8TB SSD | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.69 | 5.12 | 361 | 501 | 1233 | 1710 |
| FAS2750-114-C | FAS2750 2 PCM 24x3.8TB SSD | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.81 | 2.51 | 354 | 491 | 1209 | 1676 |
| FAS2750-114-C | FAS2750 2 PCM 24x3.8TB SSD NSE | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.69 | 5.12 | 361 | 501 | 1233 | 1710 |
| FAS2750-114-C | FAS2750 2 PCM 24x3.8TB SSD NSE | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.81 | 2.51 | 354 | 491 | 1209 | 1676 |
| FAS2750-116-C | FAS2750 2 PCM 24x7.6TB | 2 | 54.5 lb (24.7 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.91 | 5.35 | 383 | 524 | 1308 | 1789 |
| FAS2750-116-C | FAS2750 2 PCM 24x7.6TB | 2 | 54.5 lb (24.7 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.92 | 2.63 | 376 | 514 | 1284 | 1755 |
| FAS2750-118-C | FAS2750 2 PCM 24x15.3TB SSD | 2 | 54.5 lb (24.7 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.95 | 5.39 | 387 | 528 | 1321 | 1803 |
| FAS2750-118-C | FAS2750 2 PCM 24x15.3TB SSD | 2 | 54.5 lb (24.7 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.94 | 2.65 | 380 | 518 | 1297 | 1768 |
| FAS2750-128-C | FAS2750 2 PCM 24x960GB SSD | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 3.75 | 5.18 | 367 | 507 | 1253 | 1731 |
| FAS2750-128-C | FAS2750 2 PCM 24x960GB SSD | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 1.84 | 2.54 | 360 | 497 | 1229 | 1697 |
| Embedded Drive Config (Mixed) | ||||||||||||
| FAS2750-119-C | FAS2750 2 PCM 4x960GB, 20x900GB | 2 | 58.6 lb (26.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.94 | 6.38 | 484 | 625 | 1652 | 2134 |
| FAS2750-119-C | FAS2750 2 PCM 4x960GB, 20x900GB | 2 | 58.6 lb (26.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.43 | 3.13 | 475 | 613 | 1622 | 2093 |
| FAS2750-120-C | FAS2750 2 PCM 4x960GB, 20x1.2TB | 2 | 58.6 lb (26.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.69 | 6.13 | 459 | 600 | 1567 | 2048 |
| FAS2750-120-C | FAS2750 2 PCM 4x960GB, 20x1.2TB | 2 | 58.6 lb (26.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.3 | 3 | 450 | 588 | 1536 | 2007 |
| FAS2750-121-C | FAS2750 2 PCM 4x960GB, 20x1.8TB | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.62 | 6.06 | 452 | 593 | 1543 | 2024 |
| FAS2750-121-C | FAS2750 2 PCM 4x960GB, 20x1.8TB | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.27 | 2.97 | 443 | 582 | 1512 | 1987 |
| FAS2750-122-C | FAS2750 2 PCM 4x3.8TB, 20x900GB | 2 | 58.6 lb (26.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.93 | 6.37 | 483 | 624 | 1649 | 2130 |
| FAS2750-122-C | FAS2750 2 PCM 4x3.8TB, 20x900GB | 2 | 58.6 lb (26.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.42 | 3.13 | 474 | 612 | 1618 | 2089 |
| FAS2750-123-C | FAS2750 2 PCM 4x3.8TB, 20x1.2TB | 2 | 58.6 lb (26.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.68 | 6.12 | 458 | 599 | 1564 | 2045 |
| FAS2750-123-C | FAS2750 2 PCM 4x3.8TB, 20x1.2TB | 2 | 58.6 lb (26.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.3 | 3 | 449 | 588 | 1533 | 2007 |
| FAS2750-124-C | FAS2750 2 PCM 4x3.8TB NSE, 20x1.8TB NSE | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.61 | 6.05 | 451 | 592 | 1540 | 2021 |
| FAS2750-124-C | FAS2750 2 PCM 4x3.8TB NSE, 20x1.8TB NSE | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.26 | 2.97 | 442 | 581 | 1509 | 1983 |
| FAS2750-124-C | FAS2750 2 PCM 4x3.8TB, 20x1.8TB | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.61 | 6.05 | 451 | 592 | 1540 | 2021 |
| FAS2750-124-C | FAS2750 2 PCM 4x3.8TB, 20x1.8TB | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.26 | 2.97 | 442 | 581 | 1509 | 1983 |
| FAS2750-125-C | FAS2750 2 PCM 4x3.8TB NSE, 20x1.8TB NSE | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.61 | 6.05 | 451 | 592 | 1540 | 2021 |
| FAS2750-125-C | FAS2750 2 PCM 4x3.8TB NSE, 20x1.8TB NSE | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.26 | 2.97 | 442 | 581 | 1509 | 1983 |
| FAS2750-125-C | FAS2750 2 PCM 4x3.8TB, 20x1.8TB | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.61 | 6.05 | 451 | 592 | 1540 | 2021 |
| FAS2750-125-C | FAS2750 2 PCM 4x3.8TB, 20x1.8TB | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.26 | 2.97 | 442 | 581 | 1509 | 1983 |
| FAS2750-126-C | FAS2750 2 PCM 4x960GB, 20x1.8TB | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 100 (100 to 120) | 4.62 | 6.06 | 452 | 593 | 1543 | 2024 |
| FAS2750-126-C | FAS2750 2 PCM 4x960GB, 20x1.8TB | 2 | 60.8 lb (27.6 kg) | 6.9 Bels | 51 dBA | 200 (200 to 240) | 2.27 | 2.97 | 443 | 582 | 1512 | 1987 |
