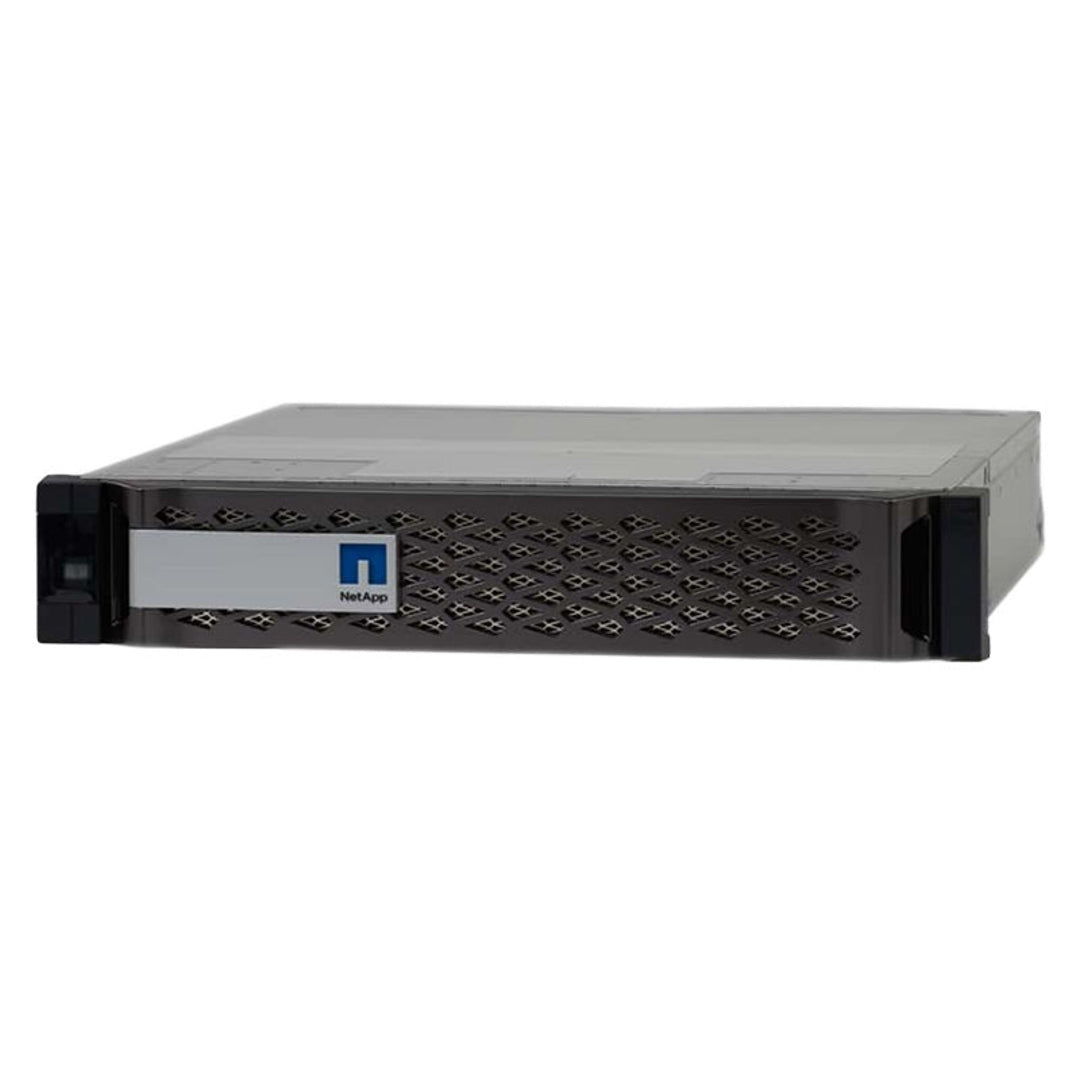

NetApp FAS2650 Single Controller 24x 2.5”

NetApp FAS2650 Single Controller Filer Head (Stand Alone)

SKU: FAS2650

NetApp FAS2650 Single Controller Filer Head (Stand Alone)

Name: NetApp FAS2650 Single Controller Filer Head (Stand Alone)
Brand: NetApp
SKU: FAS2650
Availability: OutOfStock

NetApp

| Filer Head

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

Designed to support more of your IT needs, the NetApp FAS2650A Dual Controller hybrid storage arrays provide more value than other systems in their class. The FAS2650A Dual Controller running NetApp ONTAP storage software simplifies the task of managing growth and complexity by delivering high performance, providing leading integration with the cloud, supporting a broader range of workloads, and seamlessly scaling performance and capacity.

You can build a foundation for a NetApp Data Fabric that leverages flash acceleration and public cloud storage resources to cost effectively handle dynamic storage needs. For growing organizations that are concerned about budgets today and meeting challenging IT needs in the future, the FAS2650A Dual Controller is a great choice.

Equipped for higher performance needs, with space for up to 24 internal SFF drives and expansion up to a total of 144 drives, the FAS2650A is a great fit for:

Midsize organizations and distributed sites of larger organizations
Windows applications and virtual server consolidation with multiple workloads
Customers who require higher performance, I/O flexibility, and investment protection for future growth

The FAS2650 base configuration ships with a 512GB NVMe Flash Cache internal adapter configured on each node. No upgrade of Flash Cache capacity is offered.

Model & Form Factor

Model: NetApp FAS2650
Form Factor: 2U
PCIe Expansion Slots: None
Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS460C
Filer Heads: N/A

Dimensions & Weight

Chassis Heights: 3.42" (8.69 cm)
Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm))
Chassis Depth w/ Cable Mgmt: 24.13" (61.3 cm)
Chassis Weight: up to 60.8 lb (27.6 kg)

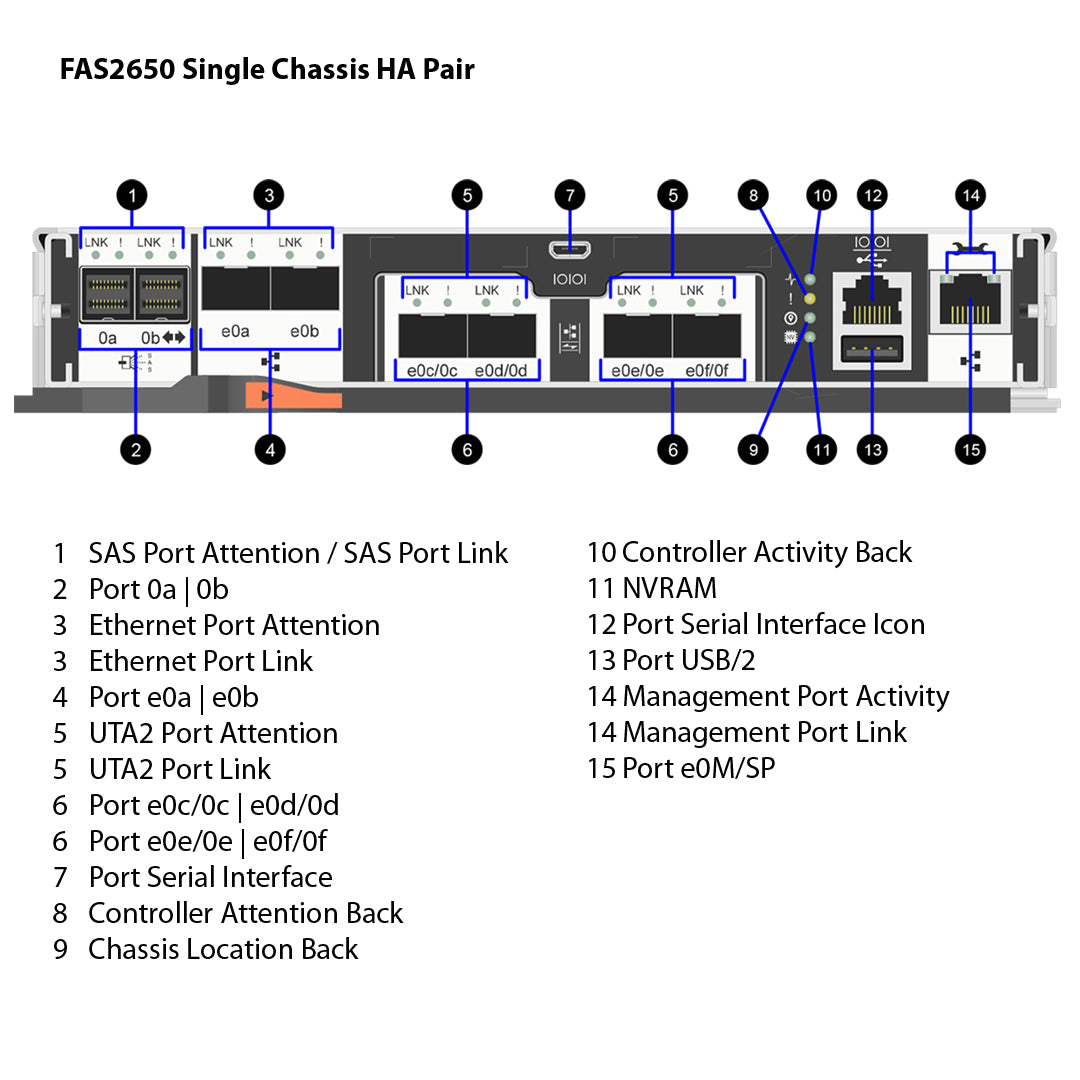

Controller Specs

Controllers: Single Controller (Stand Alone)
Max Controllers: 2
PCI Slot (per): None
Ethernet Ports (per): 2 x SFP+ (10Gb)
Fibre Channel Ports (per): N/A
UTA2 Ports (per): 4 x SFP+ (10Gb/16Gb)
SAS Ports (per): 2 x MiniSAS HD (12Gb)
Remote Management: Yes
Processor Model (per):1x 64-bit 6-core 1.90 Ghz
Memory (Single/HA): 32GB/64GB
NVME (per): 512GB
NVMEM (per): 4GB

Storage

Max Number of Internal Drives: 24
Max Number Drives (total): 144
Max Capacity: 1,963TB (1.96PB)
Max Number of NL-SAS Drives: HA Pair: 144
Max Number of SAS Drives: HA Pair: 144
Max Number of SATA Drives: HA Pair: 144
Max Number of SSD Drives: HA Pair: 144
Drive Interface: NL-SAS, SAS, SATA, SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max Number of DS212C Shelves: 9 external
Max Number of DS2246 Shelves: 5 external
Max Number of DS224C Shelves: 1 internal + 5 external OR 0 internal + 6 external
Max Number of DS4243 Shelves: 5 external
Max Number of DS4246 Shelves: 5 external
Max Number of DS460C Shelves: 2 external

UTA2 ports

A UTA2 (Unified Target Adapter 2) port on a NetApp system is a flexible, multi-protocol port that can support both Fibre Channel (FC) and Ethernet-based protocols (FCoE or iSCSI over Ethernet). These ports allow NetApp controllers to connect to storage networks using different protocols without needing separate dedicated adapters.

FAS2650 Parts Lists
