Specs
Switch Specs
- Type: Managed Top-of-Rack Switch
- Model: S5148F-ON
- Primary Ports: 48 x 25GbE SFP28
- Uplink Ports: 6 x 100GbE QSFP28
- Switch Fabric Capacity: 3.6 Tbps (full duplex)
- Power Supply: 2 x Redundant, Hot-swappable 750W AC
- Airflow: Reverse Airflow
- Default OS: Dell OS10 Enterprise
- Form Factor: 1U Rackmount
- PoE: No
- Transceivers: Not included
Part Number:
- S5148F-ON

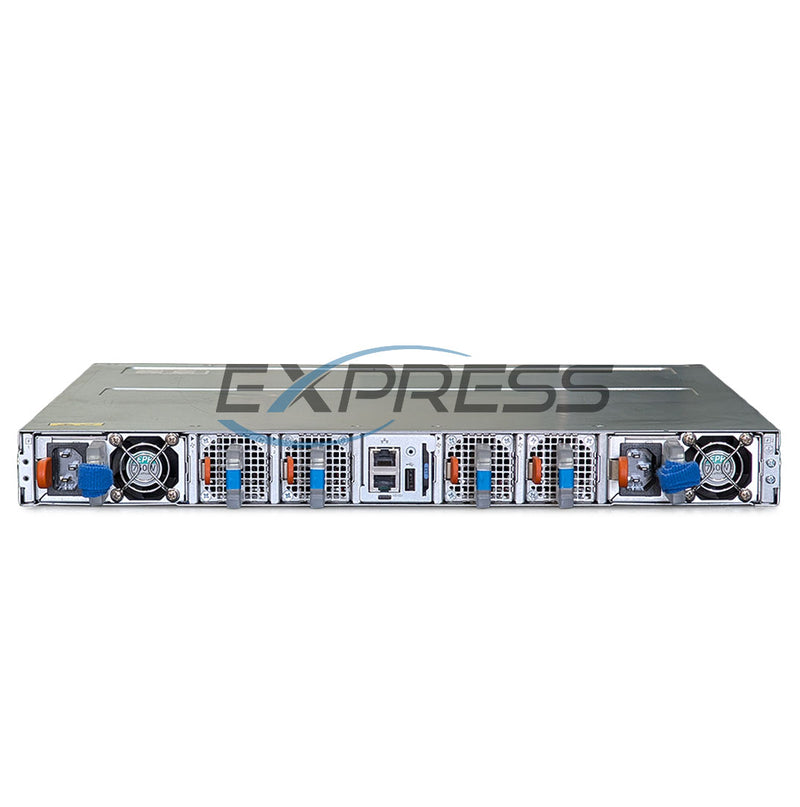

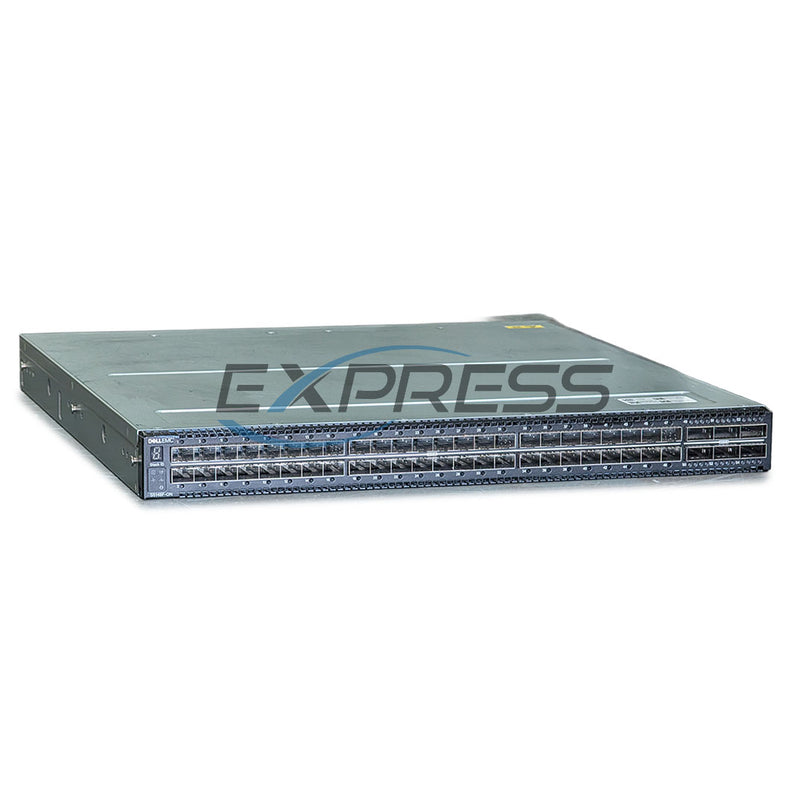

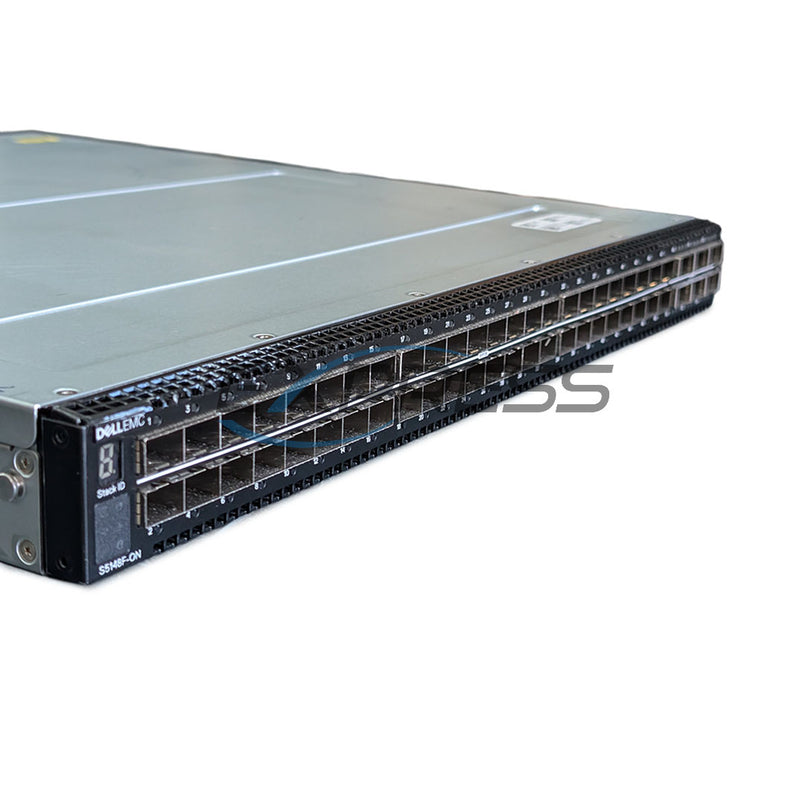

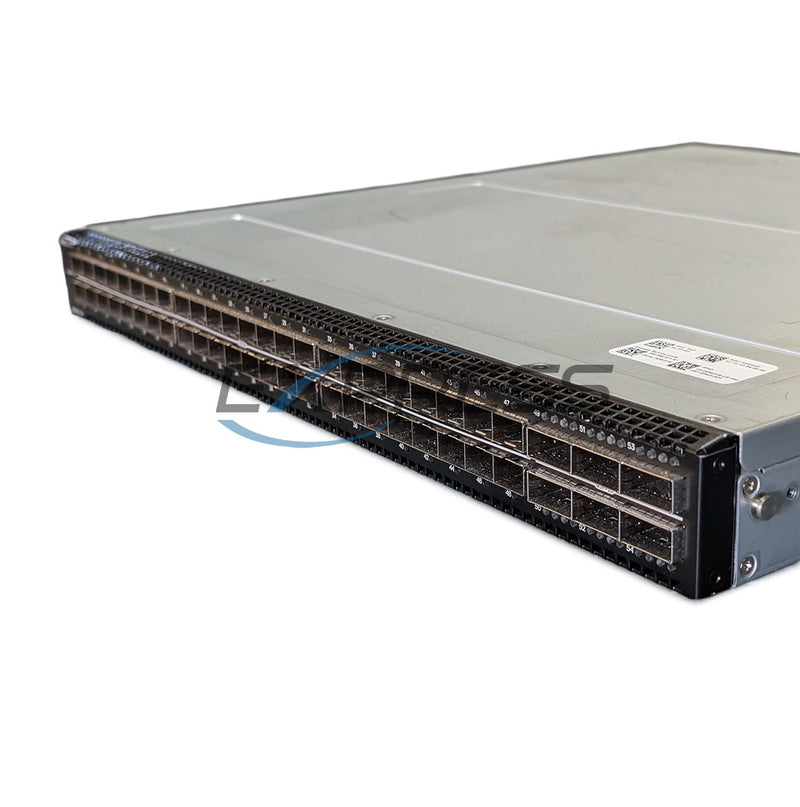

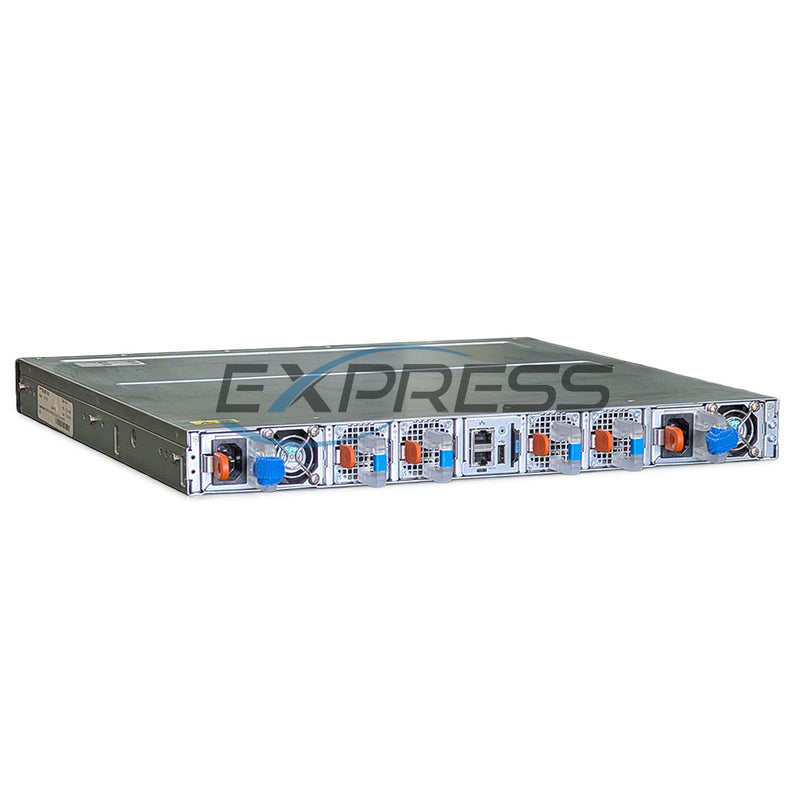

The Dell EMC S5148F-ON is a high-performance Top-of-Rack switch featuring 48 ports of 25GbE and 6 ports of 100GbE in a 1U form factor. Designed for data centers and cloud environments, it supports advanced Layer 2 and Layer 3 features, programmable data plane, and multi-rate connectivity without breakout cables.
This switch supports Dell OS10 Enterprise and offers open networking flexibility with ONIE. Ideal for software-defined data centers, it delivers 3.6Tbps of switching capacity, redundant hot-swappable power supplies and fans, and full support for data center bridging protocols including RoCE, DCBx, and PFC.
Spec Sheet 4
| Product | Description |
|---|---|
| S5148F-ON |
S5148F, 48x 25GbE SFP+, 6x 100GbE QSFP28, 2x AC PSU, 4x Fans, I/O Panel to PSU Airflow S5148F, 48x 25GbE SFP+, 6x 100GbE QSFP28, 2x AC PSU, 4x Fans, PSU to I/O Panel Airflow S5148F, 48x 25GbE SFP+, 6x 100GbE QSFP28, 2x AC PSU, 4x Fans, I/O Panel to PSU Airflow – TAA S5148F, 48x 25GbE SFP+, 6x 100GbE QSFP28, 2x AC PSU, 4x Fans, PSU to I/O Panel Airflow – TAA S5148F, 48x 25GbE SFP+, 6x 100GbE QSFP28, 2x DC PSU, 4x Fans, PSU to I/O Panel Airflow – NEBS Level 3 Certified* |
| Redundant power supplies |
S5100, AC Power Supply, I/O Panel to PSU Airflow S5100, AC Power Supply, PSU to I/O Panel Airflow S5100, DC Power Supply, PSU to I/O Panel Airflow* |
| Fans |
S5100 fan module, I/O Panel to PSU Airflow S5100 fan module, PSU to I/O Panel Airflow |
| Optics |
Transceiver, 100GbE, SR4 QSFP28 Transceiver, 100GbE, LR4 QSFP28 Transceiver, 100GbE, LR4Lite QSFP28 Transceiver, 100GbE, PSM4 10Km QSFP28 (*) Transceiver, 100GbE, CWDM4 2Km QSFP28 (*) Transceiver, 100GbE, PSM4 500m QSFP28 (*) Transceiver, 40GbE, SR4 optic QSFP+ Transceiver, 40GbE, eSR4 optic QSFP+ Transceiver, 40GbE, LR4 optics QSFP+ Transceiver, 40GbE, ER4 optics QSFP+ Transceiver, 40GbE, PSM4 10Km QSFP+ Transceiver, 40GbE, PSM4-LR MPO 10Km QSFP+ to LC Transceiver, 40GbE, LM4 / SM4 Duplex QSFP+ Transceiver, 25GbE, SR4 SFP28 Transceiver, 25GbE, LR4 SFP28 Transceiver, 10GbE, SR4 SFP+ Transceiver, 10GbE, LR4 SFP+ Transceiver, 1GbE, SR4 SFP+ Transceiver, 1GbE, LR4 SFP+ |
| Cables |
100GbE, 4x25GbE, QSFP28 to 4xSFP28, passive DAC 100GbE, QSFP28 to QSFP28, active optical 100GbE, QSFP28 to QSFP28, passive DAC 100GbE, 2x50GbE, QSFP28 to 2xQSFP28, passive DAC, breakout (*) 40GbE, QSFP+ to QSFP+, active optical 40GbE, QSFP+ to QSFP+, passive DAC 40GbE, MTP to 4xLC optical breakout 40GbE, 4x10GbE, QSFP+ to 4xSFP+, passive DAC 25GbE SFP28 to SFP28, passive DAC: 1M, 2M, 3M, 5M 25GbE SFP28 to SFP28, active optical cable: 7M, 10M, 15M, 20M |
